Toyota HILUX 天窗板和背板 — Figure 6153

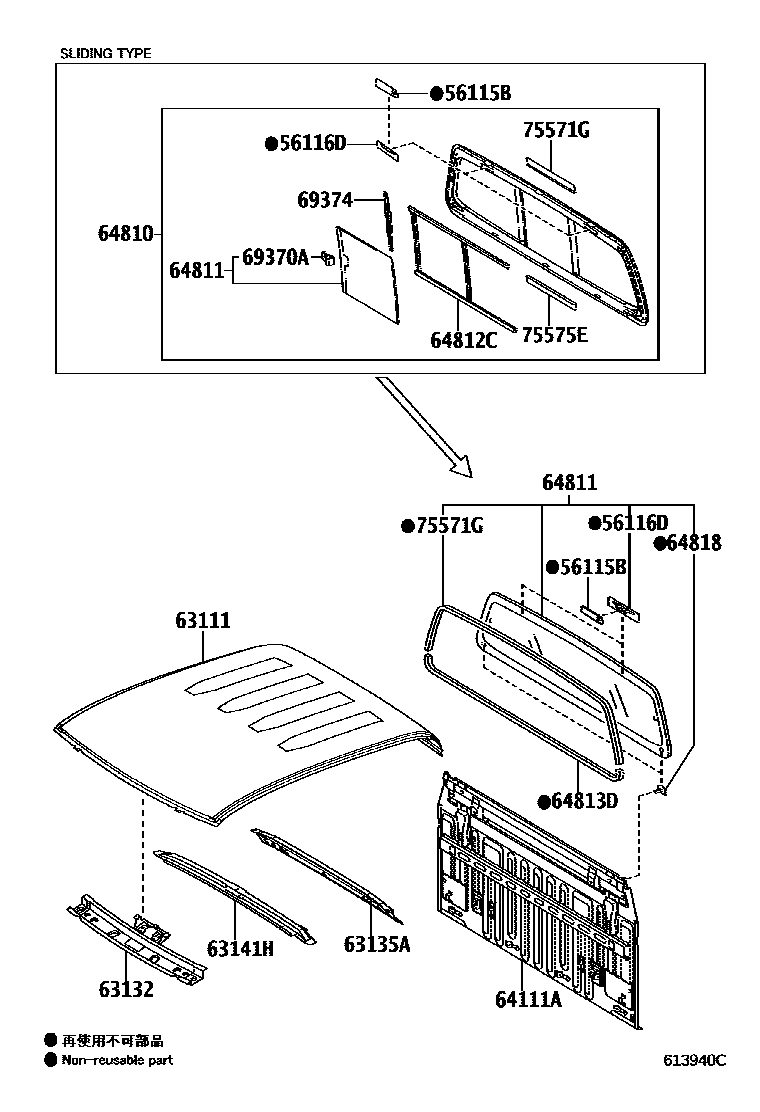

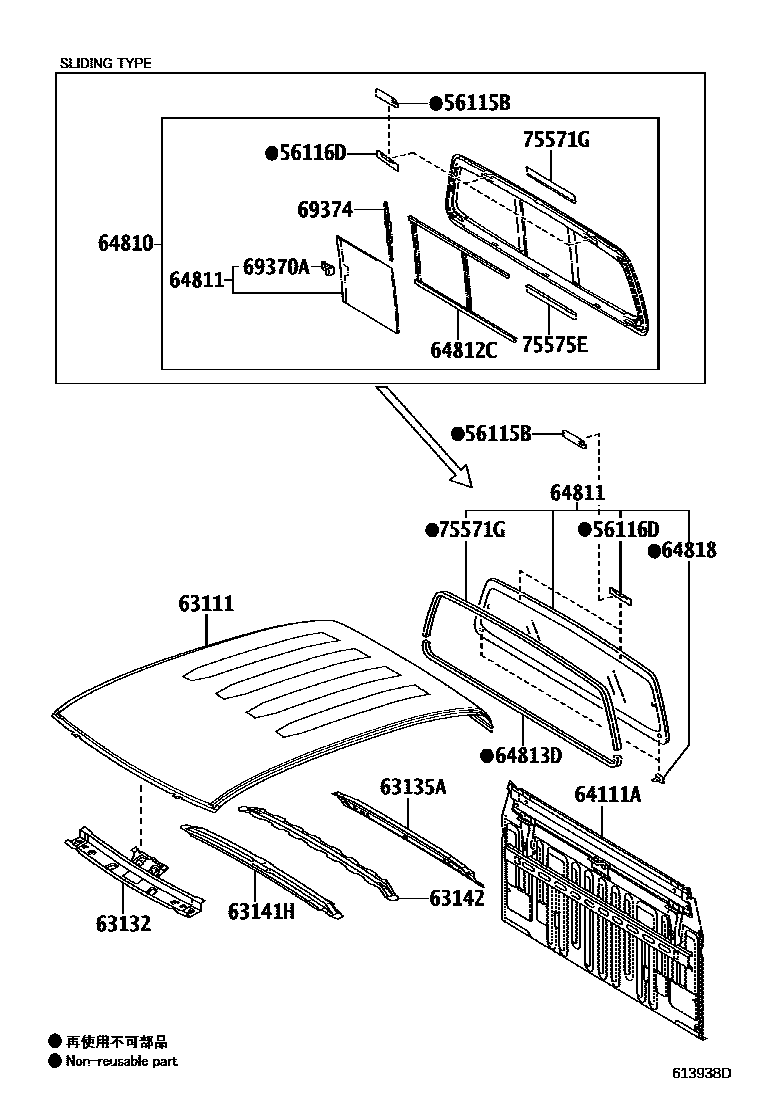

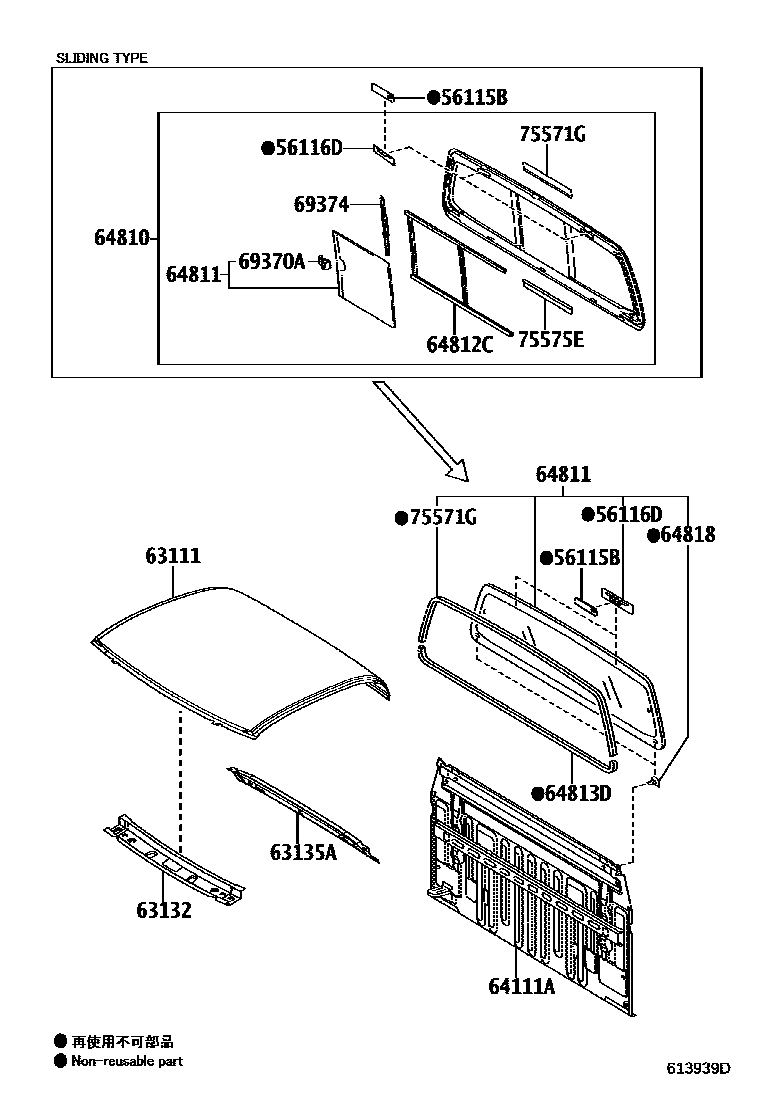

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-02020 |
| 56116D | No. 2 stopper for back window glass | 56116-02020 |
| 63111 | roof panel | 63111-0K020 · 63111-0K040 · 63111-0K140 |
| 63132 | Windshield inner roof panel | 63102-0K040 · 63132-0K010 |
| 63135A | Opening frame under rear door | 63135-0K011 |
| 63141H | Center roof panel reinforcement | 63141-0K011 |
| 63142 | No. 2 roof panel reinforcement | 63142-0K011 |
| 64111A | backplane | 64101-0K010 · 64101-0K020 · 64101-0K030 · 64101-0K050 · 64101-0K060 · 64101-0K070 |
| 64810 | Rear window assembly | 64810-0K020 |
| 64811 | back window glass | 64801-0K030 · 64801-0K040 · 64801-0K070 · 64801-0K080 · 64801-0K090 · 64801-0K100 · 64811-0K130 |
| 64812C | Back window glass seal strip | 64812-0K010 |
| 64813D | Back window glass adhesive seal | 64813-0K020 |
| 64818 | Back window glass spacer | 64818-0K010 |
| 69370A | Rear window lock assembly | 69370-0K010 |
| 69374 | Back window latch | 69374-0K010 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-0K010 · 75571-0K040 |
| 75575E | Lower protective strip on the outside of the rear window | 75575-0K010 |
