Toyota HILUX 中央扶手箱和支架 — Figure 5855

Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 3 images and 10 PNC and OE references.

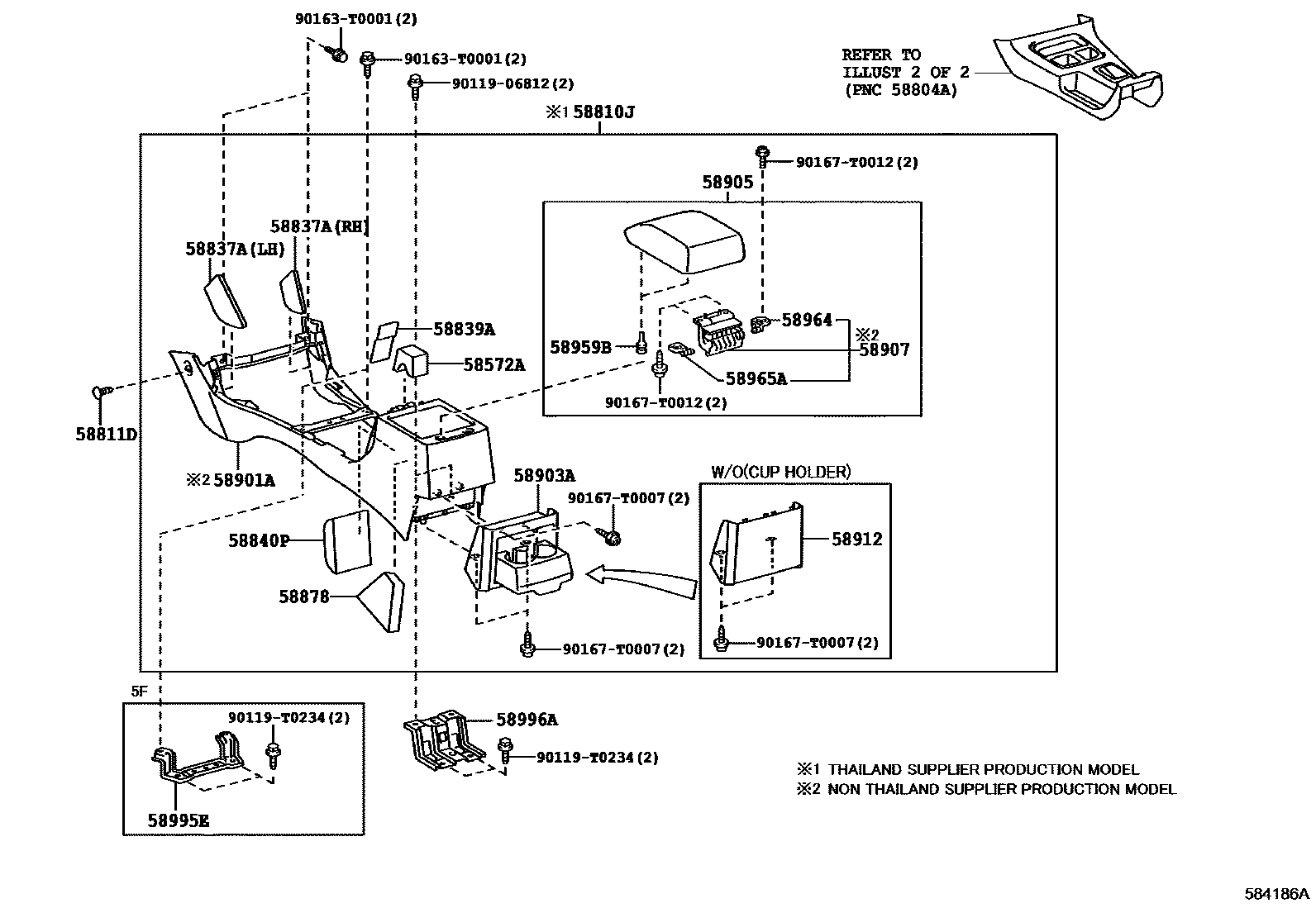

Toyota HILUX 中央扶手箱和支架 EPC diagram — 584186A
中央扶手箱和支架 — 584186A (201107 – 999999)

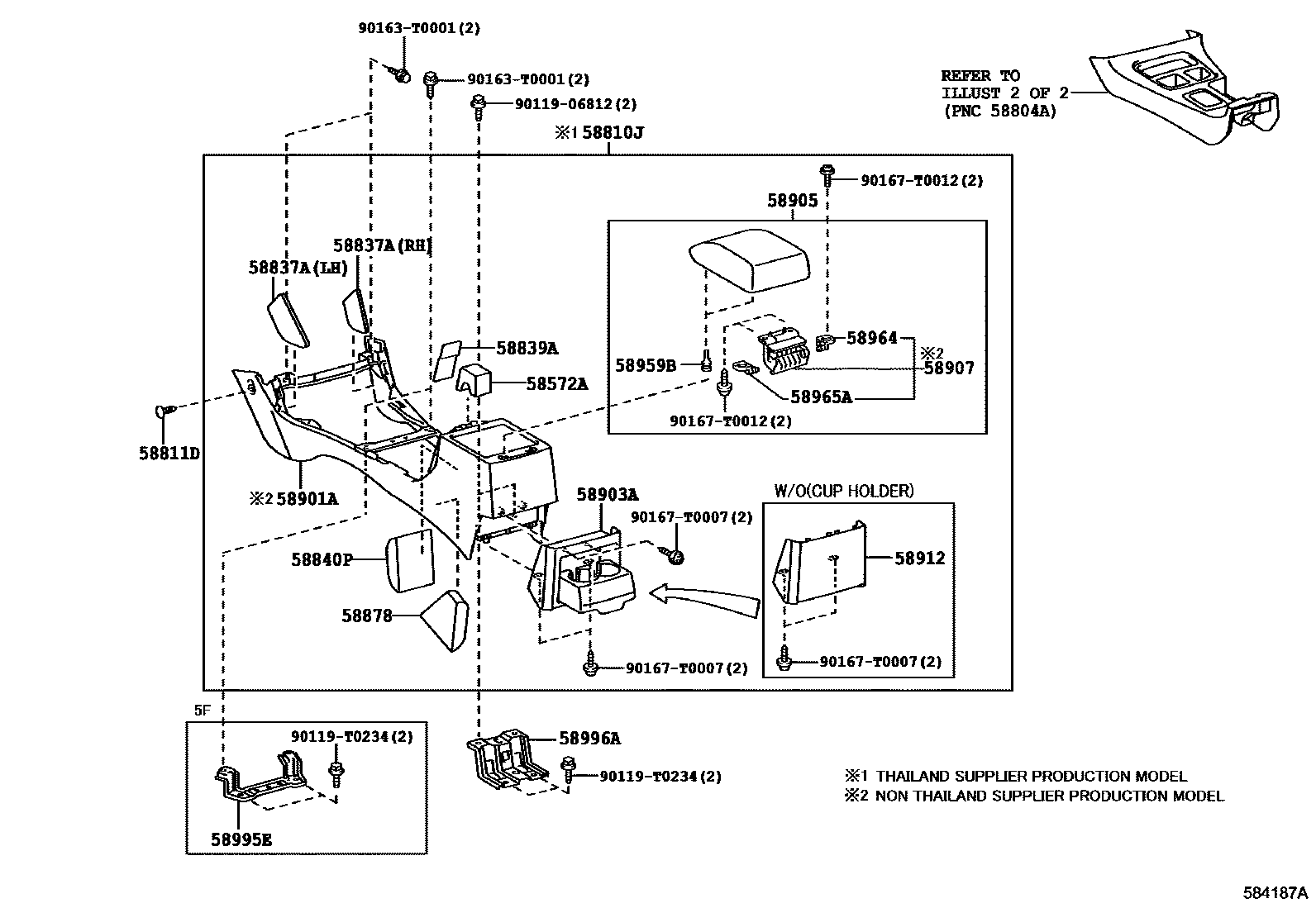

Toyota HILUX 中央扶手箱和支架 EPC diagram — 584187A
中央扶手箱和支架 — 584187A (201107 – 999999)

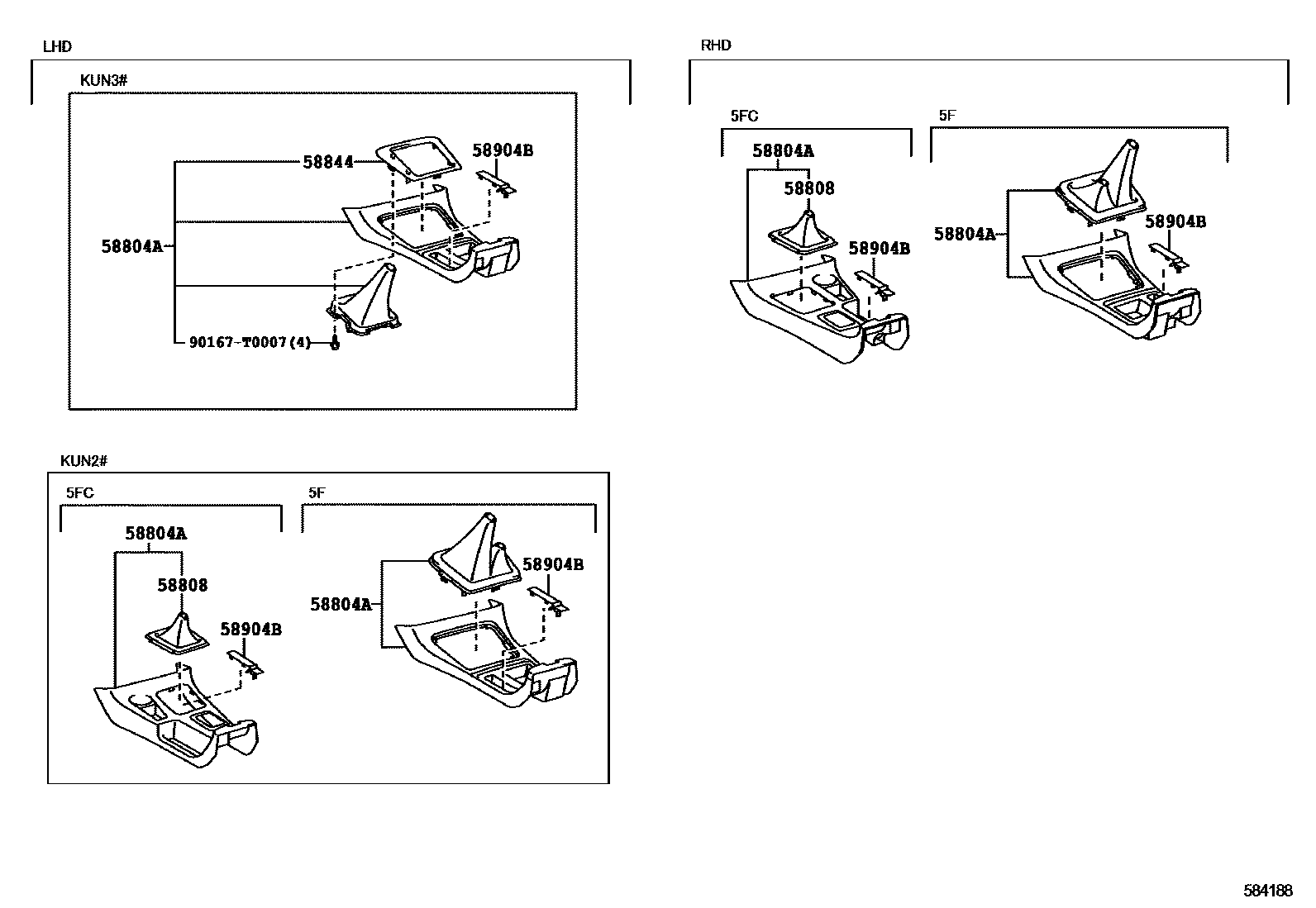

Toyota HILUX 中央扶手箱和支架 EPC diagram — 584188
中央扶手箱和支架 — 584188 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
58572AArmrest box cushion58872-0K010
58837AArmrest Box No. 2 Silencer Pad58837-0K010 · 58837-0K020
58840PArmrest Box No. 3 Silencer Pad58859-0K010
58878Armrest Box No. 4 Silencer Pad58878-0K010
58907Armrest box lid hinge sub-assembly58907-0K050
58959BArmrest box cover cushion90541-04079 · 90541-T0008
58964Armrest box cover No. 1 stop58964-0K050 · 58964-20030
58965AArmrest box cover No. 2 stopper58965-0K070 · 58965-20040
58995EArmrest box No. 1 mounting bracket58995-0K010
58996AArmrest box No. 2 mounting bracket58996-0K010
