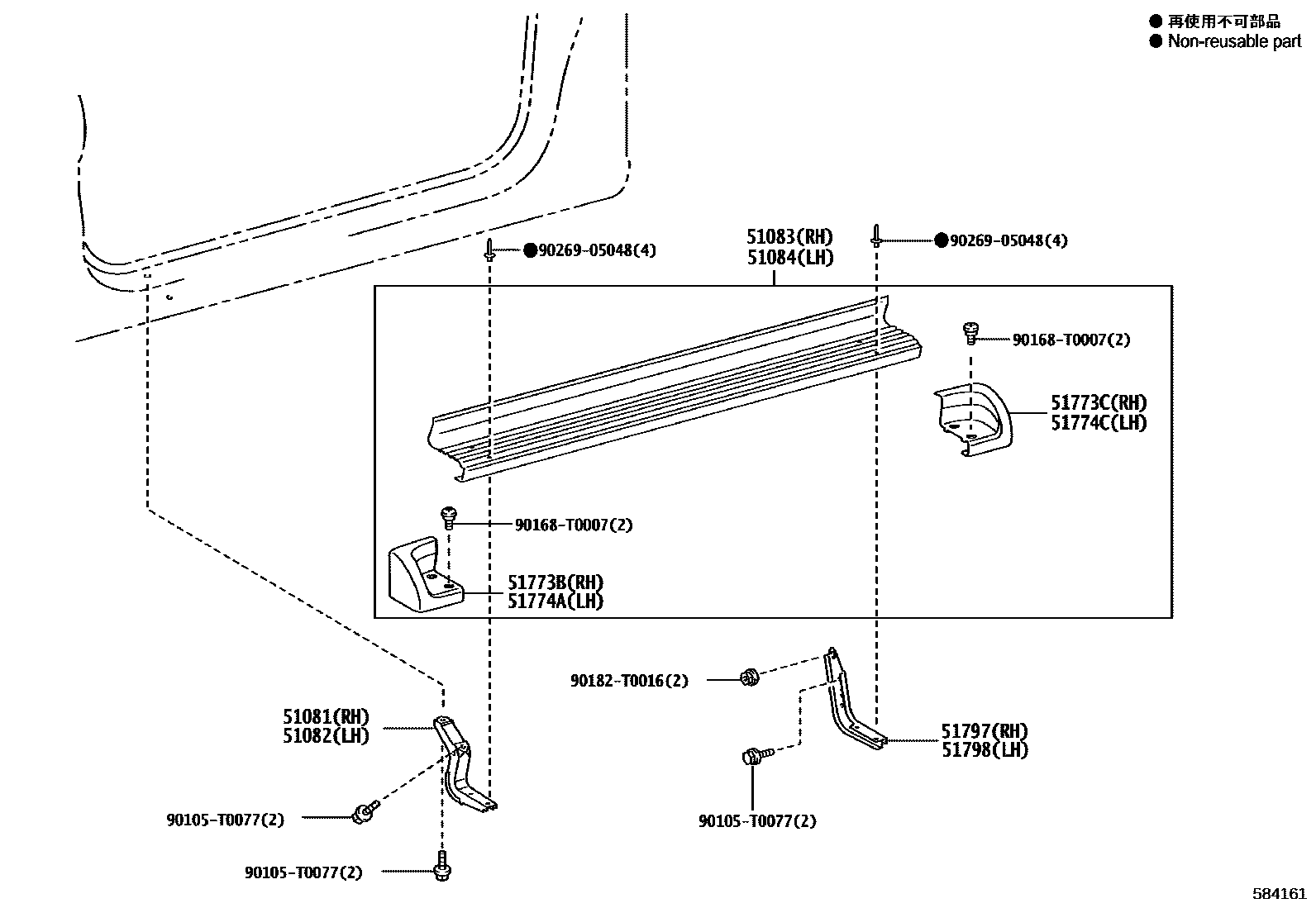

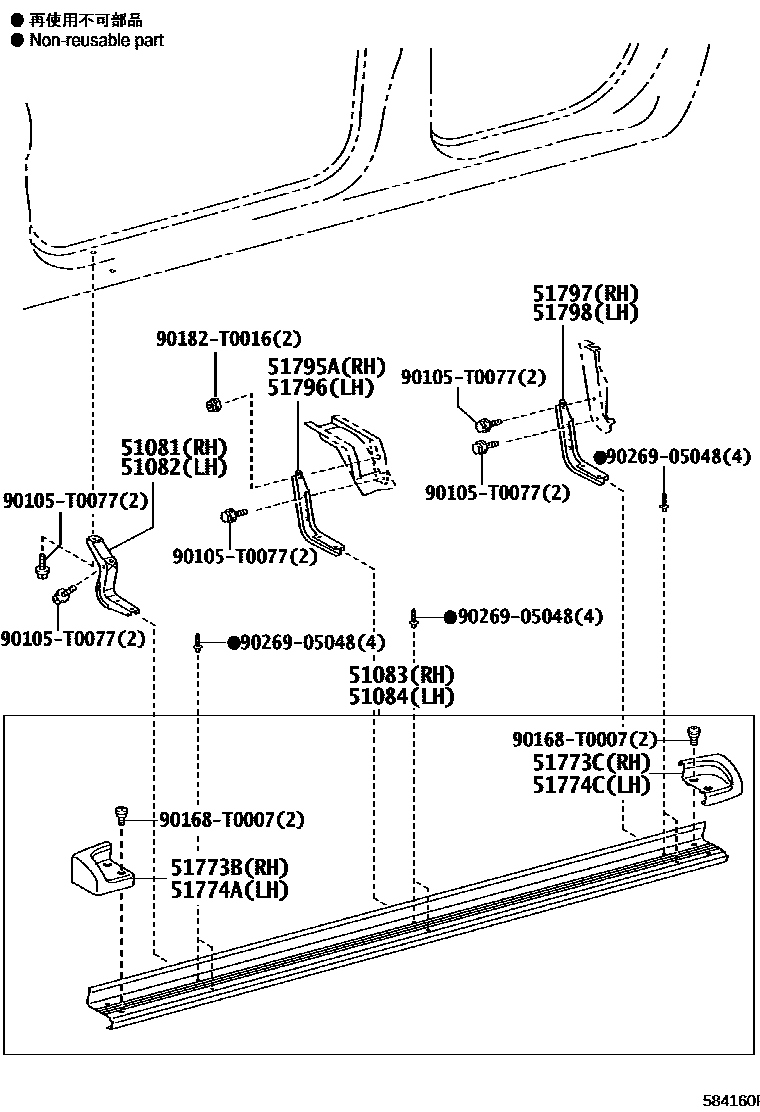

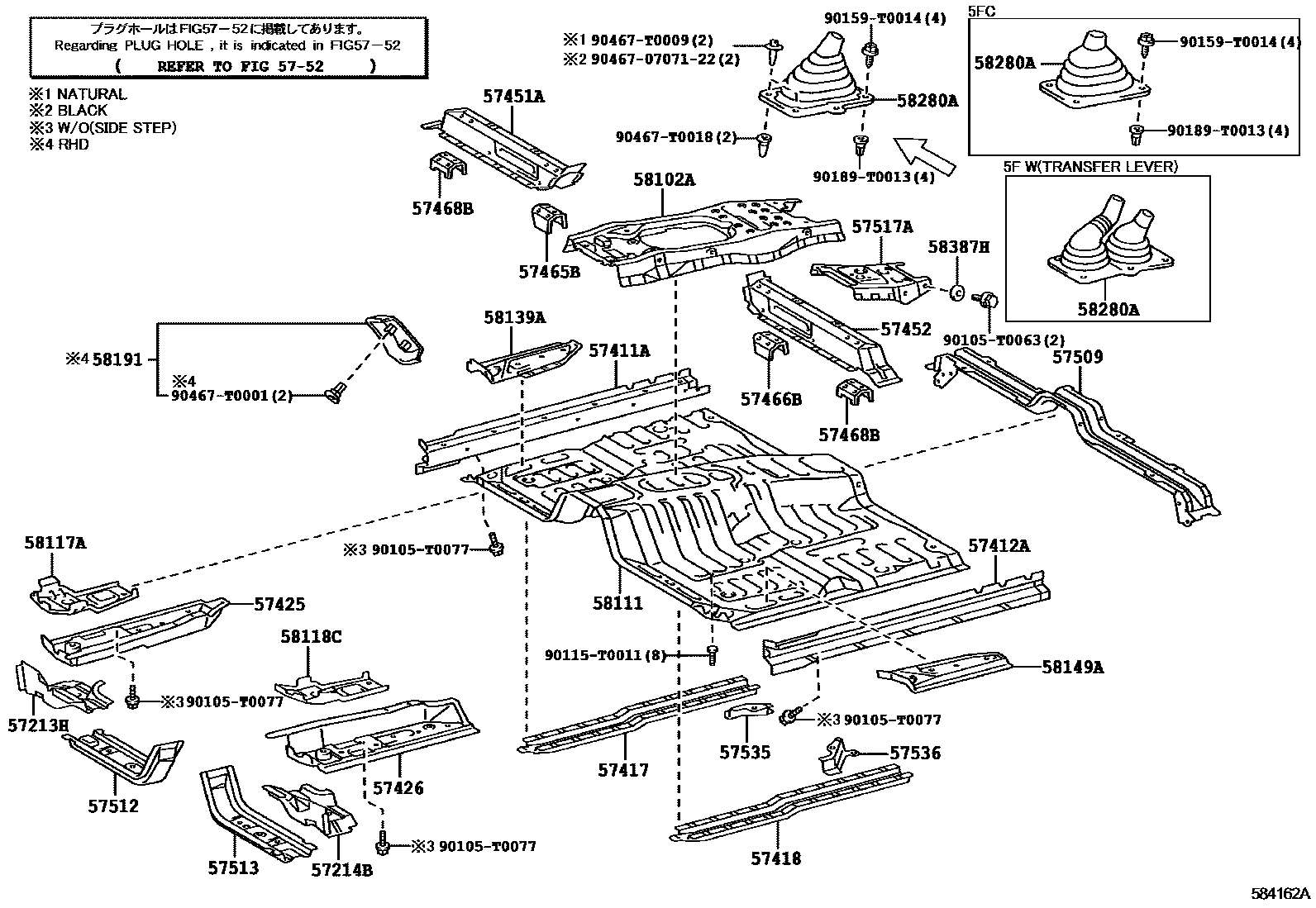

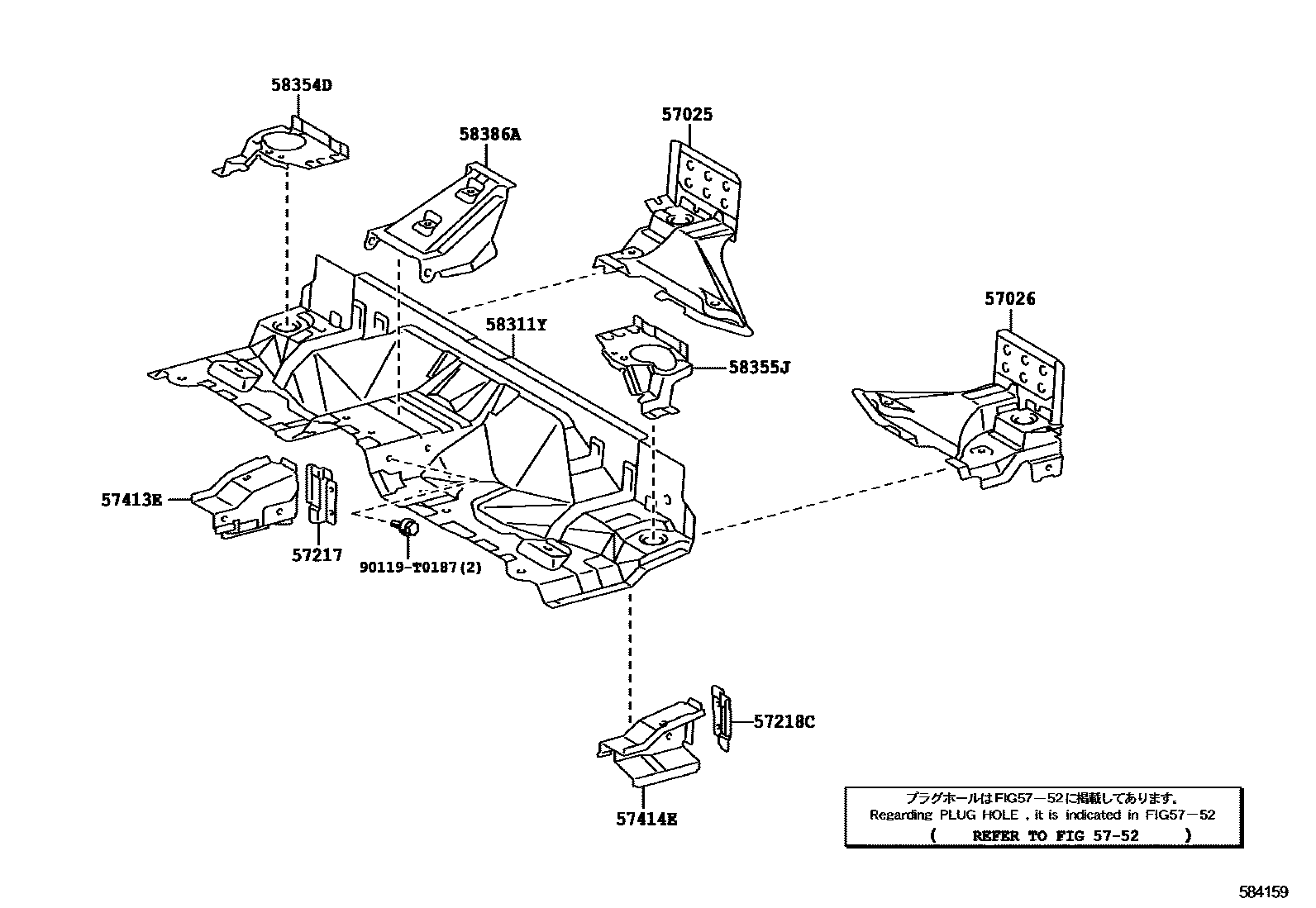

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 4 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51081 | Right foot plate No. 1 stay sub-assembly | 51081-0K010 |
| 51082 | Left foot plate No. 1 stay sub-assembly | 51082-0K010 |
| 51083 | Right pedal sub-assembly | 51083-0K110 · 51083-0K140 · 51083-0K160 · 51083-0K190 · 51083-0K220 |
| 51084 | Left pedal sub-assembly | 51084-0K110 · 51084-0K140 · 51084-0K160 · 51084-0K190 · 51084-0K220 |
| 51773B | Right front door side step panel lining cover | 51773-0K010 |
| 51773C | Right pedal lining cover | 51774-0K010 · 51779-0K050 |
| 51774A | Left front door side step panel lining cover | 51774-0K010 |
| 51774C | Left pedal lining cover | 51759-0K050 · 51773-0K010 |
| 51795A | Right footboard bracket No. 2 | 51795-0K010 |
| 51796 | Left side step plate No. 2 bracket | 51796-0K010 |
| 51797 | Right footboard bracket No. 3 | 51797-0K010 |
| 51798 | Left footboard No. 3 bracket | 51798-0K010 |
| 57025 | Right body No. 3 mounting bracket sub-assembly | 57025-0K010 |
| 57026 | Left body No. 3 mounting bracket sub-assembly | 57026-0K010 |
| 57213H | Right body No. 2 mounting bracket | 57213-0K010 |
| 57214B | Left body No. 2 mounting bracket | 57214-0K010 |
| 57217 | Right body No. 4 mounting bracket | 57217-0K020 |
| 57218C | Left body No. 4 mounting bracket | 57218-0K020 |
| 57411A | Floor right inner longitudinal beam | 57411-0K010 |
| 57412A | Floor left inner longitudinal beam | 57412-0K010 |
| 57413E | Rear floor right inner longitudinal beam | 57413-0K020 |
| 57414E | Rear floor left inner longitudinal beam | 57414-0K020 |
| 57417 | Front floor lower right reinforcement | 57417-0K010 |
| 57418 | Front floor lower left reinforcement | 57418-0K010 |
| 57425 | Front floor No. 2 right reinforcement | 57425-0K010 |
| 57426 | Front floor No. 2 left reinforcement | 57426-0K010 |
| 57451A | Front floor right cross member | 57451-0K010 |
| 57452 | Front floor left cross member | 57452-0K020 |
| 57465B | Front seat inner bracket | 57465-0K010 |
| 57466B | Front left seat inner bracket | 57466-0K010 |
| 57468B | Front seat rear bracket | 57468-0K010 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-0K010 |
| 57512 | Front floor right reinforcement | 57512-0K010 · 57512-0K030 |
| 57513 | Front floor left reinforcement | 57513-0K010 |
| 57517A | Front floor and rear reinforcement fixings | 57516-0K010 · 57516-0K020 · 57517-0K010 · 57517-0K020 |
| 57535 | Front floor right bracket | 57535-0K010 · 57535-KK010 |
| 57536 | Front floor left bracket | 57536-0K010 · 57536-KK010 |
| 58102A | Front floor reinforcement sub-assembly | 58102-0K010 · 58102-0K020 |
| 58111 | front floor pan | 58111-0K020 · 58111-0K030 · 58111-0K040 |
| 58117A | Front floor right reinforcement | 58117-0K010 |
| 58118C | Front floor left reinforcement | 58118-0K010 |
| 58139A | Front floor right rear side panel | 58139-0K010 |
| 58149A | Front floor left rear side panel | 58149-0K010 |
| 58191 | Front floor footrest | 58191-0K010 · 58191-0K020 |
| 58280A | Shift lever dust cover assembly | 58280-0K030 · 58280-0K080 · 58280-0K110 · 58280-0K200 · 58280-0K210 |
| 58311Y | rear floor pan | 58311-0K060 · 58311-0K070 · 58311-0K080 |
| 58354D | Rear floor reinforcement No. 4 | 58354-0K050 |
| 58355J | Rear floor reinforcement No. 5 | 58355-0K050 |
| 58386A | Body lower back panel 2 corner panel | 58386-0K020 |
| 58387H | rear floor | 58387-0K010 |
