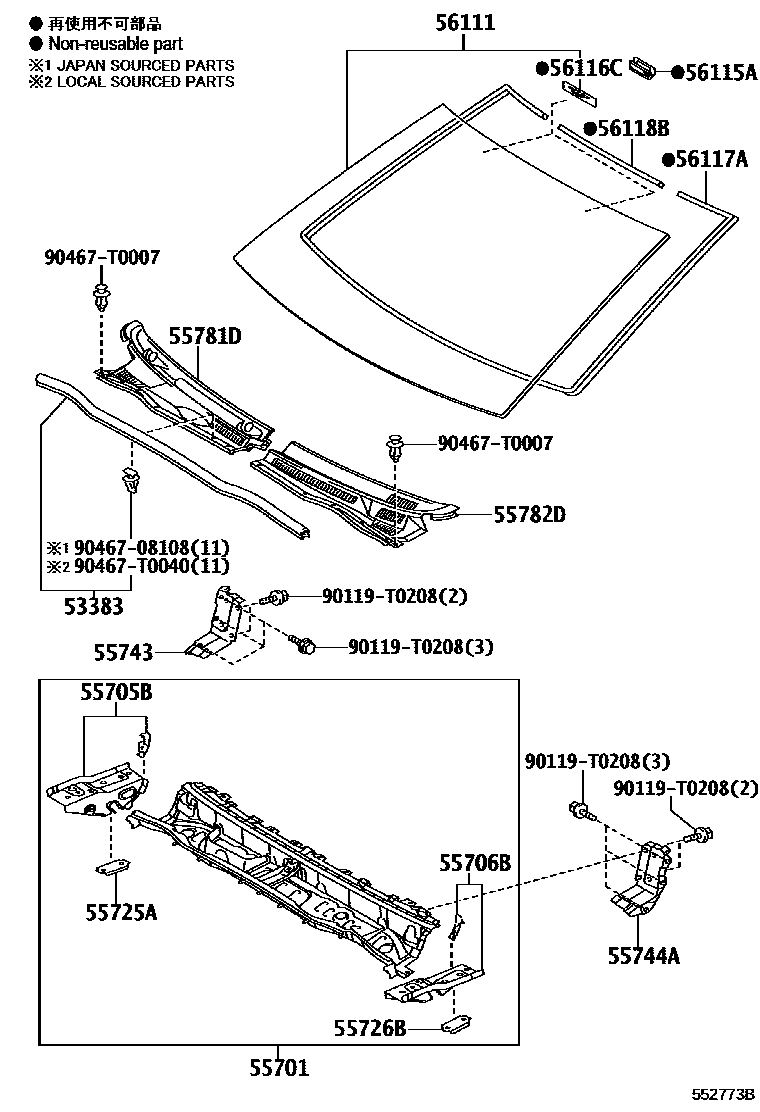

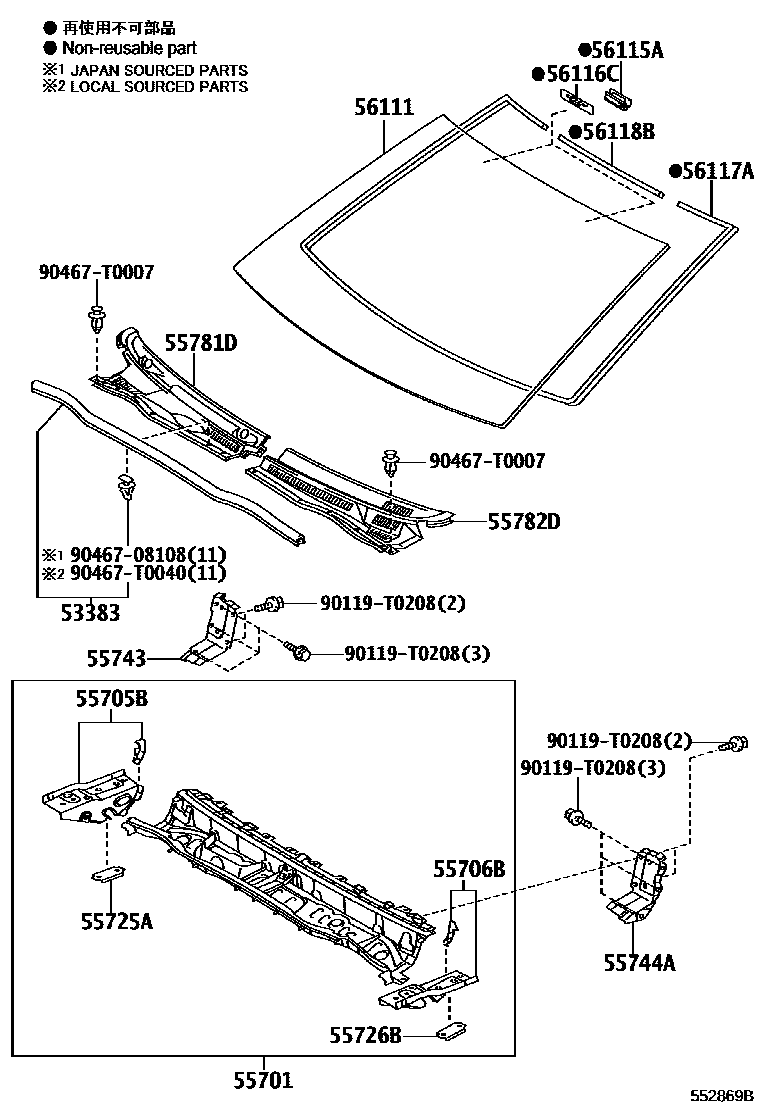

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0K010 |
| 55701 | Front apron sub-assembly | 55700-0K090 · 55700-0K100 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0K050 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0K050 |
| 55725A | Engine cover right hinge installation reinforcement | 55725-0K010 |
| 55726B | Engine cover left hinge installation reinforcement | 55725-0K010 |
| 55743 | Right front upper outer corner panel | 55743-0K010 |
| 55744A | Pedal bracket mounting reinforcement | 55744-0K010 |
| 55781D | Ventilation grille on right front apron | 55708-0K010 · 55708-0K020 · 55708-0K021 · 55708-0K030 · 55708-0K031 · 55708-0K040 · 55708-0K060 · 55708-0K290 |
| 55782D | Ventilation grille on left front apron | 55709-0K020 · 55709-0K021 · 55709-0K030 · 55709-0K031 · 55709-0K050 · 55709-0K060 |
| 56111 | windshield | 56101-0K050 · 56101-0K060 · 56101-0K190 · 56101-0K200 |
| 56115A | Windshield block No. 1 | 56115-02020 |
| 56116C | Windshield block 2 | 56116-02020 |
| 56117A | Window glass adhesive seals | 56117-0K010 |
| 56118B | Window Glass No. 2 Adhesive Sealing Strip | 56118-0K010 |
