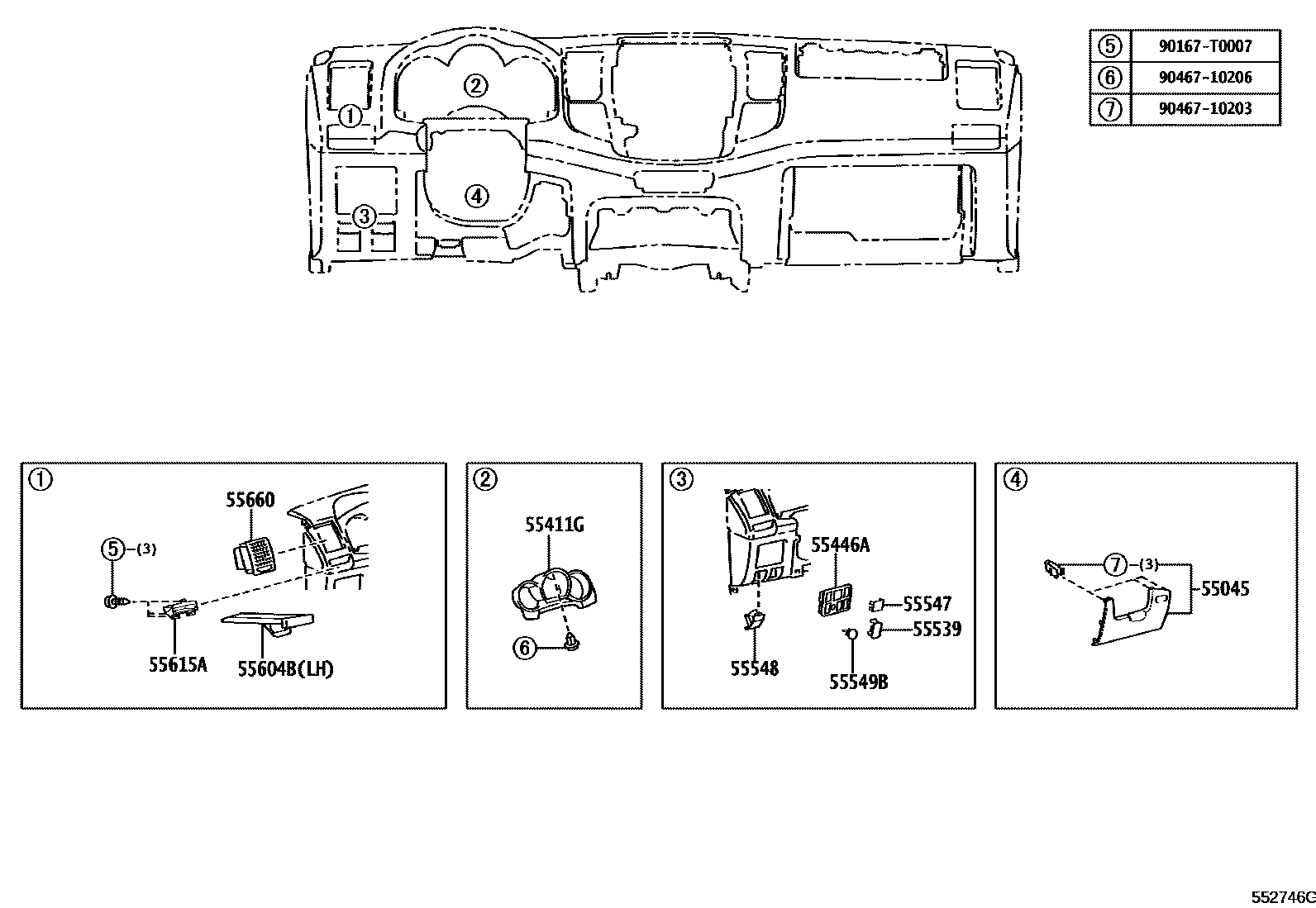

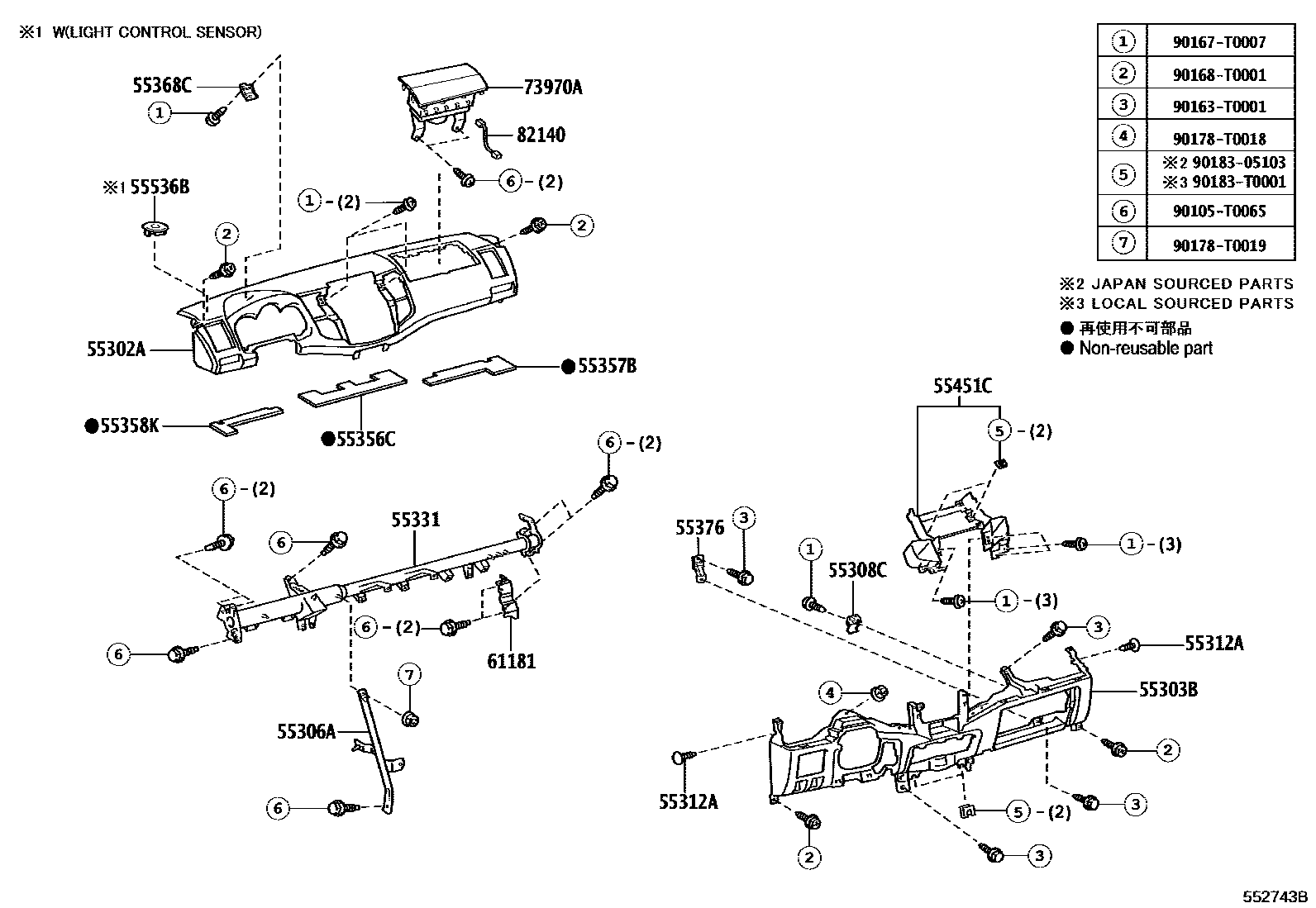

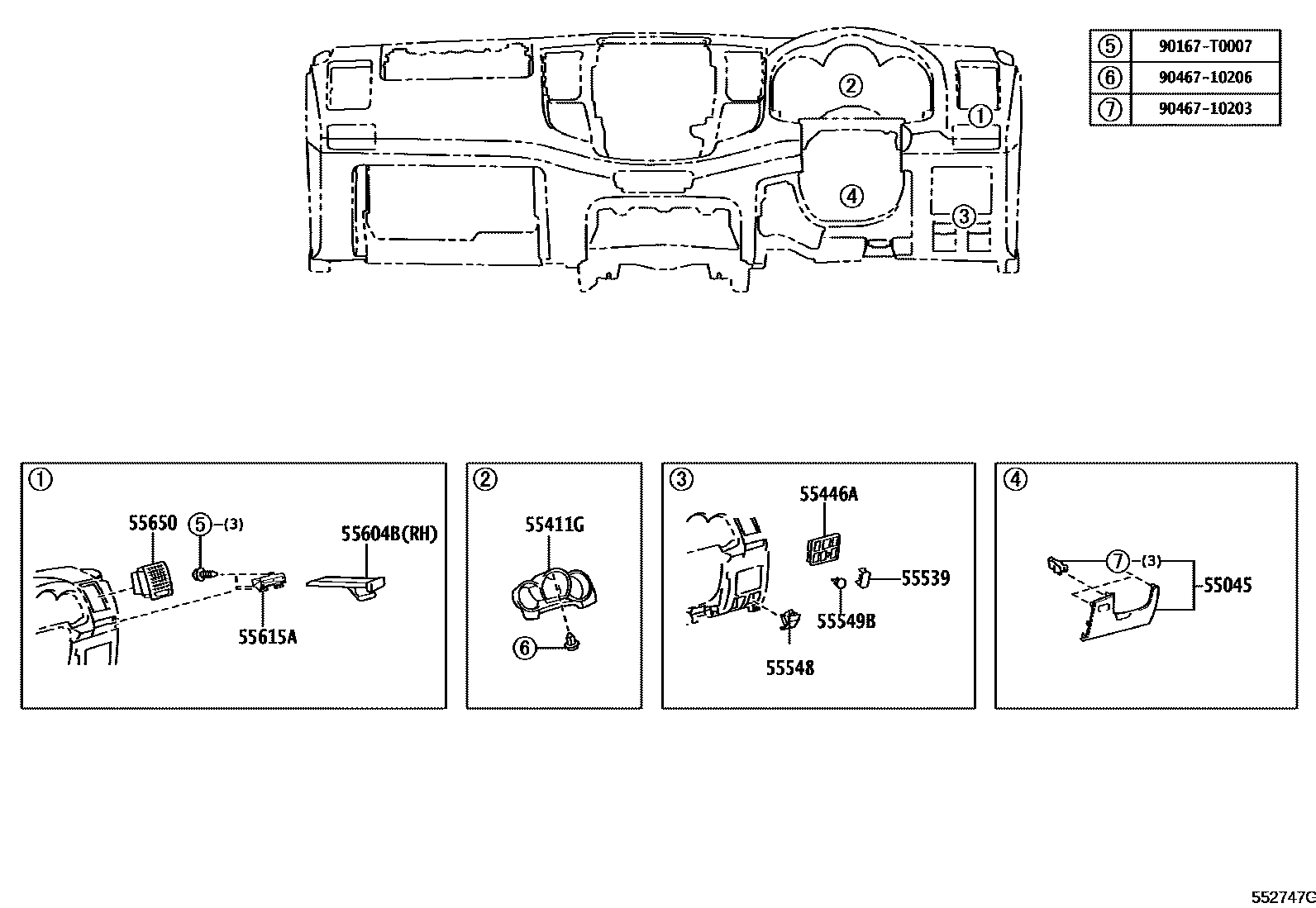

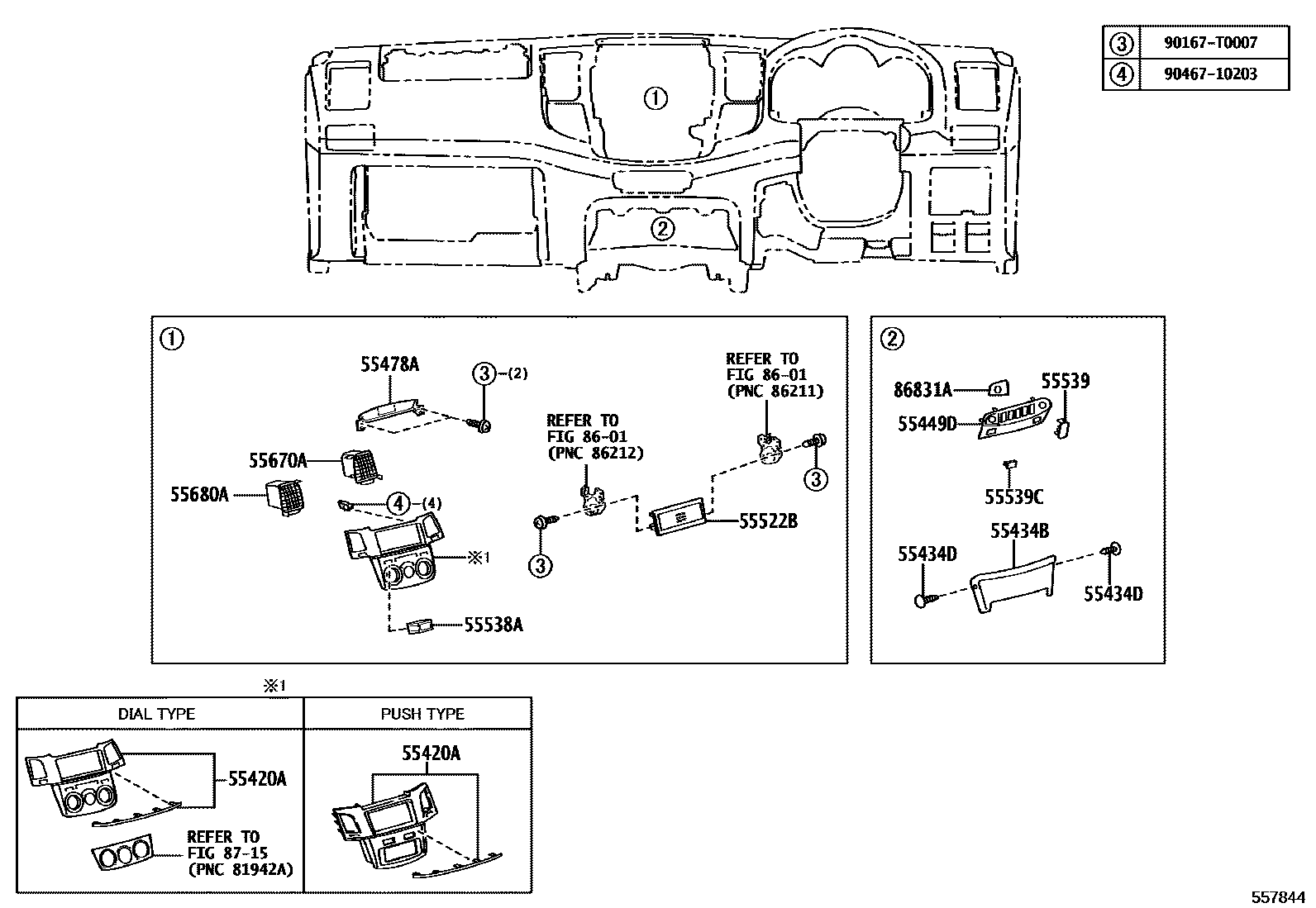

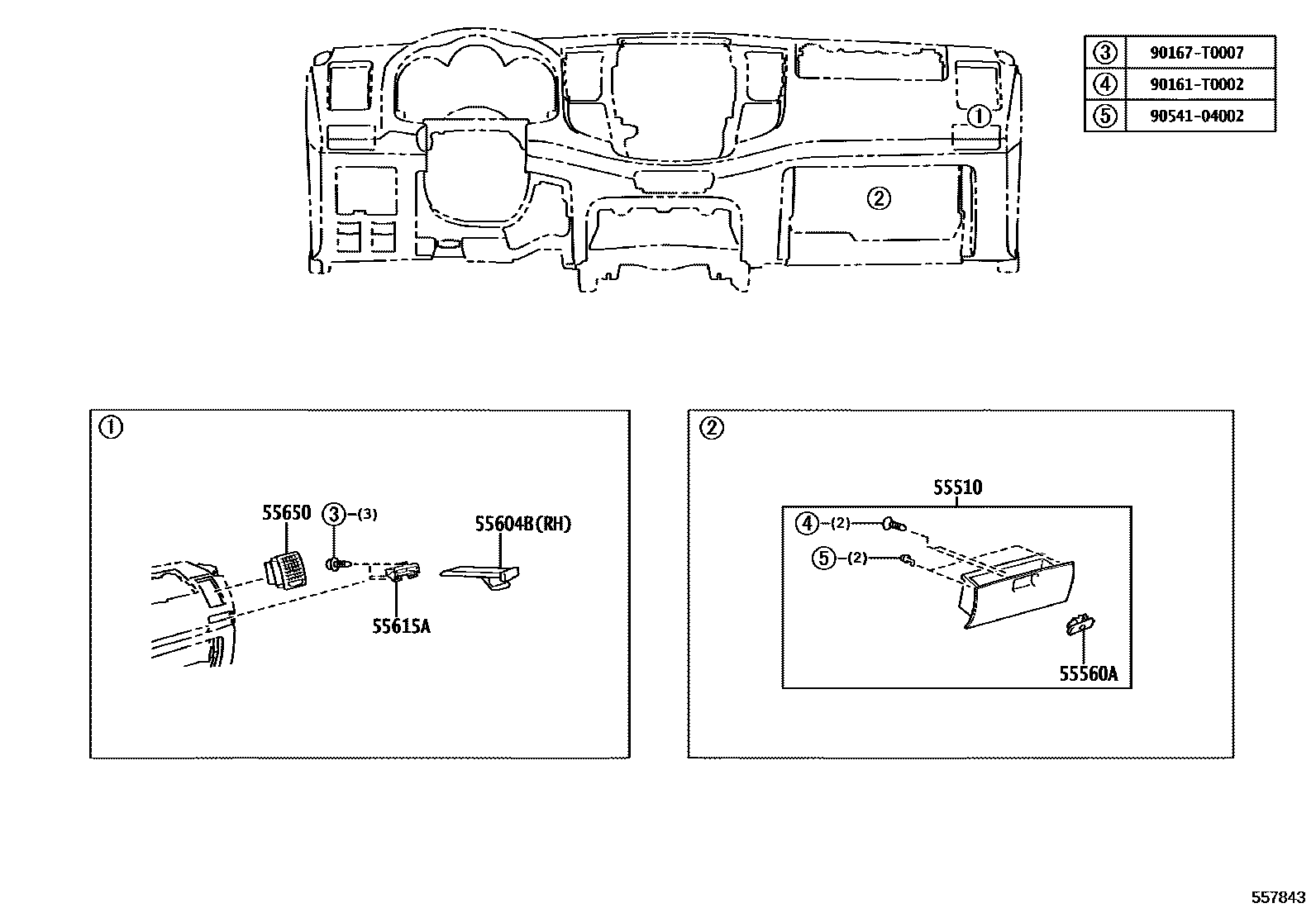

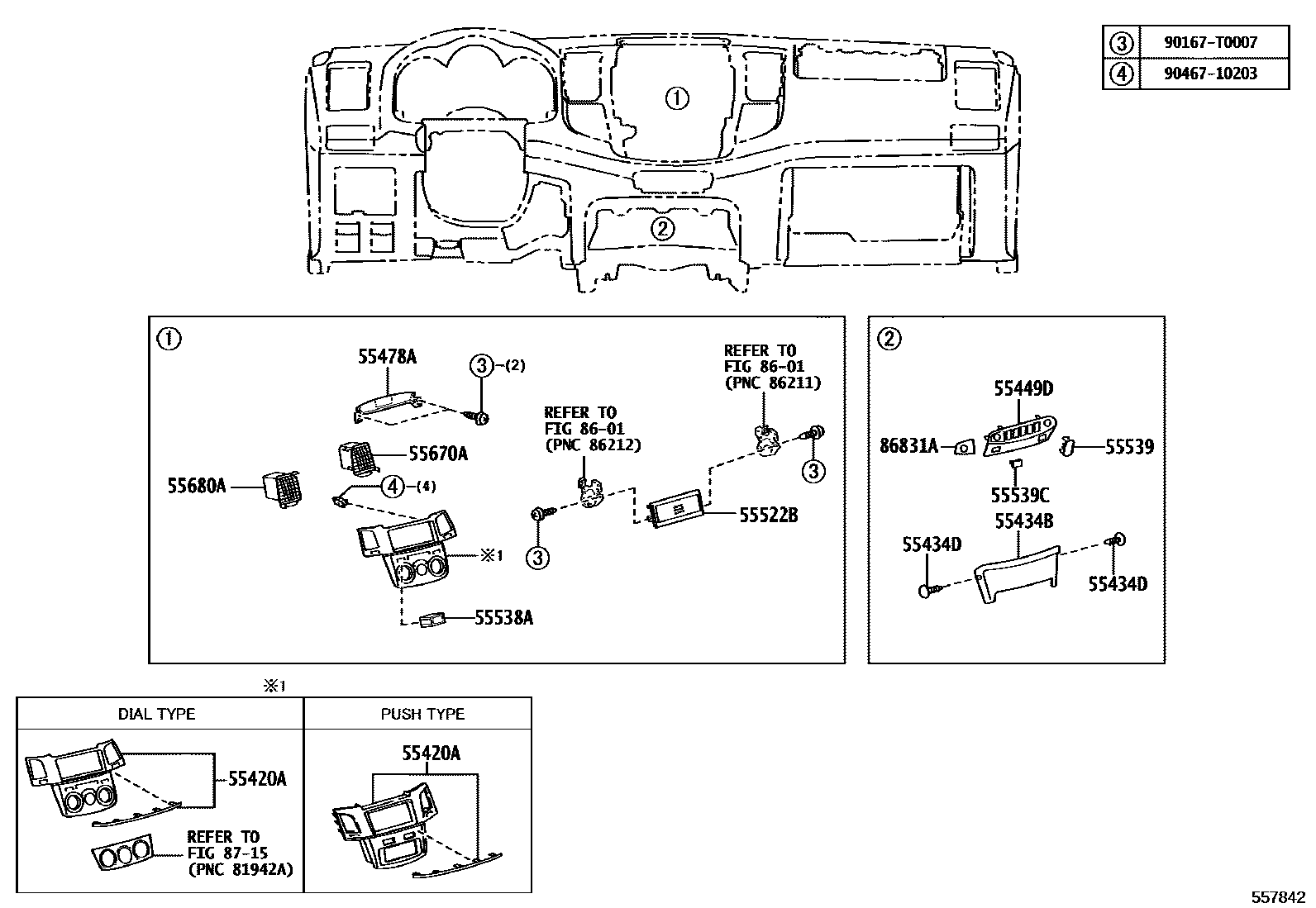

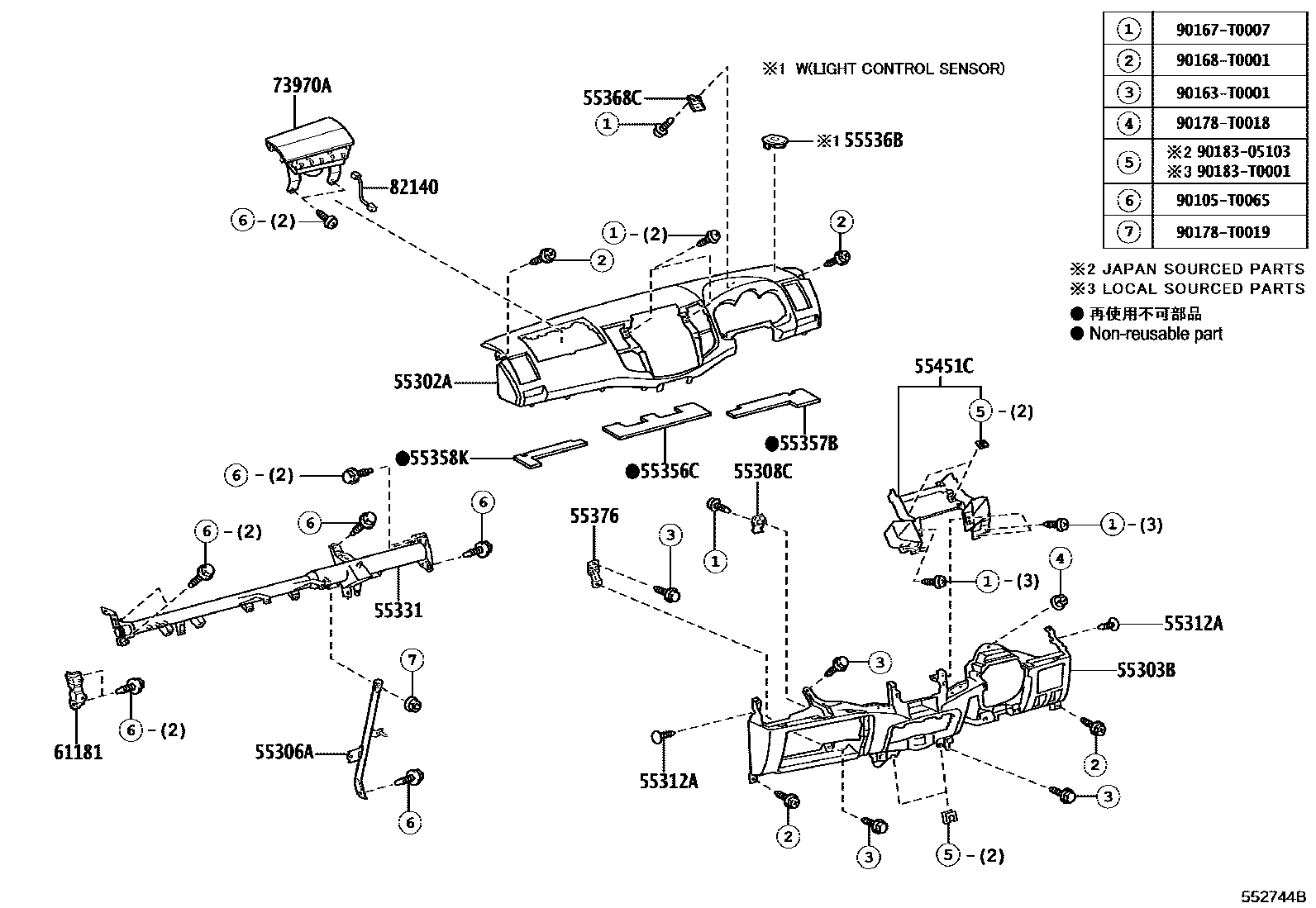

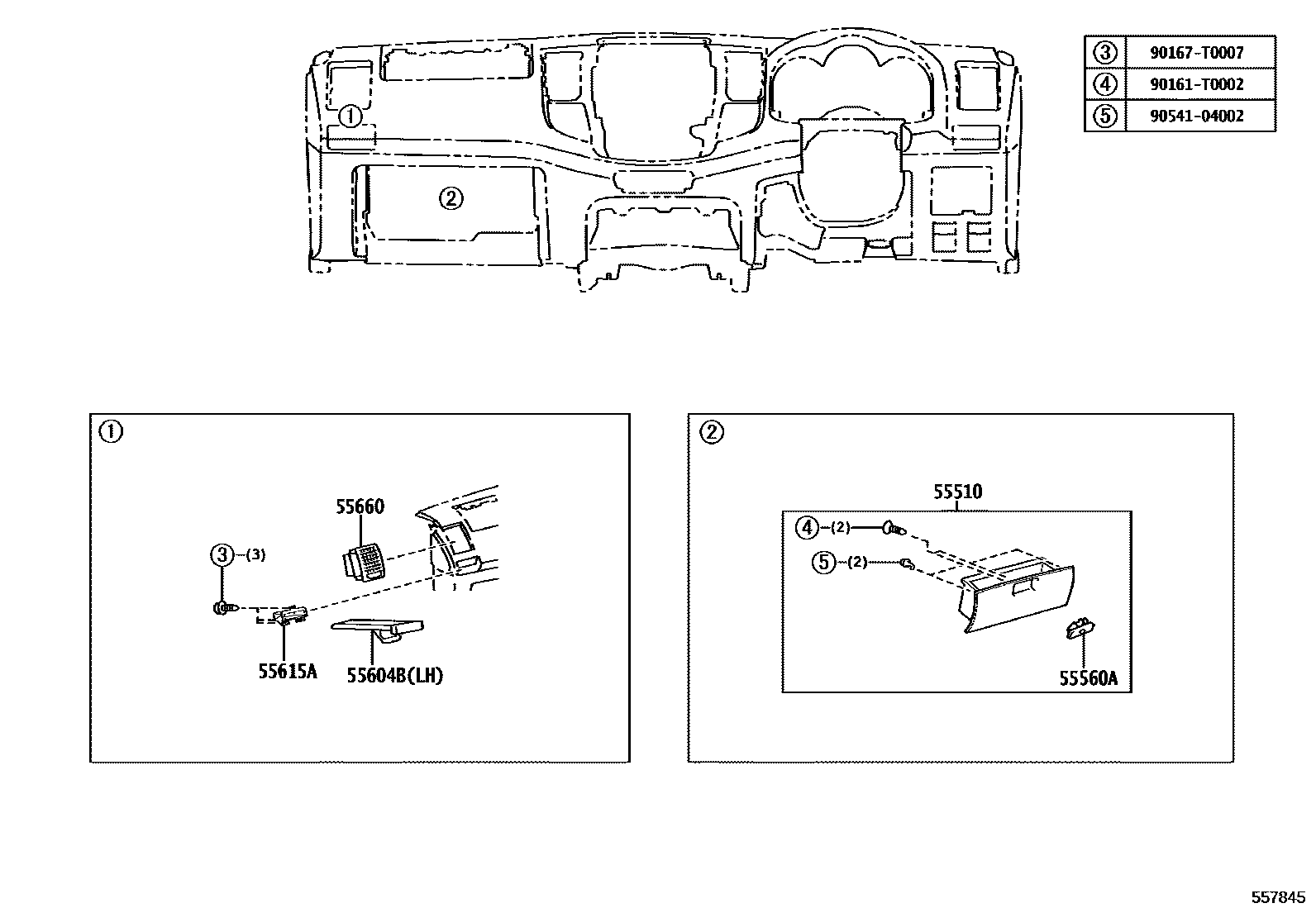

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0K010 · 55306-0K020 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-0K010 · 55308-0K020 |
| 55331 | Dashboard reinforcement | 55330-0K410 · 55330-0K420 · 55330-0K430 · 55330-0K440 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0K010 · 55356-0K030 |
| 55357B | Dashboard No. 3 Cushion Pad | 55358-0K020 · 55358-0K040 · 55358-0K060 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0K010 · 55358-0K030 · 55358-0K050 |
| 55368C | Instrument mounting bracket | 55368-0K010 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-0K010 |
| 55451C | Dashboard storage box No. 1 | 55451-0K040 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55670A | Instrument panel central air register assembly | 55670-0K080 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-0K110 |
| 61181 | Dashboard side bracket | 61181-0K010 · 61181-0K020 |
| 82140 | Instrument panel wiring harness assembly | 82140-0K010 · 82140-0K020 |
