Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

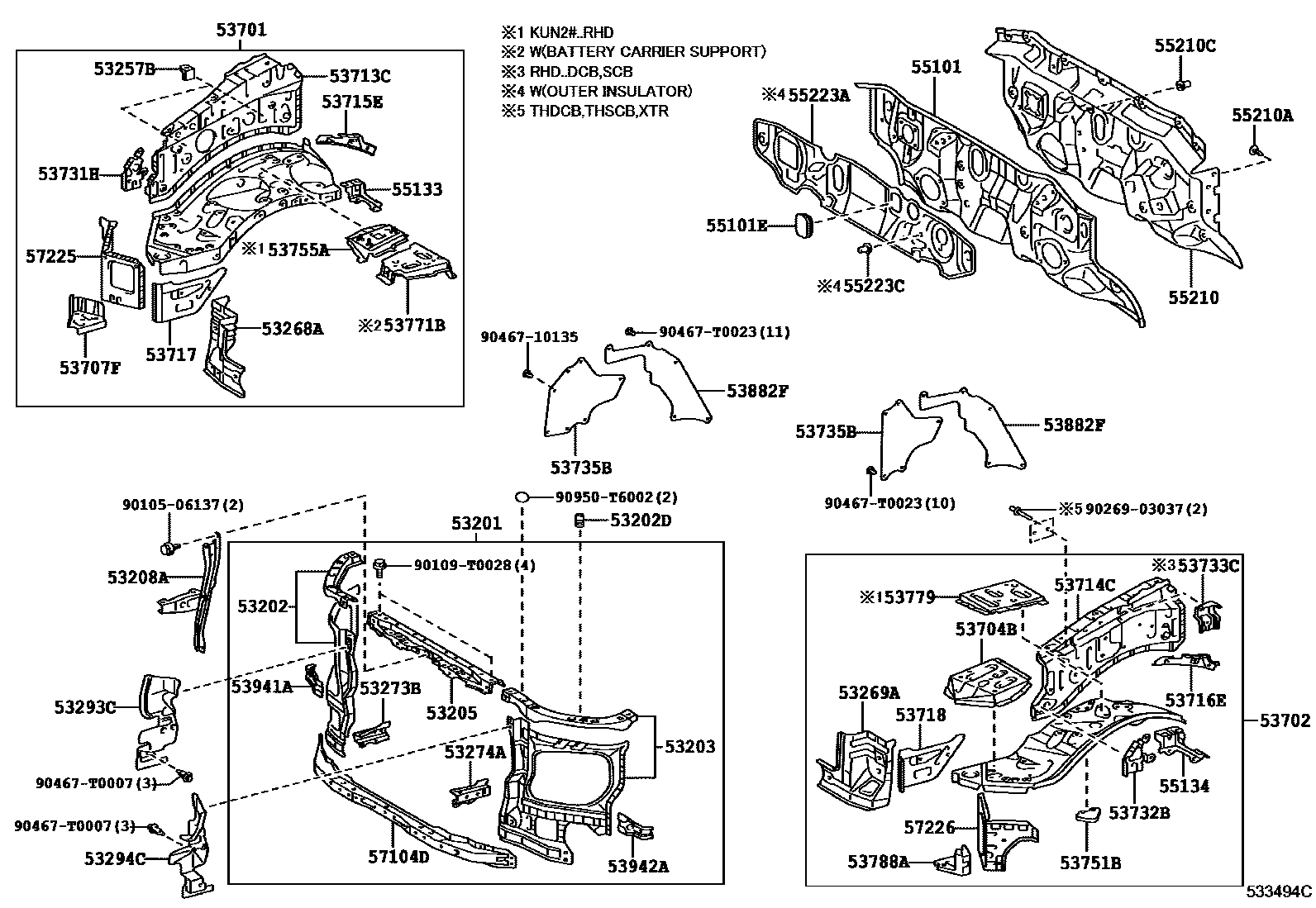

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 1 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-0K170 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0K010 |
| 53202D | Radiator bracket cushion | 90541-15019 · 90541-T0006 |
| 53203 | Radiator left bracket sub-assembly | 53203-0K010 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0K010 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0K010 |
| 53257B | Radiator bracket to front fender bracket | 53257-35030 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-0K010 |
| 53269A | Install reinforcement on the left side of the radiator | 53269-0K010 |
| 53273B | Right side bracket (radiator bracket to front fender) | 53273-0K010 |
| 53274A | Radiator left bracket reinforcement | 53274-0K010 |
| 53293C | Radiator right baffle | 53293-0K050 |
| 53294C | Radiator left baffle | 53294-0K050 |
| 53701 | Right front fender fender sub-assembly | 53701-0K012 · 53701-0K062 · 53701-0K182 · 53701-0K190 |
| 53702 | Left front fender fender sub-assembly | 53702-0K020 · 53702-0K021 · 53702-0K041 · 53702-0K042 · 53702-0K131 · 53702-0K170 |
| 53704B | Battery left side bracket sub-assembly | 53704-0K010 |
| 53707F | Right front fender fender lower corner plate sub-assembly | 53707-0K010 |
| 53713C | Right front fender fender front extension | 53713-0K010 |
| 53714C | Left front fender fender front extension | 53714-0K010 · 53714-0K050 |
| 53715E | Right front fender fender rear extension | 53715-0K030 |
| 53716E | Left front fender fender rear extension | 53716-0K030 |
| 53717 | Right fender fender side panel | 53717-0K010 |
| 53718 | Left fender fender side panel | 53718-0K010 |
| 53731H | Right front fender fender liner | 53731-0K010 |
| 53732B | Left front fender fender liner | 53732-0K010 |
| 53733C | Front fender fender liner | 53733-0K020 |
| 53735B | Front fender fender seal | 53735-0K020 · 53735-0K050 |
| 53751B | Carbon canister mounting bracket | 53751-0K010 |
| 53755A | No. 1 brake actuator installation reinforcement | 53755-0K010 |
| 53771B | Right battery bay bracket | 53703-0K010 |
| 53779 | Battery bracket bracket | 53779-0K011 |
| 53788A | Left front fender fender lower corner panel | 53708-0K010 |
| 53882F | front fender seal | 53885-0K020 |
| 53941A | No. 1 right front end plate bracket | 53941-0K070 |
| 53942A | No. 1 left front end plate bracket | 53942-0K060 |
| 55101 | Front apron sub-assembly | 55101-0K010 · 55101-0K020 · 55101-0K030 · 55101-0K040 |
| 55101E | No. 2 cowl gasket | 87128-0K010 |
| 55133 | Right front fender fender lower fixing plate | 55133-0K010 |
| 55134 | Left front fender fender lower fixing plate | 55134-0K010 |
| 55210 | Front wall insulation pad assembly | 55210-0K080 · 55210-0K081 · 55210-0K090 · 55210-0K091 · 55210-0K220 · 55210-0K230 |
| 55210C | clip | 90467-06197 · 90467-T0032 |
| 55223A | Front wall outer heat insulation pad | 55223-0K010 · 55223-0K020 |
| 55223C | clip | 90467-T0032 |
| 57104D | Front cross member sub-assembly | 57161-0K010 |
| 57225 | Right front mounting bracket | 57225-0K010 |
| 57226 | Left front mounting bracket | 57226-0K010 |
