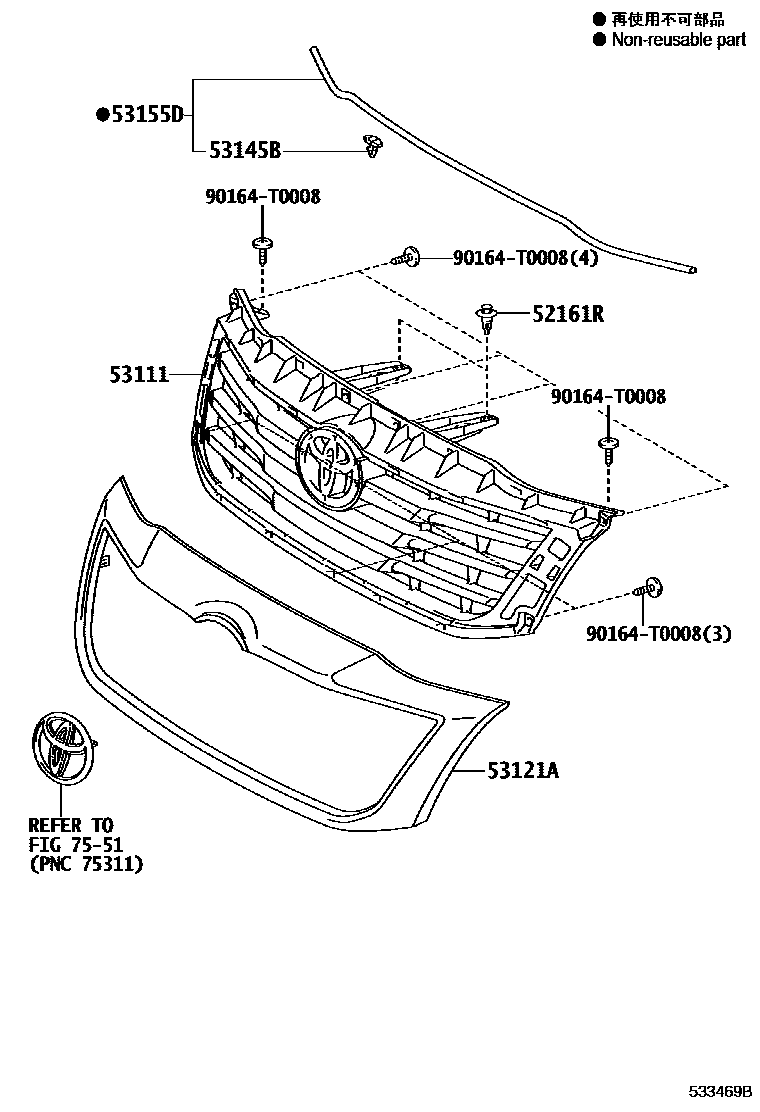

Toyota HILUX radiator grille — Figure 5351
Toyota HILUX EPC diagram 5351, radiator grille, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-0K040 |
| 53111 | radiator grille | 53111-0K450 · 53111-0K670 · 53111-0K680 · 53111-0K690 |
| 53121A | Radiator grille protection strip | 53121-0K470 · 53121-0K480 · 53121-0K520 |
| 53145B | Radiator grille trim clip | 53145-0K010 |
| 53155D | Radiator grille seal No. 1 | 53397-0K110 |
