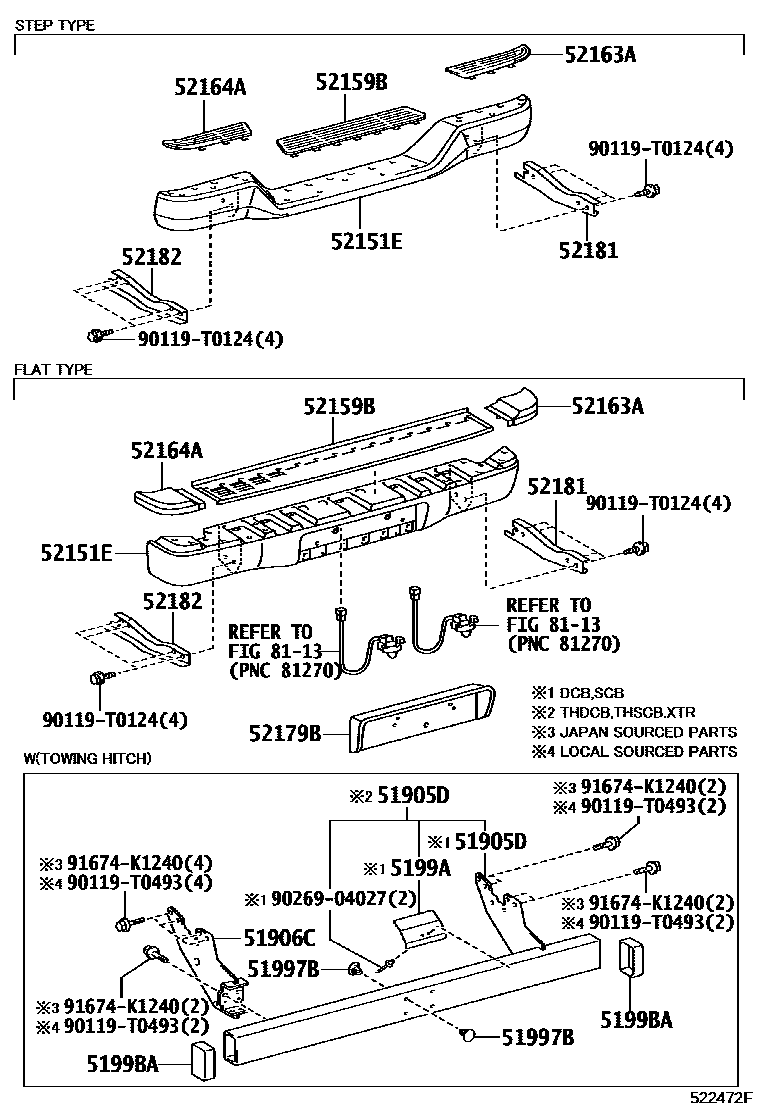

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51905D | Right reservoir tank hook bracket sub-assembly | 51905-0K010 · 51905-0K020 · 51905-0K900 · 51905-0K901 |
| 51906C | Left tank hook bracket sub-assembly | 51906-0K010 · 51906-0K020 |
| 51997B | Reservoir tank hook cover | 51997-0K020 |
| 5199A | Hook crossbar insulation pad | 5199A-0K010 |
| 5199BA | The rear lower part passes through the protective cover | 5199B-0K010 |
| 52151E | rear bumper | 52105-04040 · 52105-0K010 · 52105-0K061 |
| 52159B | rear bumper bezel | 52159-04010 · 52159-0K010 |
| 52163A | Rear bumper right side fender | 52163-04010 · 52163-0K010 |
| 52164A | Rear bumper left fender | 52164-04010 · 52164-0K010 |
| 52179B | rear bumper panel | 52179-0K010 |
| 52181 | Rear bumper right arm | 52181-0K040 · 52181-0K050 |
| 52182 | Rear bumper left arm | 52182-0K040 · 52182-0K050 |
