Toyota HILUX 驾驶室悬置和车身悬置 — Figure 5251

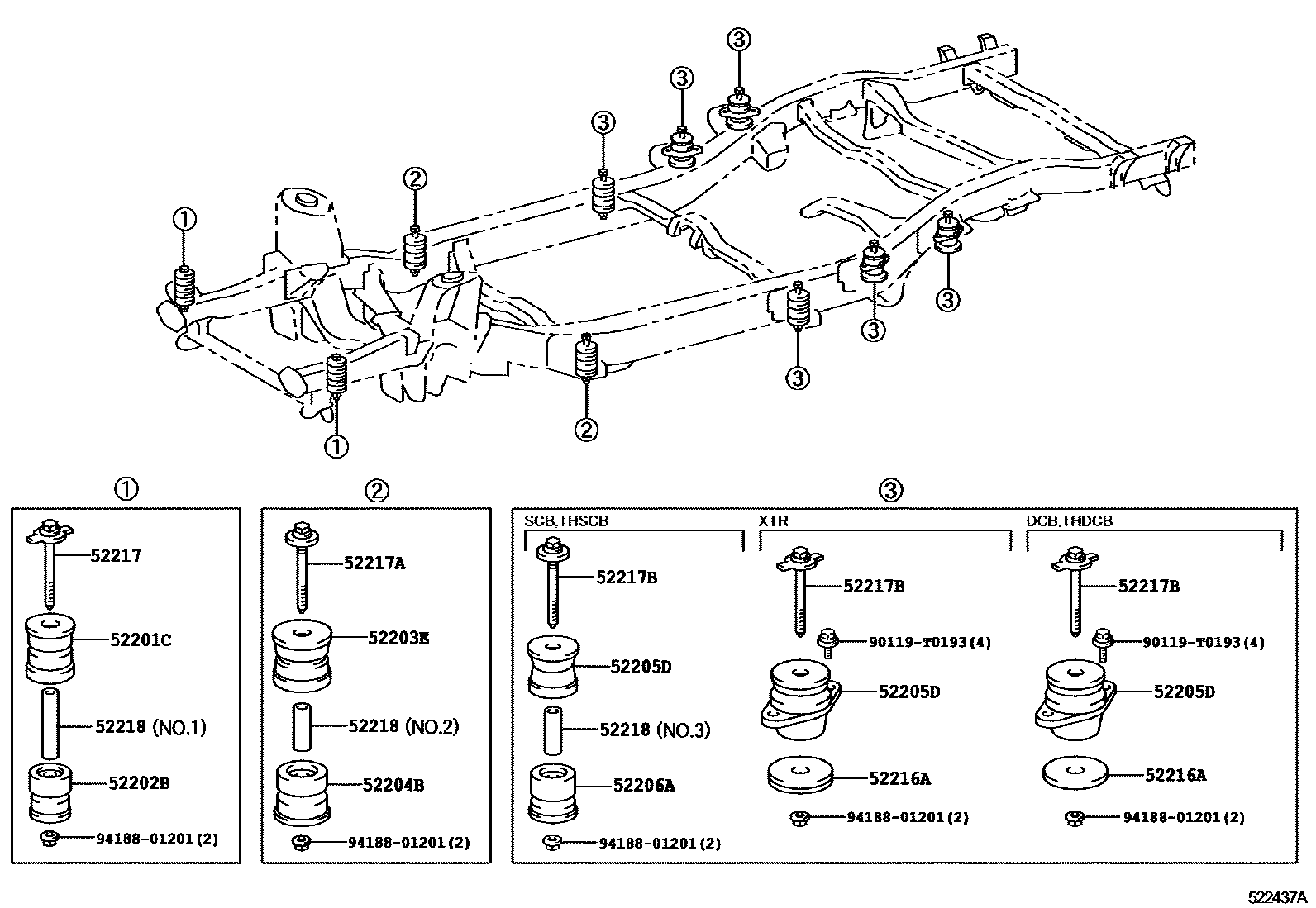

Toyota HILUX EPC diagram 5251, 驾驶室悬置和车身悬置, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52201C | Cab suspension No. 1 upper cushion pad sub-assembly | 52201-0K010 |
| 52202B | Cab suspension No. 1 lower cushion pad sub-assembly | 52202-0K010 |
| 52203E | Cab suspension No. 2 cushion pad sub-assembly | 52203-0K010 |
| 52204B | Cab suspension No. 2 lower cushion pad sub-assembly | 52204-0K010 |
| 52205D | Cab suspension No. 3 upper cushion pad sub-assembly | 52205-0K010 · 52205-0K030 · 52205-0K040 |
| 52206A | Cab suspension No. 3 lower cushion pad sub-assembly | 52206-0K010 |
| 52216A | Cab suspension cushion block | 52216-0K010 · 52216-0K030 |
| 52217 | Body mounting bolts | 52217-0K010 |
| 52217A | Body mounting bolts | 52217-0K020 |
| 52217B | Body mounting bolts | 52217-0K020 · 52217-0K031 |
| 52218 | Body No. 1 mounting bolt spacer fastener | 52218-0K010 · 52219-0K010 |
