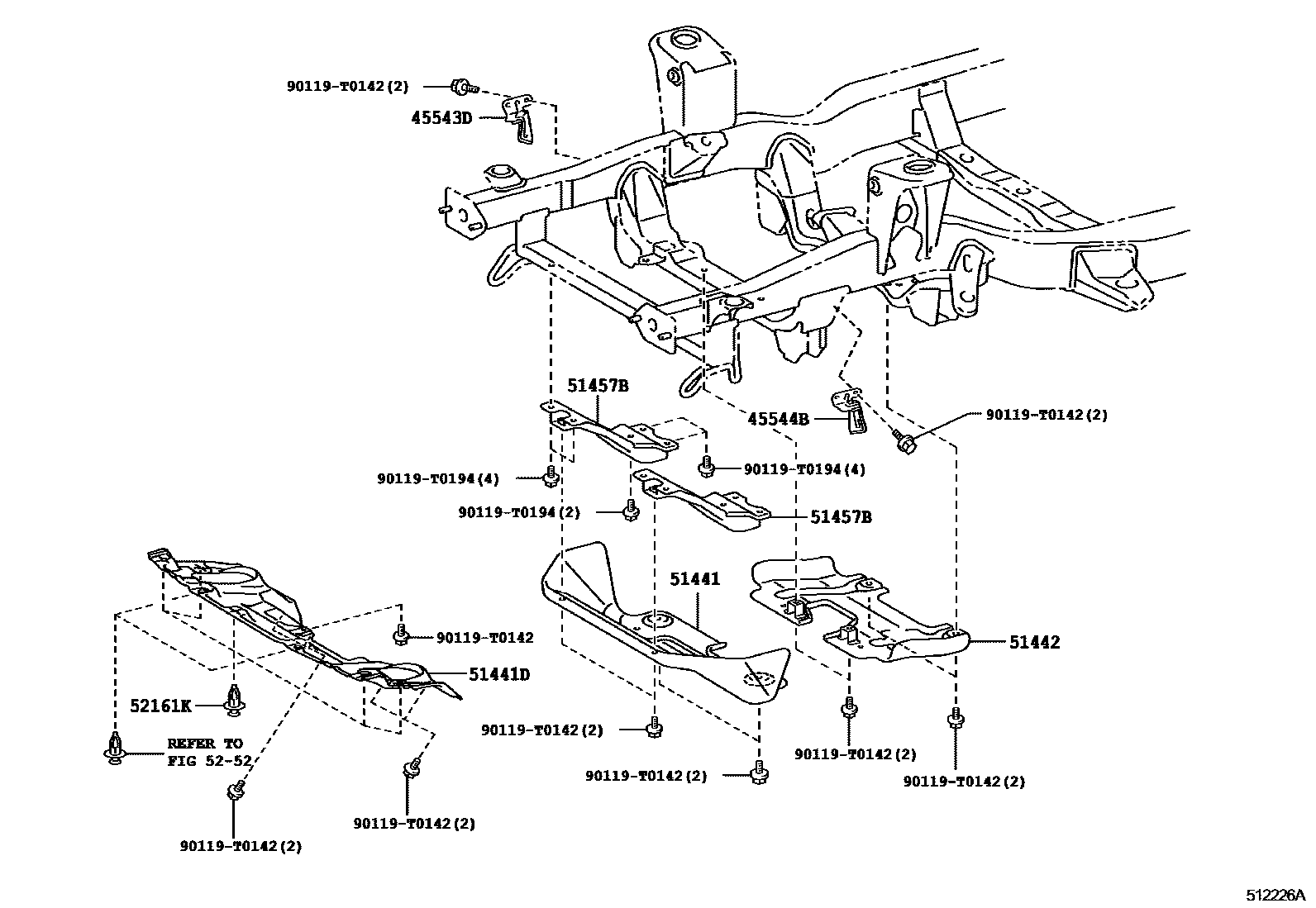

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45543D | Steering rack dust boot right side protective cover | 45543-0K020 |
| 45544B | Steering rack dust boot left protective cover | 45544-0K020 |
| 51441 | No. 1 engine bottom cover | 51410-0K021 |
| 51441D | engine cover | 51441-0K050 |
| 51442 | No. 2 engine bottom cover | 51420-0K010 |
| 51457B | Bracket from front longitudinal beam to front suspension cross member | 51405-0K020 |
| 52161K | front bumper insert | 52161-0K050 |
