Toyota HILUX 车架 — Figure 5151

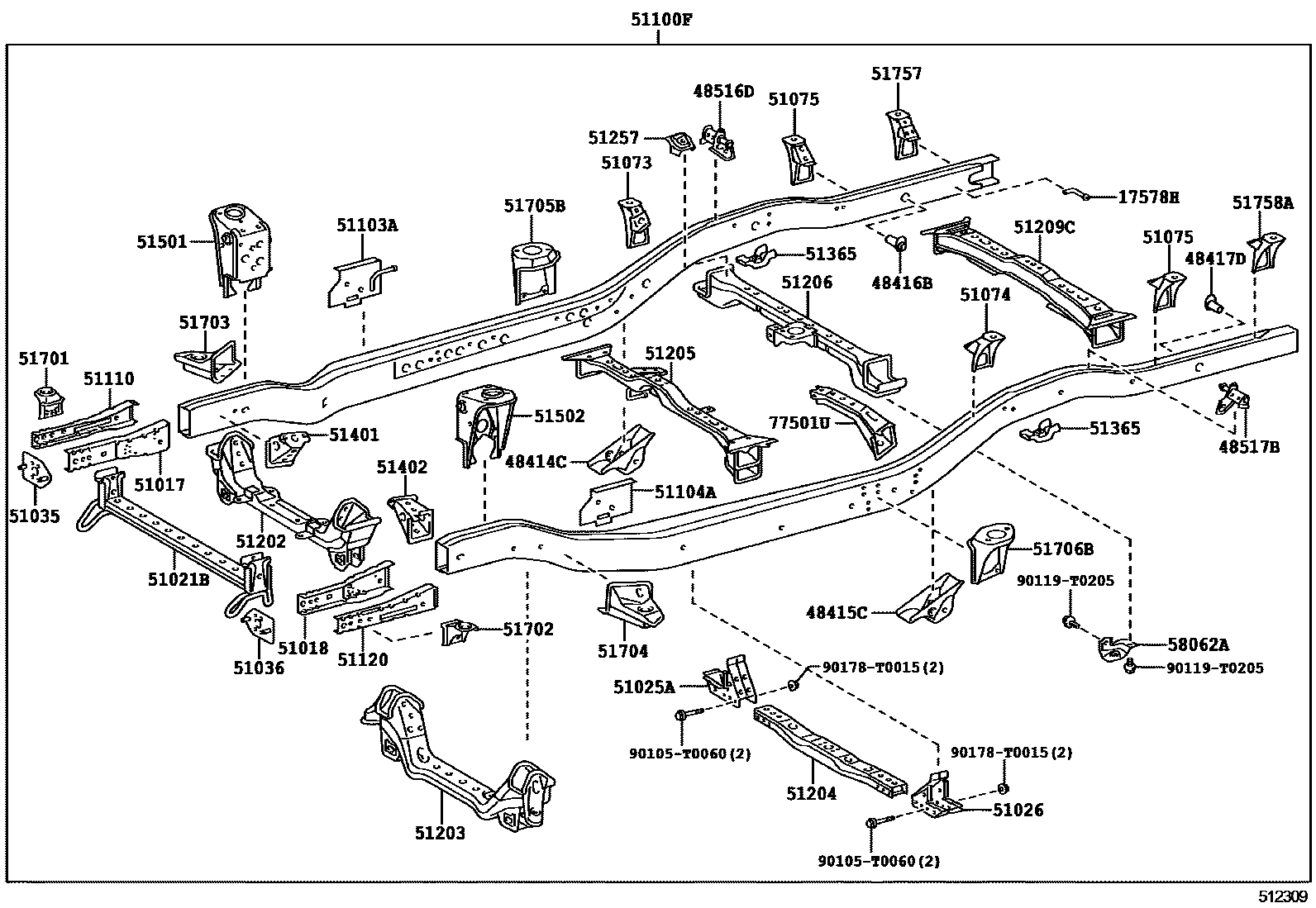

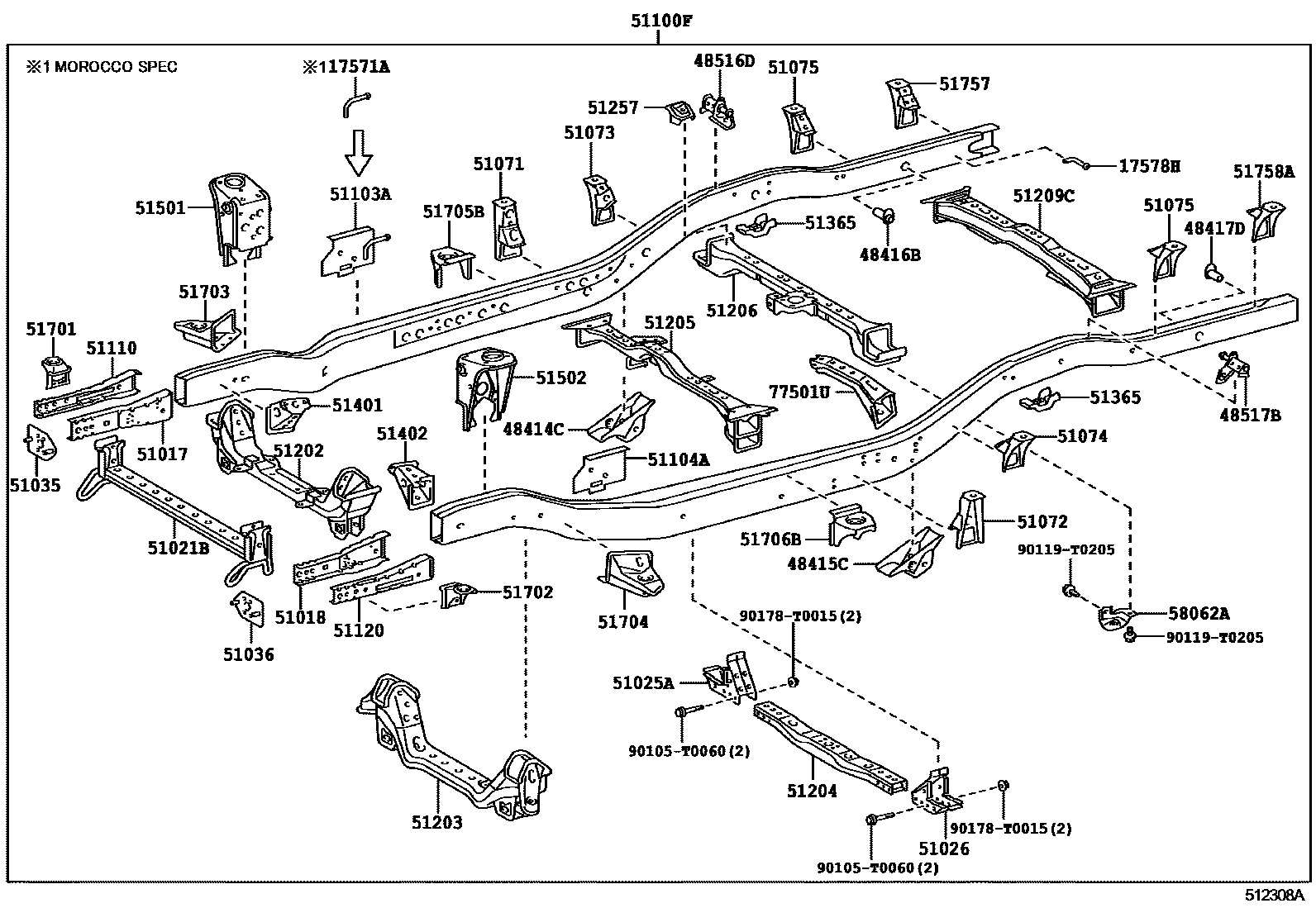

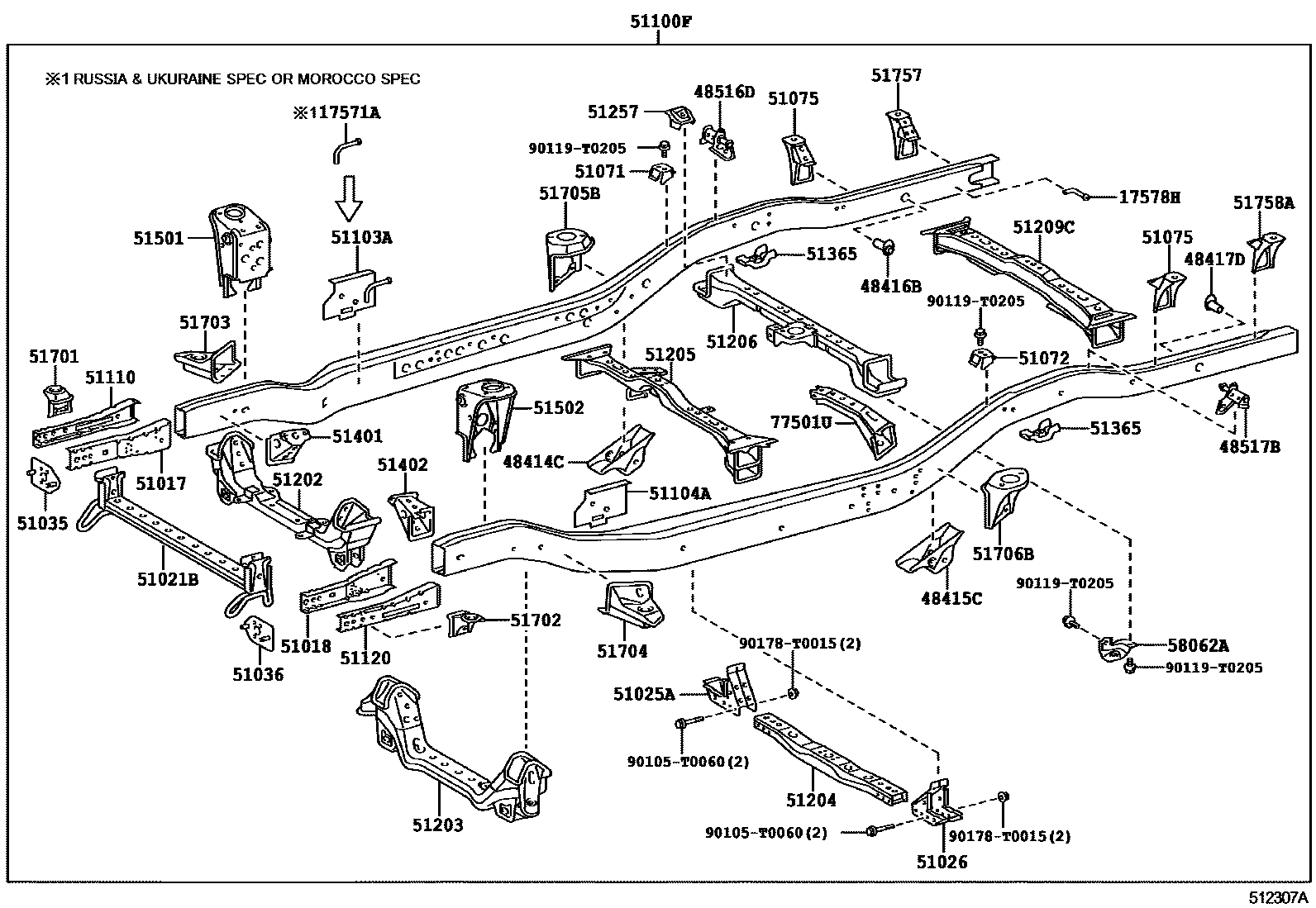

Toyota HILUX EPC diagram 5151, 车架, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17571A | No. 9 exhaust pipe bracket | 17571-0L010 |
| 17578H | No. 10 exhaust pipe bracket | 17505-0L010 |
| 48414C | Right No. 3 spring bracket | 48404-0K020 |
| 48415C | No. 3 spring bracket on the left | 48407-0K020 |
| 48416B | Right No. 4 spring bracket | 48405-0K010 |
| 48417D | No. 4 spring bracket on the left | 48405-0K010 |
| 48516D | Right rear shock absorber upper bracket sub-assembly | 48505-0K010 |
| 48517B | Left rear shock absorber upper bracket sub-assembly | 48505-0K010 |
| 51017 | Right longitudinal beam No. 1 reinforcement sub-assembly | 51017-0K020 |
| 51018 | Left longitudinal beam No. 1 reinforcement sub-assembly | 51018-0K020 |
| 51021B | Frame auxiliary cross member sub-assembly | 51021-0K020 |
| 51025A | Frame No. 3 beam right side bracket sub-assembly | 51025-0K020 · 51025-0K030 |
| 51026 | Frame No. 3 crossbeam left side bracket sub-assembly | 51026-0K020 · 51026-0K030 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-0K010 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-0K010 |
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-0K020 · 51071-0K030 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-0K020 · 51072-0K030 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-0K010 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-0K010 |
| 51075 | Right rear body No. 3 mounting bracket sub-assembly | 51075-0K010 |
| 51100F | Frame sub-assembly | 51001-0K394 · 51001-0KD72 · 51001-0KF90 · 51001-0KG00 · 51001-0KG10 · 51001-0KG20 · 51001-0KG30 · 51001-0KG40 · 51001-0KG50 · 51001-0KG70 · 51001-0KG80 · 51001-0KG90 · 51001-0KJ00 · 51001-0KJ20 · 51001-0KM60 |
| 51103A | Right rear inner gutter reinforcement sub-assembly | 510C3-0K010 |
| 51104A | Left rear inner gutter reinforcement sub-assembly | 511A2-0K010 |
| 51110 | Right longitudinal beam extension section assembly | 51110-0K020 |
| 51120 | Left longitudinal beam extension section assembly | 51120-0K020 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-0K031 · 51201-0K061 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-0K030 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-0K010 · 51203-0K060 · 51203-0K070 · 51203-0K080 · 51203-0K090 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-0K042 · 51204-0K060 |
| 51206 | Frame No. 5 beam sub-assembly | 51205-0K030 |
| 51209C | Frame rear cross member sub-assembly | 51209-0K030 |
| 51257 | Reinforcement member on the right side of No. 5 cross member of the frame | 51257-0K010 |
| 51365 | rear bumper stop | 57081-0K020 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-0K050 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-0K050 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-0K020 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-0K020 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-0K020 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-0K020 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-0K010 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-0K010 |
| 51705B | Cab suspension No. 3 right side bracket sub-assembly | 51705-0K010 · 51705-0K020 · 51731-0K010 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51706-0K010 · 51706-0K020 · 51731-0K010 |
| 51757 | Right body No. 4 bracket | 51077-0K011 |
| 51758A | Left body No. 4 bracket | 51077-0K011 |
| 58062A | Fuel tank rear mounting bracket sub-assembly | 58062-0K010 |
| 77501U | Fuel tank bracket sub-assembly | 77501-0K020 |
