Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

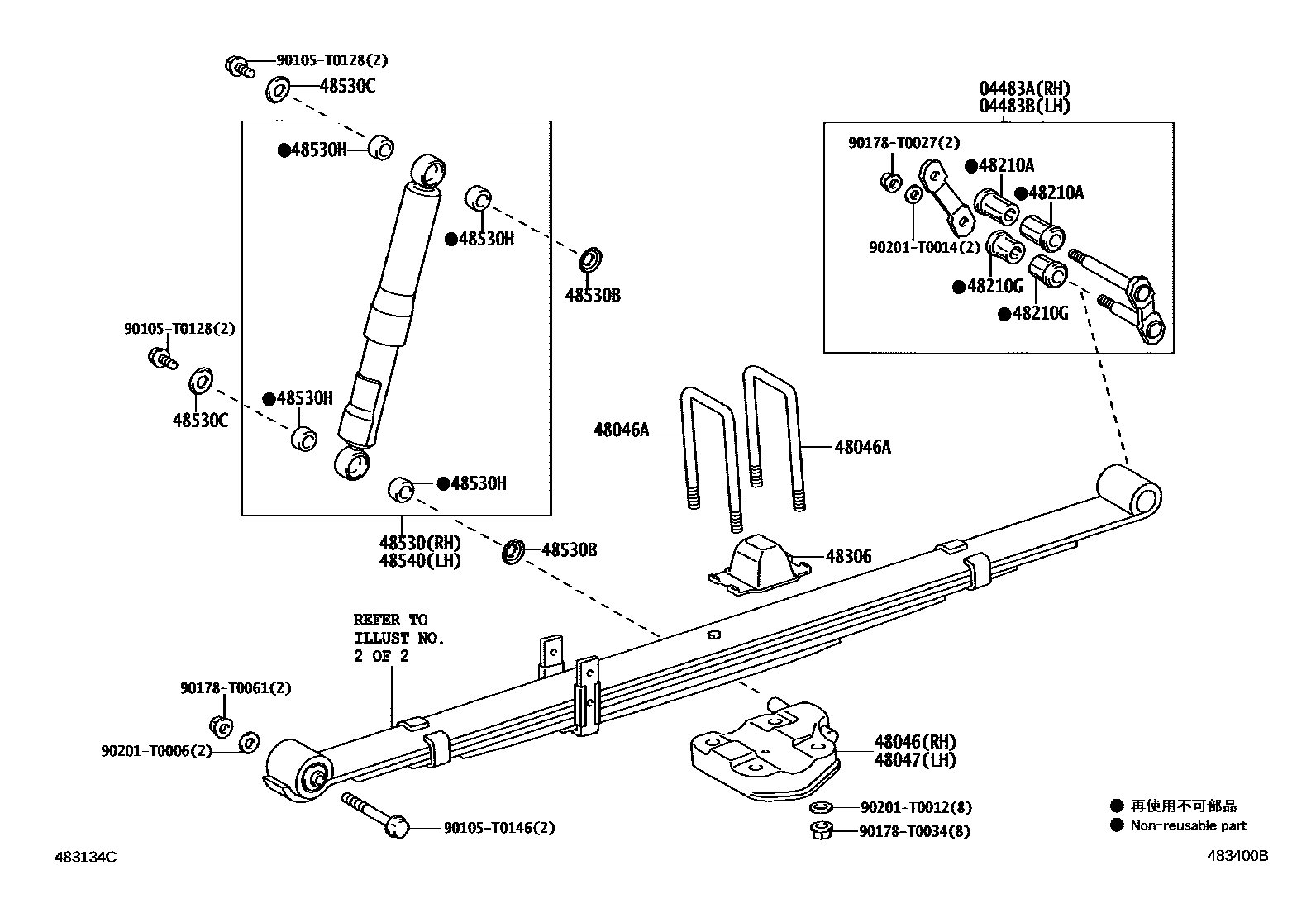

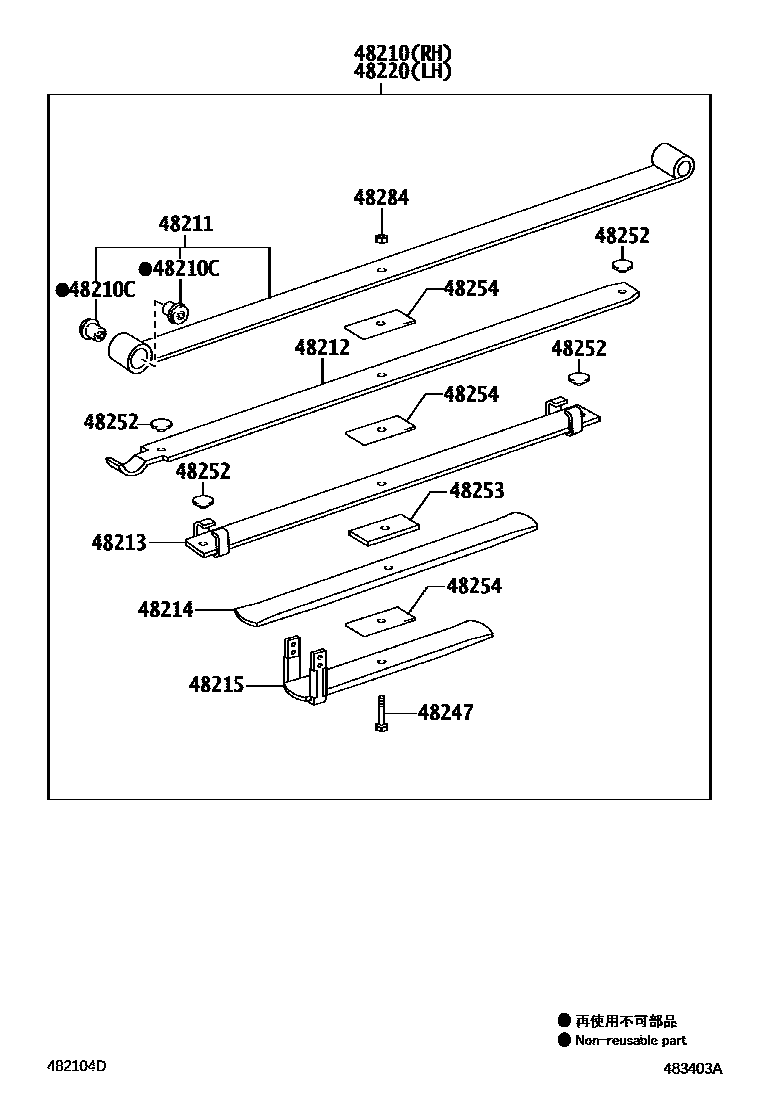

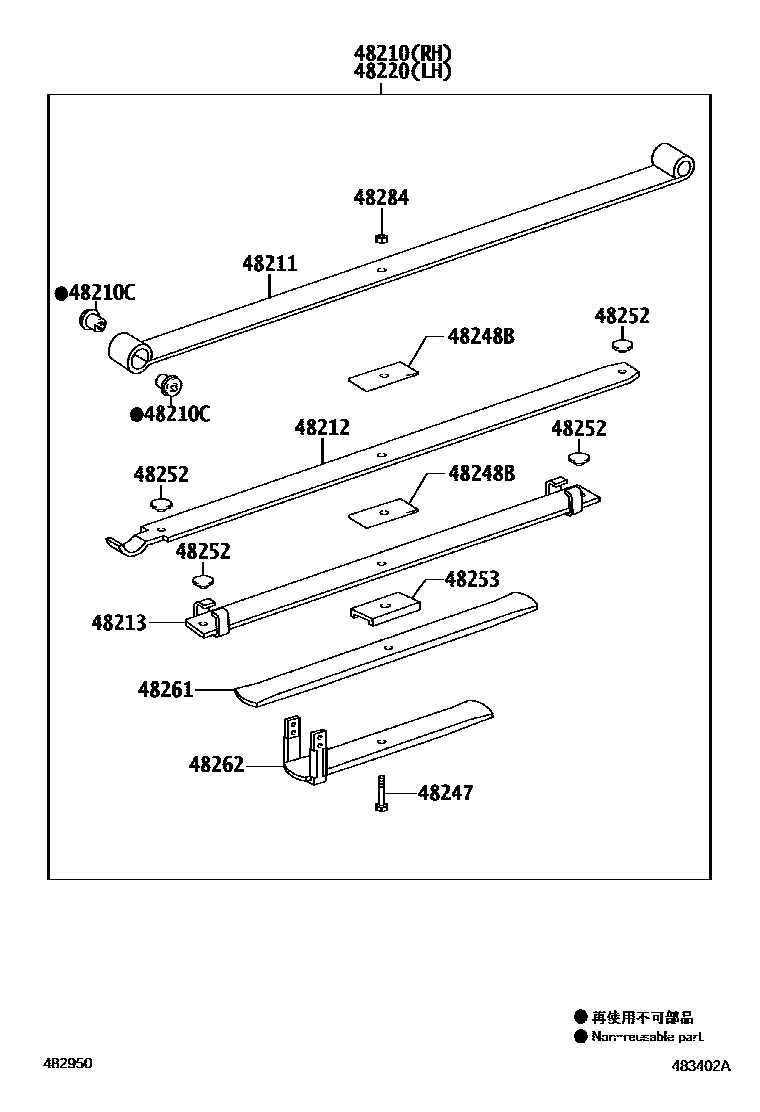

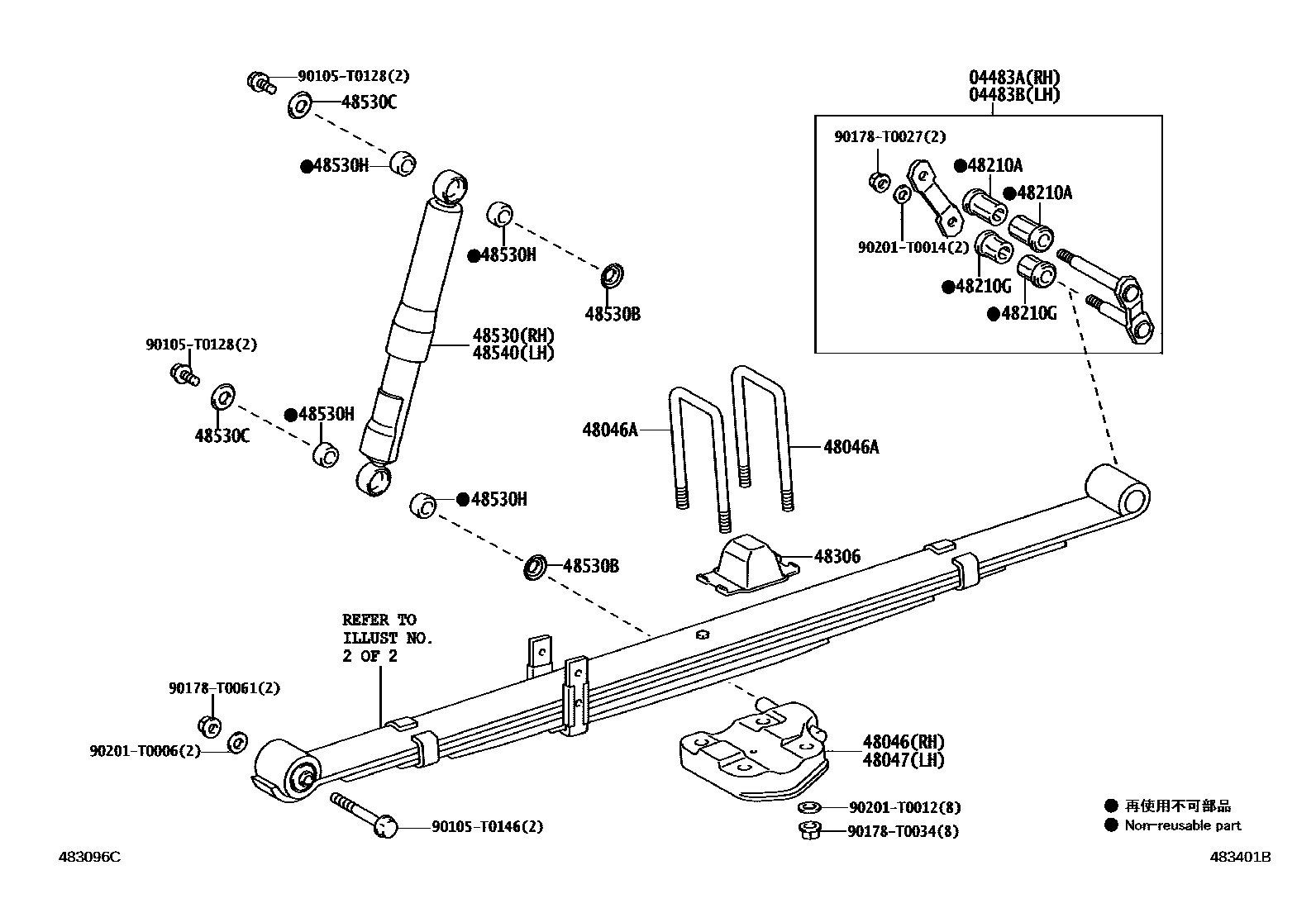

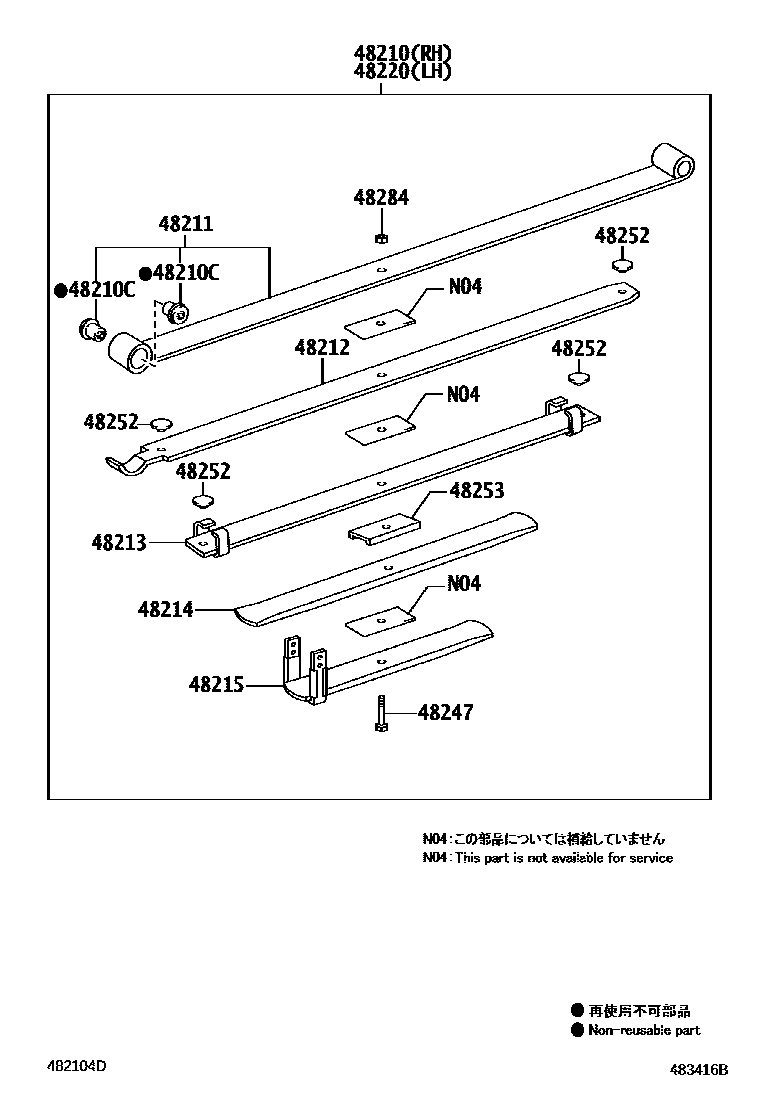

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483A | Right rear spring lifting lug assembly | 04483-0K050 |
| 04483B | Left rear spring lifting lug assembly | 04483-0K050 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-0K020 |
| 48046A | U-bolt (for rear spring) | 90117-T0002 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-0K020 |
| 48210 | Right rear spring assembly | 48210-0K210 · 48210-0K231 · 48210-0K240 · 48210-0K251 · 48210-0K310 · 48210-0K311 · 48210-0K320 · 48210-0K321 · 48210-0K350 · 48210-0K351 · 48210-0K780 · 48210-0K790 |
| 48210A | Upper bushing (for rear spring lug) | 90385-T0009 |
| 48210C | Bushing (for rear leaf spring) | 90389-T0009 |
| 48210G | Lower bushing (for rear spring lug) | 90385-T0010 |
| 48211 | No. 1 rear leaf spring | 48201-0K210 · 48211-0K230 · 48211-0K240 · 48211-0K251 · 48211-0K310 · 48211-0K311 · 48211-0K320 · 48211-0K321 · 48211-0K350 · 48211-0K351 · 48211-0K780 · 48211-0K790 |
| 48212 | No. 2 rear leaf spring | 48212-0K210 · 48212-0K231 · 48212-0K240 · 48212-0K251 · 48212-0K310 · 48212-0K311 · 48212-0K320 · 48212-0K321 · 48212-0K350 · 48212-0K351 · 48212-0K780 · 48212-0K790 |
| 48213 | No. 3 rear leaf spring | 48204-0K210 · 48213-0K230 · 48213-0K240 · 48213-0K251 · 48213-0K310 · 48213-0K311 · 48213-0K320 · 48213-0K321 · 48213-0K350 · 48213-0K351 · 48213-0K780 · 48213-0K790 |
| 48214 | No. 4 rear leaf spring | 48214-0K240 · 48214-0K251 |
| 48215 | No. 5 rear leaf spring | 48215-0K240 · 48215-0K251 |
| 48220 | Left rear spring assembly | 48210-0K210 · 48210-0K231 · 48210-0K240 · 48210-0K251 · 48210-0K310 · 48210-0K311 · 48210-0K320 · 48210-0K321 · 48210-0K350 · 48210-0K351 · 48210-0K780 · 48210-0K790 |
| 48247 | rear spring center bolt | 48247-0K010 · 48247-0K040 · 48247-0K050 · 48247-0K070 · 48247-0K310 · 48247-0K311 · 48247-0K350 |
| 48248B | No. 3 rear spring spacer | 48248-0K020 |
| 48252 | rear spring muffler | 48252-0K010 · 48252-0K040 |
| 48253 | No. 1 rear spring spacer | 48253-0K010 · 48253-0K040 |
| 48254 | rear leaf spring spacer | 48254-0K250 |
| 48261 | Rear auxiliary mechanism No. 1 leaf spring | 48261-0K210 · 48261-0K231 · 48261-0K310 · 48261-0K311 · 48261-0K320 · 48261-0K321 · 48261-0K350 · 48261-0K351 · 48261-0K780 · 48261-0K790 |
| 48262 | Rear auxiliary mechanism No. 2 leaf spring | 48026-0K210 · 48262-0K230 · 48262-0K310 · 48262-0K311 · 48262-0K320 · 48262-0K321 · 48262-0K350 · 48262-0K351 · 48262-0K780 · 48262-0K790 |
| 48284 | Rear spring center bolt nut | 48284-0K010 · 48284-0K040 · 48284-0K310 |
| 48306 | Rear spring buffer block sub-assembly | 48306-0K010 · 48306-0K020 |
| 48530 | Right rear shock absorber assembly | 48531-09460 · 48531-09490 · 48531-09550 · 48531-09A60 · 48531-0K160 · 48531-0K170 · 48531-0K180 · 48531-0K450 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-T3001 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-T3002 |
| 48530H | Rear shock absorber bushing | 90385-T0004 |
| 48540 | Left rear shock absorber assembly | 48541-09100 · 48541-09110 · 48541-09130 · 48541-09200 · 48541-0K050 · 48541-0K060 · 48541-0K070 · 48541-0K120 |
