Toyota HILUX Front Spring & Shock Absorber — Figure 4803

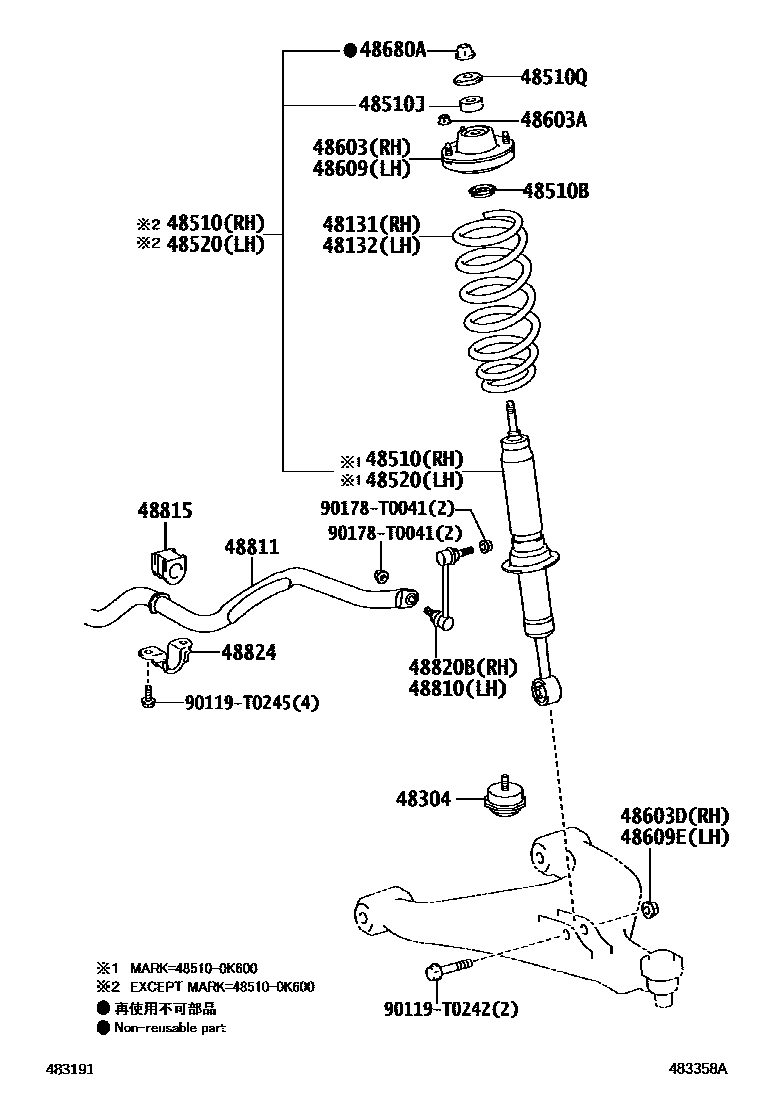

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0K760 · 48131-0K770 · 48131-0K780 · 48131-0K790 · 48131-0K800 · 48131-0K820 · 48131-0K830 · 48131-0K840 · 48131-0K850 · 48131-0KC90 |
| 48132 | Left front coil spring | 48131-0K760 · 48131-0K770 · 48131-0K780 · 48131-0K790 · 48131-0K800 · 48131-0K820 · 48131-0K830 · 48131-0K840 · 48131-0K850 · 48131-0KC90 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-0K040 |
| 48510 | Right front shock absorber assembly | 48510-09J10 · 48510-09J20 · 48510-09J90 · 48510-09K10 · 48510-0K600 · 48510-8Z029 · 48510-8Z174 · 48510-8Z175 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-T2003 |
| 48510J | Front shock absorber No. 1 cushion | 90948-T1001 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-T2004 |
| 48520 | Left front shock absorber assembly | 48510-09J10 · 48510-09J20 · 48510-09J90 · 48510-09K10 · 48510-0K600 · 48510-8Z029 · 48510-8Z174 · 48510-8Z175 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0K040 |
| 48603A | Nut (for front suspension mount) | 90178-T0050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0048 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0K040 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0048 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-T0015 · 94188-01241 |
| 48810 | Left front stabilizer bar link assembly | 48810-0K010 |
| 48811 | front stabilizer bar | 48811-0K050 · 48811-0K100 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0K010 |
| 48820B | Right front stabilizer bar link assembly | 48820-0K030 |
| 48824 | front stabilizer bar bracket | 48824-0K010 |
