Toyota HILUX 前转向齿轮和连杆 — Figure 4505

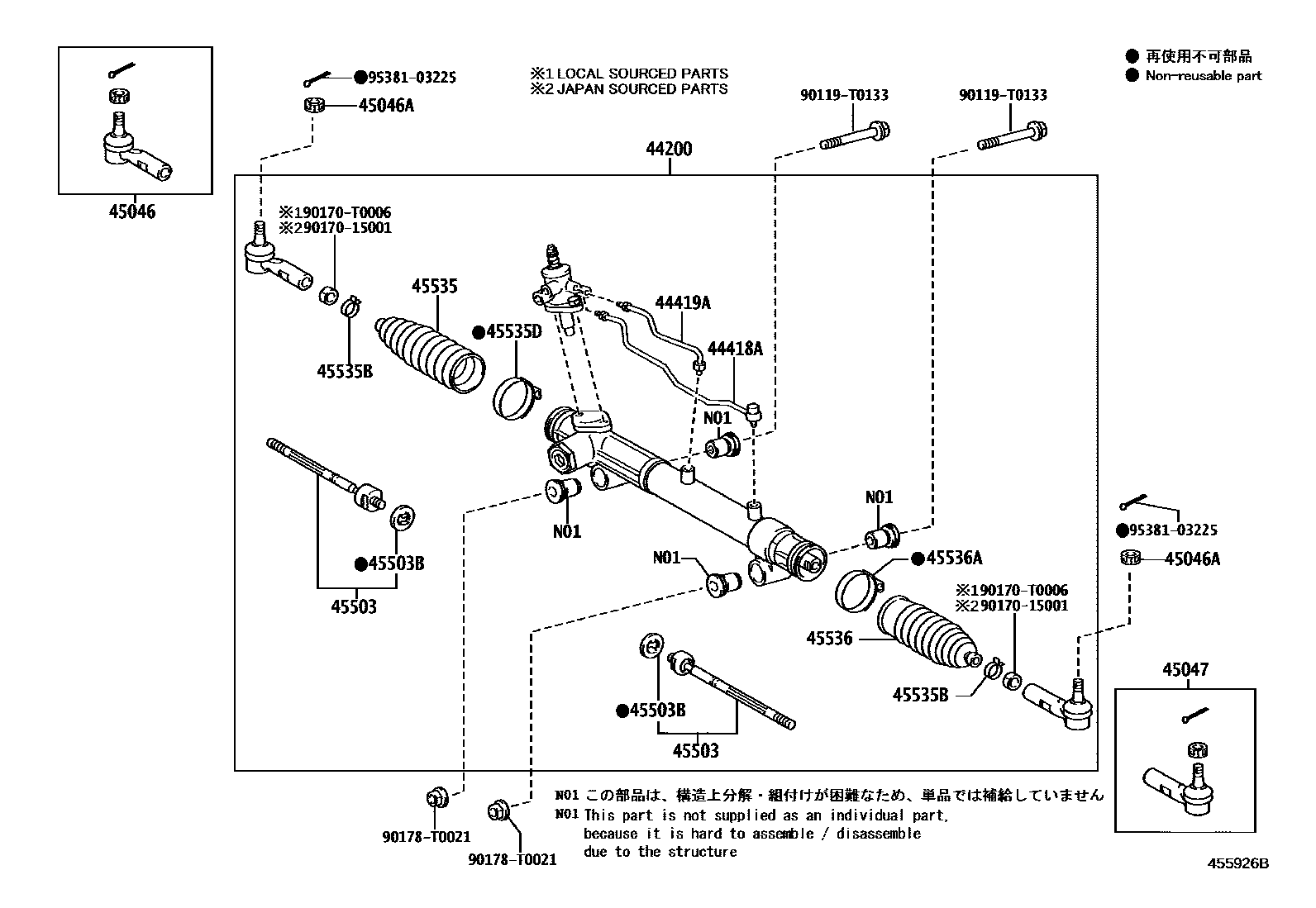

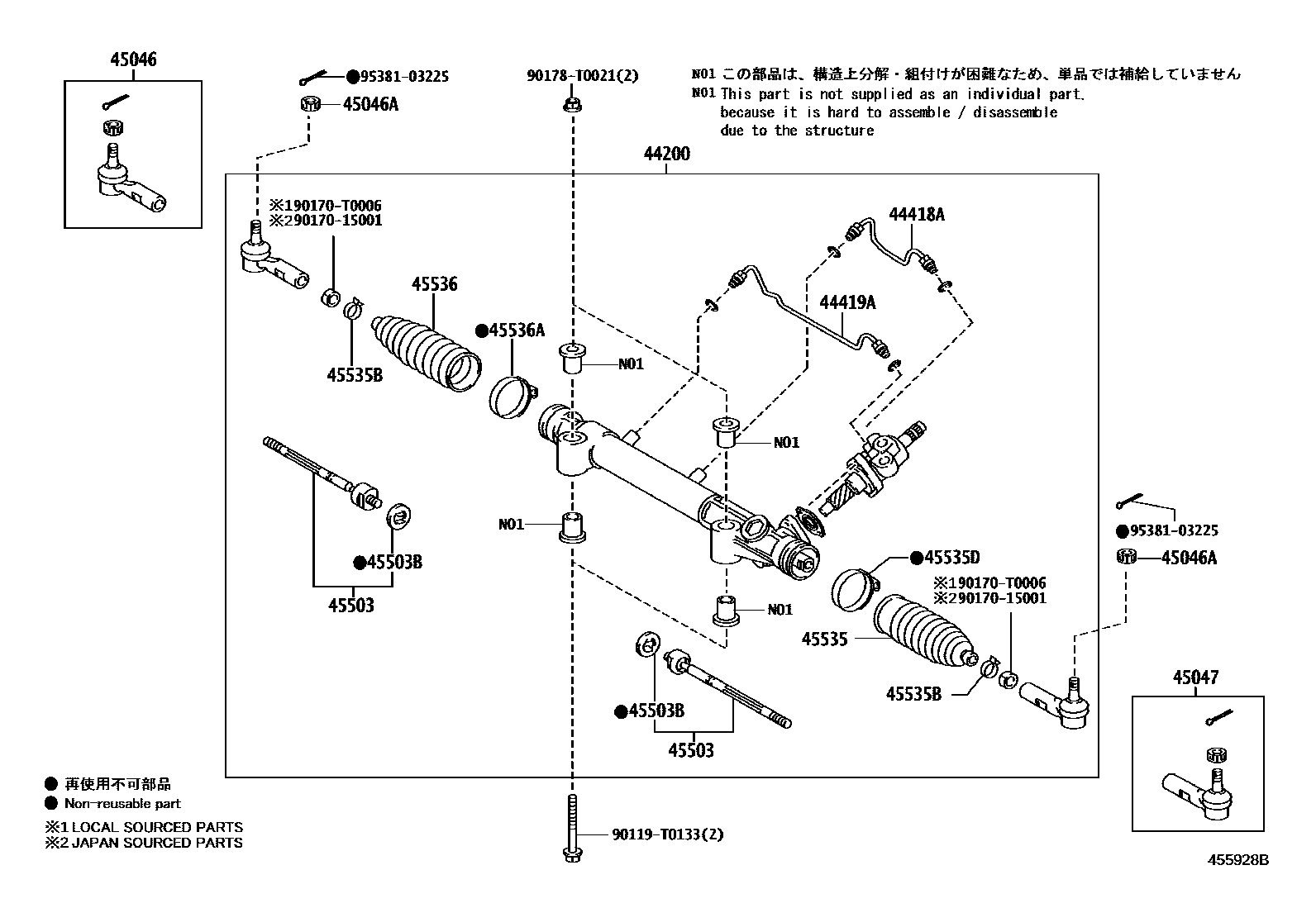

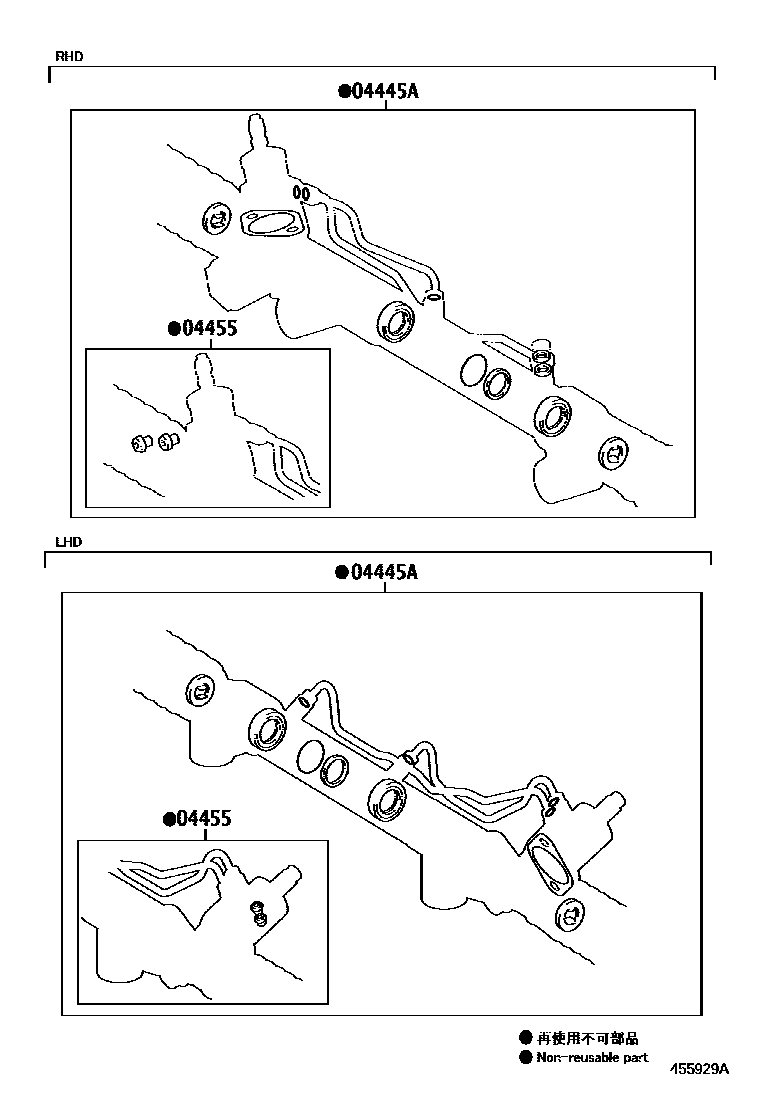

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-0K091 · 04445-0K131 · 04445-0K201 · 04445-0K211 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-0K060 |
| 44200 | Power steering tie rod assembly | 44200-0K220 · 44200-0K230 · 44200-0K280 · 44200-0K310 · 44200-0K320 · 44200-0K340 · 44200-0K380 · 44200-0K390 · 44200-0K440 · 44200-0K470 · 44200-0K480 · 44200-0K500 · 44200-0K550 · 44200-0K560 · 44200-0K570 · 44200-0K580 · 44200-0K760 |
| 44418A | Right steering pressure oil pipe | 44418-0K140 · 44418-0K150 · 44418-0K170 · 44418-0K180 |
| 44419A | Left steering pressure oil pipe | 44419-0K140 · 44419-0K150 · 44419-0K170 · 44419-0K180 |
| 45046 | Right tie rod end sub-assembly | 45046-09281 |
| 45046A | Castle nuts (for tie rod ends) | 90171-T0002 |
| 45047 | Left tie rod end sub-assembly | 45046-09281 |
| 45503 | Steering rack end sub-assembly | 45503-09321 · 45503-09331 |
| 45503B | Jaw washer (for steering rack end) | 90214-T0001 · 90214-T0002 |
| 45535 | No. 1 steering rack dust cover | 45535-0K010 |
| 45535B | Clamp (for steering rack dust boot) | 90466-T0004 · 90466-T0005 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-T0001 |
| 45536 | No. 2 steering rack dust cover | 45536-0K010 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-T0001 |
