Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

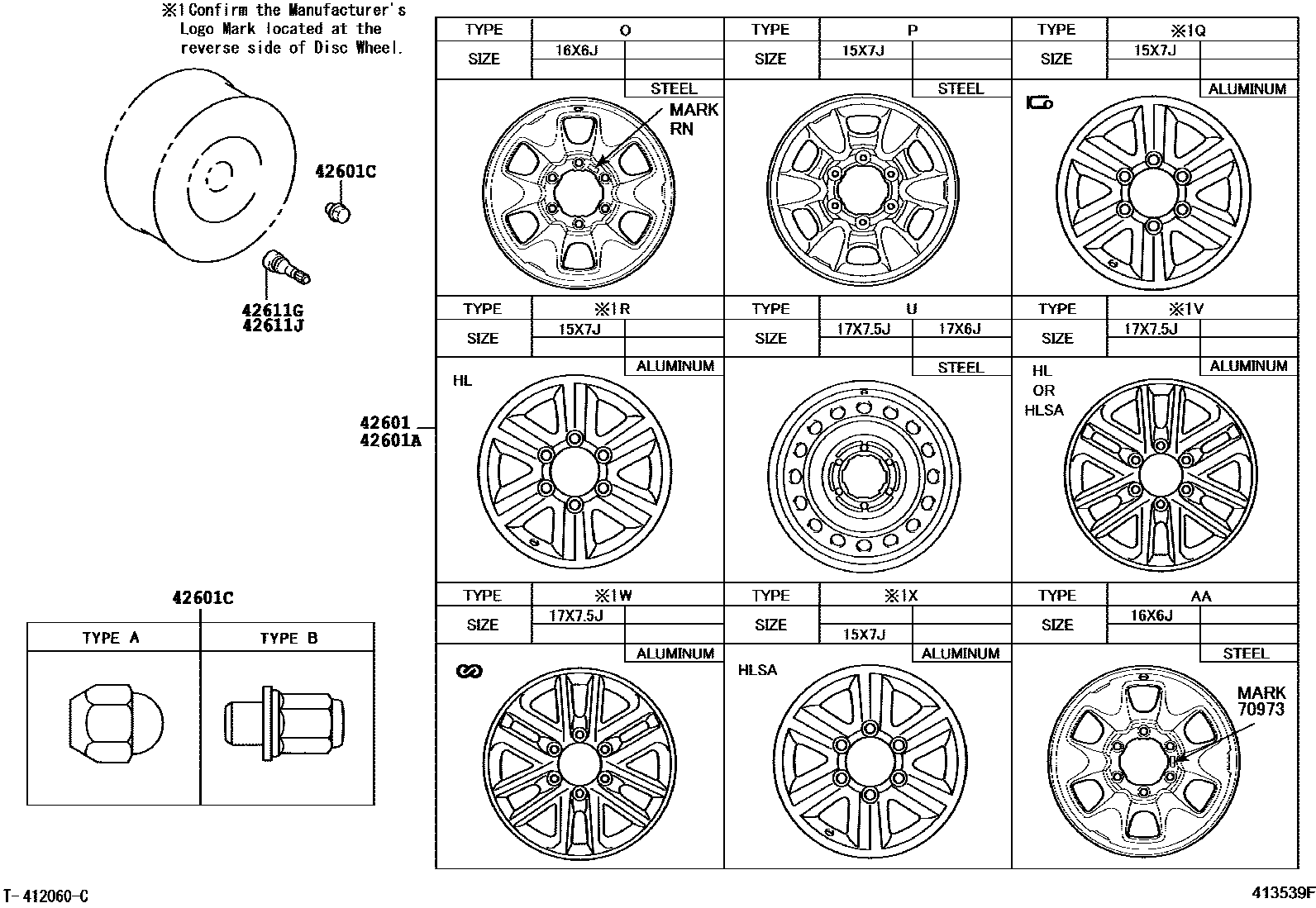

| 42601 | spoke wheel | 42611-0K220 · 42611-0K222 · 42611-0K223 · 42611-0K224 · 42611-0K240 · 42611-0K241 · 42611-0KA80 · 42611-0KC20 · 42611-0KC21 · 42611-0KD90 · 42611-0KD91 · 42611-0KE00 · 42611-0KE30 · 42611-0KE31 · 42611-0KE32 · 42611-0KE40 · 42611-0KE41 · 42611-0KE50 · 42611-0KF70 · 42611-0KF71 · 42611-0KF72 · 42611-0KG50 · 42611-0KT40 |
| 42601A | Spoke wheel (for spare tire) | 42611-0K220 · 42611-0K222 · 42611-0K223 · 42611-0K224 · 42611-0K240 · 42611-0K241 · 42611-0KA80 · 42611-0KE50 · 42611-0KF70 · 42611-0KF71 · 42611-0KF72 · 42611-0KG50 · 42611-0KT40 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 · 90942-T1005 |

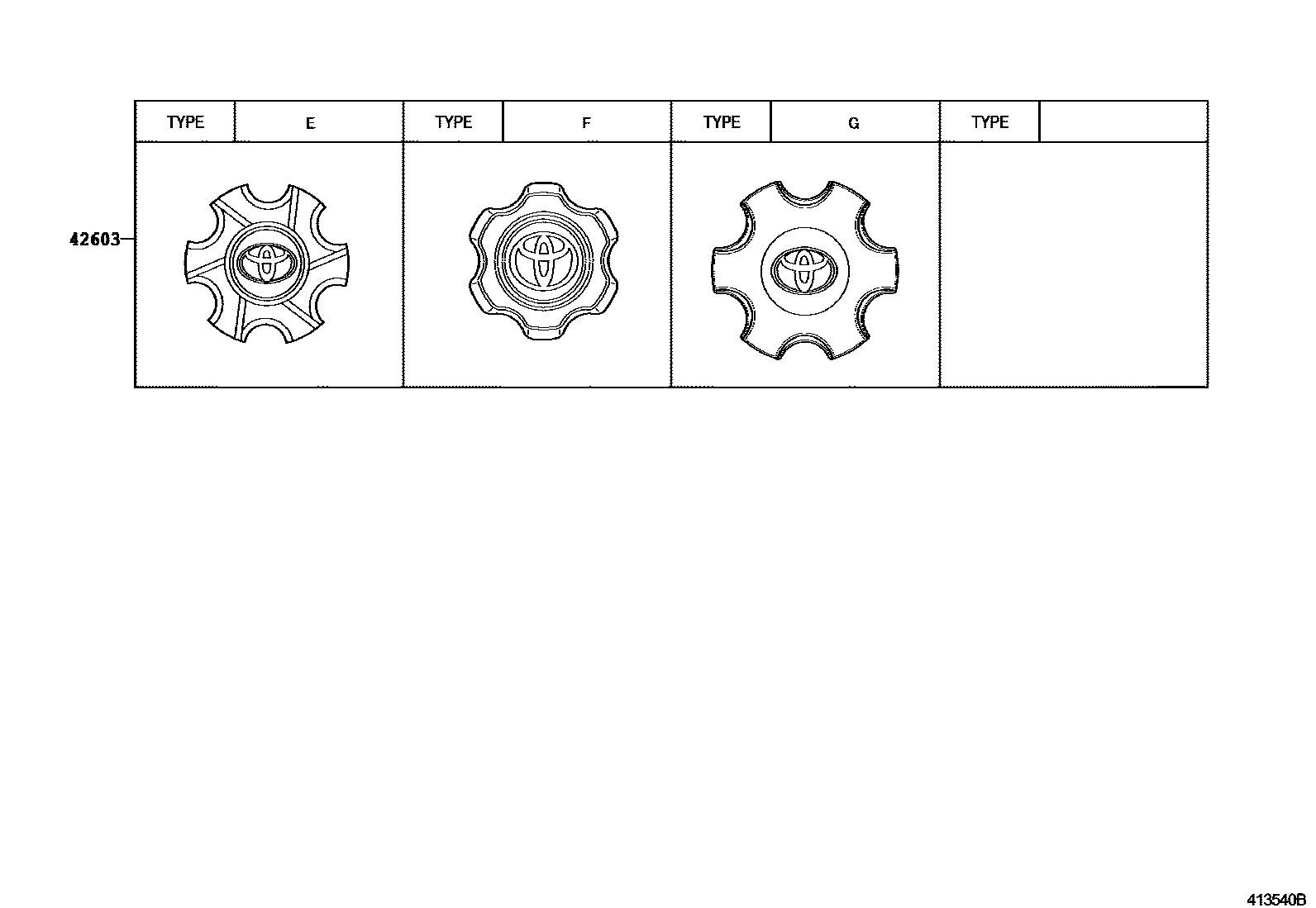

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K050 · 42603-0K140 · 4260B-0K060 · 4260B-0K061 · 4260B-0K070 · 4260B-0K080 · 4260B-0K081 · 4260B-0K090 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94180 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94180 |
