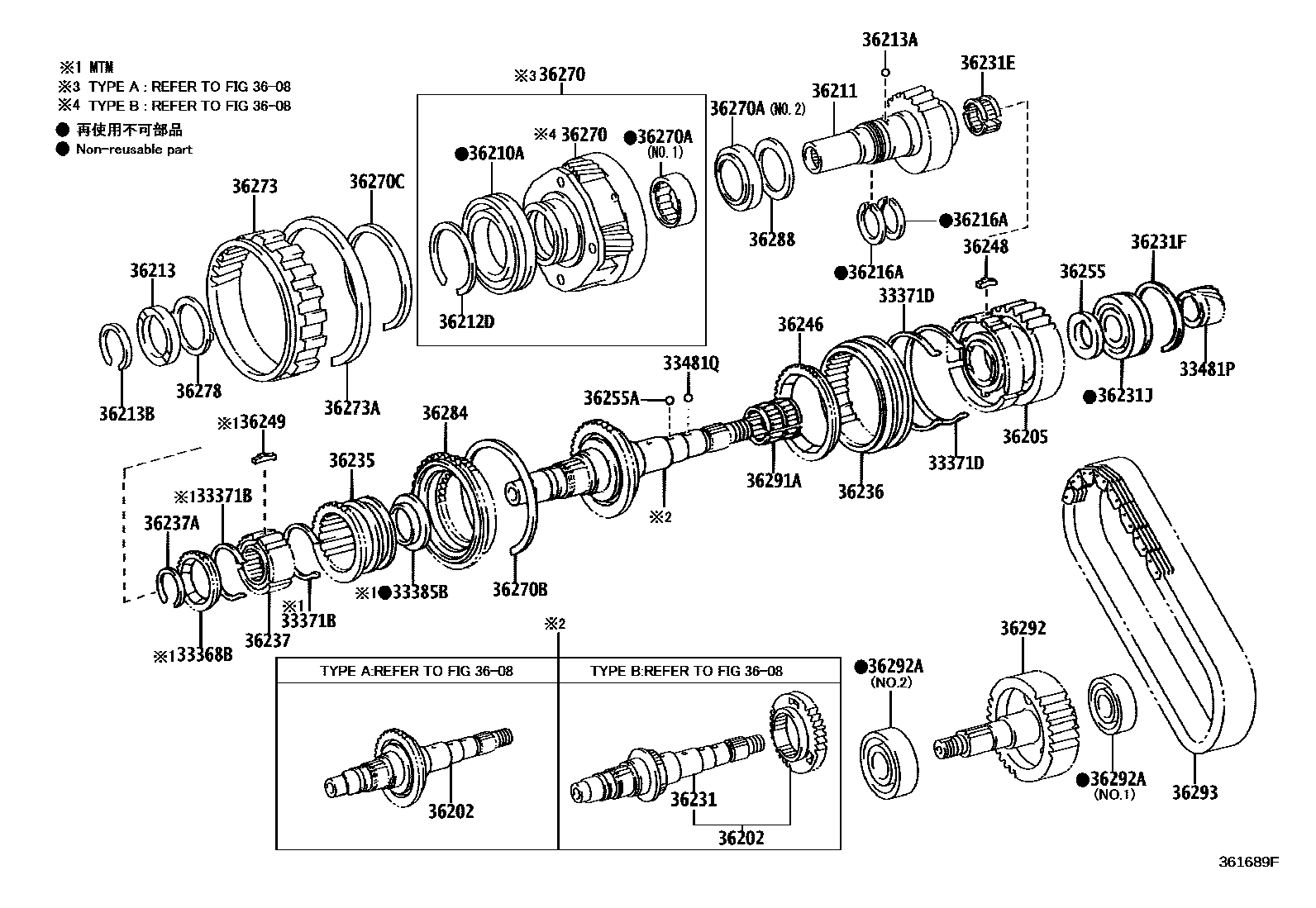

Toyota HILUX Transfer Gear — Figure 3610
Toyota HILUX EPC diagram 3610, Transfer Gear, with 1 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33368B | Synchronizer locking ring (for transfer case front-wheel drive clutch) | 33367-0K280 · 33367-14010 |
| 33371B | Synchromesh shift key spring (for transfer case) | 33371-14010 |
| 33371D | No. 1 synchromesh shift key spring (for transfer case) | 33371-36030 |
| 33385B | Shift key retaining ring (for transfer case front-wheel drive clutch) | 33385-35010 |
| 33481P | Speedometer drive gear (for transfer case) | 33481-35200 · 33481-71020 |
| 33481Q | Speedometer driving gear key or steel ball (for transfer case) | 90360-05012 · 90360-T0010 |
| 36202 | Transfer case rear output shaft sub-assembly | 36202-0K010 · 36202-71010 |
| 36205 | Transfer case drive sprocket sub-assembly | 36205-0K030 · 36205-35081 · 36205-35110 |
| 36210A | Bearing (for transfer case input shaft) | 90363-75001 · 90363-T0038 |
| 36211 | Transfer case input shaft | 36201-0K050 · 36201-71010 · 36201-71020 |
| 36212D | Shaft snap ring (for transfer case input bearing) | 90520-72001 · 90520-72002 · 90520-72003 · 90520-72004 · 90520-72005 · 90520-T0136 · 90520-T0137 · 90520-T0138 · 90520-T0139 · 90520-T0140 |
| 36213 | Transfer case input gear block | 36213-0K010 · 36213-35020 |
| 36213A | Steel ball (for transfer case input gear block) | 90360-05012 · 90360-T0010 |
| 36213B | Shaft snap ring (for transfer case input gear block) | 90520-44003 · 90520-44004 · 90520-44005 · 90520-44006 · 90520-44007 · 90520-44008 · 90520-44009 · 90520-44010 · 90520-44011 · 90520-44012 · 90520-44013 · 90520-44014 · 90520-44015 · 90520-44016 · 90520-44017 · 90520-44018 · 90520-44019 · 90520-44020 · 90520-44021 · 90520-T0202 · 90520-T0203 · 90520-T0204 · 90520-T0205 · 90520-T0206 · 90520-T0207 · 90520-T0208 · 90520-T0209 · 90520-T0210 · 90520-T0211 · 90520-T0212 · 90520-T0213 · 90520-T0214 · 90520-T0215 · 90520-T0216 · 90520-T0217 · 90520-T0218 · 90520-T0219 · 90520-T0220 |
| 36216A | No. 1 transfer case input shaft seal ring | 36216-35012 |
| 36231 | Transfer case rear output shaft | 36231-0K020 |
| 36231E | Needle roller bearing (for transfer case front output shaft) | 90364-28004 · 90364-C0016 |
| 36231F | Shaft snap ring (for transfer case output shaft) | 90520-71221 |
| 36231J | Radial ball bearing (for transfer case rear output shaft) | 90363-32006 · 90363-T0035 |
| 36235 | Transfer case high and low speed clutch sleeves | 36235-0K030 · 36235-35021 · 36235-35022 |
| 36236 | Front wheel drive clutch sleeve | 36236-0K060 · 36236-35050 |
| 36237 | Transfer case clutch hub | 36237-0K020 · 36237-35030 |
| 36237A | Shaft snap ring (for transfer case clutch hub) | 90520-39004 · 90520-39005 · 90520-39006 · 90520-39007 · 90520-39008 · 90520-39009 · 90520-39010 · 90520-39011 · 90520-39012 · 90520-39013 · 90520-39014 · 90520-99078 · 90520-T0191 · 90520-T0192 · 90520-T0193 · 90520-T0194 · 90520-T0195 · 90520-T0196 · 90520-T0197 · 90520-T0198 · 90520-T0199 · 90520-T0200 · 90520-T0201 |
| 36246 | Transfer case front wheel drive clutch synchronizer lock ring | 36246-0K010 · 36246-35060 |
| 36248 | No. 1 transfer case drive synchromesh shift key | 36248-0K010 · 36248-35031 |
| 36249 | No. 2 transfer case drive synchromesh shift key | 36249-0K010 · 36249-35030 |
| 36255 | No. 1 transfer case output shaft spacer | 36255-0K010 · 36255-35020 |
| 36255A | Steel ball (for transfer case output shaft spacer) | 90360-05012 · 90360-T0010 |
| 36270 | Transfer case low speed planetary gear assembly | 36270-0K020 · 36270-35900 |
| 36270A | Bearings (for transfer case low-speed planetary gear) | 90364-47001 · 90364-T0033 · 90374-49001 · 90374-C0017 |
| 36270B | Shaft snap ring (for transfer case low range planetary gear) | 90521-99056 |
| 36270C | Shaft snap ring (for transfer case low speed planetary gear bearing) | 90520-99072 · 90520-T0188 |
| 36273 | Transfer case low gear planetary ring gear | 36273-0K010 · 36273-35030 |
| 36273A | Hole snap ring (for transfer case low-speed planetary ring gear) | 90520-99078 |
| 36278 | Manual transfer case planetary gear washer | 36278-0K010 · 36278-35020 |
| 36284 | Transfer case low gear planetary gear spline | 36284-0K020 · 36284-0K021 · 36284-35021 · 36284-35022 |
| 36288 | No. 1 transfer case thrust bearing race | 36288-0K010 · 36288-28010 |
| 36291A | Bearings (for transfer case drive sprocket) | 90364-37013 |
| 36292 | Transfer case driven sprocket | 36292-0K010 · 36292-35050 · 36292-35070 |
| 36292A | Bearings (for transfer case driven sprocket) | 90363-28004 · 90363-32037 · 90363-T0036 · 90363-T0037 |
| 36293 | Transfer case front wheel drive chain | 36293-35040 · 36293-35050 |
