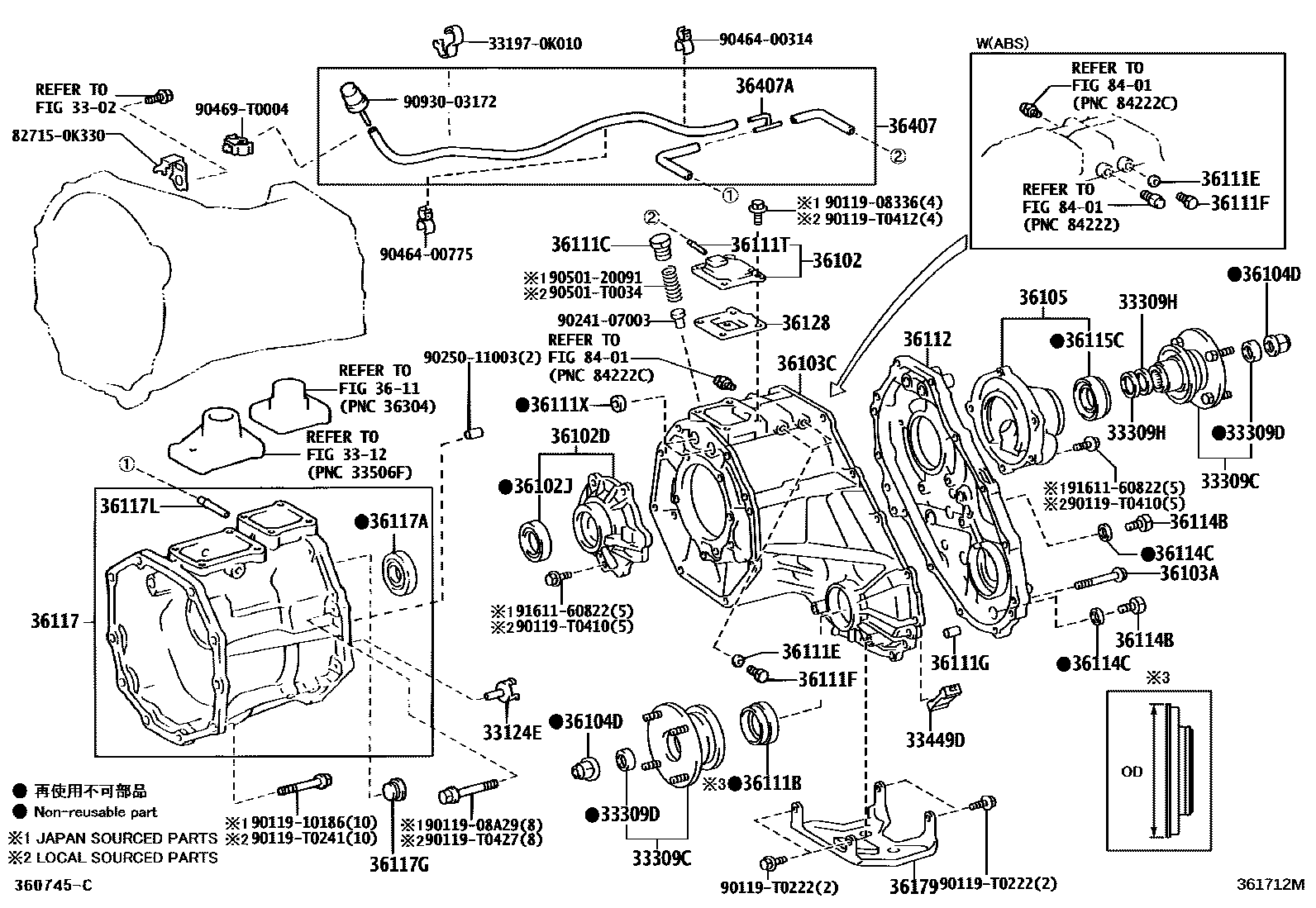

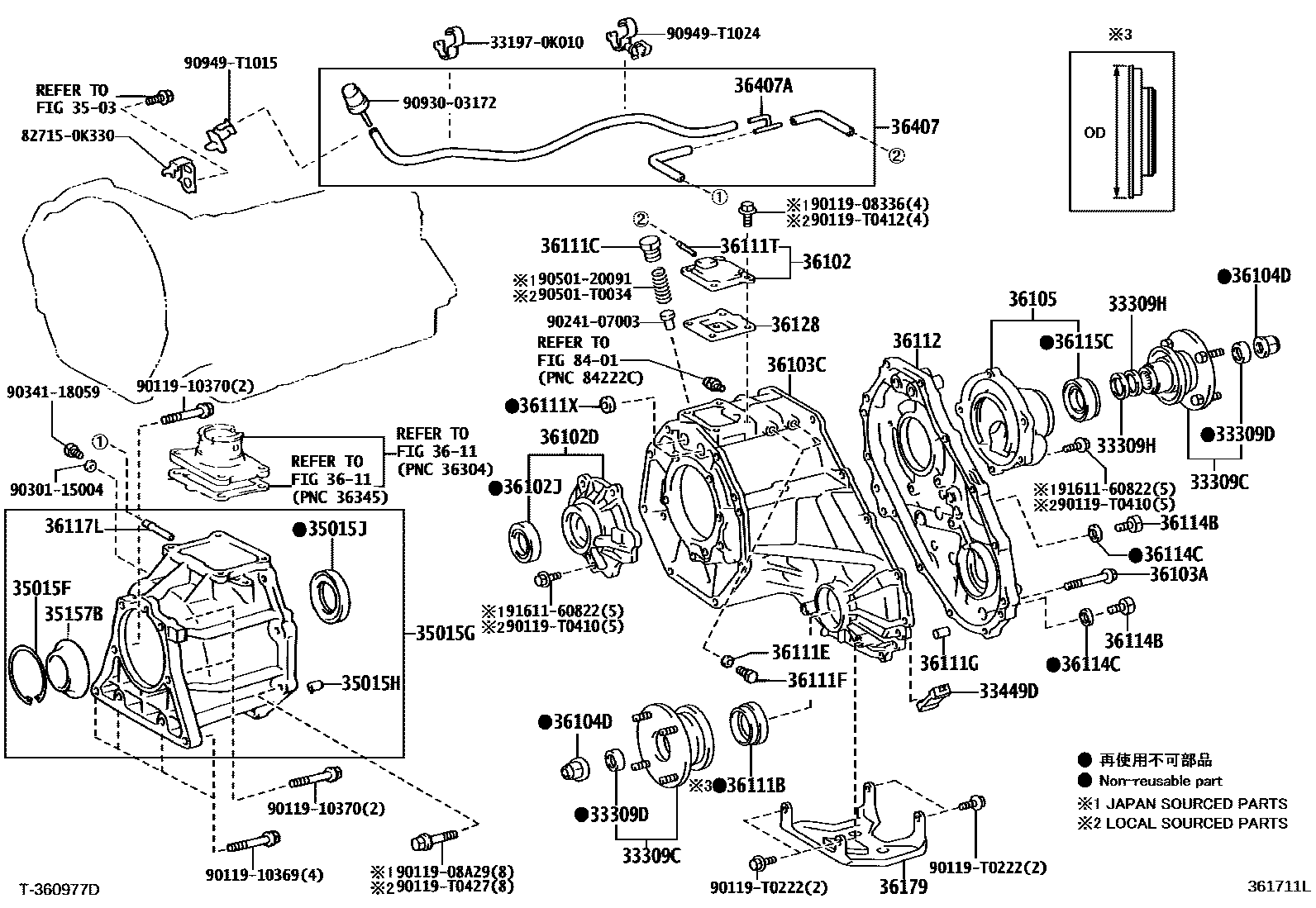

Toyota HILUX Transfer Case & Extension Housing — Figure 3609
Toyota HILUX EPC diagram 3609, Transfer Case & Extension Housing, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33124E | Oil collector pipe (for transfer case) | 33124-0K010 · 33124-0K060 · 33124-35100 |
| 33309C | Output shaft combined with flange sub-assembly | 33309-0K010 · 33309-0K011 · 33309-0K020 · 33309-35111 · 33309-35112 · 33309-35120 |
| 33309D | Oil seal (for transfer case output shaft coupling flange) | 90312-23001 · 90312-T0004 |
| 33309H | Transfer case output shaft washer | 36275-35010 |
| 33449D | Magnet (for transfer case) | 33449-32020 |
| 35015F | Hole snap ring (for transfer case adapter) | 90521-72001 |
| 35015G | transfer case rear clutch | 35015-71020 |
| 35015H | Ring pin (for transfer case) | 90250-11003 |
| 35015J | Oil seal (for rear transfer case adapter) | 90311-43007 |
| 35157B | Rear transfer case adapter oil collection tank | 35157-60010 |
| 36102 | Transfer Case Cover Sub-Assembly | 36102-0K020 · 36102-35040 |
| 36102D | Transfer case right bearing retainer sub-assembly | 36102-0K010 · 36102-35060 |
| 36102J | T-type oil seal (for transfer case cover) | 90311-43008 · 90311-T0071 |
| 36103A | Bolt (for transfer case) | 90119-08A28 · 90119-T0411 |
| 36103C | front transfer case | 36111-60261 |
| 36104D | Nut (for transfer case output shaft) | 90179-22016 |
| 36105 | Transfer case front extension housing sub-assembly | 36105-0K010 · 36105-35040 |
| 36111B | Oil seal (for transfer case) | 90311-41013 · 90311-41017 · 90311-T0070 · 90311-T0082 |
| 36111C | Screw plug (for transfer case) | 90341-14012 · 90341-T0013 |
| 36111E | Gasket (for transfer case) | 90430-18008 · 90430-T0021 |
| 36111F | Screw plug (for transfer case) | 90341-18006 |
| 36111G | Direct sales (for transfer case) | 90250-10214 · 90250-T0026 |
| 36111T | Tube (for transfer case) | 90406-T0007 · 90441-05001 |
| 36111X | No. 2 oil seal (for transfer case) | 90311-15008 |
| 36112 | Rear transfer case | 36112-0K020 · 36112-35040 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18006 |
| 36114C | No. 1 gasket (for transfer case) | 90430-18008 · 90430-T0021 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-41007 |
| 36117 | Transfer case clutch | 36107-0K010 · 36107-0K030 · 36107-0K050 |
| 36117A | Oil seal (for transfer case clutch) | 90311-T0018 · 90311-T0028 · 90311-T0080 |
| 36117G | Headed straight thread plug (for transfer case adapter) | 90341-24006 |
| 36117L | Tube (for transfer case adapter) | 90441-05001 |
| 36128 | Air vent oil baffle | 36128-0K020 · 36128-35060 |
| 36179 | Protective cover under transfer case | 36179-0K010 · 36179-0K011 |
| 36407 | Transfer case breather hose sub-assembly | 36407-71050 · 36407-71070 |
| 36407A | Tee (for transfer case vent hose) | 90413-04001 · 90413-04008 |
