Toyota HILUX 阀体和滤油网(ATM) — Figure 3512
Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35205A | B-3 accumulator spring sub-assembly | 35205-60010 |
| 35205B | Hole snap ring (for B-3 accumulator spring) | 90521-22004 |
| 35207B | C-2 Accumulator spring sub-assembly | 35207-22010 |
| 35207C | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35208B | C-3 Accumulator Spring Sub-Assembly | 35208-60010 |
| 35208C | Hole snap ring (for C-3 accumulator spring) | 90521-22004 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-50010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-60010 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-60020 |
| 35250A | No. 3 transmission solenoid valve assembly | 35250-60010 |
| 35250B | No. 3 O-ring (for transmission solenoid valve) | 90301-06004 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35280 | Lock control solenoid valve assembly | 35280-30050 |
| 35285 | Solenoid valve lock plate | 35285-34010 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-34010 |
| 35290B | Direct sales (for pipeline pressure control solenoid valve) | 90250-03045 |
| 35330 | Valve body oil filter assembly | 35330-60050 |
| 35330A | O-ring (for oil filter) | 90301-31014 |

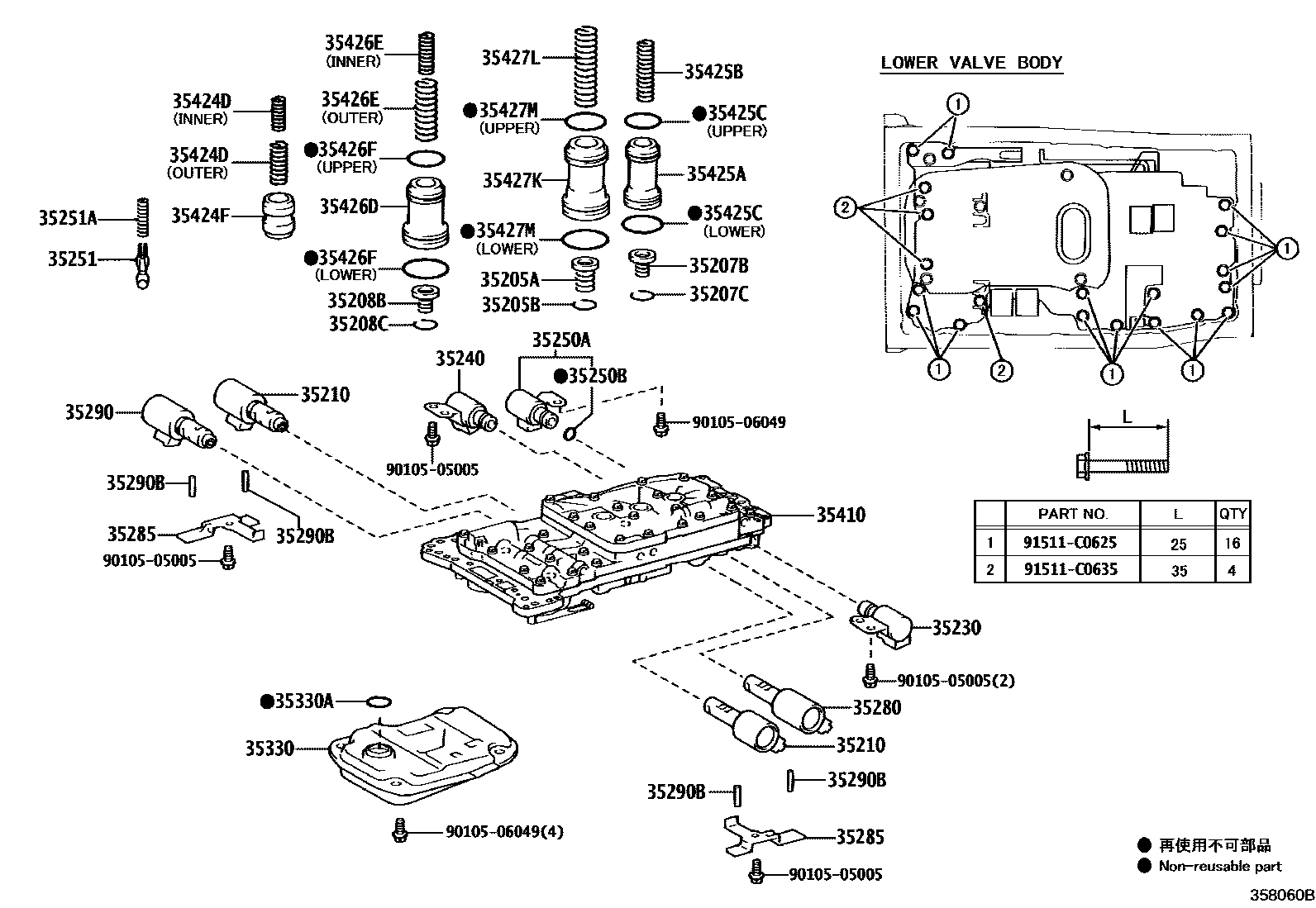

| 35410 | Transmission valve body assembly | 35410-60580 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-20173 · 90501-21040 |
| 35424F | C-1 Accumulator Valve | 35424-60030 |
| 35425A | C-2 Accumulator Piston | 35425-50020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22062 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-20008 · 90301-28008 |
| 35426D | C-3 Accumulator Piston | 35426-50020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-24038 · 90501-25028 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-26011 · 90301-34011 |
| 35427K | B-3 Accumulator Piston | 35427-50020 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90501-27036 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-23010 · 90301-34011 |
| 35481B | Valve body wiring harness clip | 35481-60010 |
| 35482B | temperature sensor clip | 35482-60040 |

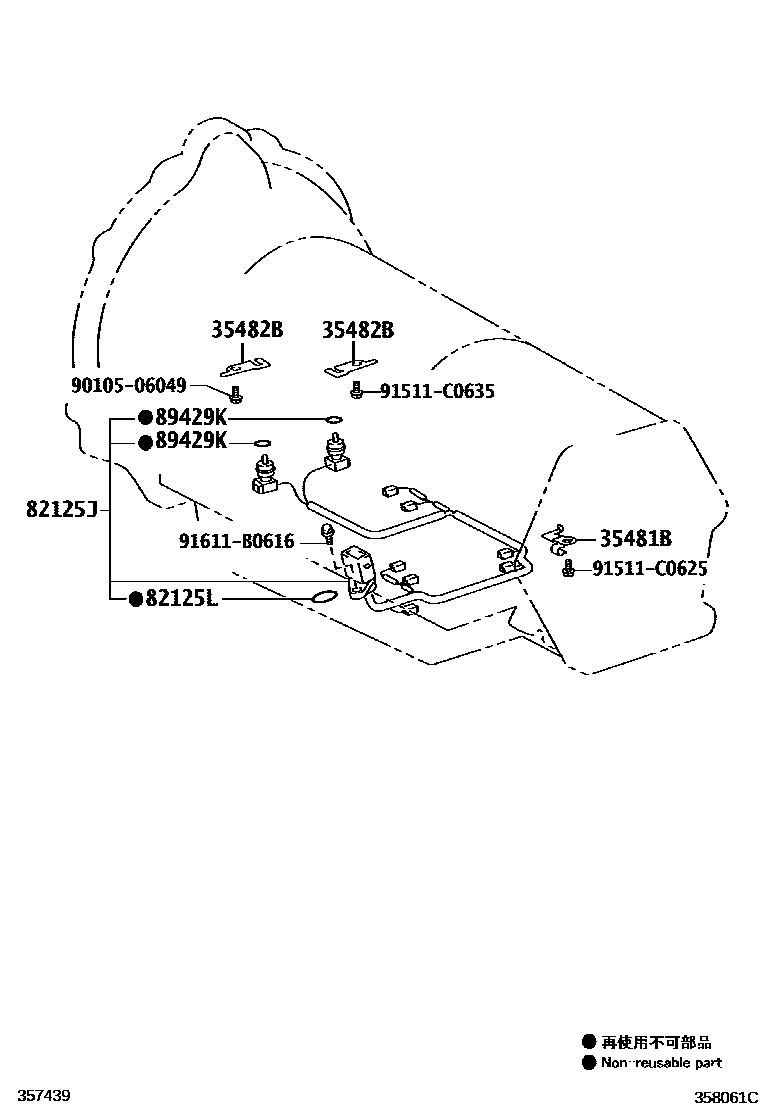

| 82125J | Transmission wiring harness | 82125-60650 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
| 89429K | JOINT, TORIQUE(POUR CAPTEUR TEMPERATURE HUILE) | 90301-06004 |
