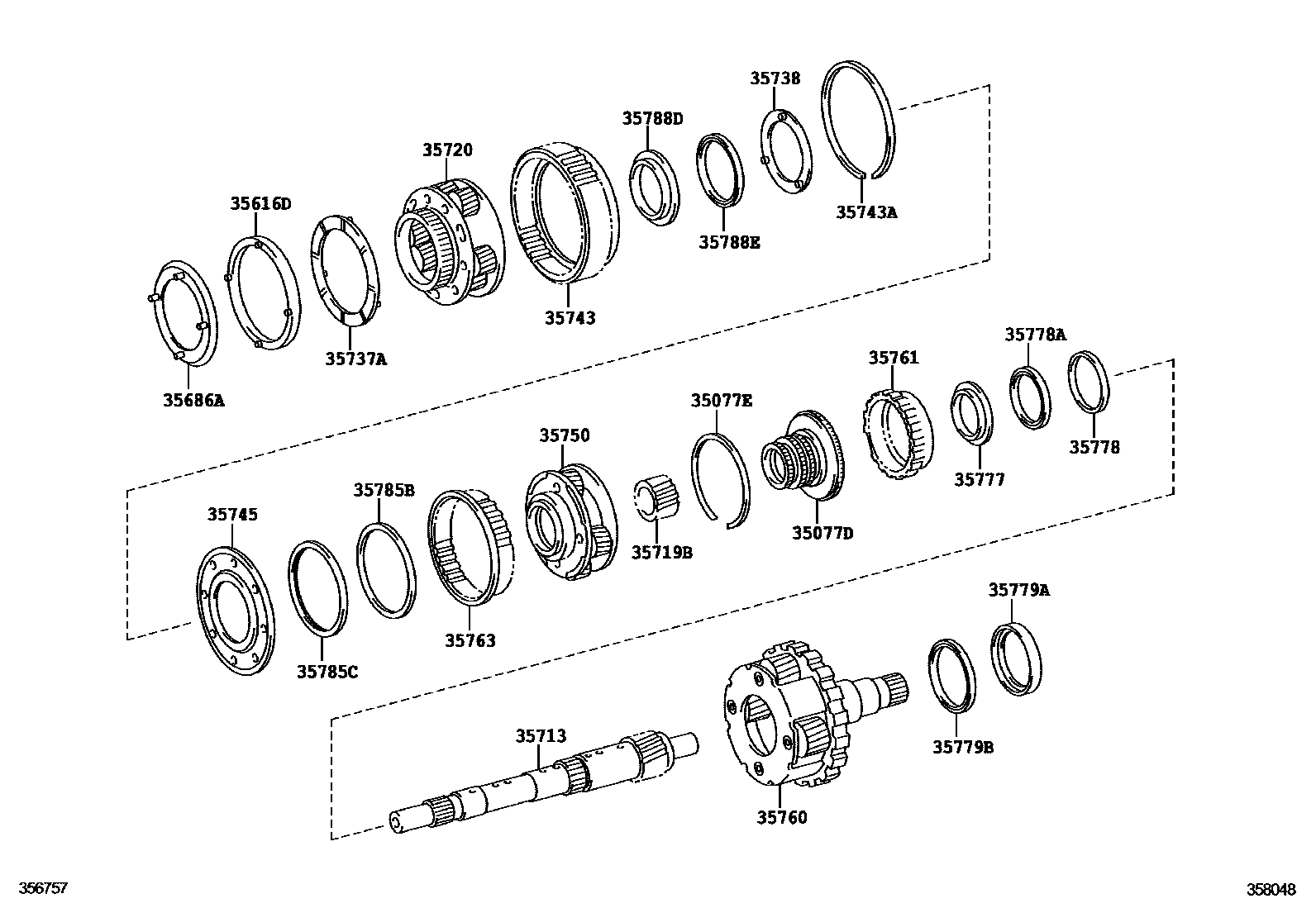

Toyota HILUX 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota HILUX EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35077D | Rear planetary ring gear flange sub-assembly | 35077-60010 |
| 35077E | Snap ring (for rear planetary gear flange) | 90520-99073 |
| 35616D | Clutch drum thrust washer | 35616-60010 |
| 35686A | No. 2 clutch drum thrust washer | 35686-60010 |
| 35713 | intermediate shaft | 35713-60090 |
| 35719B | planetary gear system sun gear | 35719-60050 |
| 35720 | Front planetary gear assembly | 35720-60070 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-60030 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-60030 |
| 35743 | Front planetary ring gear | 35743-60060 |
| 35743A | Shaft snap ring (for front planetary gear) | 90520-99076 |
| 35745 | Front planetary gear flange | 35745-60010 |
| 35750 | Central planetary gear assembly | 35750-60010 |
| 35760 | Rear planetary gear assembly | 35760-60100 |
| 35761 | Rear planetary ring gear | 35761-60040 |
| 35763 | Central planetary ring gear | 35763-60020 |
| 35777 | No. 7 thrust bearing race | 35777-60010 |
| 35778 | No. 8 thrust bearing race | 35778-60010 |
| 35778A | Thrust needle roller bearing | 90374-32010 |
| 35779A | No. 9 thrust bearing race | 35779-60011 |
| 35779B | Thrust needle roller bearing | 90374-43007 |
| 35785B | No. 4 thrust bearing race | 35785-60010 |
| 35785C | Thrust needle roller bearing | 90374-55004 |
| 35788D | No. 3 thrust bearing race | 35788-60010 |
| 35788E | Thrust needle roller bearing | 90374-44005 |
