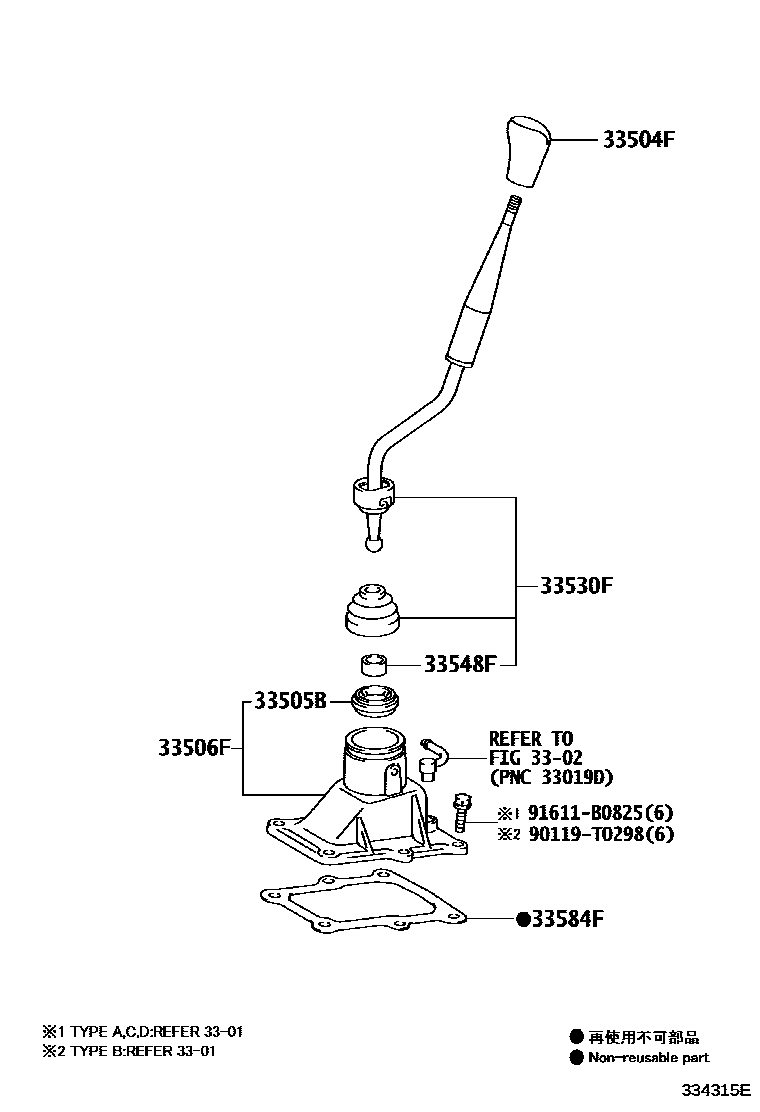

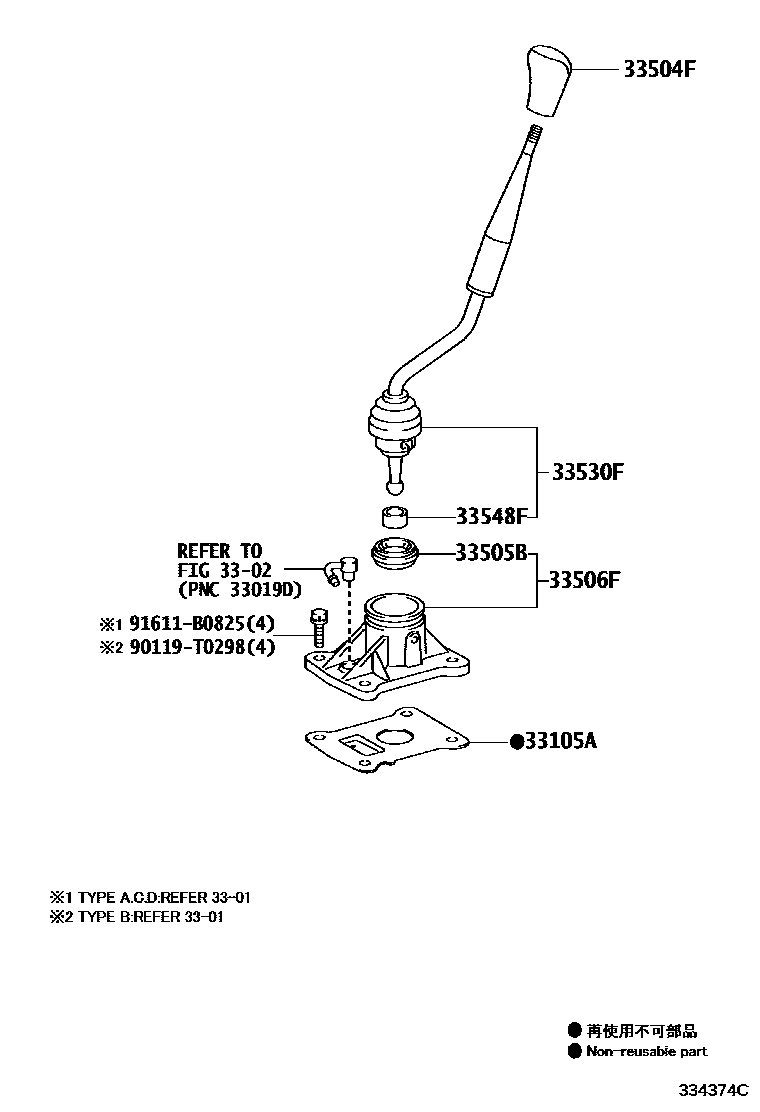

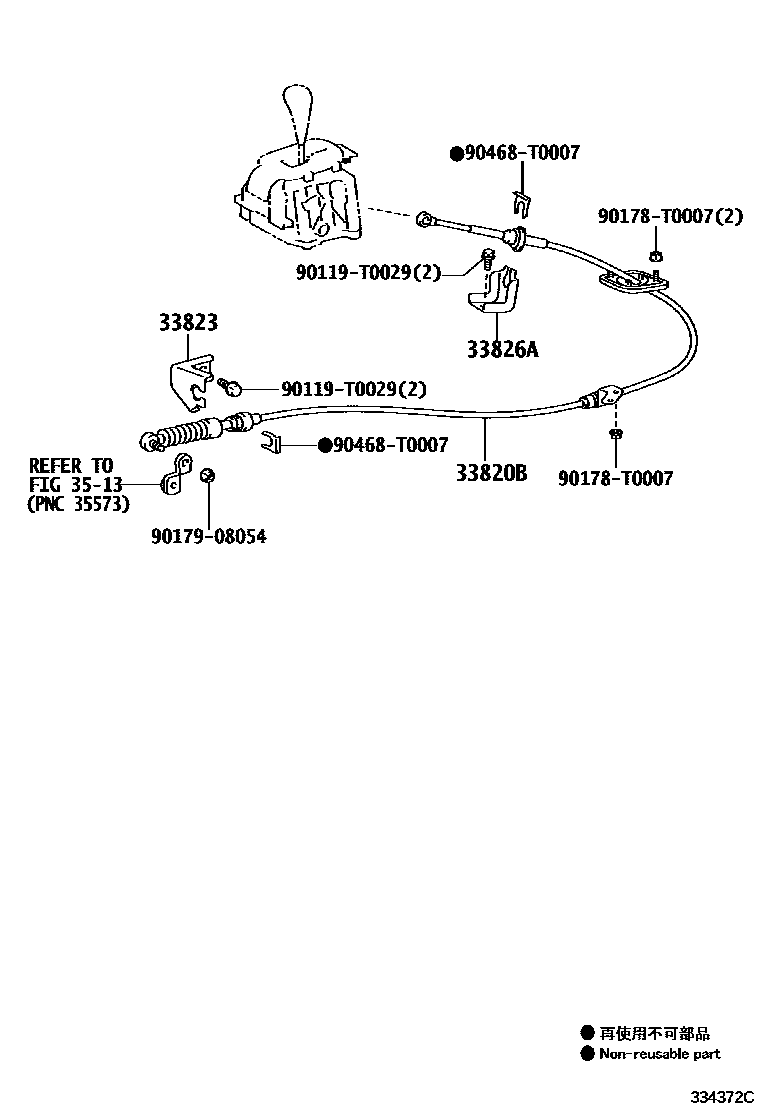

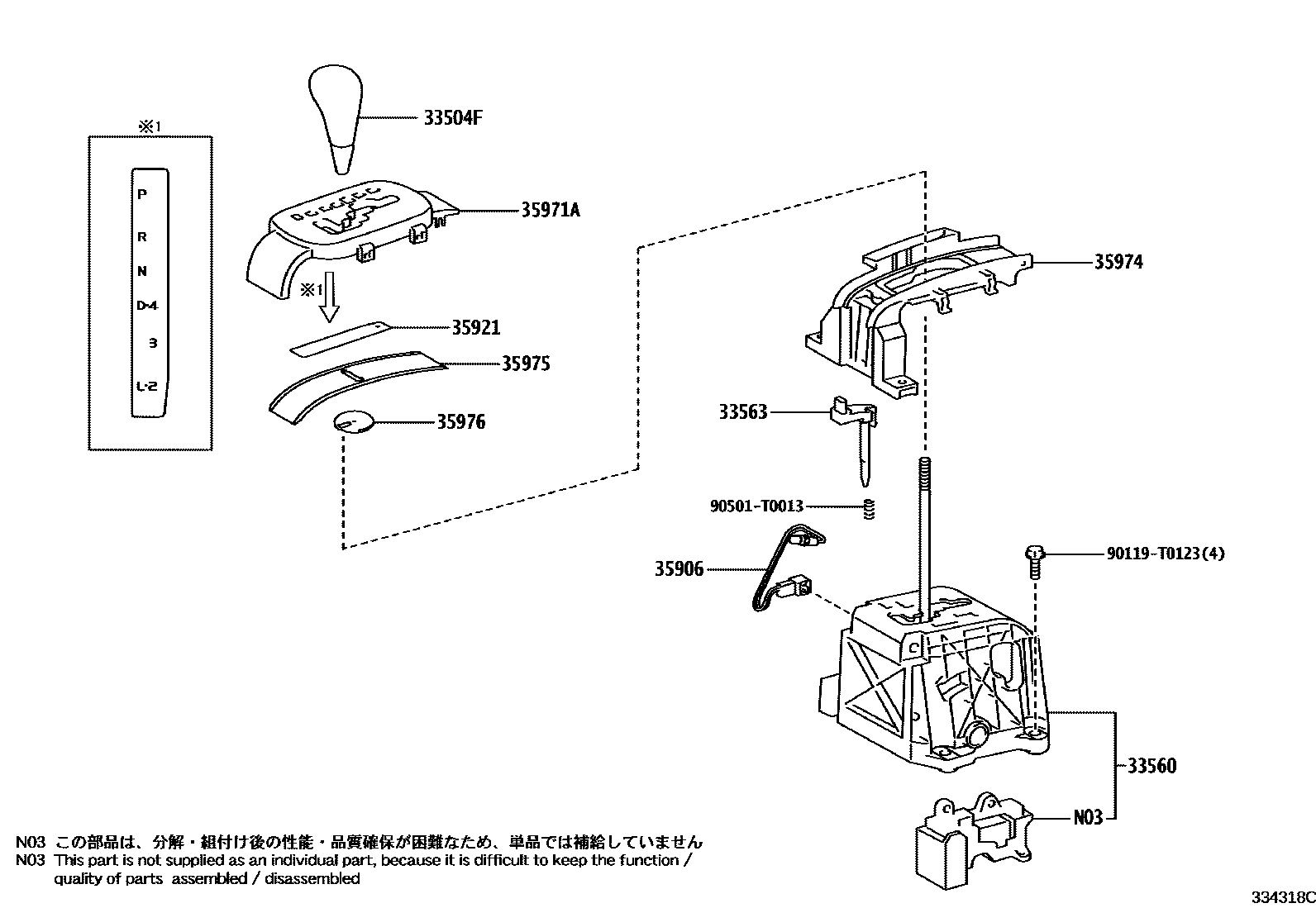

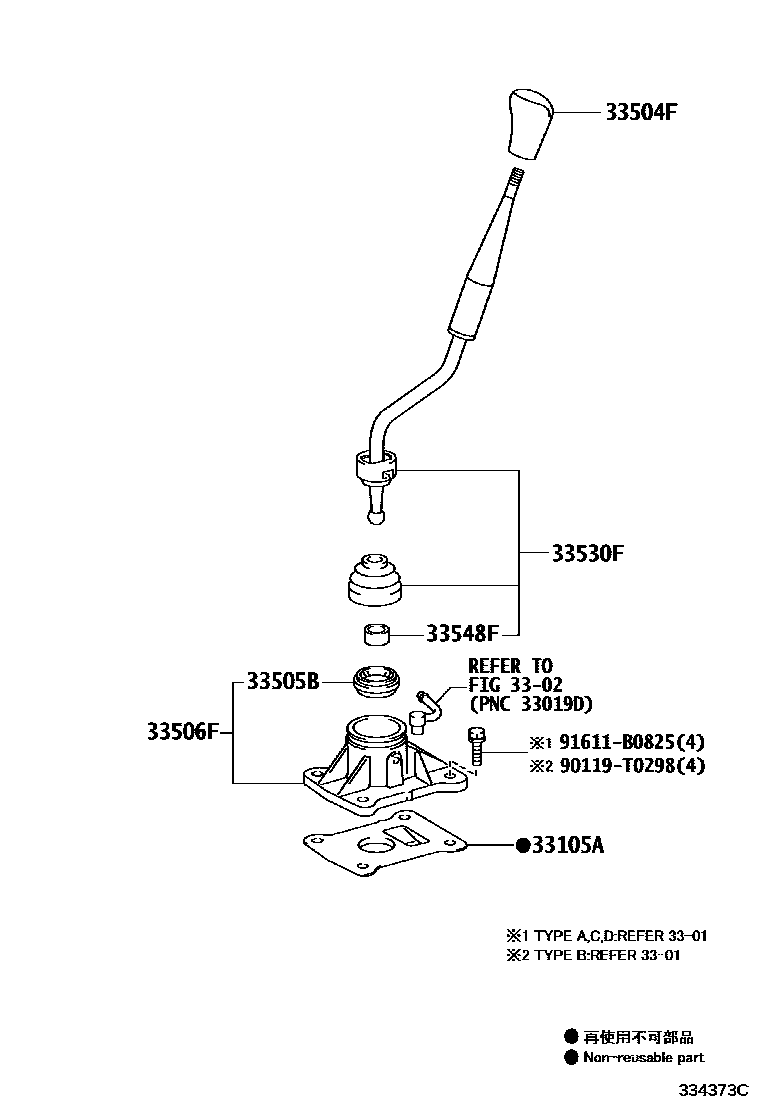

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33105A | Extension housing oil baffle sub-assembly (MTM) | 33144-35030 |
| 33505B | Shift lever seat sub-assembly | 33505-0K010 · 33505-35030 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-0K010 · 33506-0K020 · 33506-60060 · 33570-0K030 · 33570-0K040 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0K421 · 33530-0K451 · 33530-0K461 · 33530-0K580 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-04010 |
| 33560 | Shift lock control unit assembly | 33560-0K030 · 33560-0K040 |
| 33563 | Shift lock release button | 33563-0K010 · 33563-0K020 |
| 33584F | Shift lever stop pad (for floor shift) | 33182-35020 · 33584-71010 |
| 33820B | Transmission control cable assembly | 33820-0K090 |
| 33823 | No. 1 transmission control cable bracket | 33823-0K040 |
| 33826A | No. 2 transmission control cable bracket | 33823-0K030 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0K010 |
| 35921 | control position indicator board | 35921-0K030 · 35921-0K040 |
| 35971A | Position indicator light upper shell | 35971-0K030 · 35971-0K080 |
| 35974 | Position indicator light lower shell | 35974-0K011 · 35974-0K021 |
| 35975 | Slide cover (for position indicator light) | 35975-0K010 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D051 |
