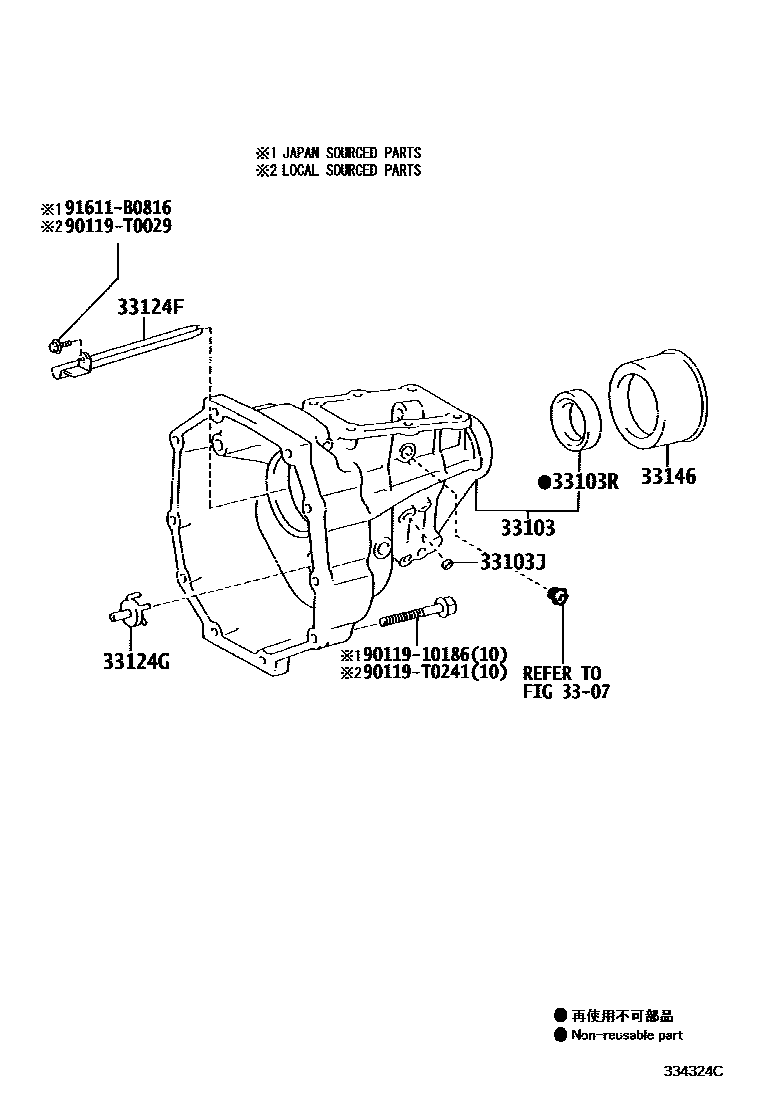

Toyota HILUX Extended shell (MTM) — Figure 3303
Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-0K010 · 33103-0K011 · 33103-0K030 · 33103-0K031 · 33103-0K040 · 33103-0K041 |
| 33103J | Sealing plug (for extension housing) | 90341-10065 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-40032 · 90311-40035 · 90311-T0019 · 90311-T0029 · 90311-T0051 · 90311-T0052 · 90311-T0067 |
| 33124F | No. 1 oil collection pipe (for extension housing) | 33124-0K020 · 33124-0K040 · 33124-0K050 |
| 33124G | No. 2 oil collection pipe (for extension housing) | 33124-0K010 · 33124-0K060 · 33124-35100 |
| 33146 | Extension housing dust cover (MTM) | 33146-04010 |
