Toyota HILUX 离合器总泵 — Figure 3103

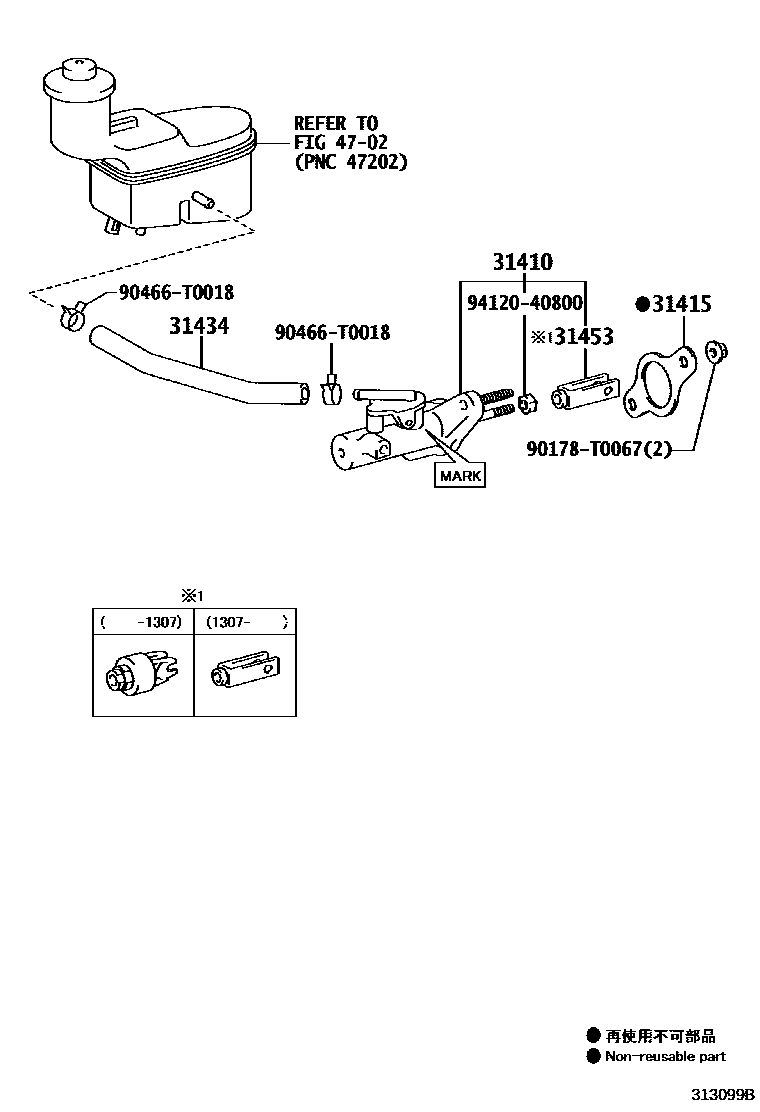

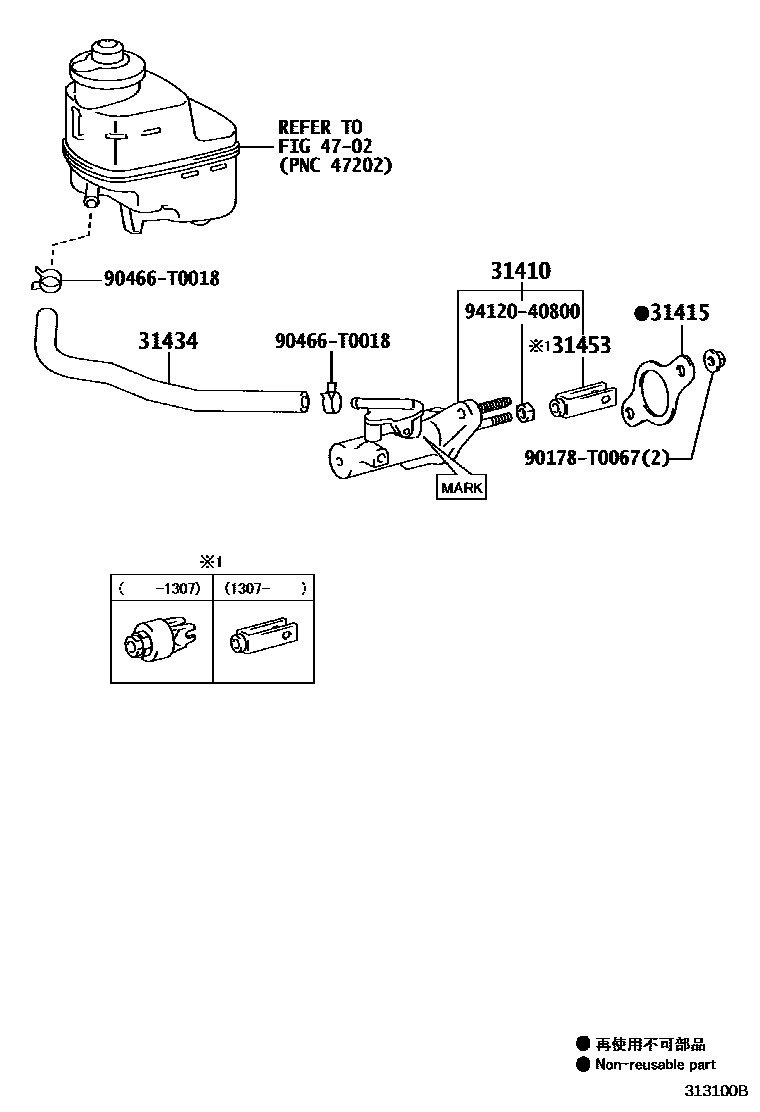

Toyota HILUX EPC diagram 3103, 离合器总泵, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-0K030 · 31420-0K050 · 31420-0K080 |
| 31415 | Clutch master cylinder gasket | 31415-0K010 |
| 31434 | Clutch reservoir connecting pipe | 31434-71030 · 31434-71040 · 31434-71070 · 31434-71080 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-0K010 · 31453-35010 · 31453-71010 |
