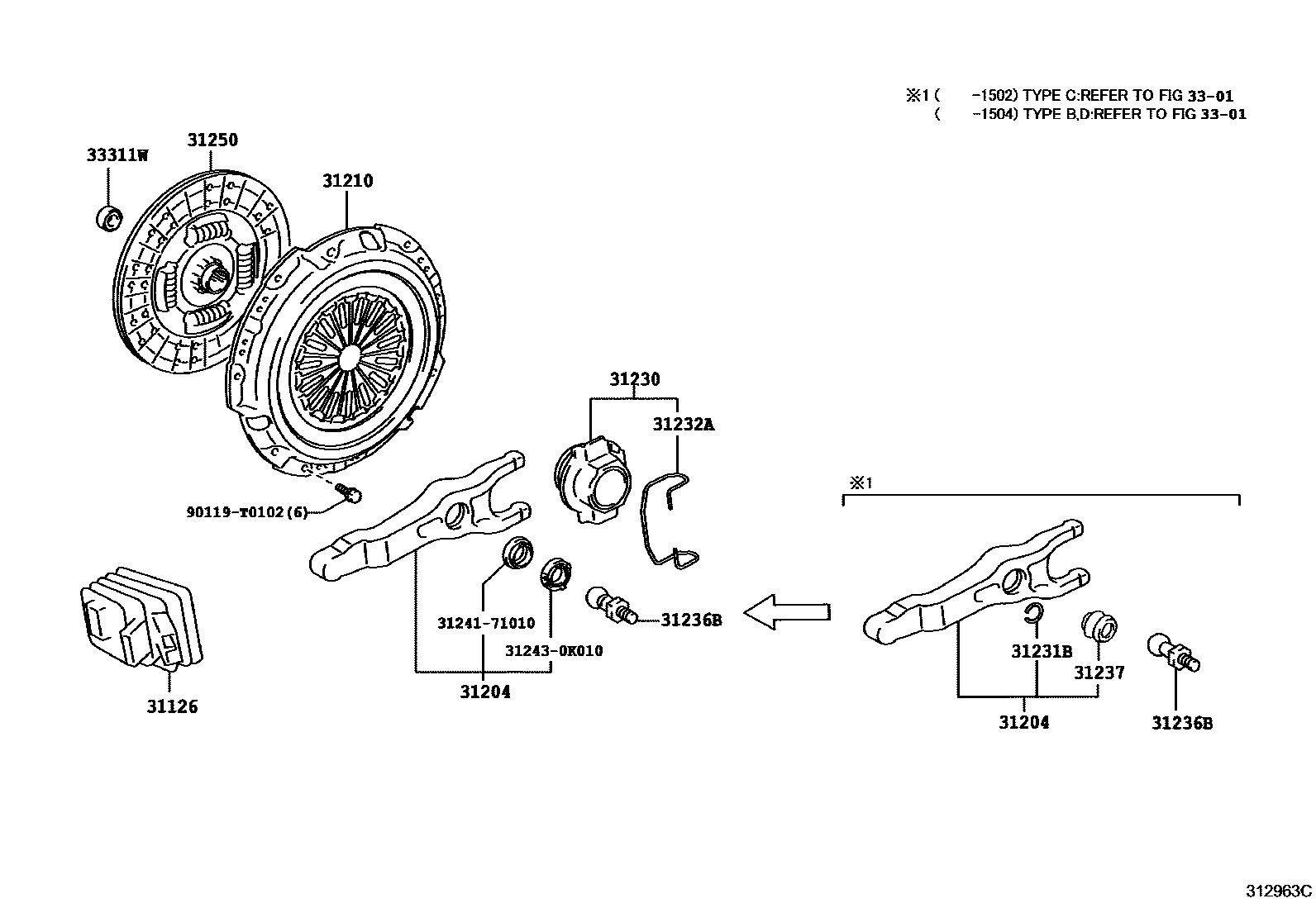

Toyota HILUX 离合器和分离叉 — Figure 3101
Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-0K050 · 31126-60081 |
| 31204 | Clutch release fork assembly | 31204-0K071 · 31204-0K081 · 31204-0K160 · 31204-0K180 · 31204-35070 |
| 31210 | Clutch cover assembly | 31210-0K190 · 31210-0K440 |
| 31230 | Clutch release bearing assembly | 31230-71011 |
| 31231B | Snap ring (for clutch release hub) | 90520-T0031 · 90521-22003 |
| 31232A | Release bearing hub clip | 31232-71010 |
| 31236B | Split fork bracket | 31236-35050 · 31236-71011 |
| 31237 | Clutch release fork bracket dust cover | 31237-0K010 · 31237-60010 |
| 31250 | Clutch disc assembly | 31250-0K221 · 31250-0K222 · 31250-0K460 |
| 33311W | Bearings (for input shaft) | 90080-36199 · 90363-12002 · 90363-T0006 |
