Toyota HILUX fuel filter — Figure 2302

Toyota HILUX EPC diagram 2302, fuel filter, with 1 images and 6 PNC and OE references.

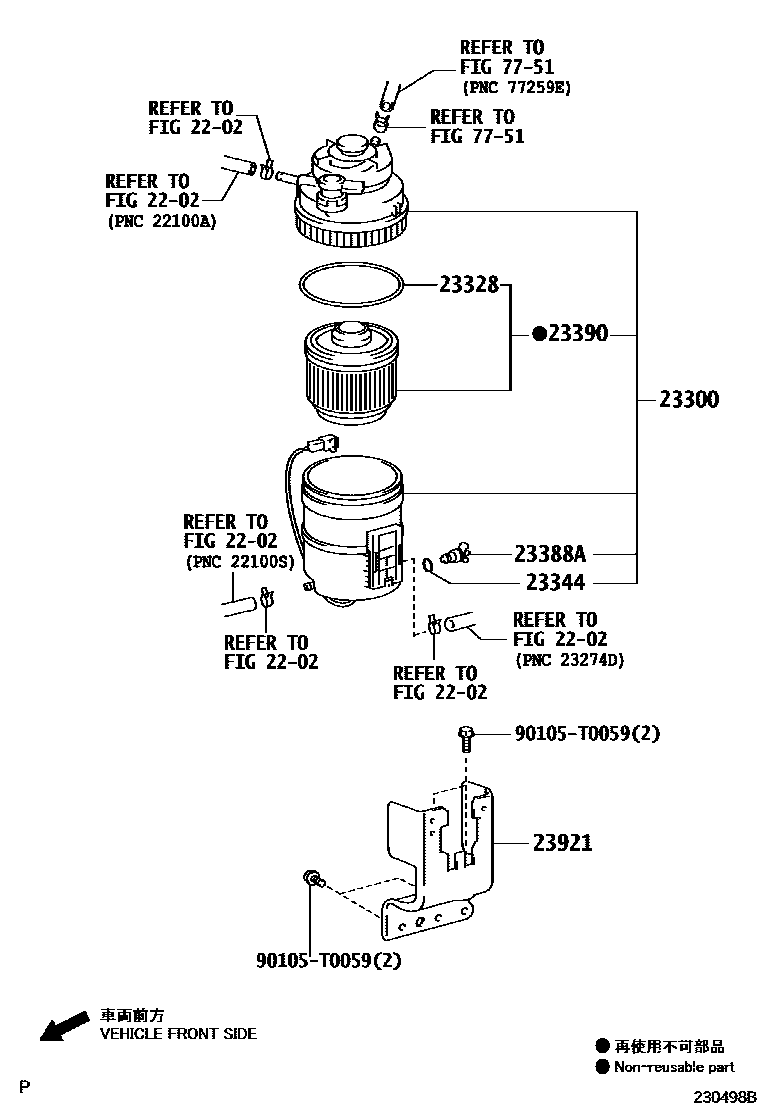

Toyota HILUX fuel filter EPC diagram — 230498B
fuel filter — 230498B (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
23300fuel filter assembly23300-0L030 · 23300-0L031 · 23300-0L032 · 23300-0L061
23328Gasket (for fuel filter)23344-0L010
23344Clamp nut gasket (for fuel filter)23344-0L041
23388AFuel filter drain plug23388-0L041
23390Fuel filter element assembly23390-0L030 · 23390-0L041
23921Fuel filter support23921-0L090 · 23921-0L100 · 23921-0L110 · 23921-0L120
