Toyota HILUX 喷油嘴 — Figure 2201

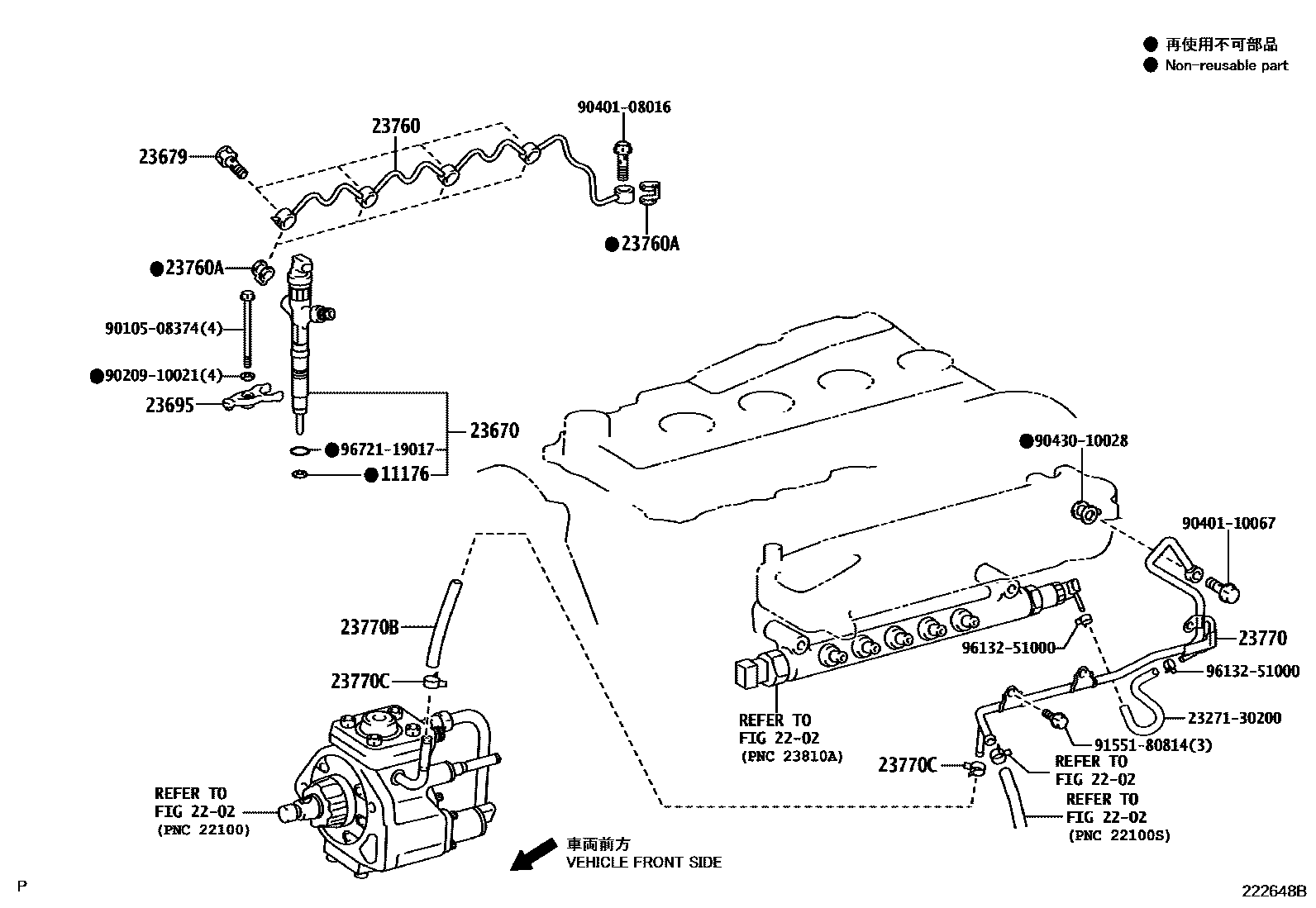

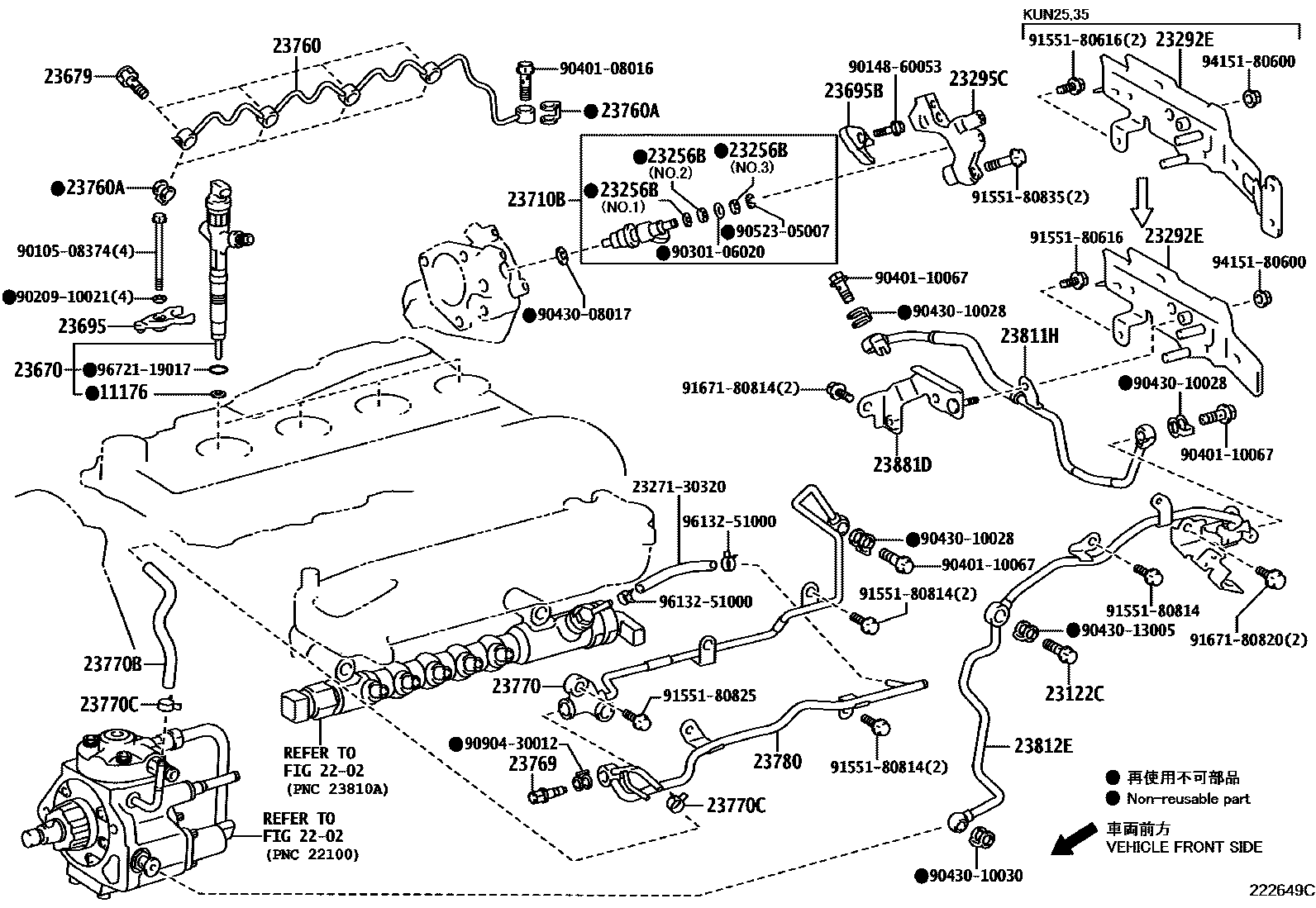

Toyota HILUX EPC diagram 2201, 喷油嘴, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-30011 |
| 23122C | One-way valve | 2376A-26020 · 2376A-26030 |
| 23256B | No. 1 injector retaining ring | 23256-74010 · 23257-74010 · 23258-28011 |
| 23292E | Fuel hose protector | 23292-30010 · 23292-30020 |
| 23295C | Injector fixing parts | 23295-30020 |
| 23670 | Fuel injector assembly | 23670-39365 · 23670-39445 · 23670-39455 |
| 23679 | Fuel injector hollow screw | 23679-30021 |
| 23695 | No. 1 injector body clamp | 23695-30011 · 23695-30020 |
| 23695B | No. 2 injector body clamp | 23695-28010 |
| 23710B | Exhaust fuel addition injector assembly | 23710-30020 |
| 23760 | Fuel injector overflow pipe assembly | 23760-30020 |
| 23760A | padding | 90904-30013 |
| 23769 | fuel check valve | 23769-26030 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-0L030 · 23770-30070 · 23770-30140 |
| 23770B | fuel hose | 23273-30330 · 95337-06020 |
| 23770C | Clip or clip (for fuel hose assembly) | 96135-51100 |
| 23780 | No. 3 fuel injector overflow pipe | 23780-30020 |
| 23811H | No. 1 fuel pipe | 23811-30080 |
| 23812E | No. 2 fuel pipe | 23812-30020 |
| 23881D | fuel hose bracket | 23881-30060 |
