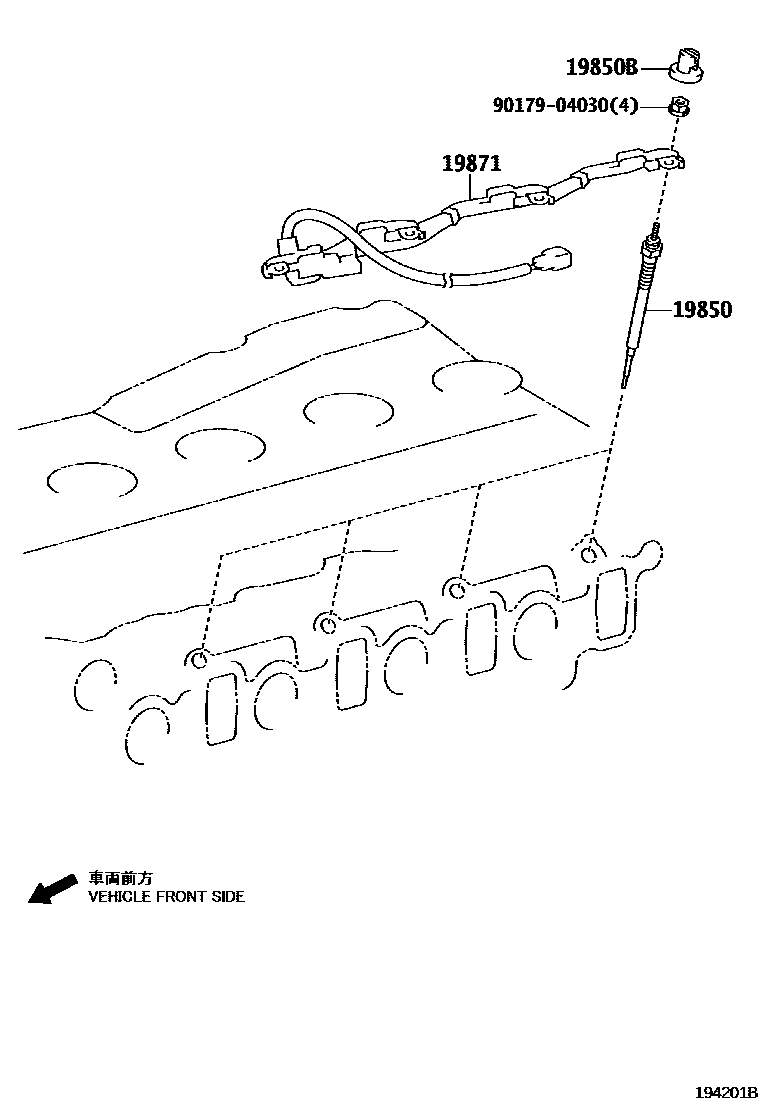

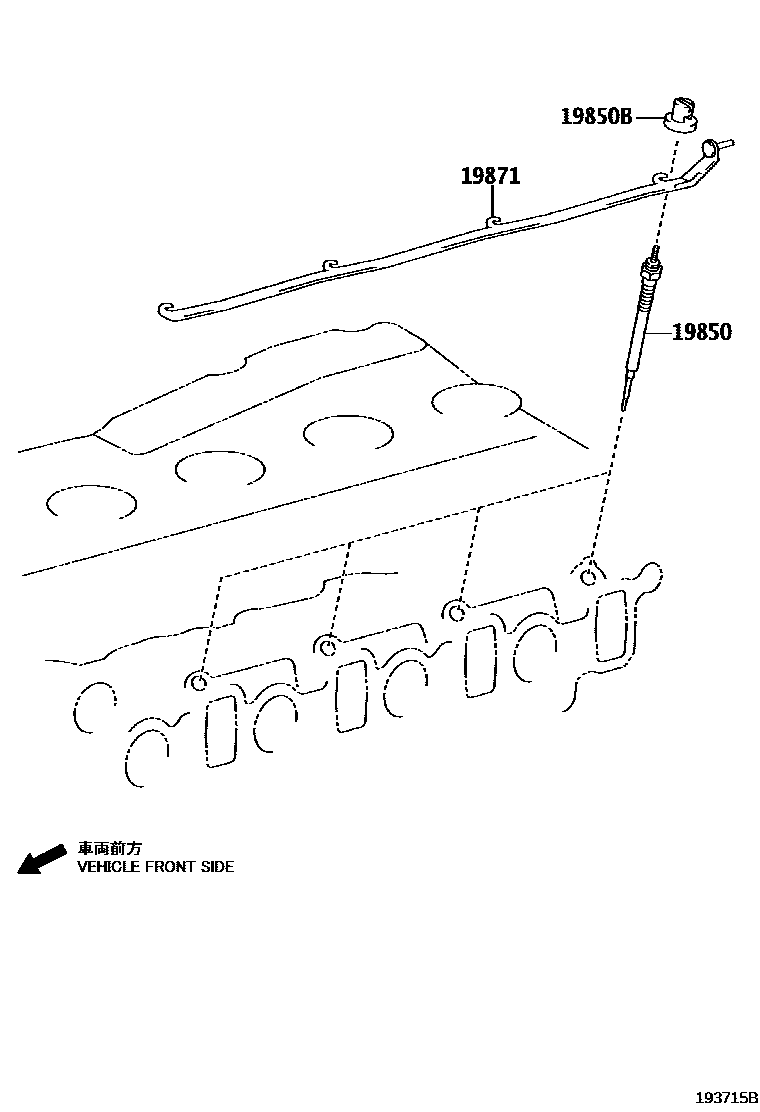

Toyota HILUX 点火线圈和火花塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19850 | Glow plug assembly | 19850-30010 · 19850-30030 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-0L011 · 19871-0L012 · 19871-30031 · 19871-30090 |
