Toyota HILUX Air Cleaner — Figure 1703

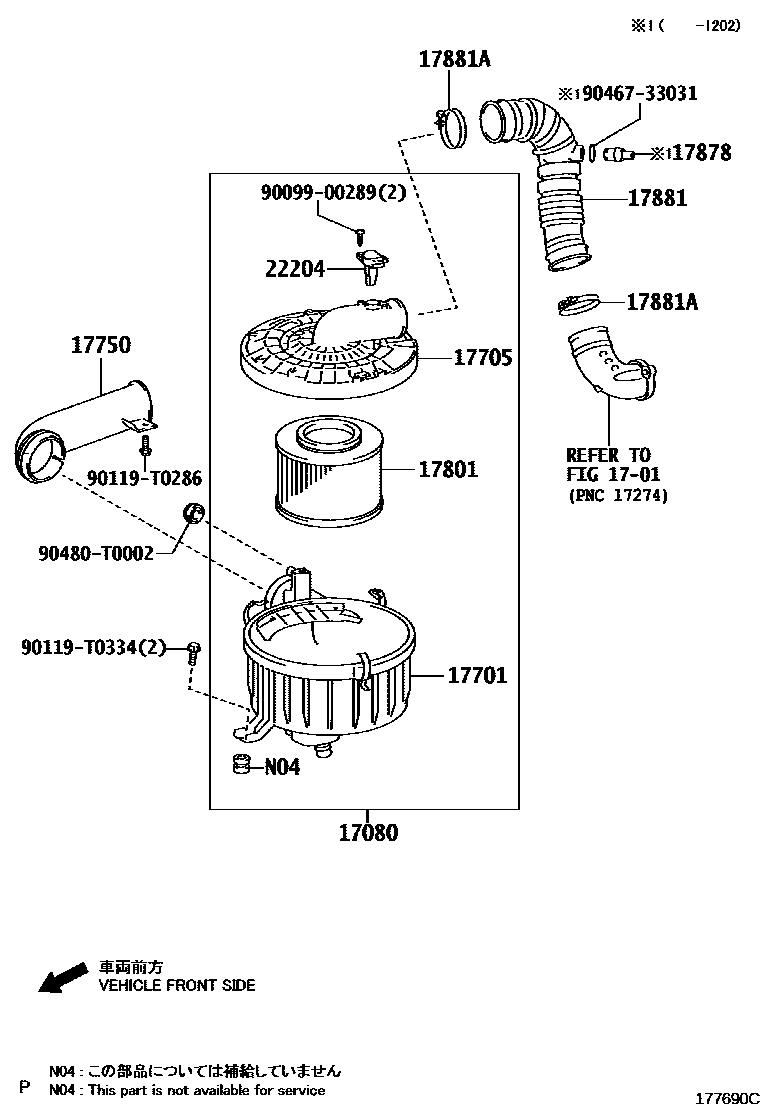

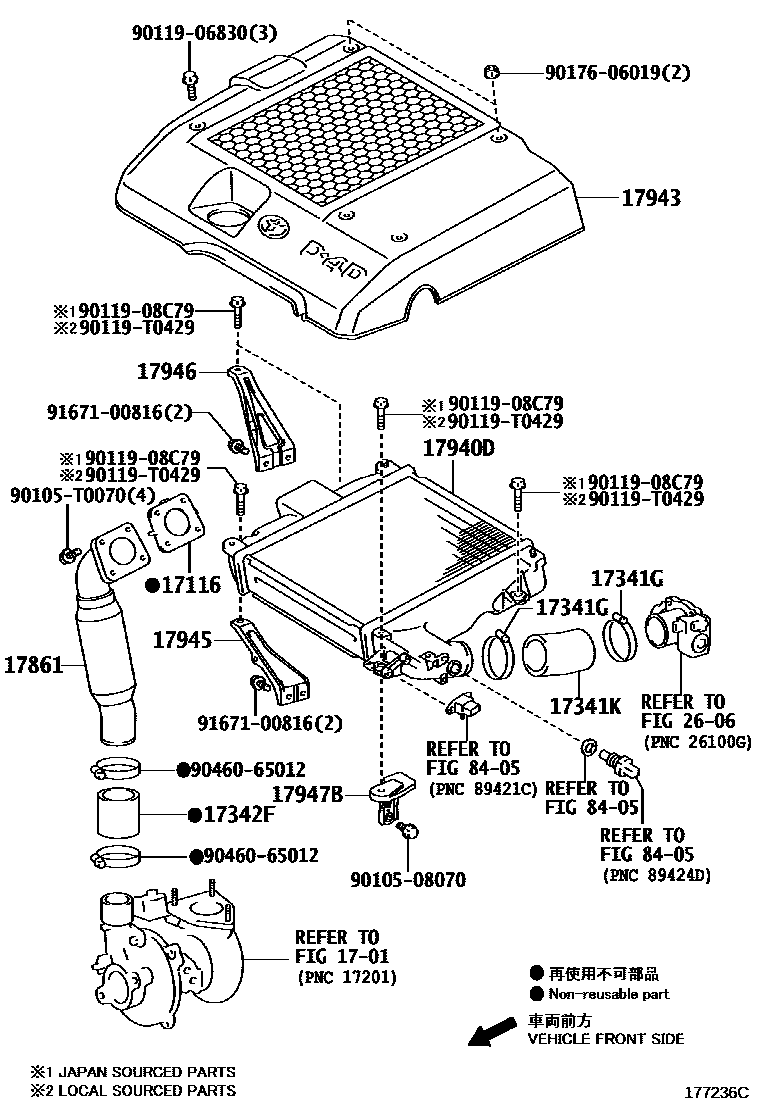

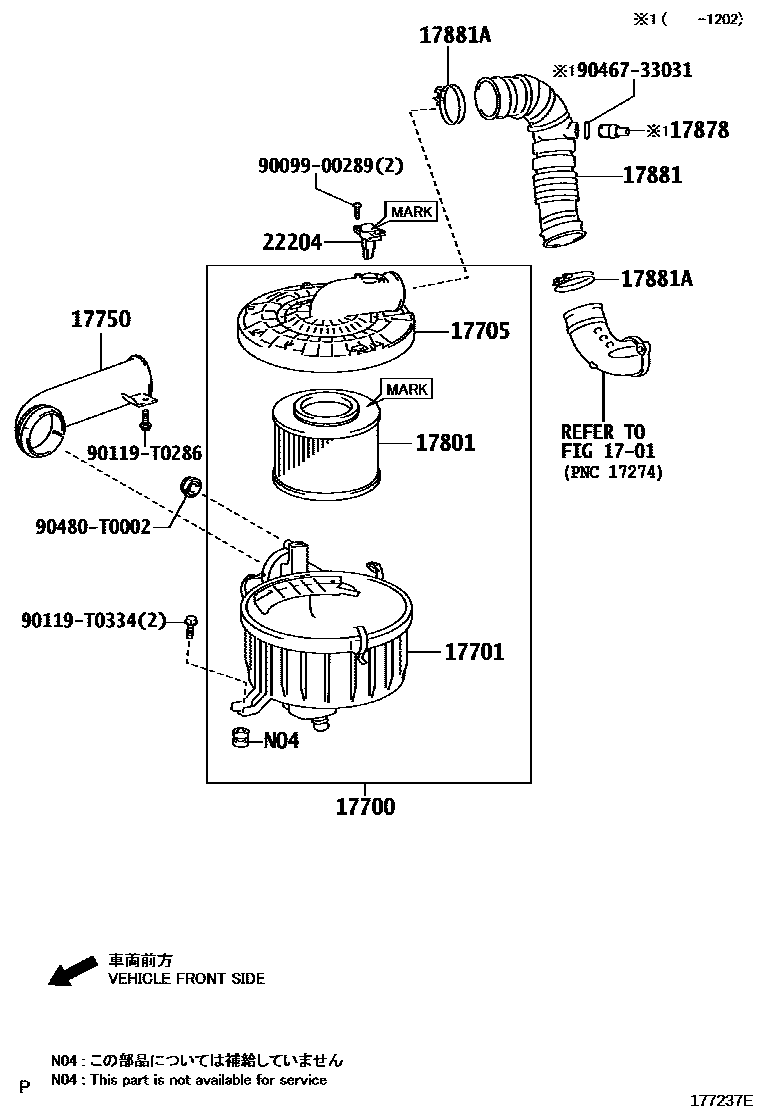

Toyota HILUX EPC diagram 1703, Air Cleaner, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17080 | Air filter assembly with air flow meter | 17080-0L101 · 17080-0L190 |
| 17116 | Intake flange gasket | 17116-0L010 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-80006 |
| 17341K | Air hose No. 1 (for intercooler) | 17341-30060 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-30010 |
| 17700 | air filter assembly | 17700-0L171 · 17700-0L260 |
| 17701 | Air filter housing sub-assembly | 17701-0C081 · 17701-0C101 |
| 17705 | Air filter cover sub-assembly | 17705-0L130 · 17705-0L140 · 17705-0L220 · 17705-0L230 |
| 17750 | Air filter air inlet cover seal assembly | 17751-0L010 · 17751-0L030 |
| 17801 | Air filter element sub-assembly | 17801-0C010 · 17801-0C020 |
| 17861 | Intake connecting pipe | 17860-0L020 · 17860-30030 · 17860-30100 |
| 17878 | No. 3 air intake connecting pipe | 17878-0L040 |
| 17881 | No. 1 air cleaner hose | 17881-0L110 · 17881-0L180 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 |
| 17940D | Intercooler assembly | 17940-0L060 · 17940-0L070 |
| 17943 | Intercooler protection device | 12601-0L050 · 12601-0L051 · 12601-0L070 |
| 17945 | intercooler bracket | 17945-30080 · 17945-30100 |
| 17946 | No. 2 intercooler bracket | 17946-30040 · 17946-30070 |
| 17947B | Intercooler bracket No. 3 | 17947-30020 · 17947-30030 |
| 22204 | Intake air flow meter assembly | 22204-0L010 · 22204-0N010 · 22204-30020 |
