Toyota HILUX Exhaust Pipe — Figure 1702

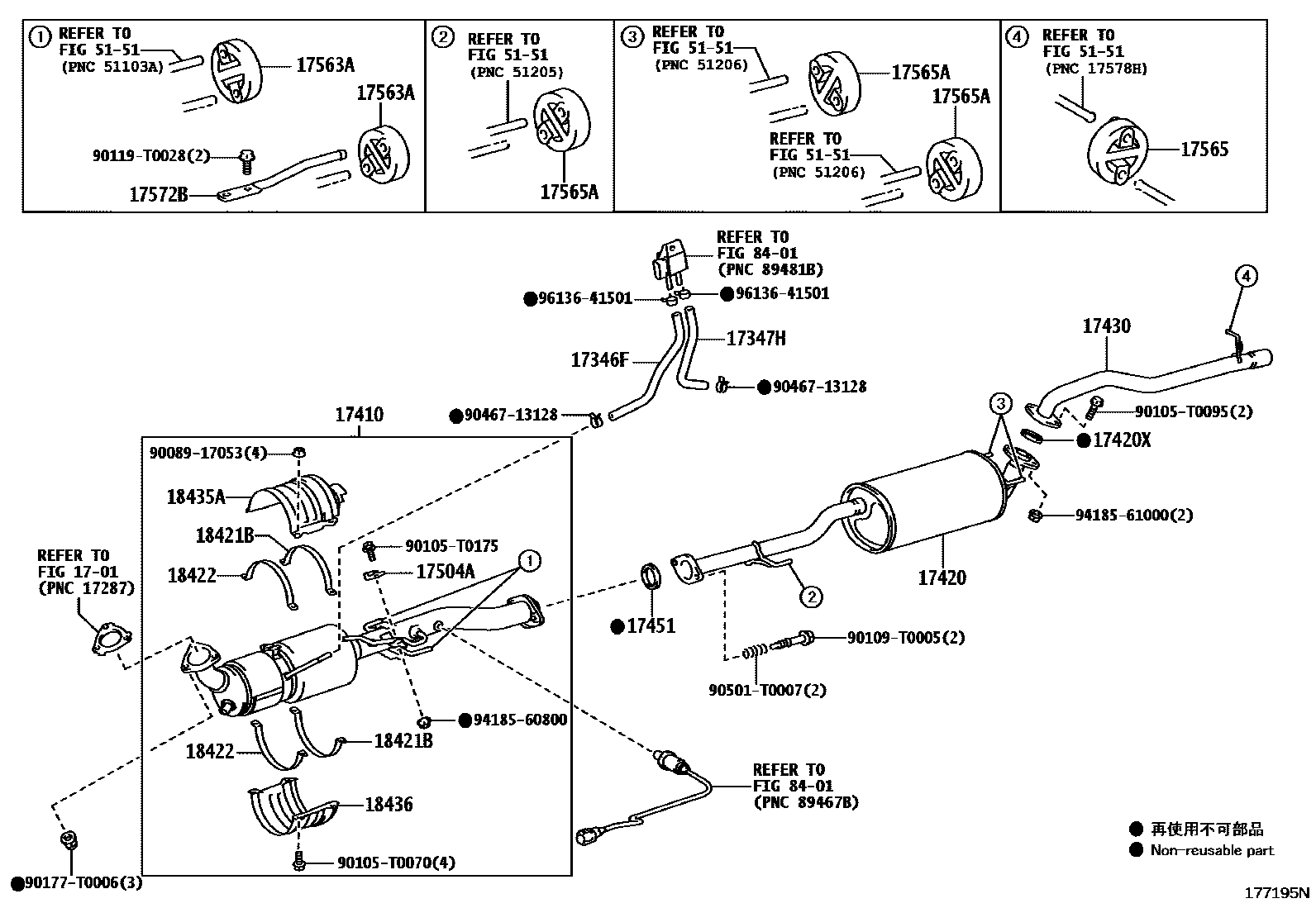

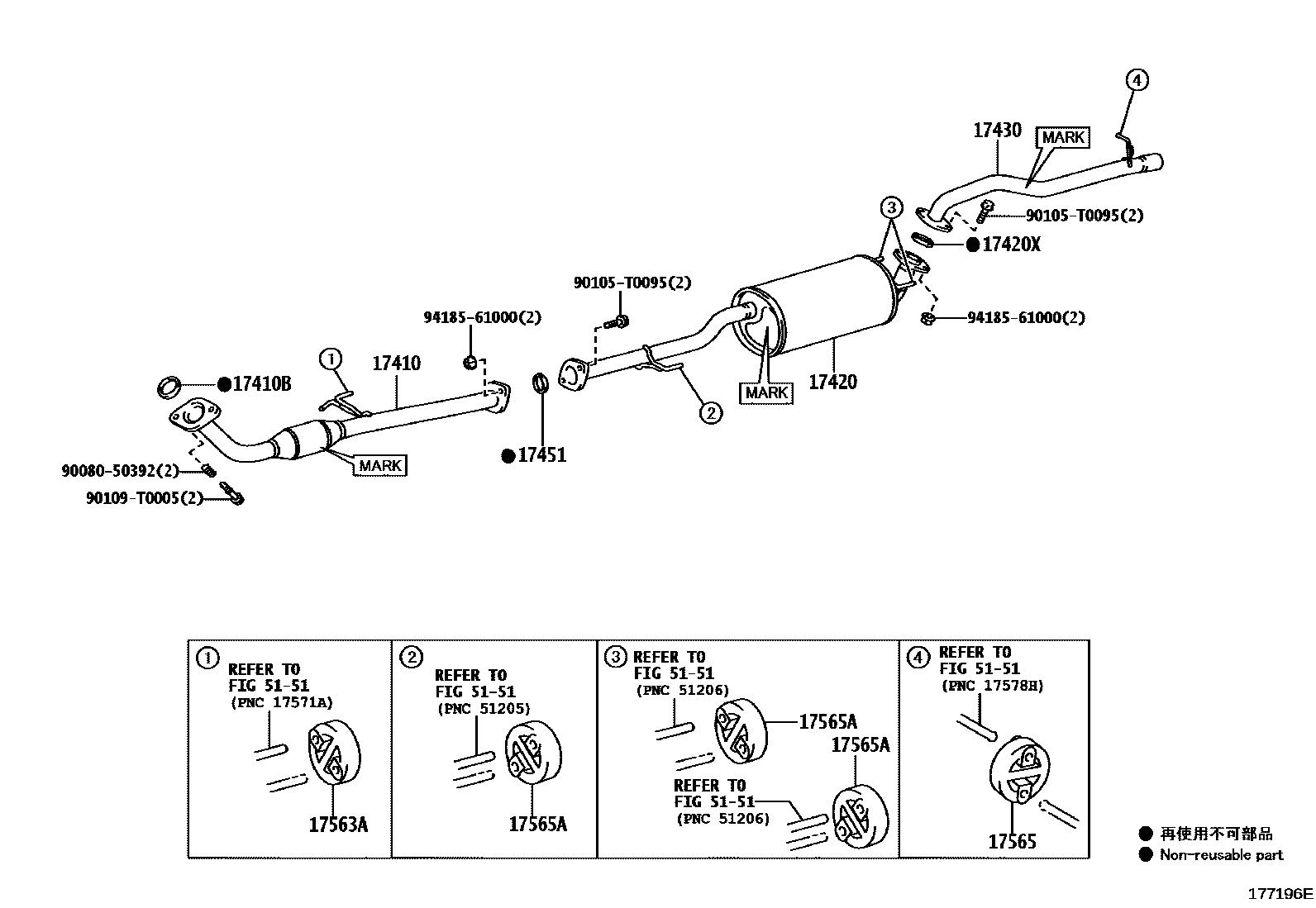

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17346F | No. 6 air hose | 17346-30020 |
| 17347H | No. 7 air hose | 17347-30040 |
| 17410 | Front exhaust pipe assembly | 17401-0L110 · 17401-0L111 · 17410-0L040 |
| 17410B | Exhaust pipe gasket | 17451-0L010 |
| 17420 | Central exhaust pipe assembly | 17403-0L061 · 17403-0L063 · 17403-0L101 · 17403-0L102 |
| 17420X | Center exhaust pipe liner | 90917-T6002 |
| 17430 | Exhaust tailpipe assembly | 17405-0L111 · 17405-0L112 · 17405-0L141 · 17405-0L143 |
| 17451 | Exhaust pipe gasket | 17451-0C010 · 90917-T6002 |
| 17504A | Exhaust pipe clamp sub-assembly | 17504-0L010 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0M010 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0M010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0M010 |
| 17572B | No. 2 exhaust pipe bracket | 17572-0L020 |
| 18421B | No. 2 three-way catalytic converter protection device stay | 18422-0L010 |
| 18422 | No. 2 three-way catalytic converter protection device stay | 18421-0L010 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-0L020 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18445-0L010 |
