Toyota HILUX Manifold — Figure 1701

Toyota HILUX EPC diagram 1701, Manifold, with 8 images and 31 PNC and OE references.

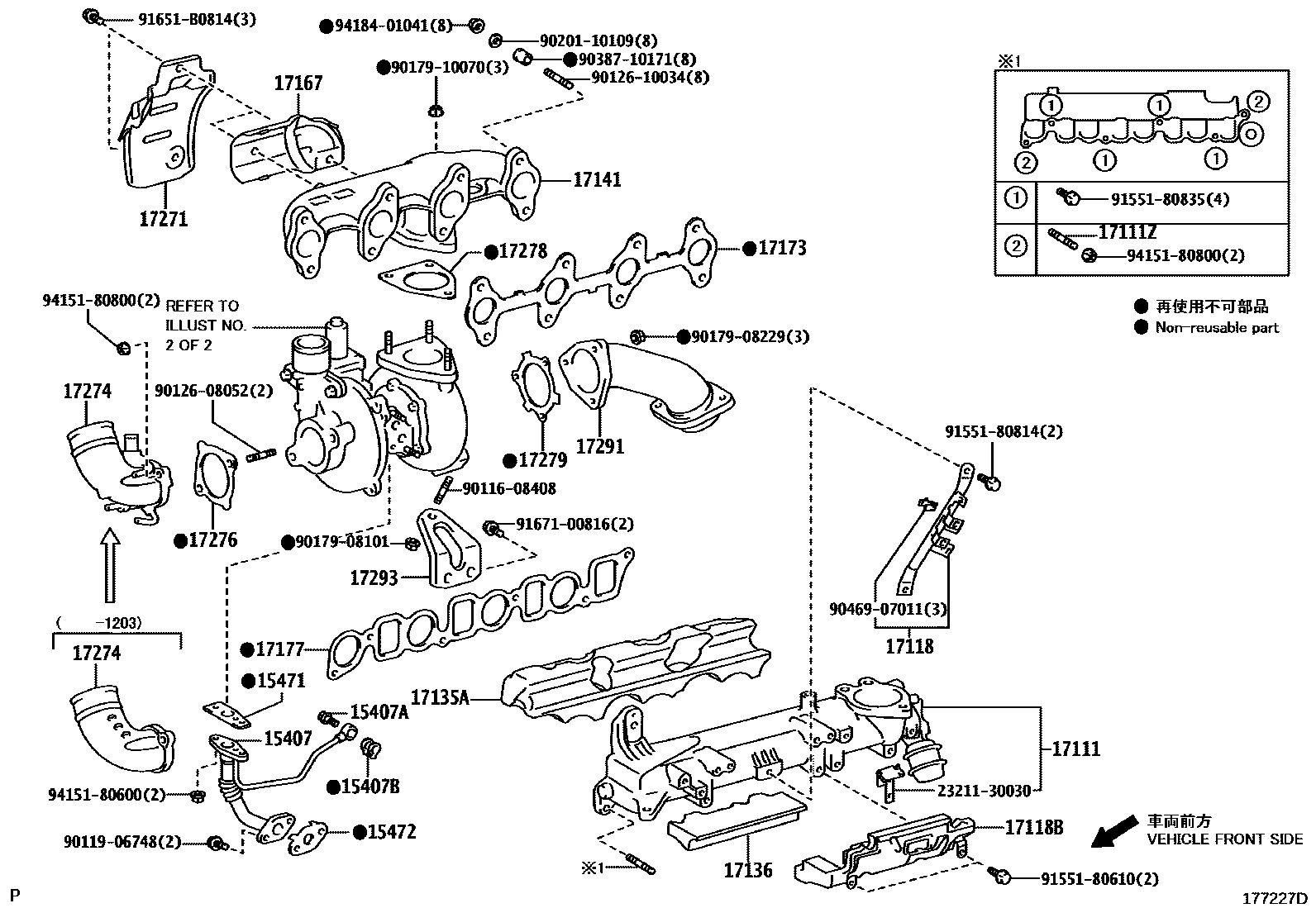

Toyota HILUX Manifold EPC diagram — 177227D
Manifold — 177227D (201108 – 999999)

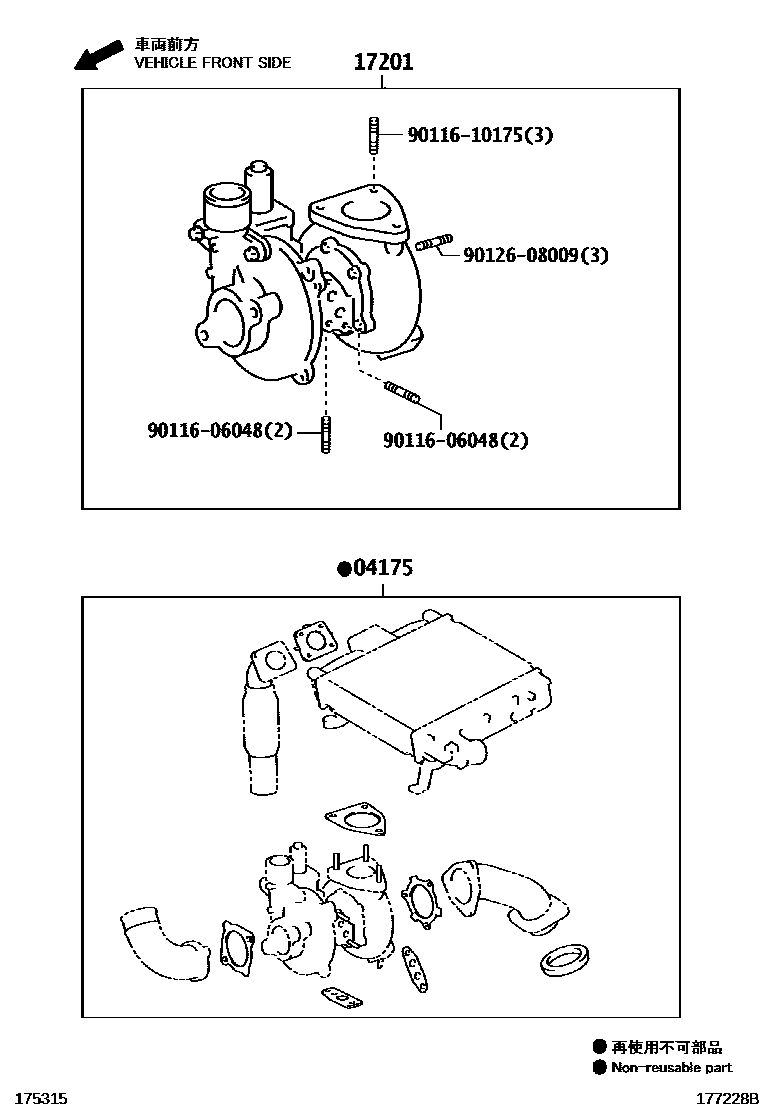

Toyota HILUX Manifold EPC diagram — 177228B
Manifold — 177228B (201108 – 999999)

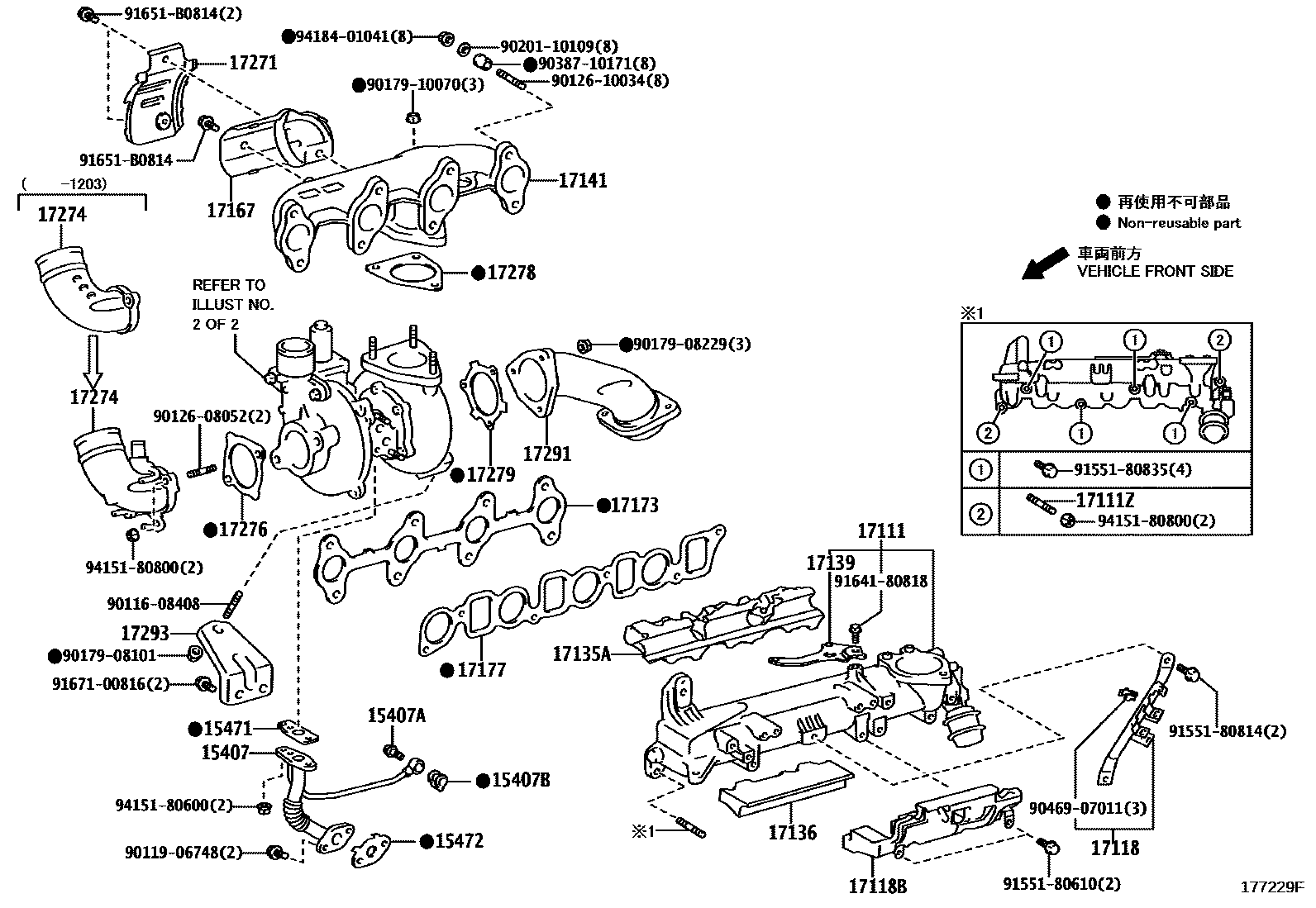

Toyota HILUX Manifold EPC diagram — 177229F
Manifold — 177229F (201107 – 999999)

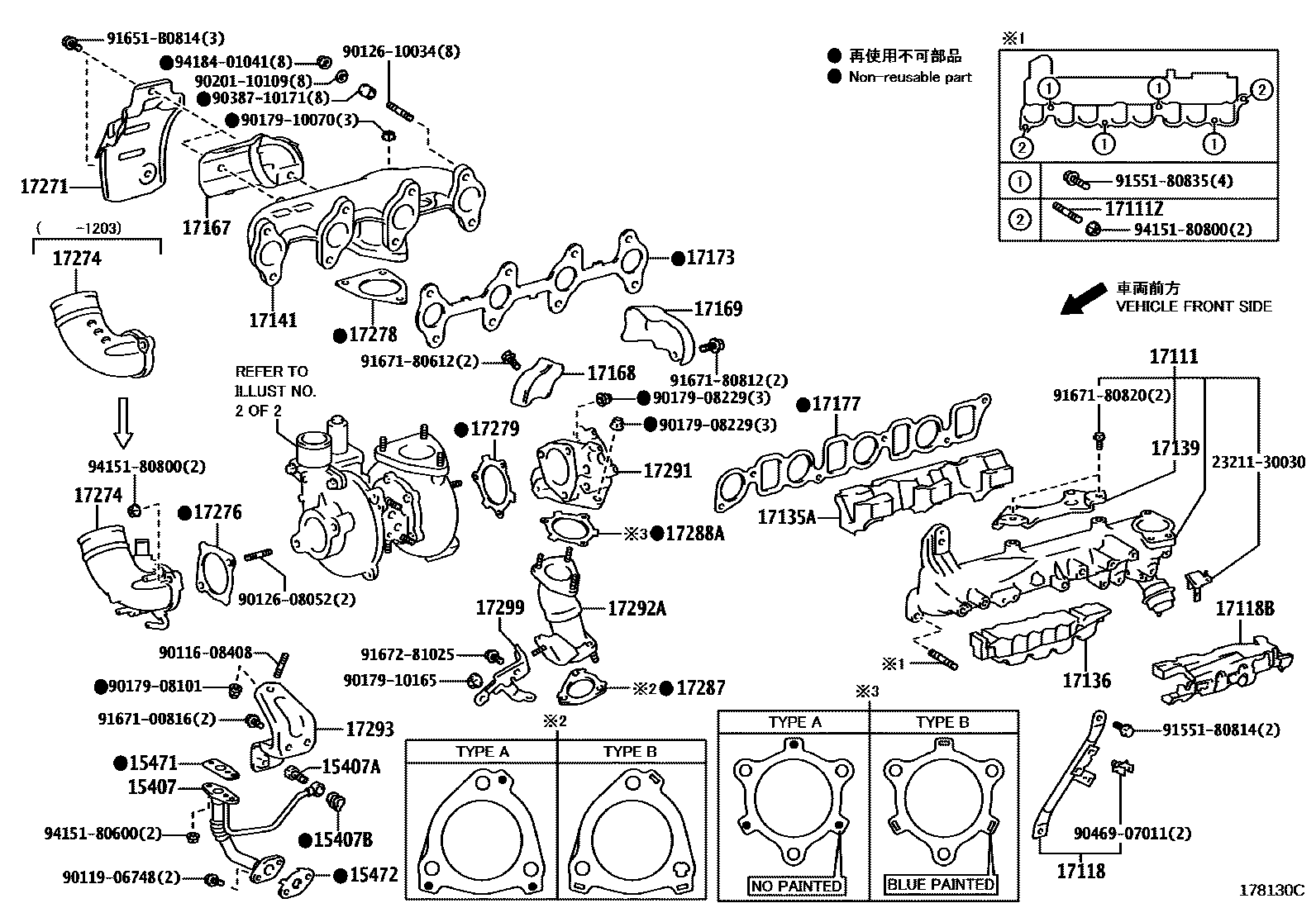

Toyota HILUX Manifold EPC diagram — 178130C
Manifold — 178130C (201107 – 999999)

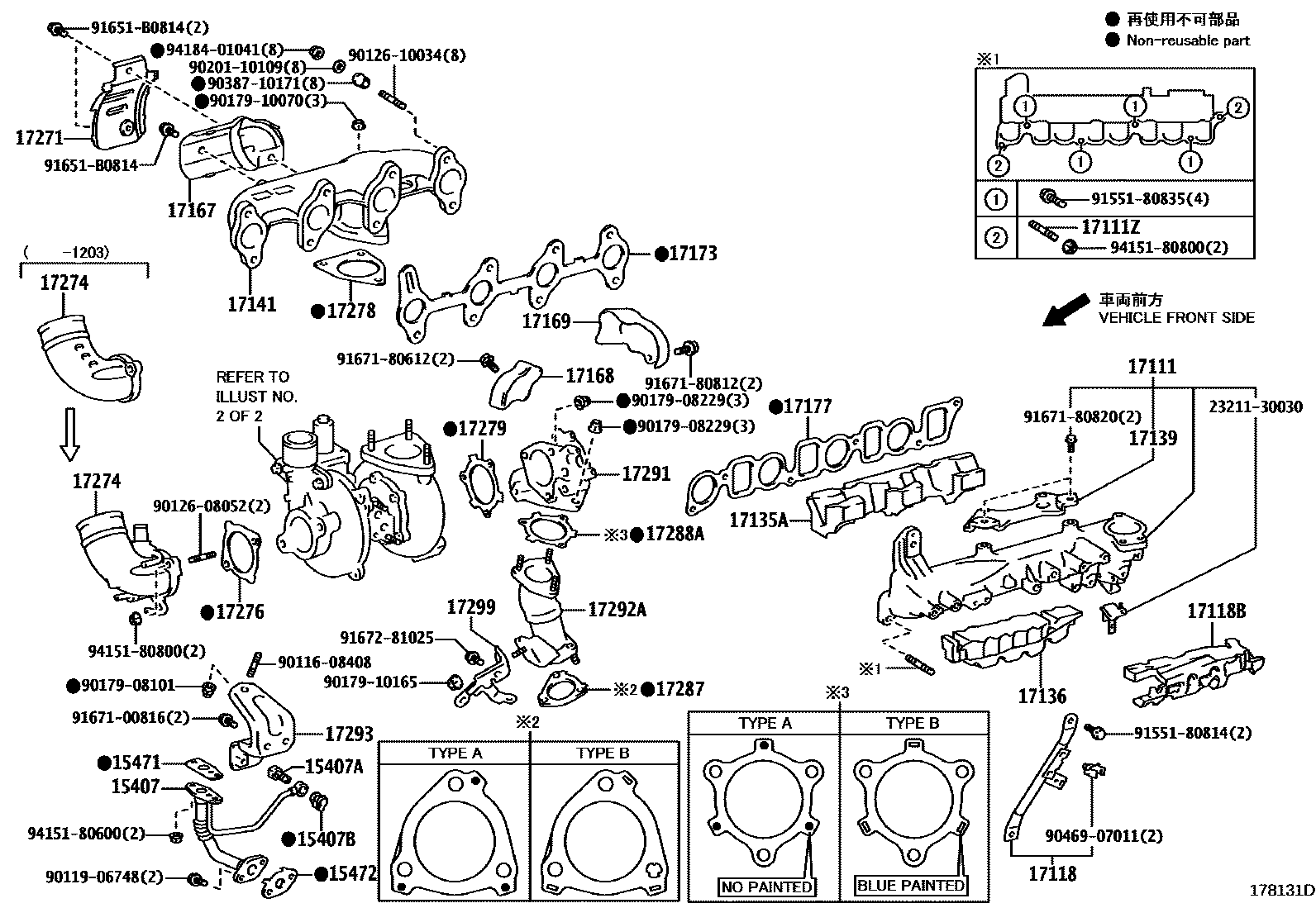

Toyota HILUX Manifold EPC diagram — 178131D
Manifold — 178131D (201107 – 999999)

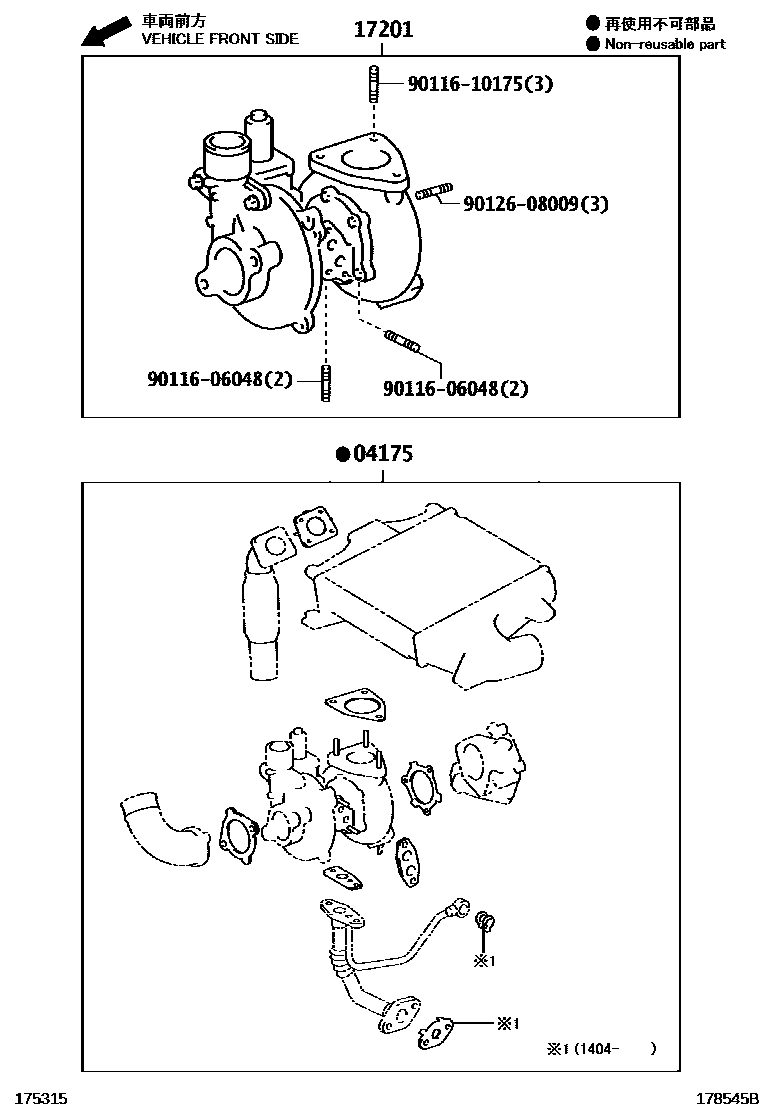

Toyota HILUX Manifold EPC diagram — 178545B
Manifold — 178545B (201107 – 999999)

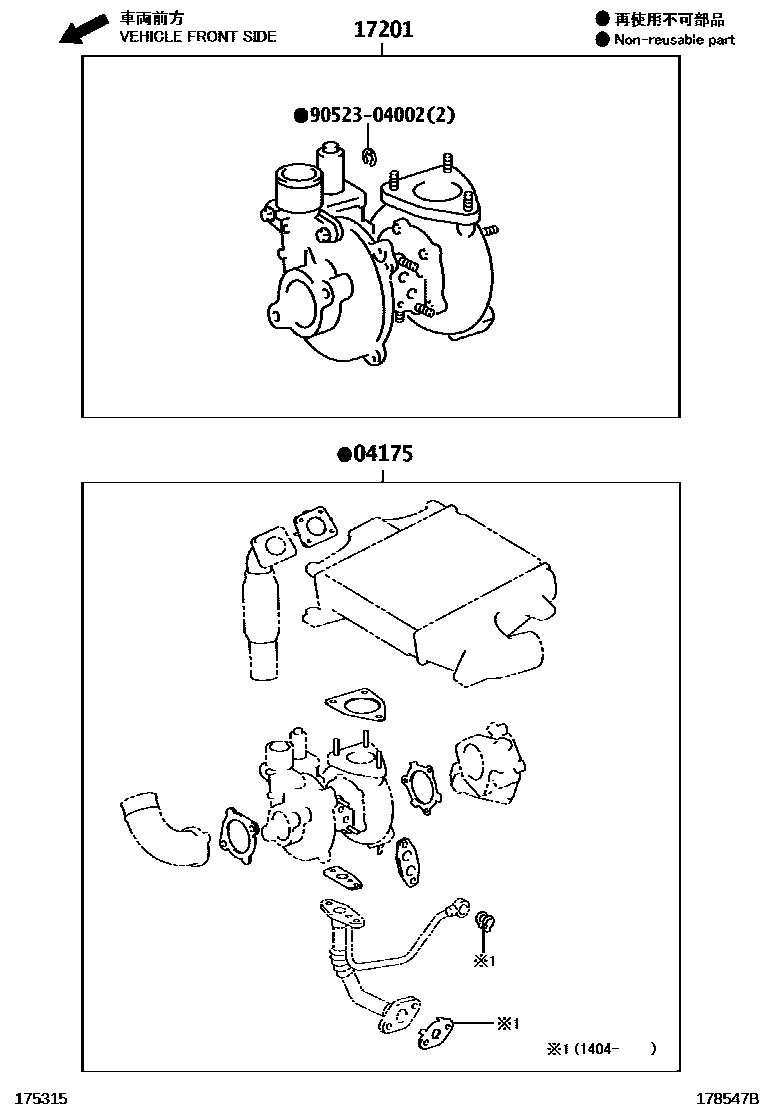

Toyota HILUX Manifold EPC diagram — 178547B
Manifold — 178547B (201107 – 999999)

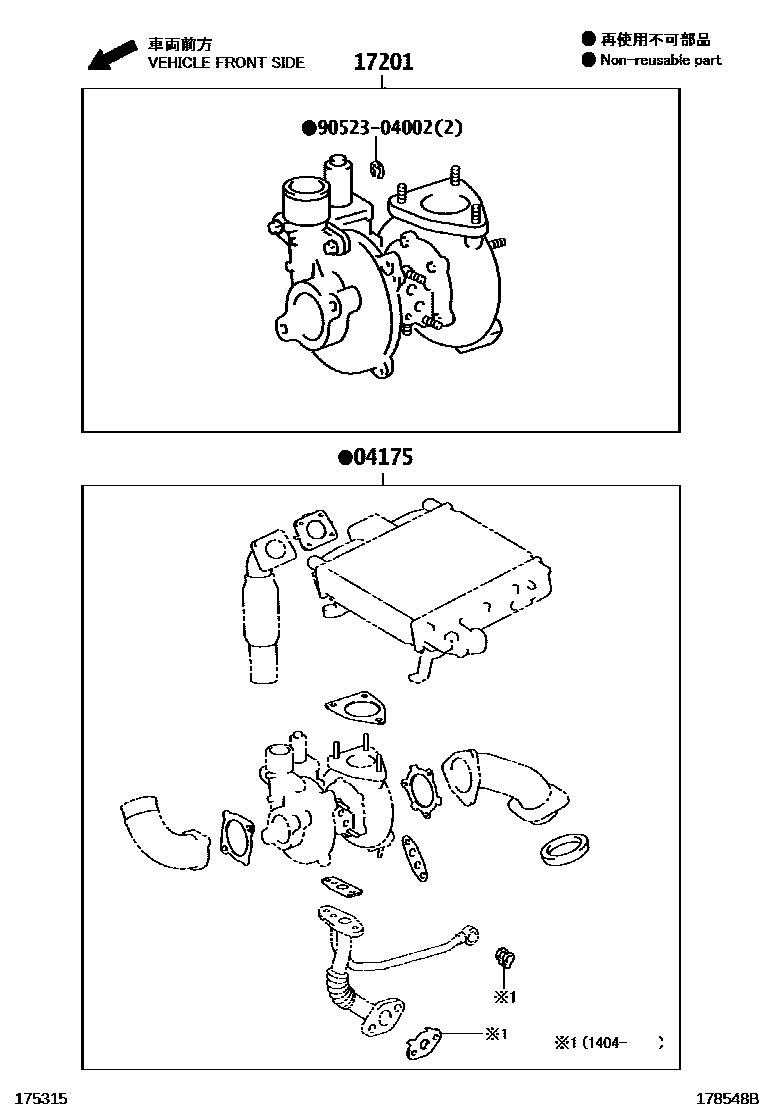

Toyota HILUX Manifold EPC diagram — 178548B
Manifold — 178548B (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-30161 · 04175-30162 · 04175-30163 · 04175-30240 · 04175-30241 · 04175-30242
15407Turbine oil inlet pipe sub-assembly15407-30050 · 15407-30120
15407AConnector bolt (for turbine oil inlet pipe)90401-12097
15407BGasket (for turbine oil inlet pipe)90904-30004
15471Turbine oil inlet pipe gasket15471-30011
15472No. 1 turbine oil outlet pipe gasket15472-30010
17111Intake Manifold17101-0L030 · 17101-30040 · 17101-30120 · 17101-30130
17111ZStud bolts (for intake manifold to cylinder head)90126-08052 · 92122-80822
17118Manifold stays17118-30090 · 17118-30170
17118BIntake manifold heat shield17853-30010 · 17853-30020
17135AIntake manifold No. 1 heat shield17135-30011 · 17135-30020
17136Intake manifold No. 2 heat shield17136-30010 · 17136-30030
17139No. 2 manifold stay17139-0L010 · 17139-30030
17141exhaust manifold17141-30060
17167Exhaust manifold No. 1 heat shield17167-30020
17168Exhaust manifold No.2 insulation pad17168-30040
17169Exhaust manifold No. 3 heat shield17169-0L010
17173Gasket (exhaust manifold to cylinder head)17173-30030
17177No. 1 gasket (intake manifold to cylinder head)17177-30011
17201Turbocharger sub-assembly17201-0L070 · 17201-0L071 · 17201-30110
17271No. 1 turbine vibration isolation pad17271-0L020 · 17271-30030
17274Compressor oil inlet elbow pipe17274-30110 · 17274-30140
17276Compressor oil inlet gasket17276-67010
17278Gasket (turbo to exhaust manifold)17278-67010
17279Turbine outlet elbow gasket17279-30030 · 17279-30031
17287Turbine outlet elbow gasket No. 217287-0L010 · 17287-0L011 · 17288-30020
17288ATurbine oil outlet elbow pipe No. 3 gasket17279-0L030 · 17279-0L031 · 17287-30010
17291Turbine oil outlet elbow17291-0L060 · 17291-30050 · 17291-30190 · 17291-30200
17292ATurbine oil outlet No. 2 elbow17292-0L010
17293Turbocharger stay17293-0L050 · 17293-30040 · 17293-30070 · 17293-30090
17299Turbine oil outlet elbow brace17299-0L050
