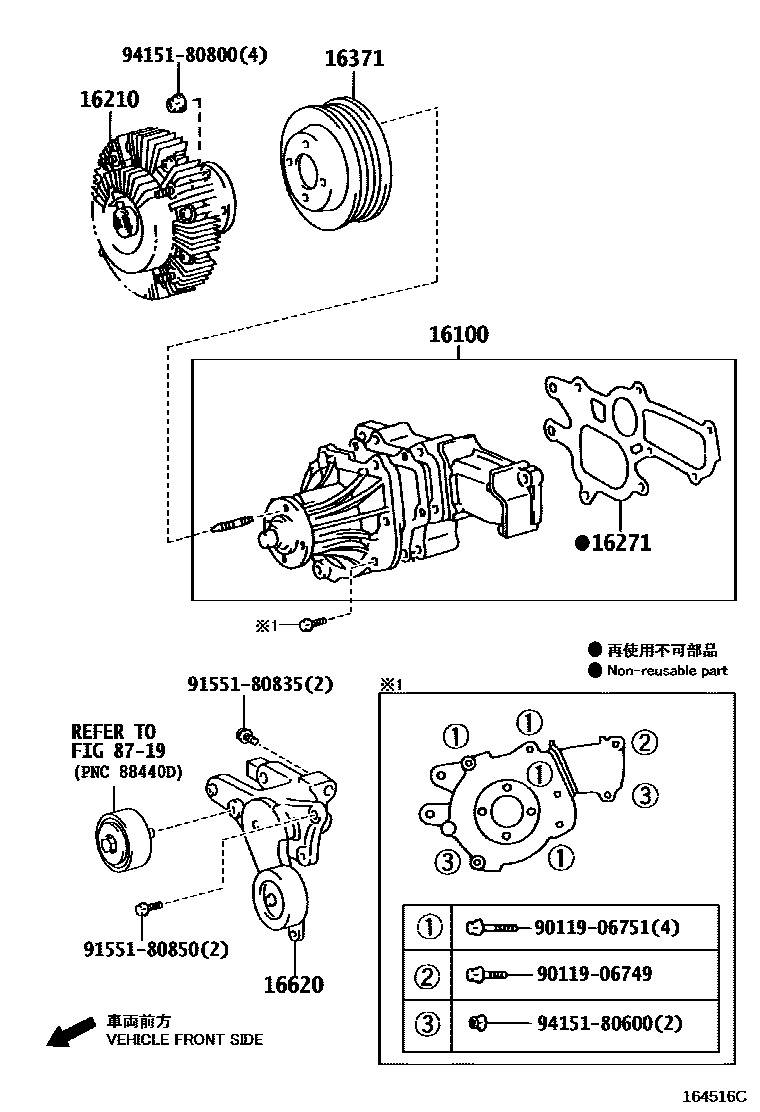

Toyota HILUX Water Pump — Figure 1601
Toyota HILUX EPC diagram 1601, Water Pump, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-39485 · 16100-39486 |
| 16210 | Hydraulic coupler assembly | 16210-30030 · 16210-30031 |
| 16271 | water pump gasket | 16271-67020 |
| 16371 | fan pulley | 16371-30020 |
| 16620 | Poly V-belt tensioner assembly | 16620-30031 |
