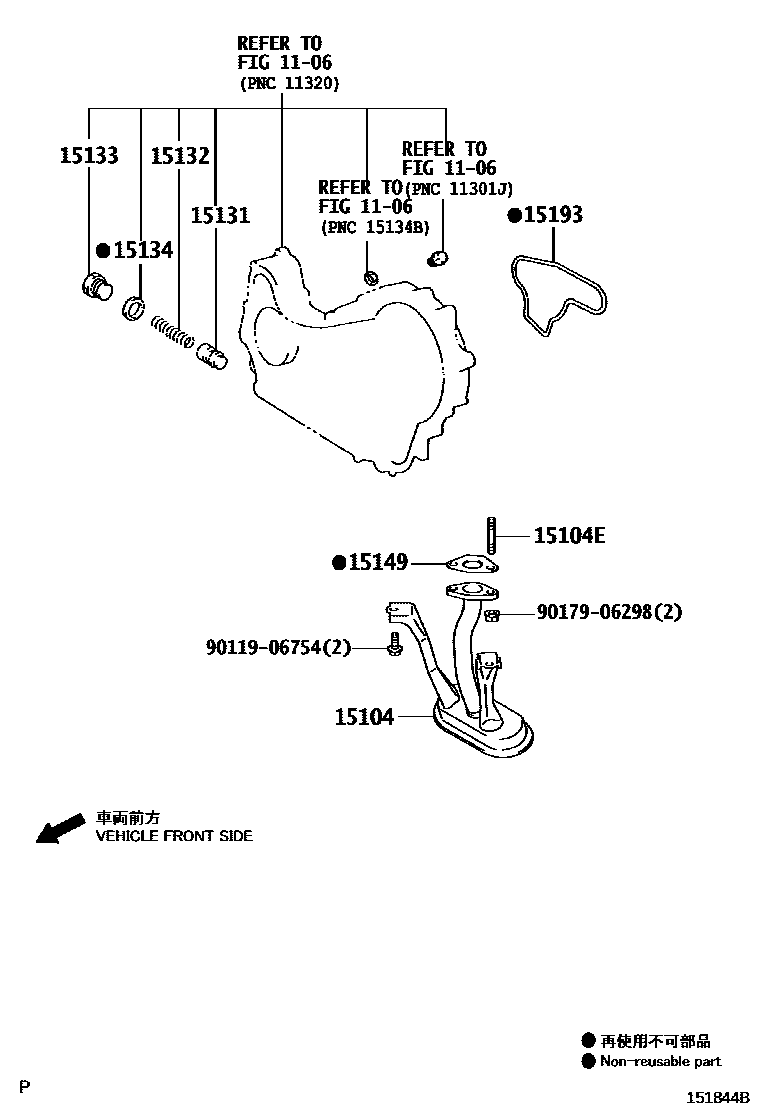

Toyota HILUX Engine Oil Pump — Figure 1501
Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15104 | Oil filter sub-assembly | 15104-30050 |
| 15104E | Stud bolts (for oil filter) | 90116-06140 |
| 15131 | Oil pump pressure reducing valve | 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-17010 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-17010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15149 | Oil filter flange gasket | 15149-67010 |
| 15193 | oil pump gasket | 15193-67011 |
