Toyota HILUX Crankshaft & Piston — Figure 1301

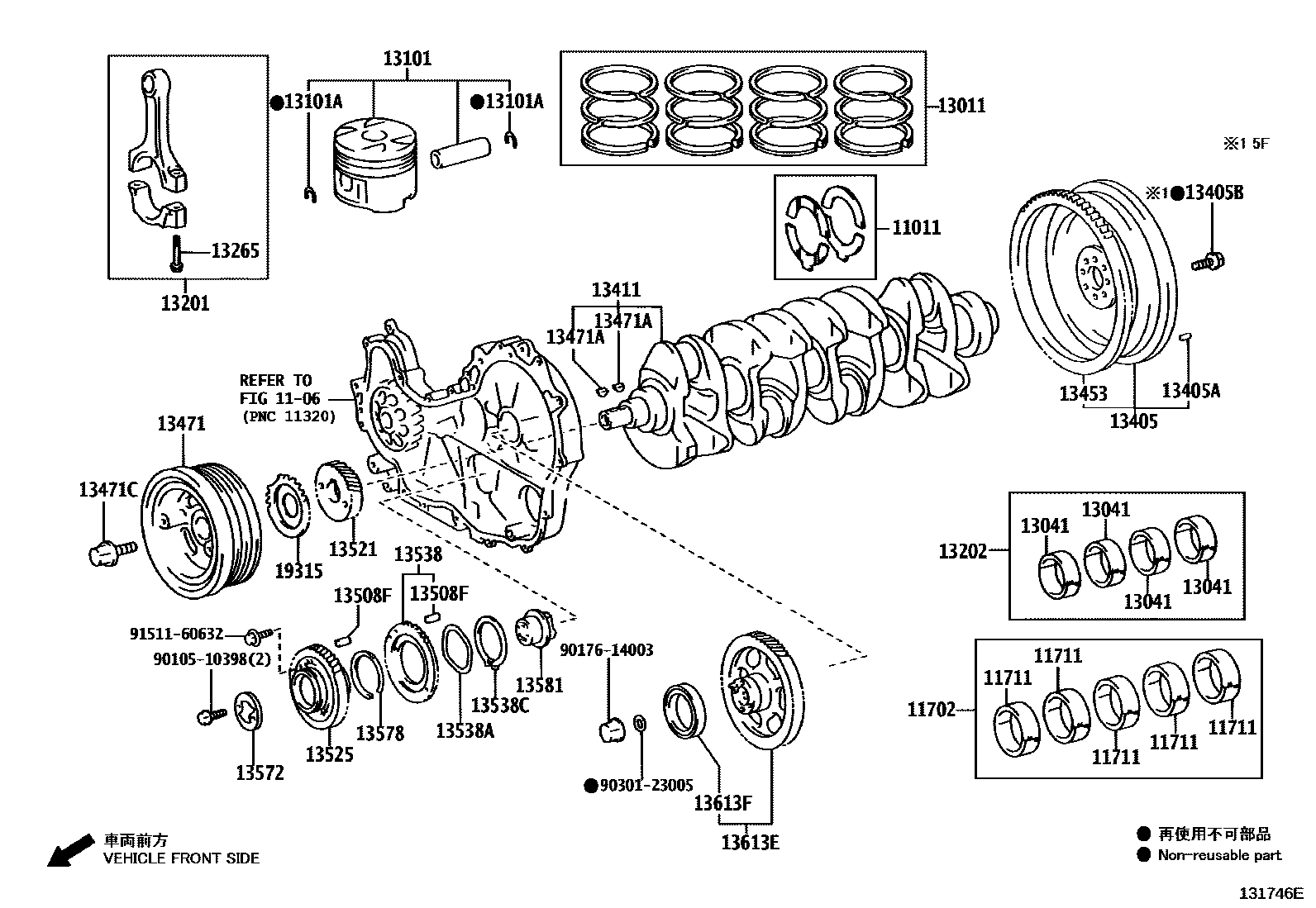

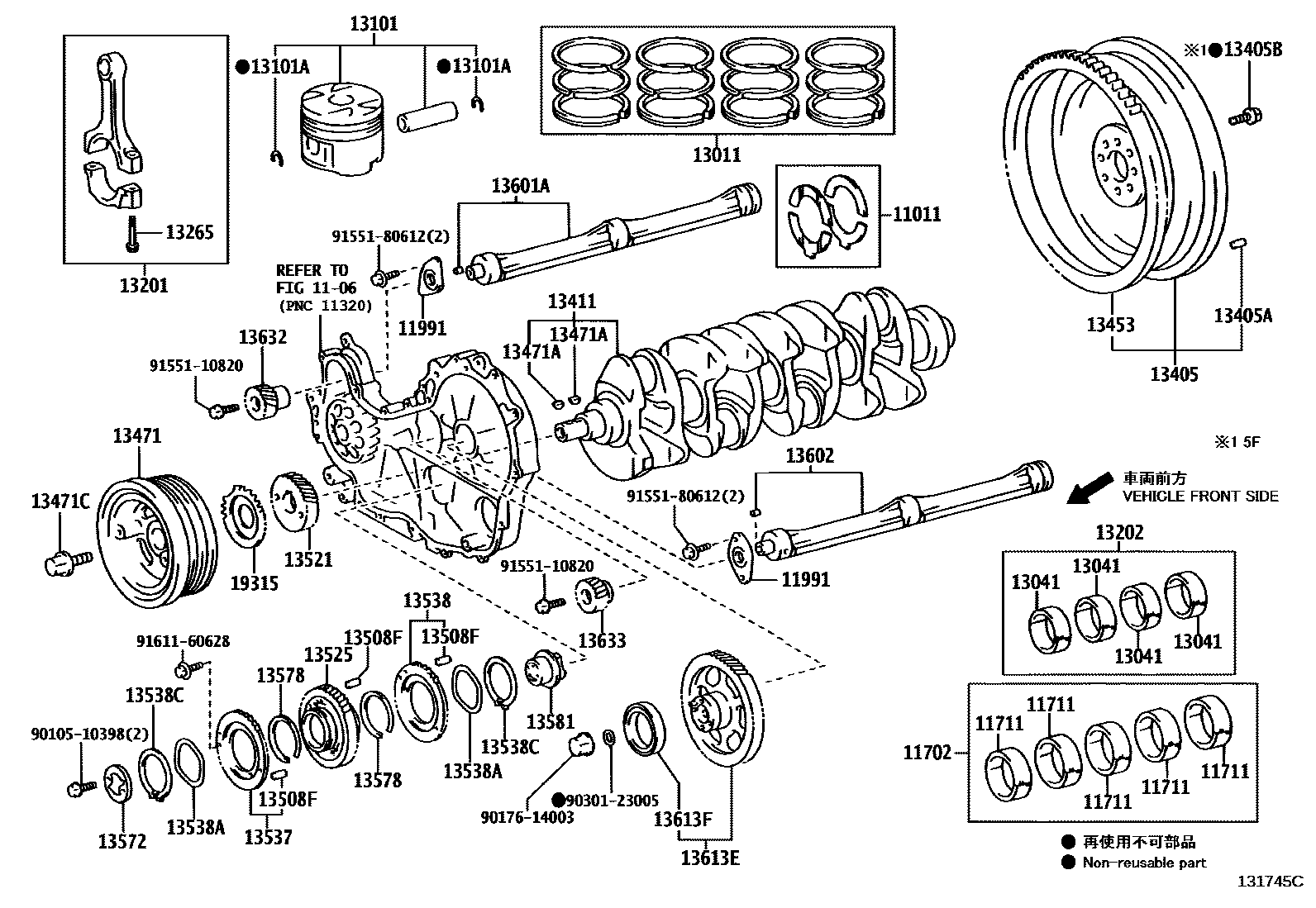

Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-30010 · 11012-30010 · 11013-30010 |
| 11702 | crankshaft bearing assembly | 11704-30020 · 11705-30020 |
| 11991 | Balance shaft thrust washer | 11991-67010 |
| 13011 | Piston ring assembly | 13011-30120 · 13011-30150 · 13011-30160 · 13013-30120 · 13013-30150 · 13013-30160 · 13014-30150 · 13014-30160 · 13015-30150 · 13015-30160 |
| 13101 | Piston sub-assembly with pin | 13103-0L070 · 13103-30150 · 13103-30170 · 13103-30180 · 13103-30200 · 13104-30150 · 13104-30170 · 13104-30200 · 13105-30150 · 13105-30170 · 13105-30200 |
| 13101A | Bore snap ring (for piston pin) | 90520-37014 |
| 13201 | Connecting rod sub-assembly | 13201-30041 · 13201-30051 |
| 13202 | Connecting rod bearing assembly | 13204-30020 · 13205-30020 |
| 13265 | Connecting rod bolts | 13265-67021 |
| 13405 | Flywheel sub-assembly | 13405-30031 · 13405-67030 |
| 13405A | Direct sales (for flywheel) | 90250-05121 · 90250-10192 |
| 13405B | Flywheel fixing bolt | 90105-13010 |
| 13411 | crankshaft | 13401-0L100 · 13401-30050 · 13401-30060 |
| 13453 | flywheel ring gear | 13453-0L010 · 13453-67030 |
| 13471 | crankshaft pulley | 13408-30011 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-T0002 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-18003 |
| 13508F | Direct sales (for idler pulley) | 90250-05027 |
| 13521 | Crankshaft timing gear or sprocket | 13521-67020 |
| 13525 | No. 1 idler pulley | 13508-30011 · 13508-67011 |
| 13537 | No.1 auxiliary idler pulley | 13537-67900 |
| 13538 | No. 2 auxiliary idler pulley | 13538-67900 |
| 13538A | Wave washer | 90206-69001 |
| 13538C | Shaft snap ring | 90520-58002 |
| 13572 | Idler thrust plate | 13572-67041 |
| 13578 | Idler spring | 13578-67010 |
| 13581 | No. 1 idler shaft | 13581-67041 |
| 13601A | No. 1 balance shaft sub-assembly | 13601-67020 |
| 13602 | No. 2 balance shaft sub-assembly | 13602-67020 |
| 13613E | Driving gear | 13603-30020 |
| 13613F | Radial ball bearing | 90363-67001 |
| 13632 | No. 1 balance shaft driven gear | 13632-67010 |
| 13633 | No. 2 balance shaft driven gear | 13633-67010 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-30010 |
