Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 2 images and 7 PNC and OE references.

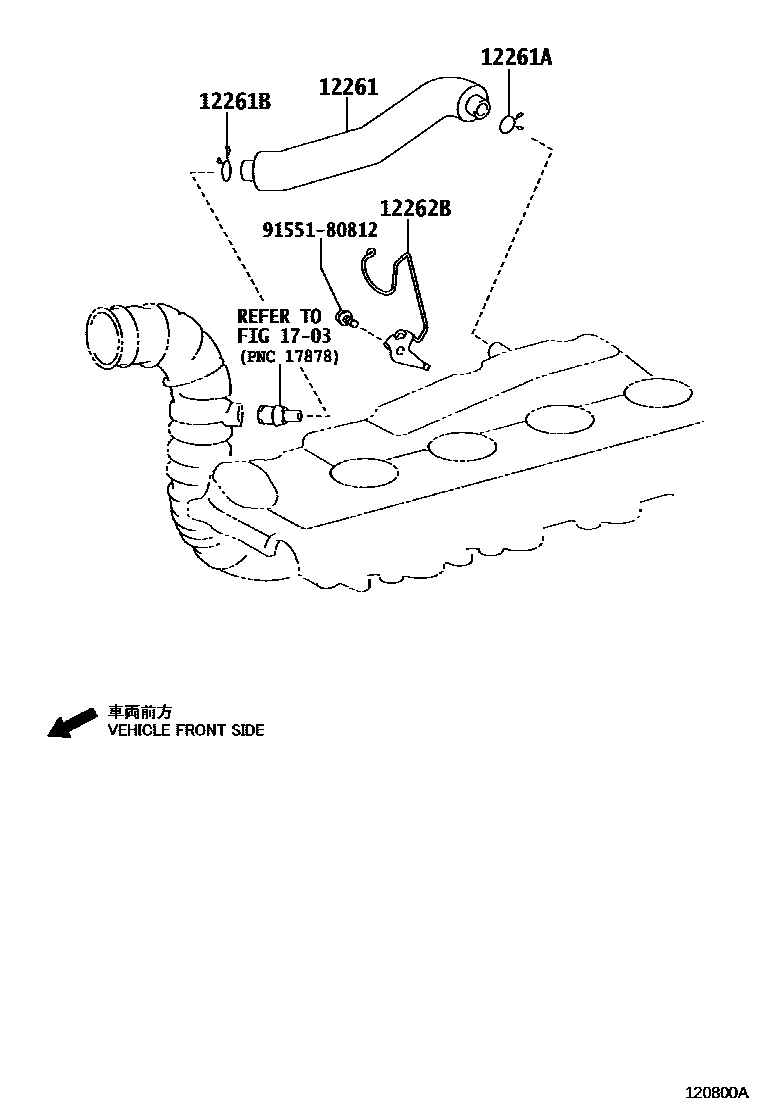

Toyota HILUX Ventilation Hose EPC diagram — 120800A
Ventilation Hose — 120800A (201107 – 201203)

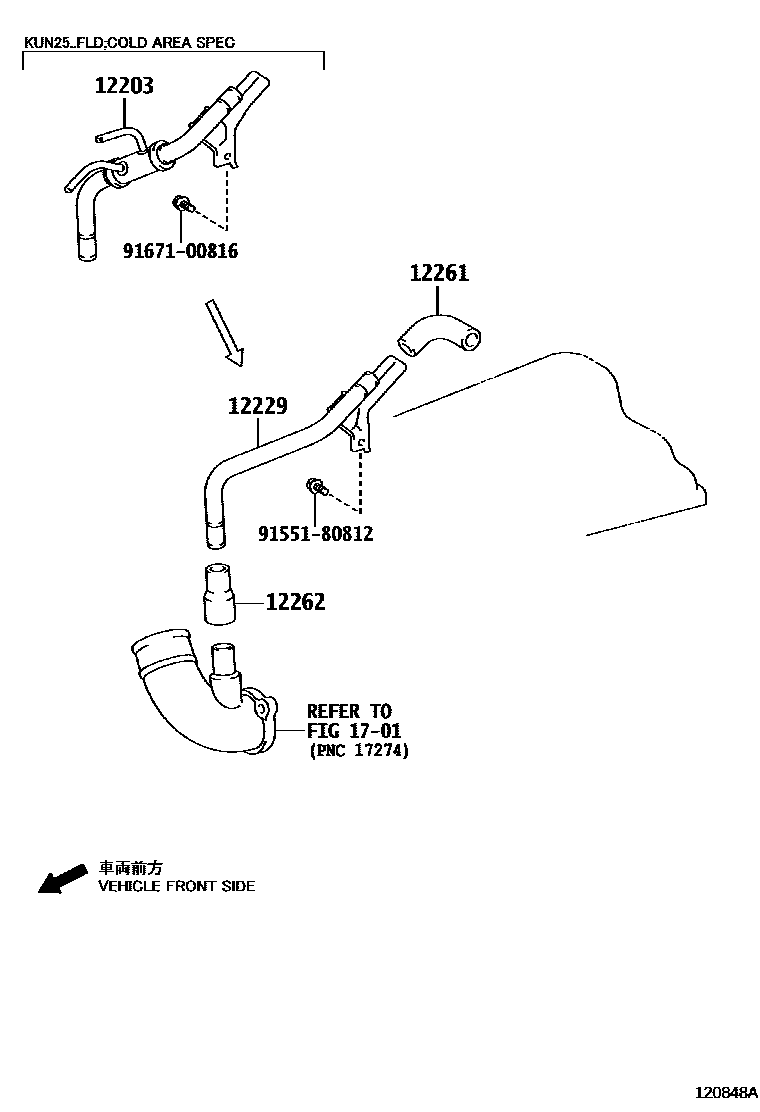

Toyota HILUX Ventilation Hose EPC diagram — 120848A
Ventilation Hose — 120848A (201203 – 999999)

PNC and OE references

PNCPart nameOE numbers
12203Ventilation pipe sub-assembly12203-30090
12229ventilation duct12229-30040
12261Ventilation Hose12261-30040 · 12261-30090
12261AClip or clip (for vent hose)90467-22010
12261BClip or clip (for vent hose)90467-21006
12262Ventilation hose No. 212262-30040
12262BClamp (for ventilation hose)16581-30180
