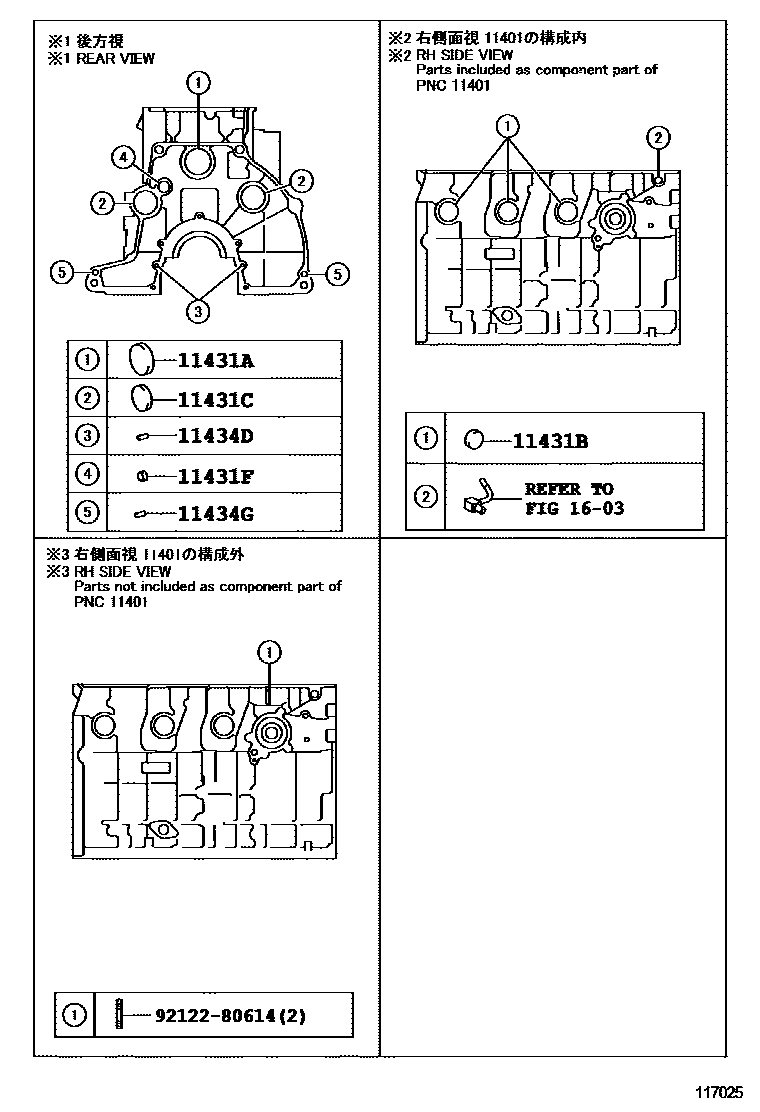

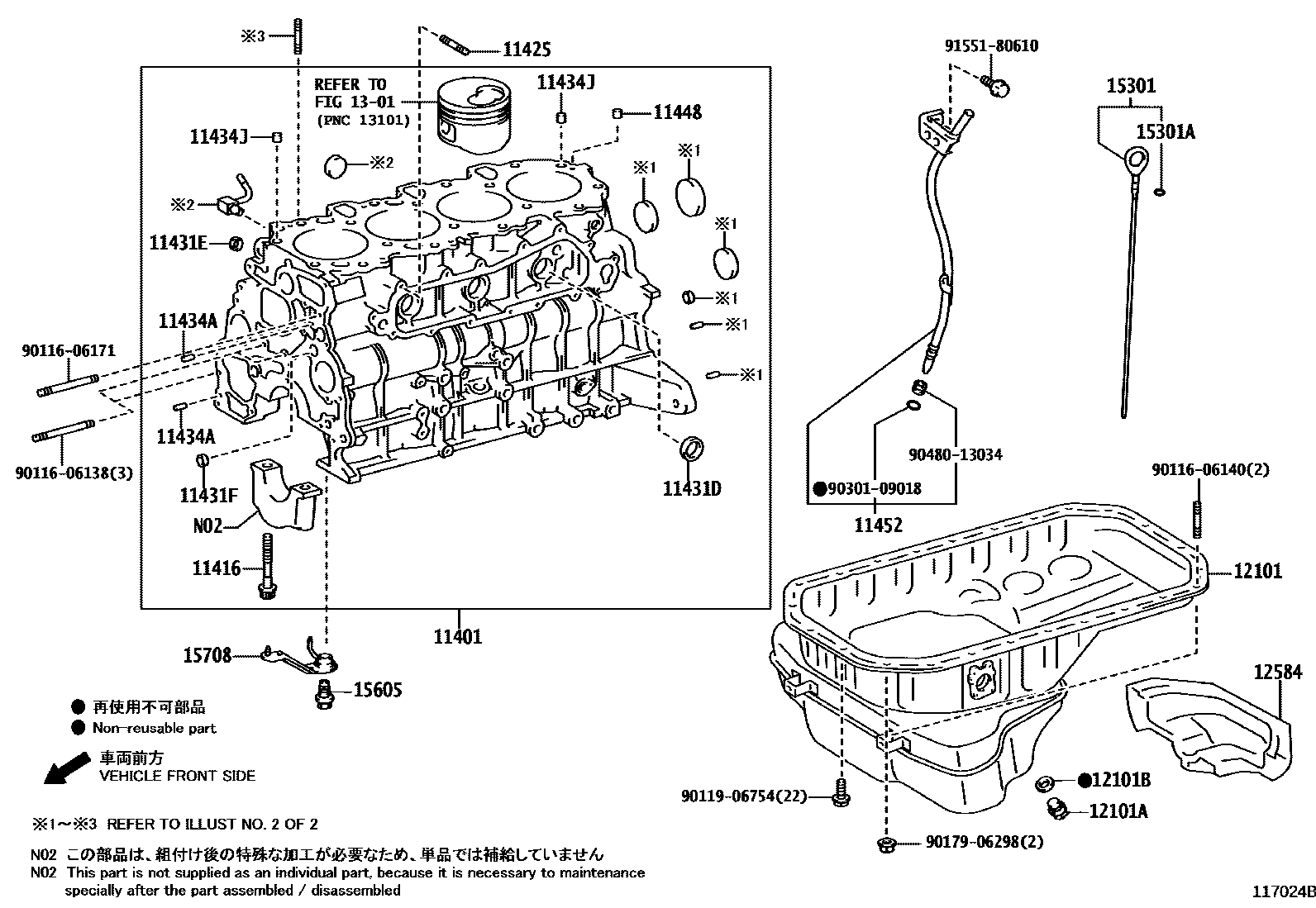

Toyota HILUX Cylinder Block — Figure 1105
Toyota HILUX EPC diagram 1105, Cylinder Block, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-39897 · 11401-39898 · 11401-80780 · 11401-80802 · 11401-80803 · 11401-80837 · 11401-80838 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02113 |
| 11425 | Studs (for oil filter) | 90116-06171 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-64500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-64000 |
| 11431D | No. 4 sealing plug (for cylinder block) | 90331-35004 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-62000 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-61800 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10192 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15016 |
| 11448 | Cylinder block oil orifice | 11448-67010 |
| 11452 | Engine oil level gauge guide | 11452-30070 · 11452-30150 |
| 12101 | Oil pan sub-assembly | 12101-30090 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-0L010 |
| 15301 | Engine oil level scoring assembly | 15301-30070 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15605 | Oil check valve sub-assembly | 15605-17030 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-30011 |
