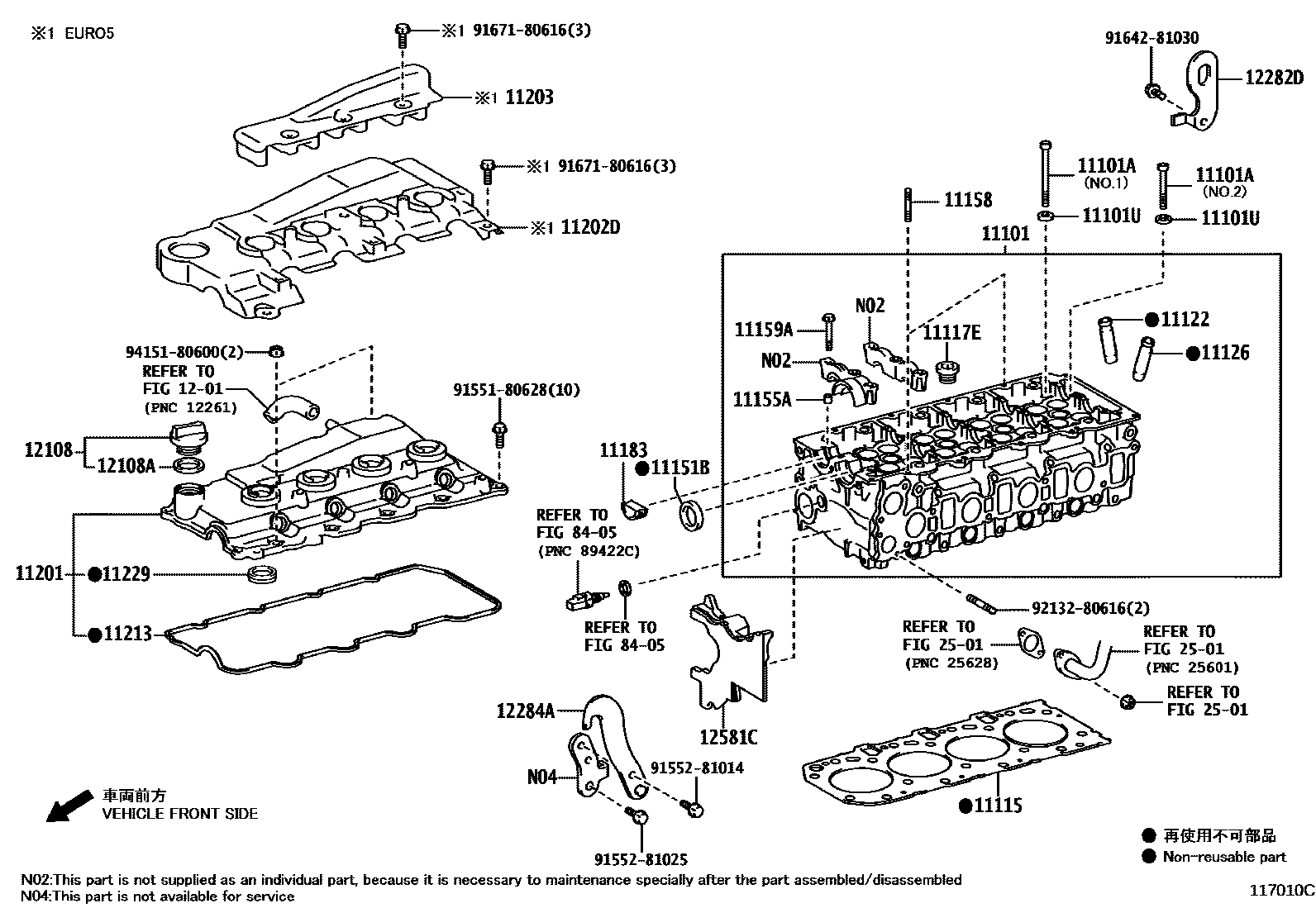

Toyota HILUX Cylinder Head — Figure 1104
Toyota HILUX EPC diagram 1104, Cylinder Head, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0L051 · 11101-30071 · 11101-30081 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02145 · 90910-02146 |
| 11101U | SPACER (FOR CYLINDER HEAD SET BOLT) | 90560-13023 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-T0005 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-30020 · 11123-30020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-30020 · 11123-30020 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-32019 |
| 11155A | PIN, RING W/HEAD | 90253-10004 · 90253-T0001 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-06149 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07011 |
| 11183 | PLUG, SEMICIRCULAR | 11183-67020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11210-30100 · 11210-30110 |
| 11202D | No. 2 cylinder head cover sub-assembly | 11202-30060 |
| 11203 | No. 3 cylinder head cover sub-assembly | 11203-30050 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0L010 · 11213-30040 |
| 11229 | GASKET, CYLINDER HEAD COVER, NO.3 | 23682-30020 · 23682-30040 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-21010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 · 90430-37140 |
| 12282D | ENGINE HANGER, NO.2 | 12282-67030 |
| 12284A | ENGINE HANGER, NO.1 UPPER | 12284-30060 |
| 12581C | INSULATOR, CYLINDER BLOCK | 12581-30010 |
