Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

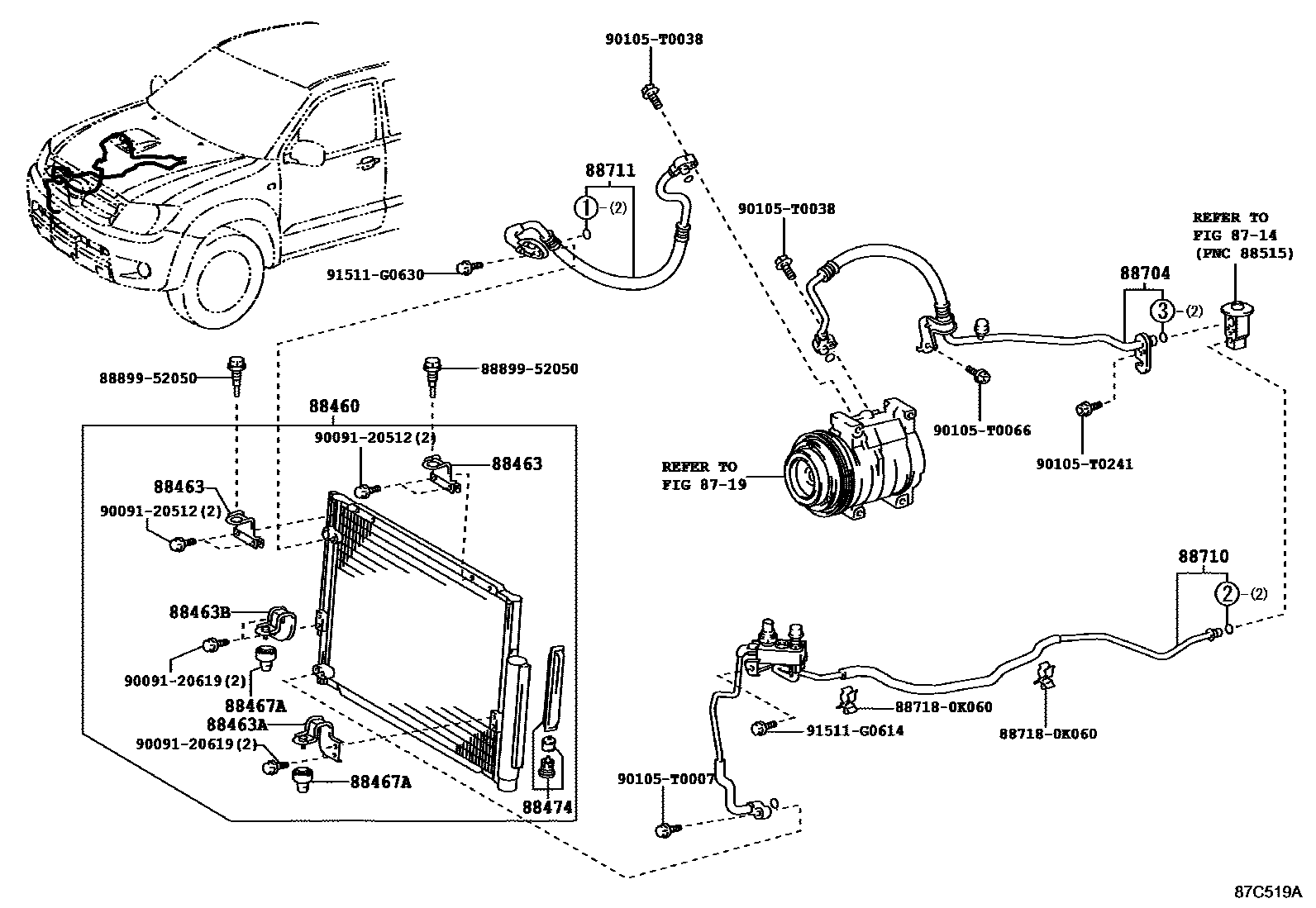

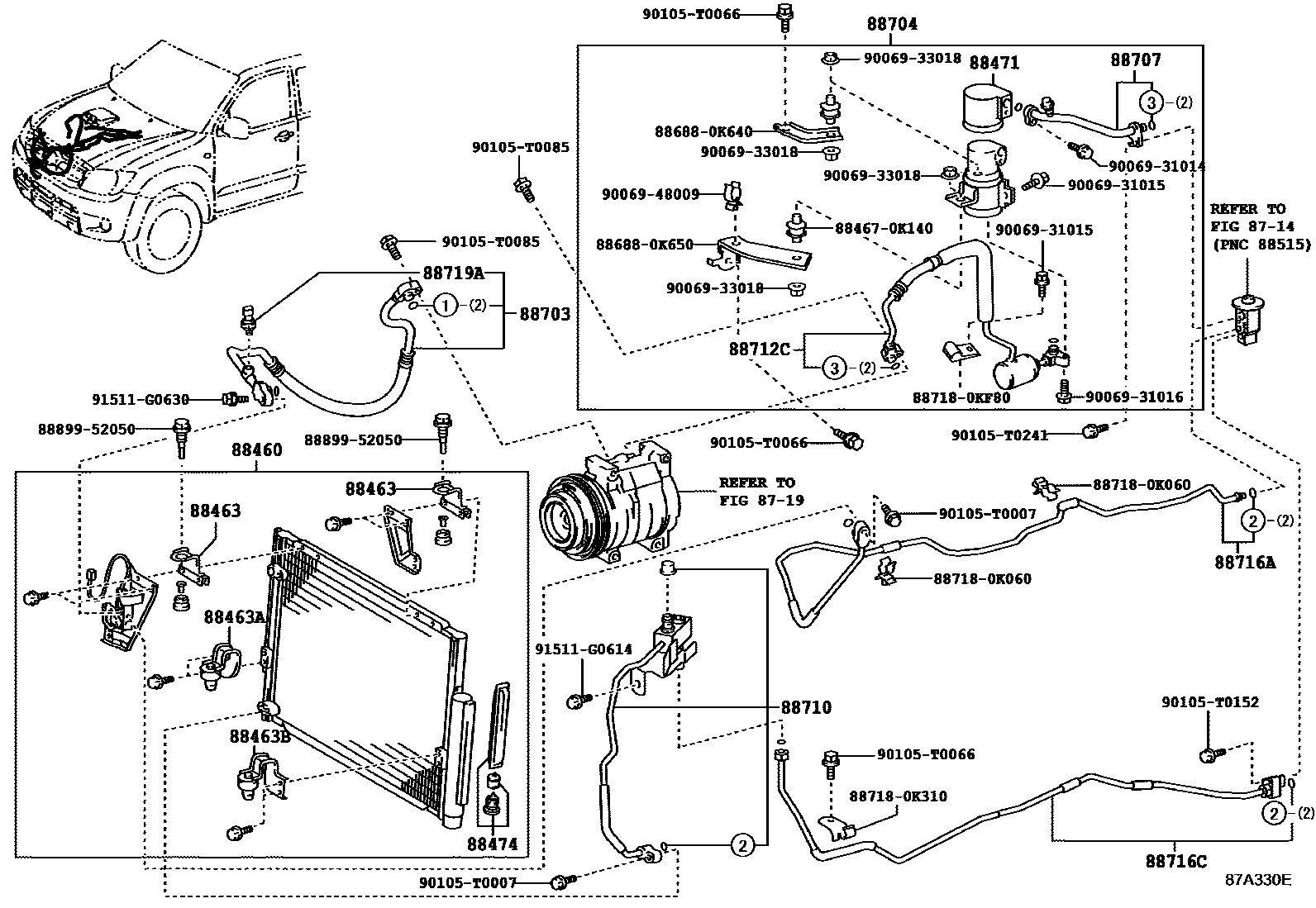

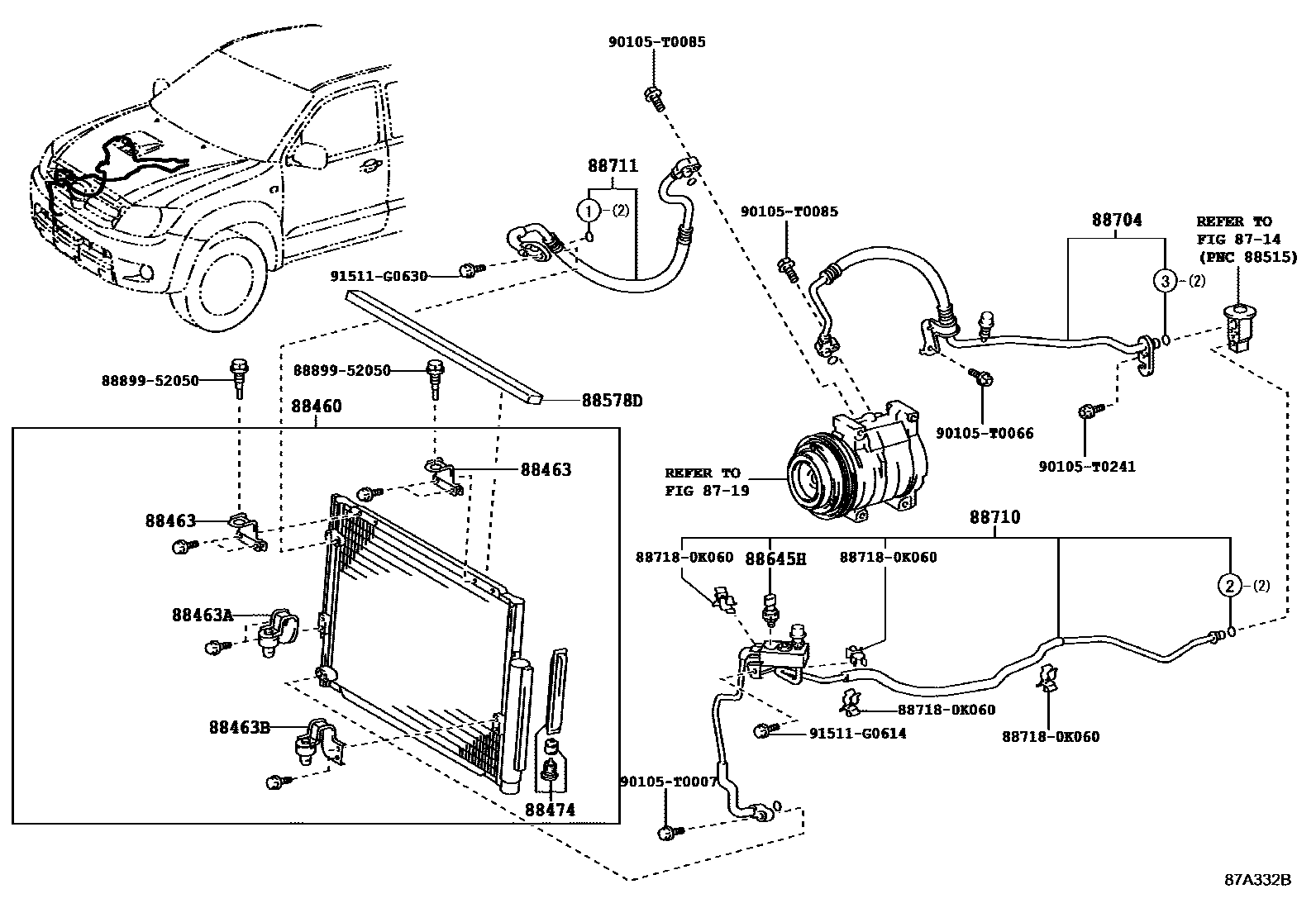

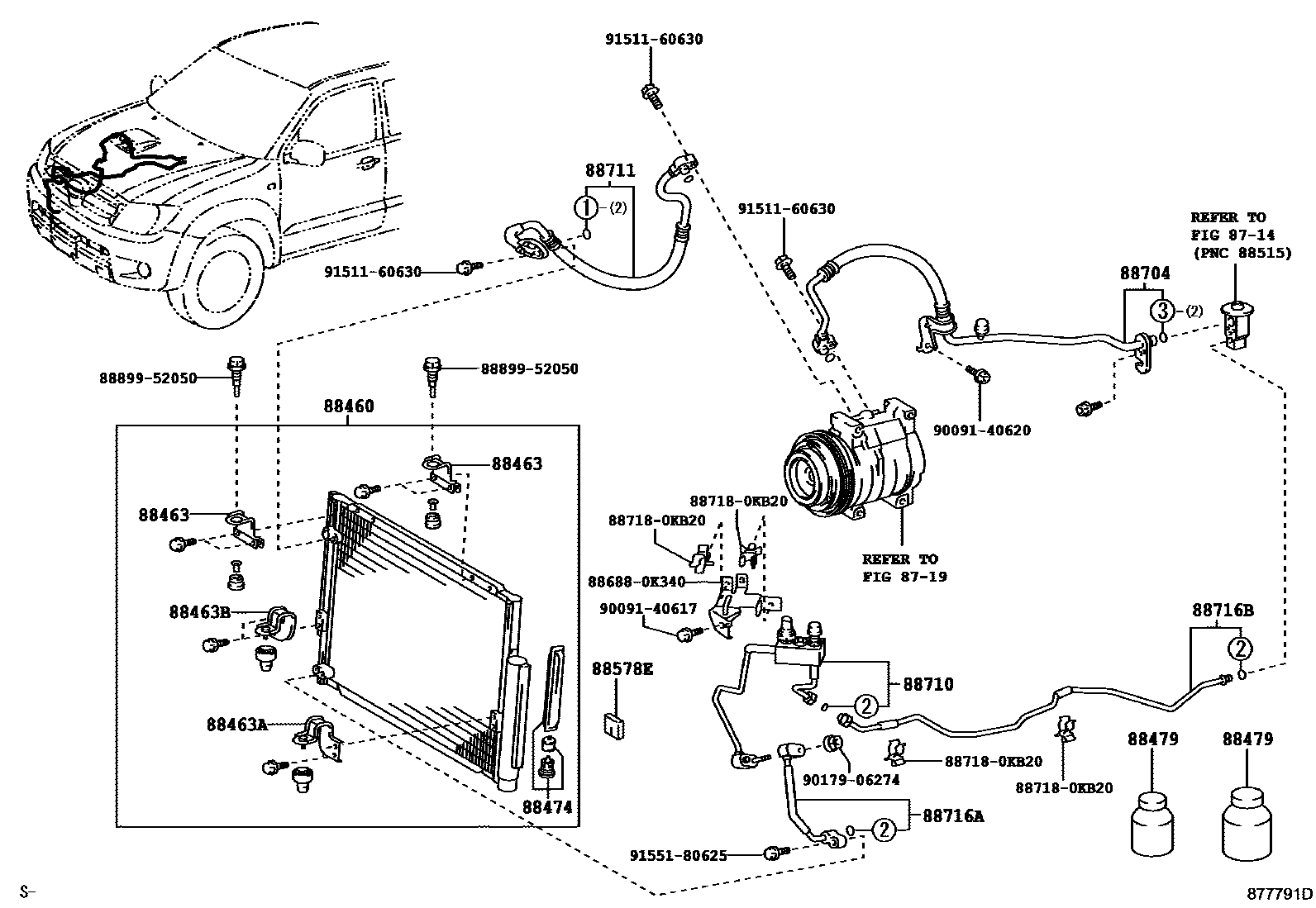

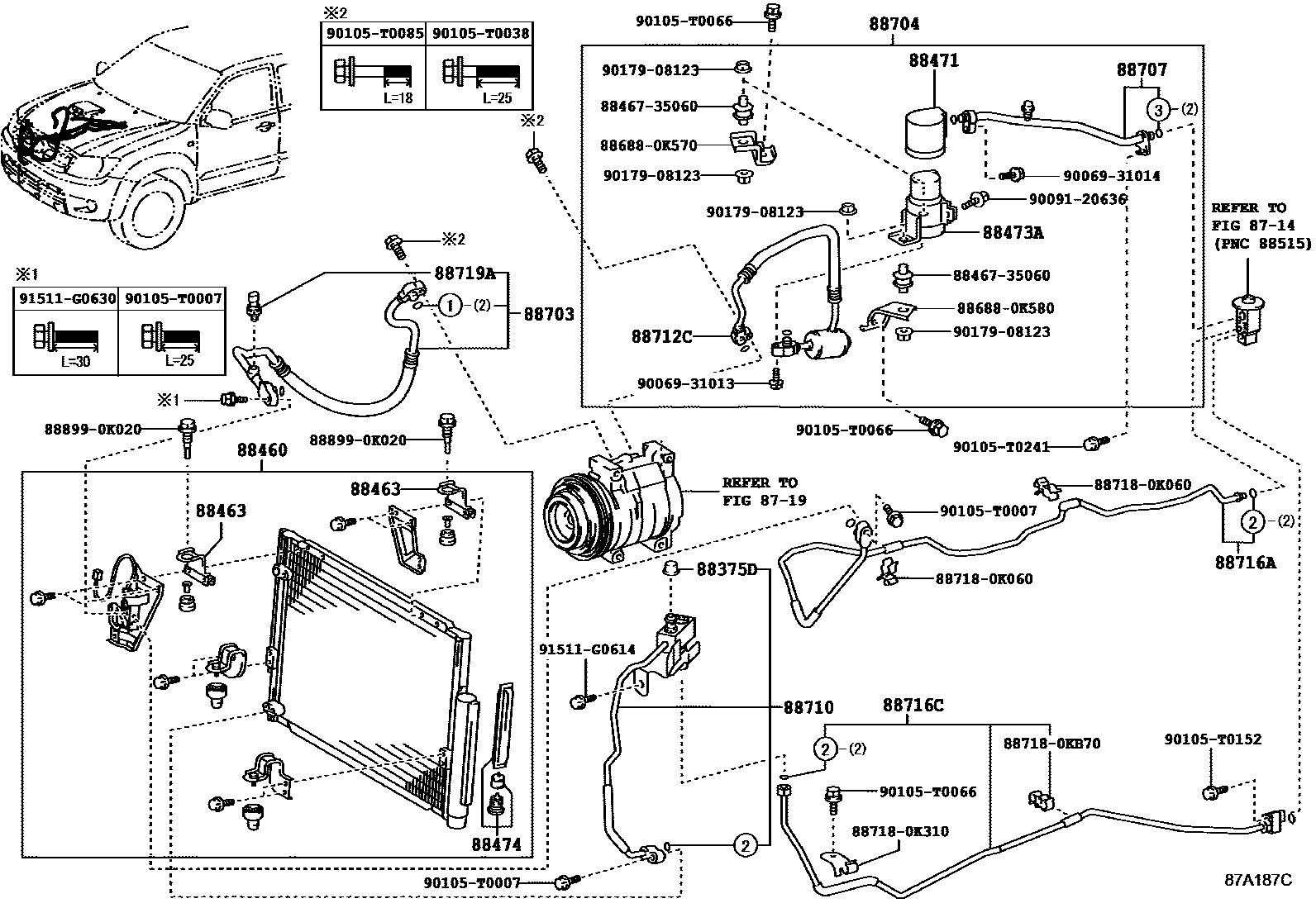

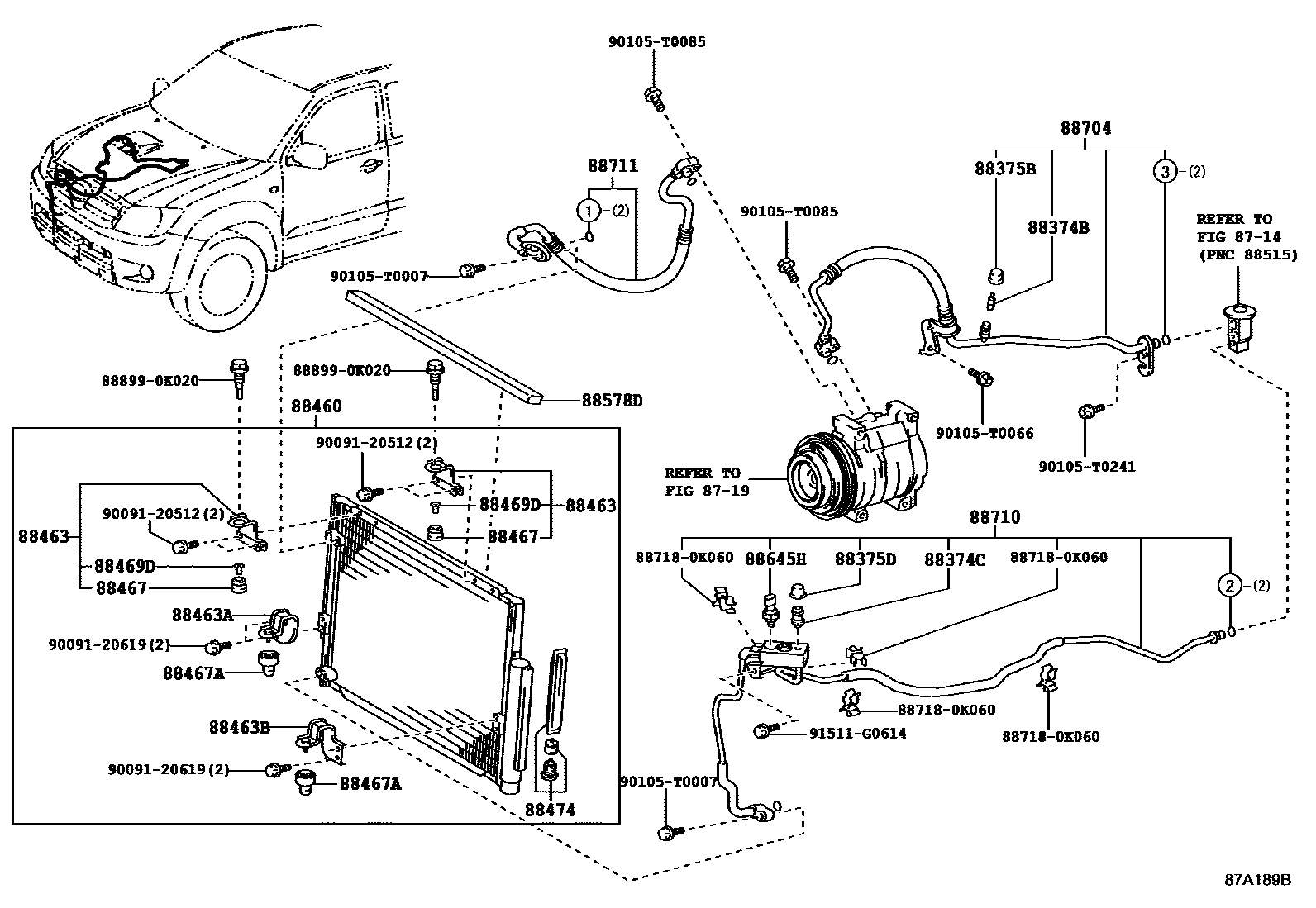

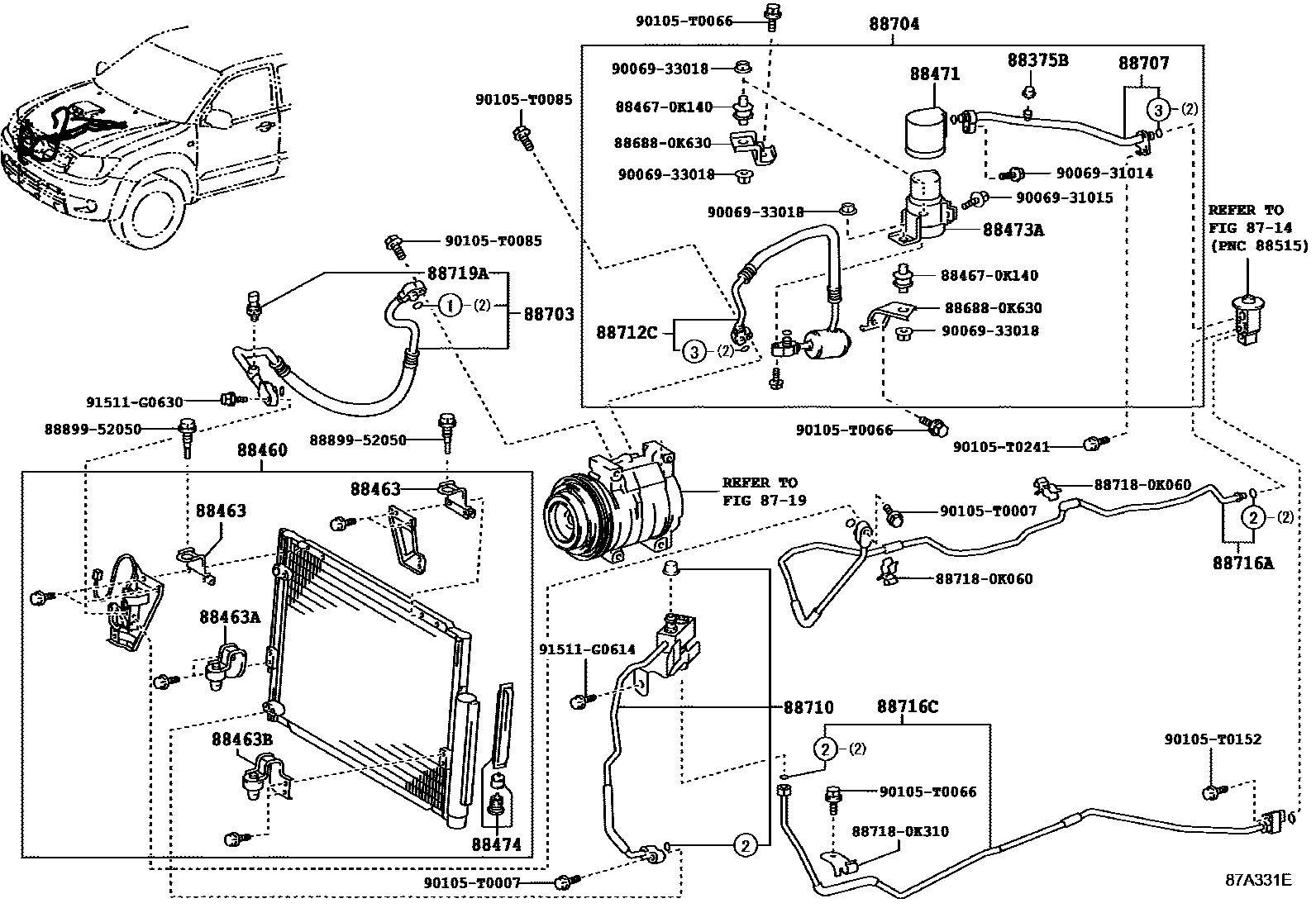

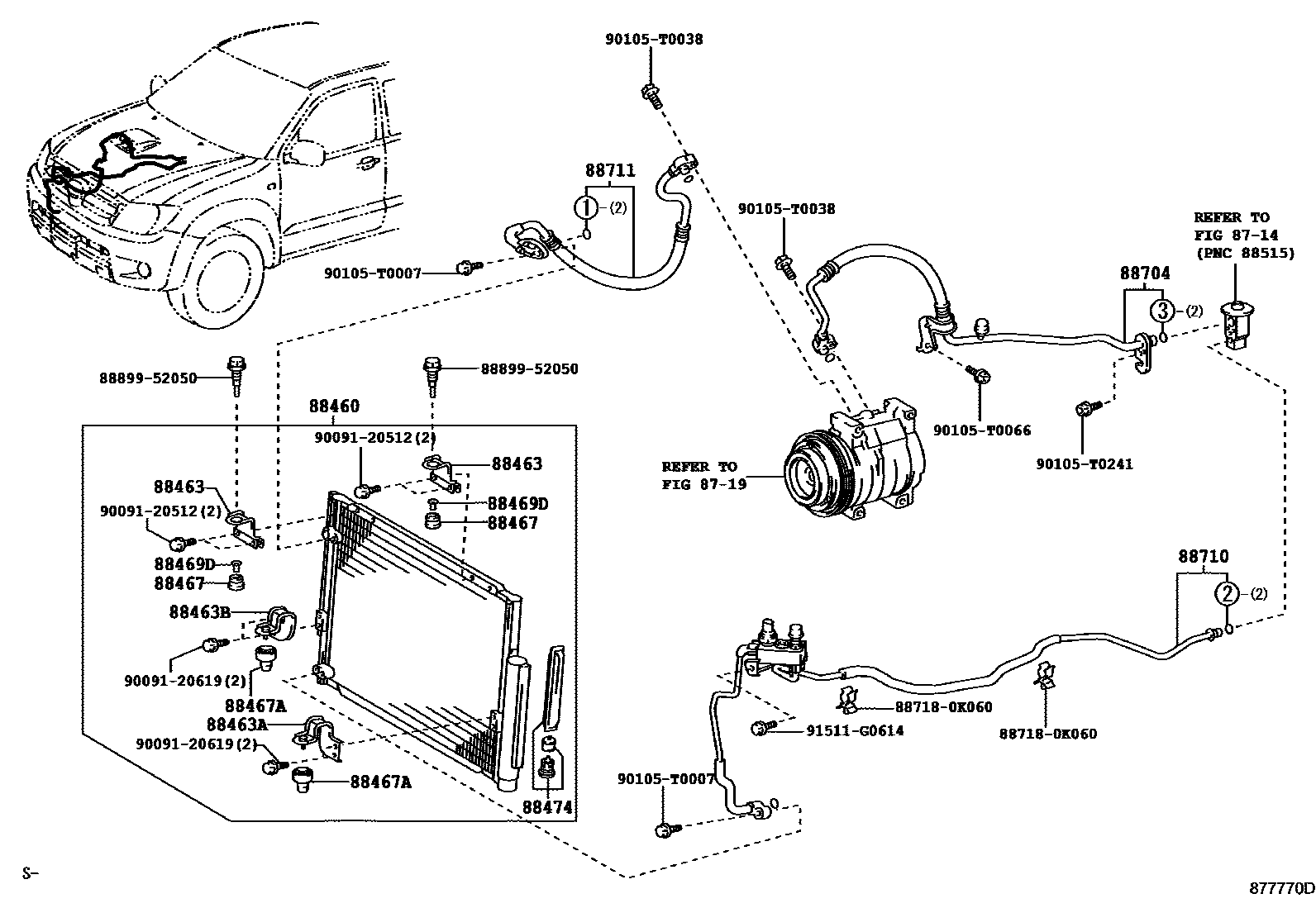

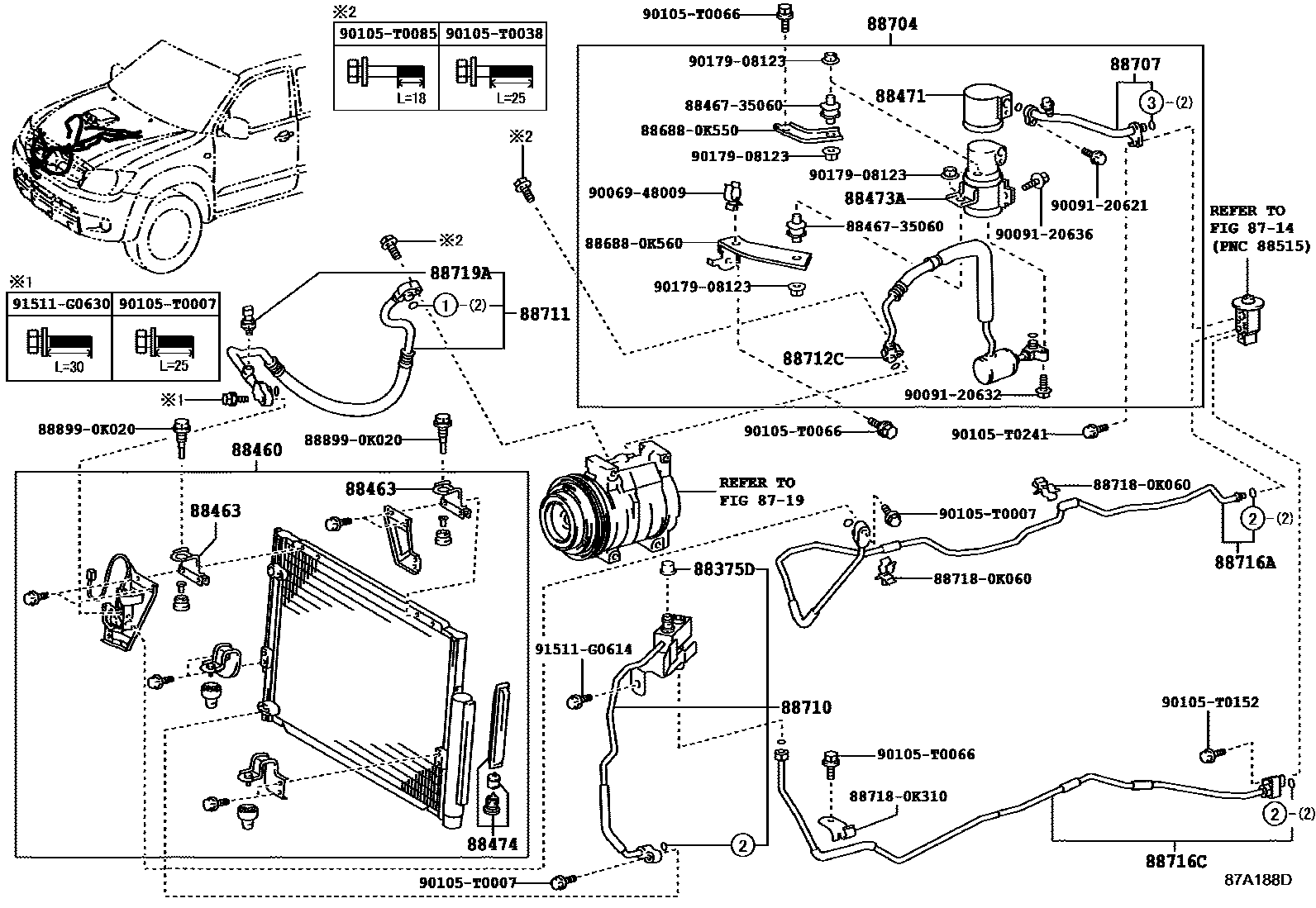

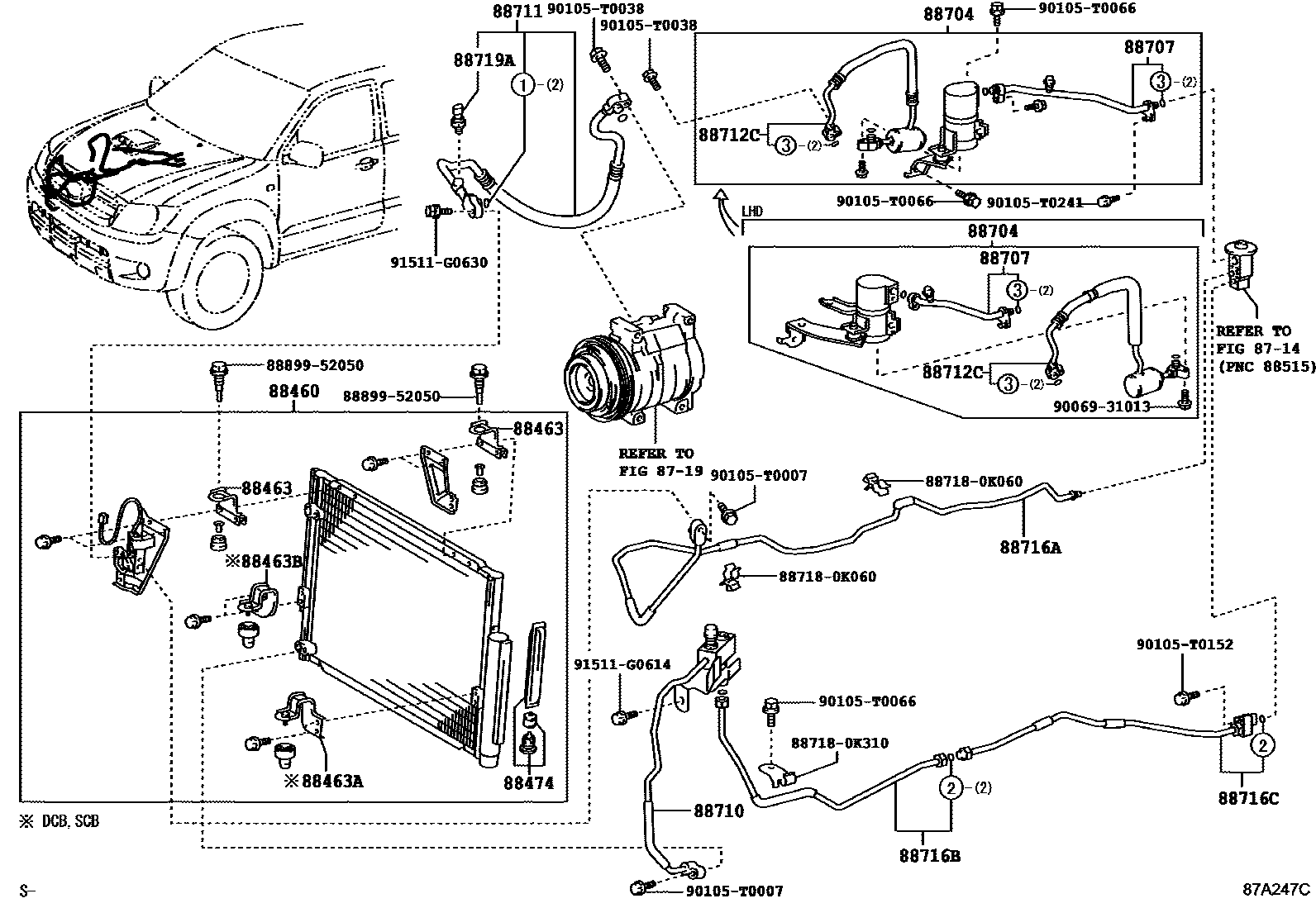

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 12 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K010 · 88460-0K050 · 88460-0K080 · 88460-0K120 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-0K020 · 88463-0K190 |
| 88463A | No. 2 air conditioner condenser bracket | 88463-0K200 · 88463-0K250 |
| 88463B | No. 3 air conditioner condenser bracket | 88463-0K210 · 88463-0K260 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-28040 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88471 | Air conditioning fluid storage tank | 88470-0K010 · 88470-0K020 |
| 88473A | Reservoir tank fixings | 88473-0K010 · 88473-0K020 · 88473-0K030 · 88473-0K060 |
| 88474 | cooler dryer | 88474-02220 · 88474-08010 · 88474-17010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88578D | Cooler tube seal No. 1 | 88578-0K790 |
| 88578E | No. 2 cooler tube seal | 88578-0K100 |
| 88645H | No. 1 pressure switch | 88645-34010 |
| 88703 | Discharge hose sub-assembly | 88703-0K260 |
| 88704 | Oil suction hose sub-assembly | 88704-0K020 · 88704-0K030 · 88704-0K040 · 88704-0K050 · 88704-0K100 · 88704-0K110 · 88704-0K130 · 88704-0K190 · 88704-0K500 · 88704-0K650 · 88704-0K660 · 88704-0K661 · 88704-0K670 · 88704-0K671 · 88704-0K672 · 88704-0K680 · 88704-0K690 · 88704-0K691 · 88704-0K700 · 88704-0K701 · 88704-0K702 · 88704-0KC60 |
| 88707 | Suction pipe sub-assembly | 88707-0K100 · 88707-0K110 · 88707-0K120 · 88717-0KA70 · 88717-0KA80 · 88717-0KD60 · 88717-0KD70 · 88717-0KD90 · 88717-0KE00 · 88717-0KE01 · 88717-0KE10 · 90069-46028 · 90069-46029 |
| 88710 | Air conditioning pipe assembly | 88710-0K010 · 88710-0K020 · 88710-0K030 · 88710-0K040 · 88710-0K710 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-0K250 · 88703-0K260 · 88711-0K070 · 88711-0K071 · 88711-0K090 · 88711-0K091 · 88711-0K092 |
| 88712C | Oil suction hose | 88712-0K050 · 88712-0K060 · 88712-0K250 · 88712-0K520 · 88712-0K530 · 88712-0K740 · 88712-0K750 · 88712-0K860 · 88712-0KB40 · 88712-0KB50 · 88712-0KB51 · 90069-46027 · 90069-46033 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0K150 · 88716-0K151 · 88716-0K160 · 88716-0K161 · 88716-0KB60 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-0K250 · 88716-0K260 · 88716-0KC20 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-0K170 · 88716-0K180 · 88716-0KD10 · 88716-0KD11 · 88716-0KD20 · 88716-0KD21 · 88716-0KD30 · 88716-0KD31 · 88716-0KD40 · 88716-0KD41 |
| 88719A | Air conditioning pressure sensor | 88719-33020 · 88719-40020 |
