Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

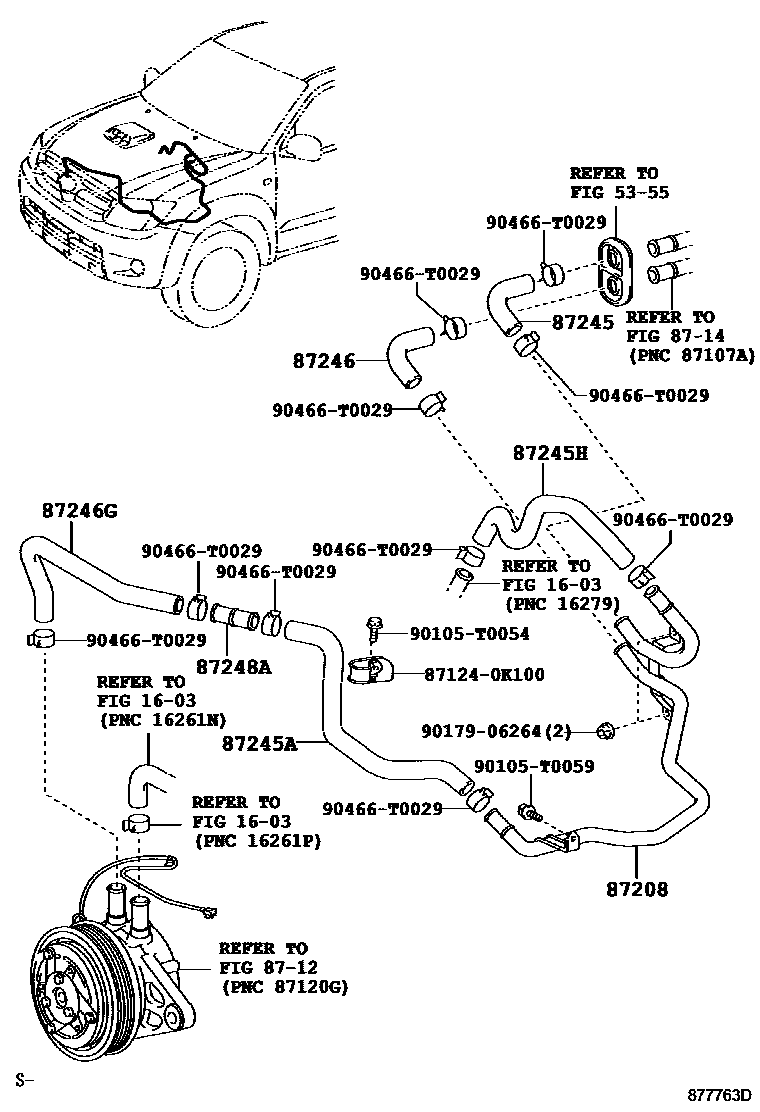

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87208 | Heater water pipe sub-assembly | 87208-0K020 · 87208-0K140 |
| 87245 | Heater water inlet hose | 87245-0K300 |
| 87245A | Heater water inlet hose A | 87245-0K580 · 87245-0K770 |
| 87245H | Heater water inlet hose H | 87245-0K010 · 87245-0K750 · 87245-0K760 |
| 87246 | Heater outlet hose | 87245-0K300 |
| 87246G | Heater outlet hose G | 87245-0K250 · 87245-0K310 · 87245-0K750 · 87245-0K780 |
| 87248A | Heater water inlet pipe A | 87248-0K010 |
