Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-0K010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55086-0K030 · 55086-0K040 · 55844-0K010 · 55844-0K020 |
| 55845A | Air duct No. 3 from heater to air regulator | 55087-0K010 · 55845-0K010 |

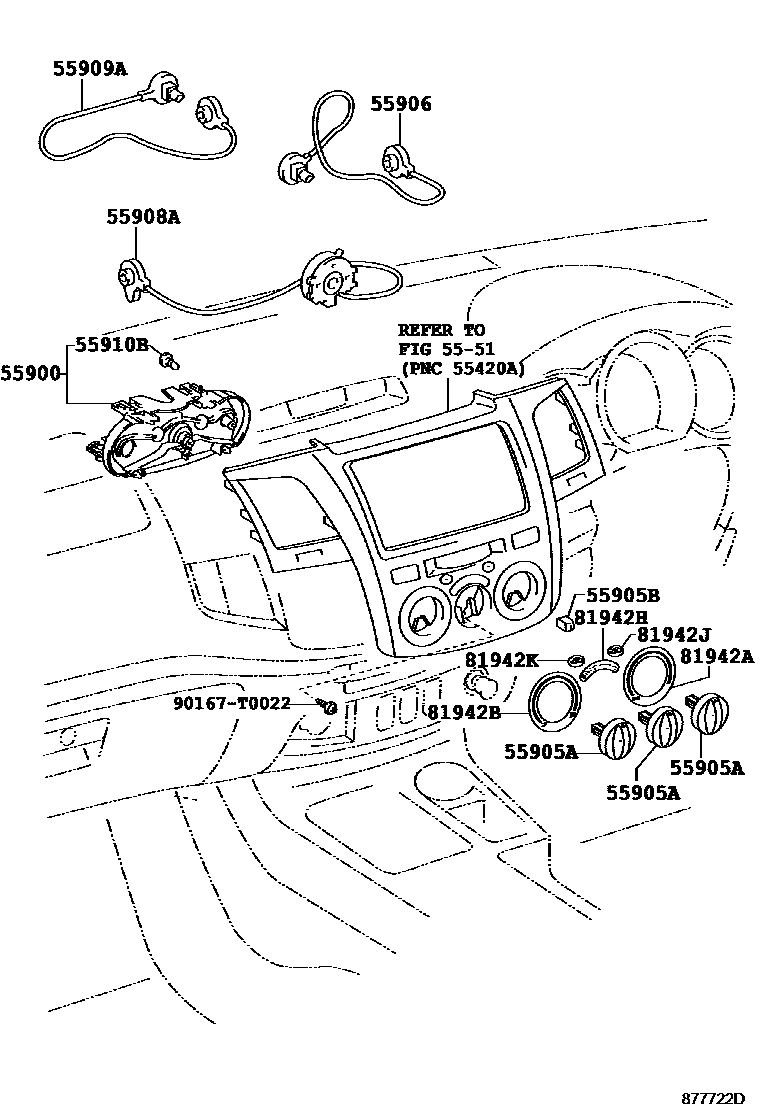

| 55900 | Air conditioning control assembly | 55900-0K010 · 55900-0K011 |
| 55905A | Heater control button | 55905-0K010 · 55905-0K011 |
| 55905B | Heater control button 2 | 55905-0K020 |
| 55906 | Heater control cable sub-assembly | 55906-0K010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0K010 · 55908-0K050 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55910B | heater control light bulb | 84999-06010 |

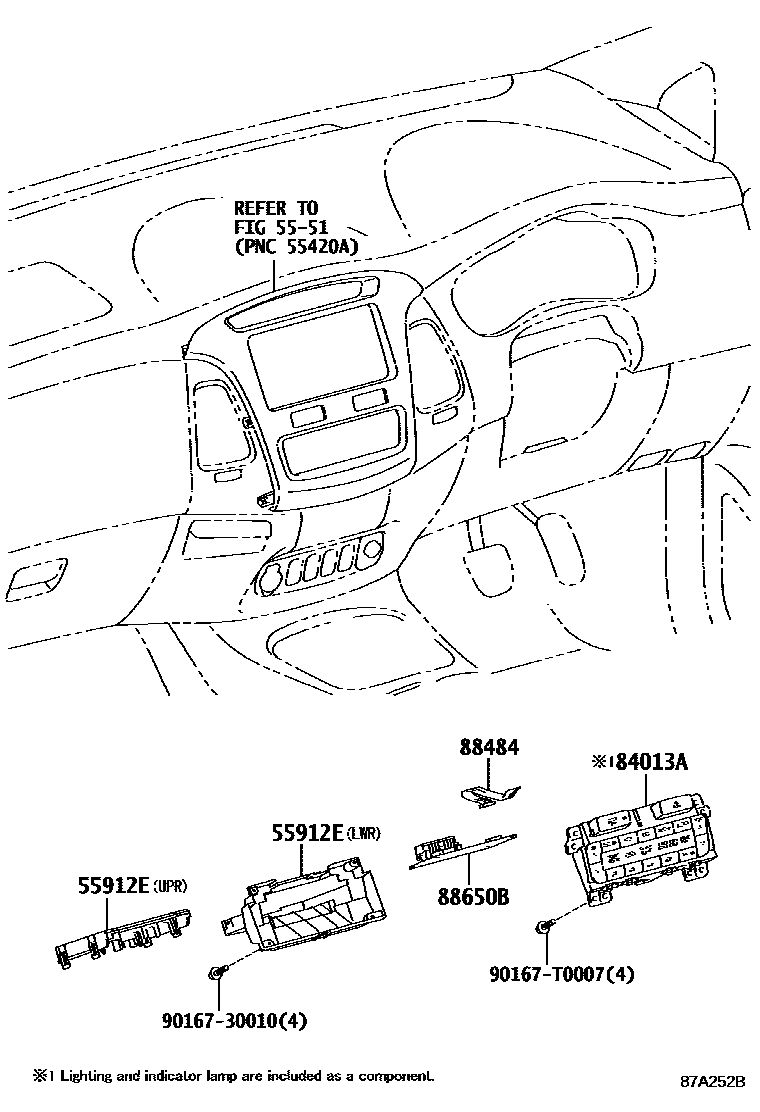

| 55912E | Lower heater controller base | 55912-0K080 · 55912-0K130 |

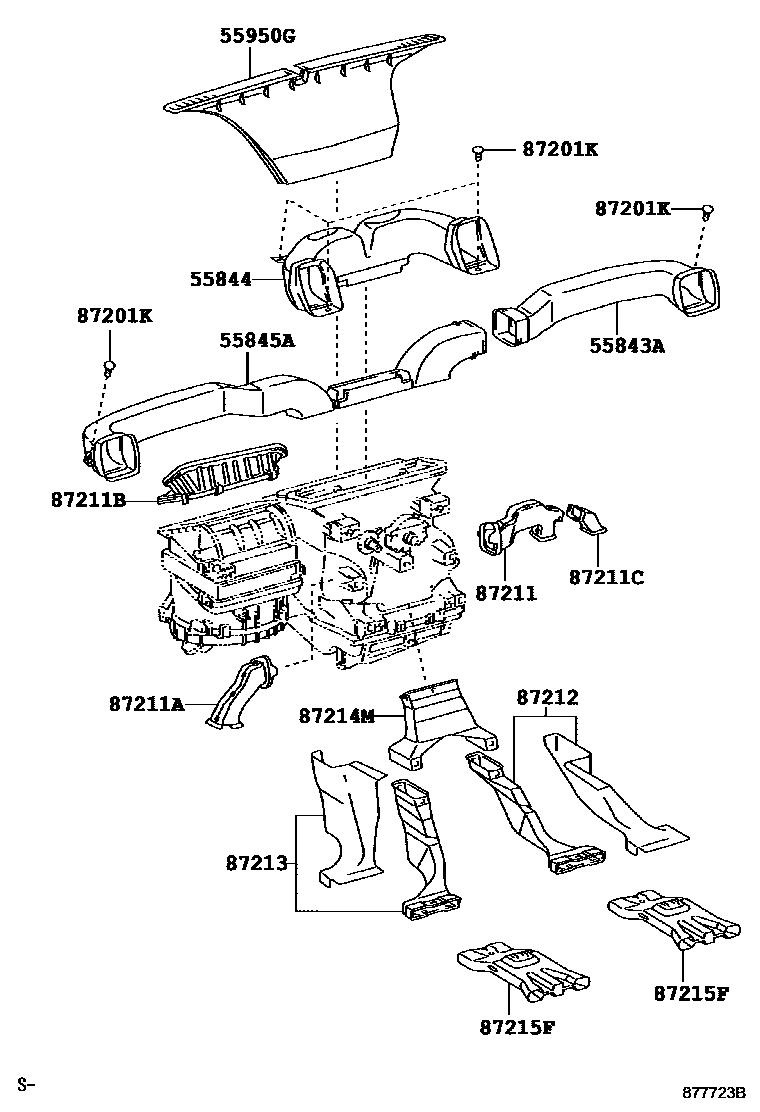

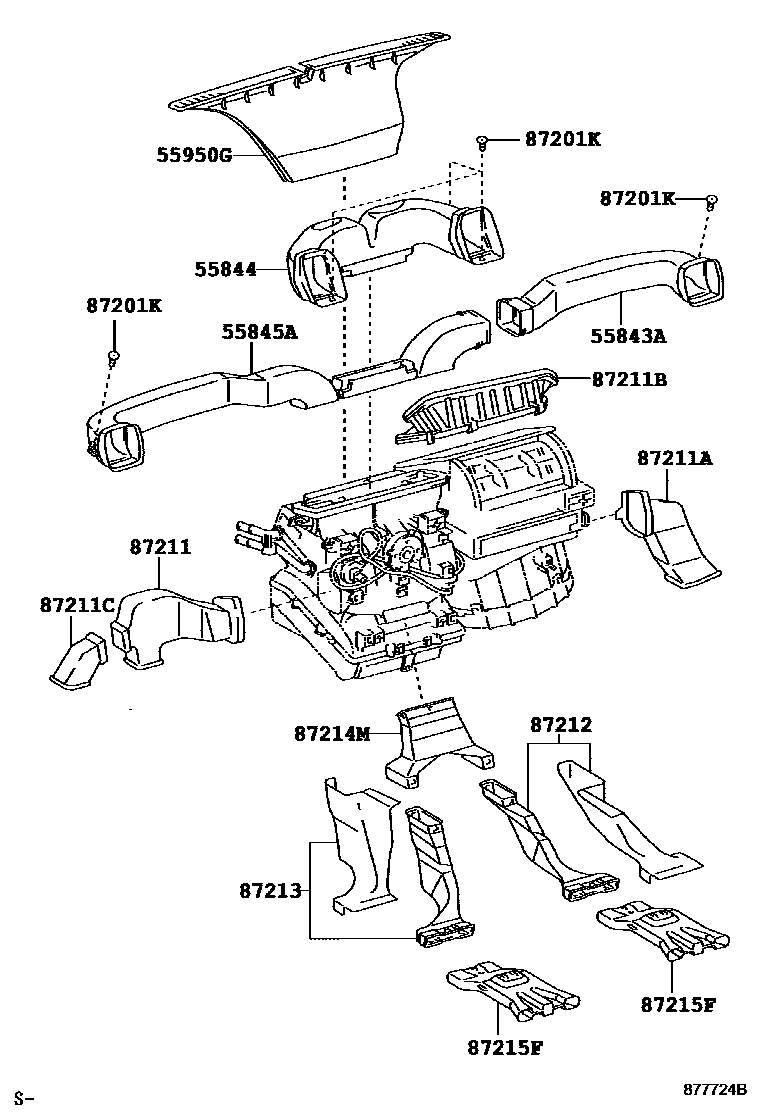

| 55950G | Defroster nozzle assembly | 55950-0K010 |
| 84013A | Integrated panel sub-assembly | 84013-0K030 |
| 87211 | No. 1 air duct | 87211-0K010 · 87211-0K030 · 87211-0K070 · 87211-0K090 |
| 87211A | Duct No. 2 | 87211-0K020 · 87211-0K040 · 87211-0K080 · 87211-0K100 |
| 87211B | No. 3 air duct | 87211-0K150 · 87211-0K160 · 87211-0K190 · 87211-0K200 |
| 87211C | No. 4 air duct | 87211-0K320 · 87211-0K330 · 87211-0K370 · 87211-0K380 |
| 87214M | Heater to foot duct No. 3 | 87214-0K010 |
| 87215F | No. 3 rear air duct | 87215-0K010 |
| 88484 | No. 1 cooler wiring harness | 88484-0K110 |

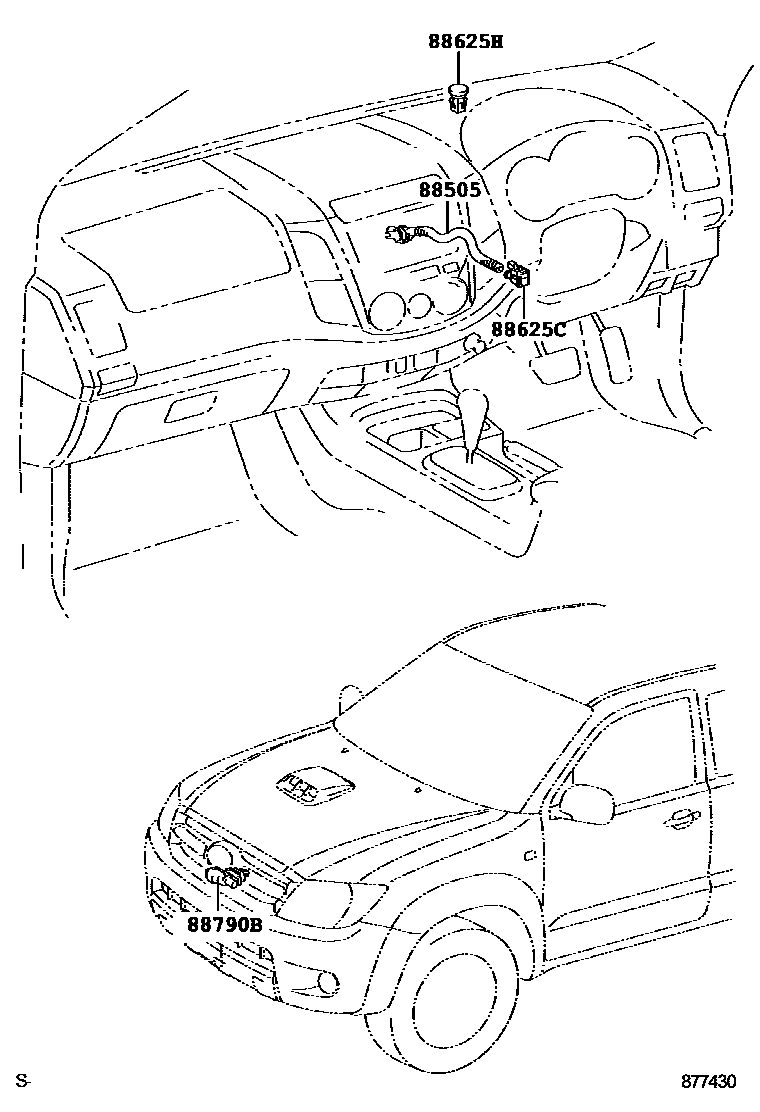

| 88505 | Air conditioning duct sub-assembly | 88505-02030 · 88505-02080 · 88505-0K020 · 88505-0K350 |
| 88625C | Cooler thermistor | 88625-47021 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88650B | Air conditioning amplifier assembly | 88650-0K250 |
| 88790B | Thermistor assembly | 88790-22131 · 88840-71010 |
