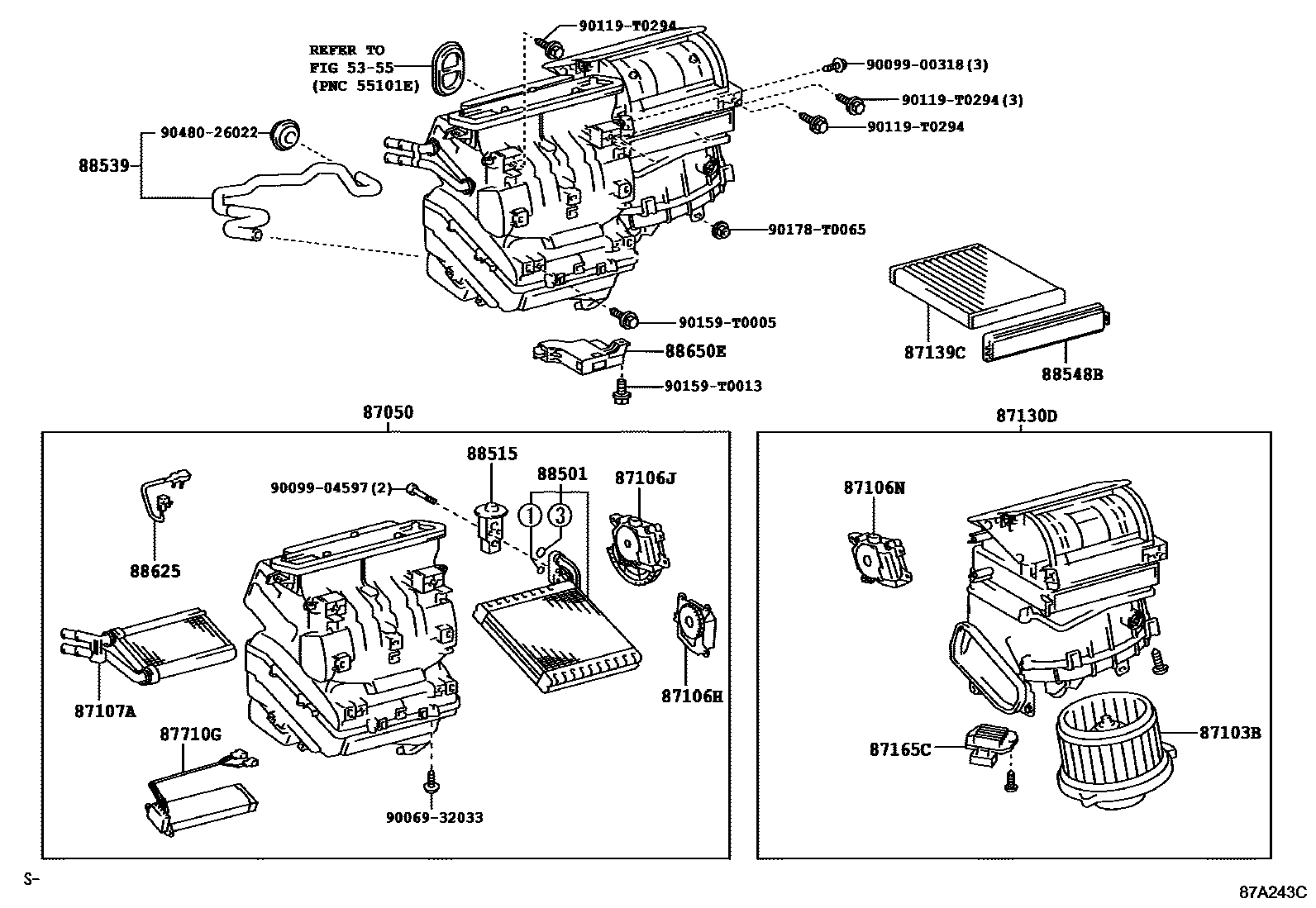

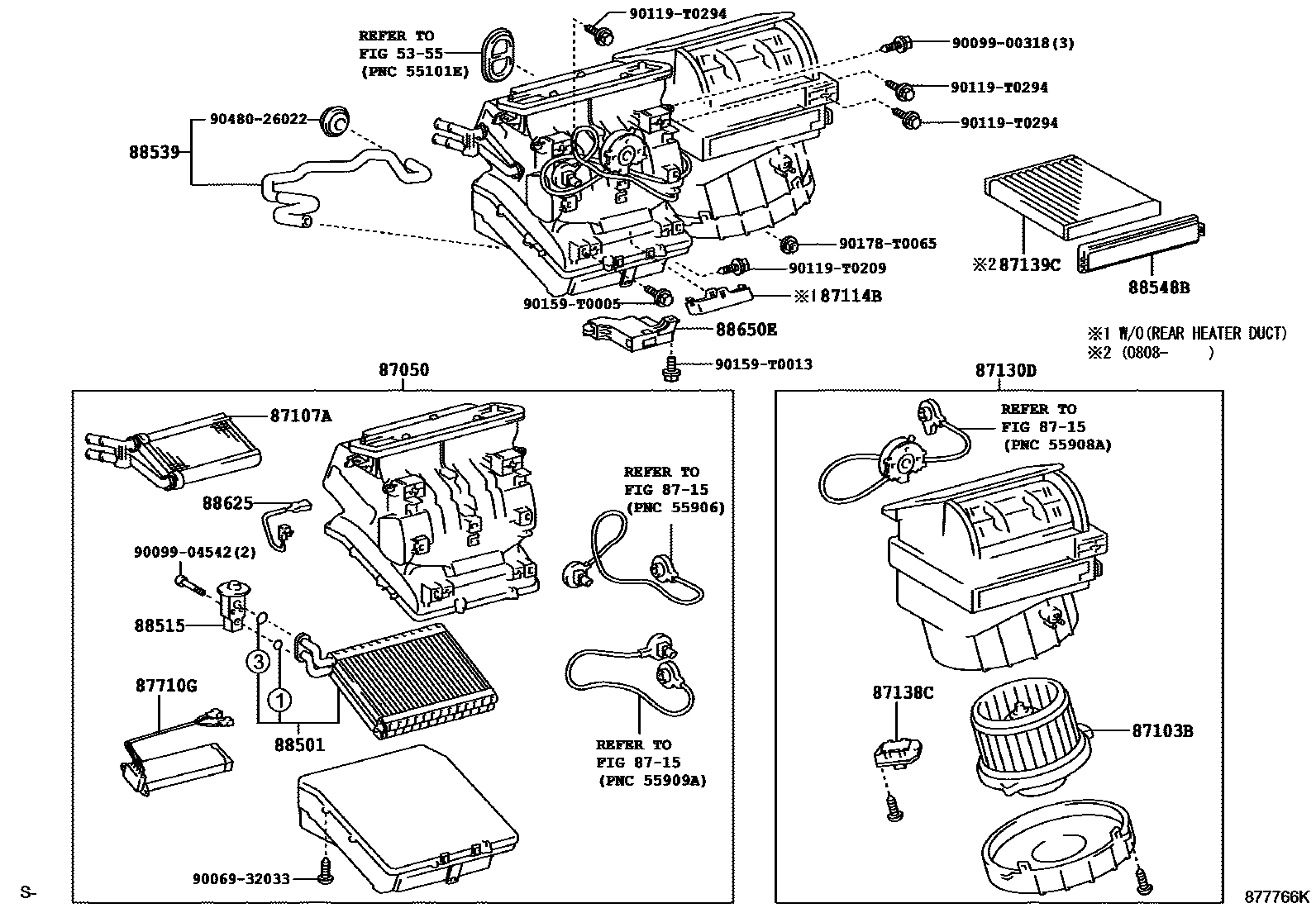

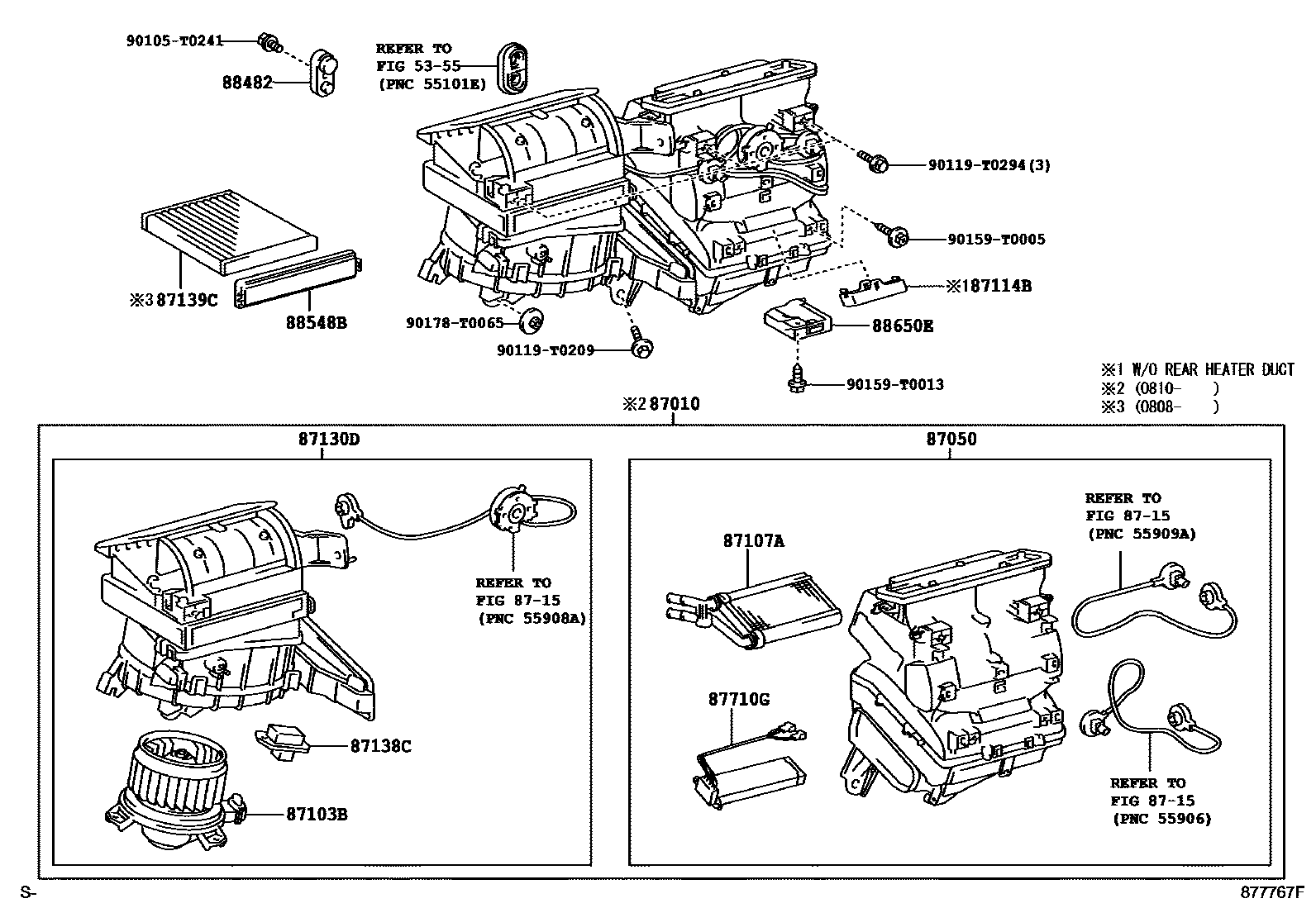

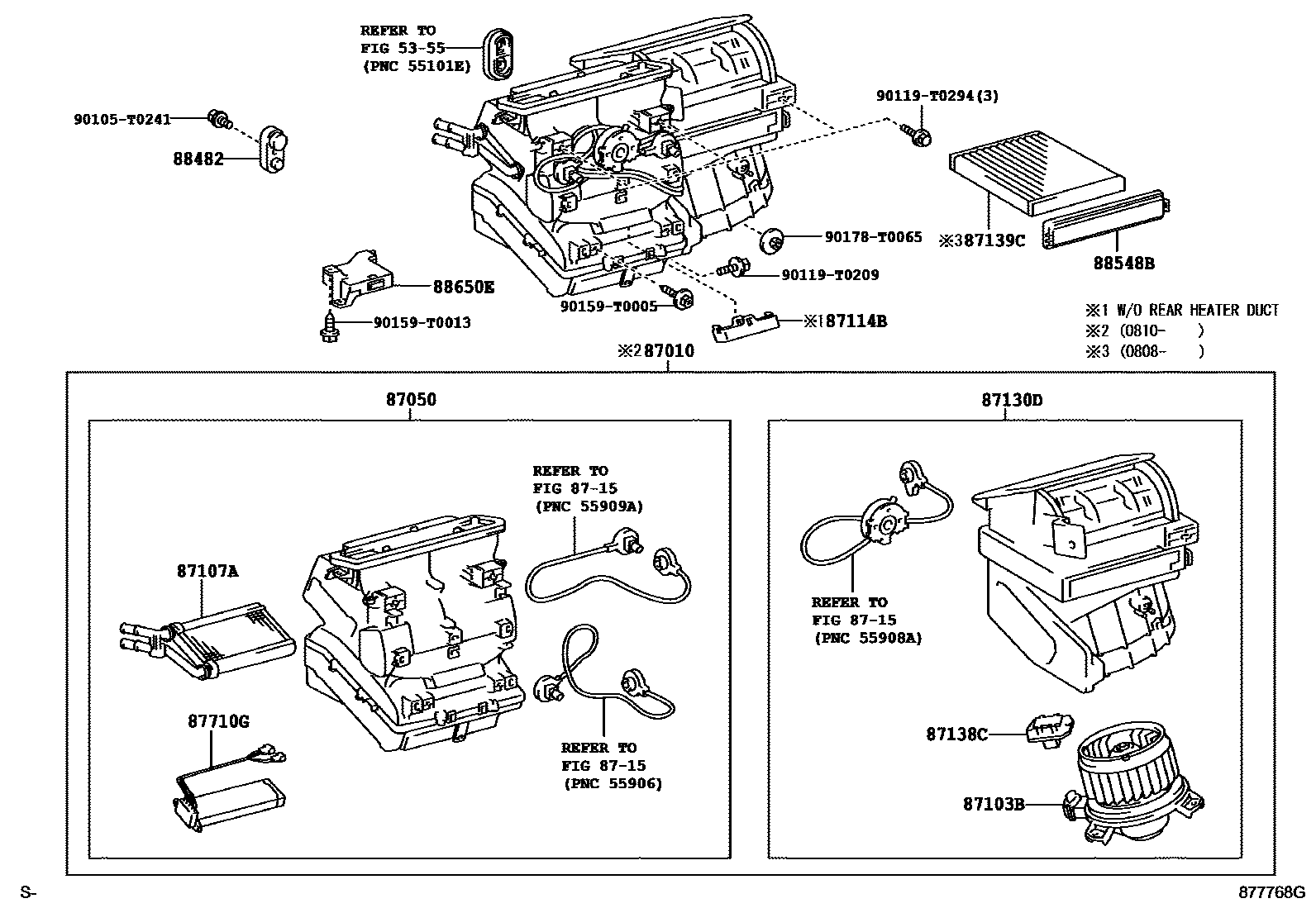

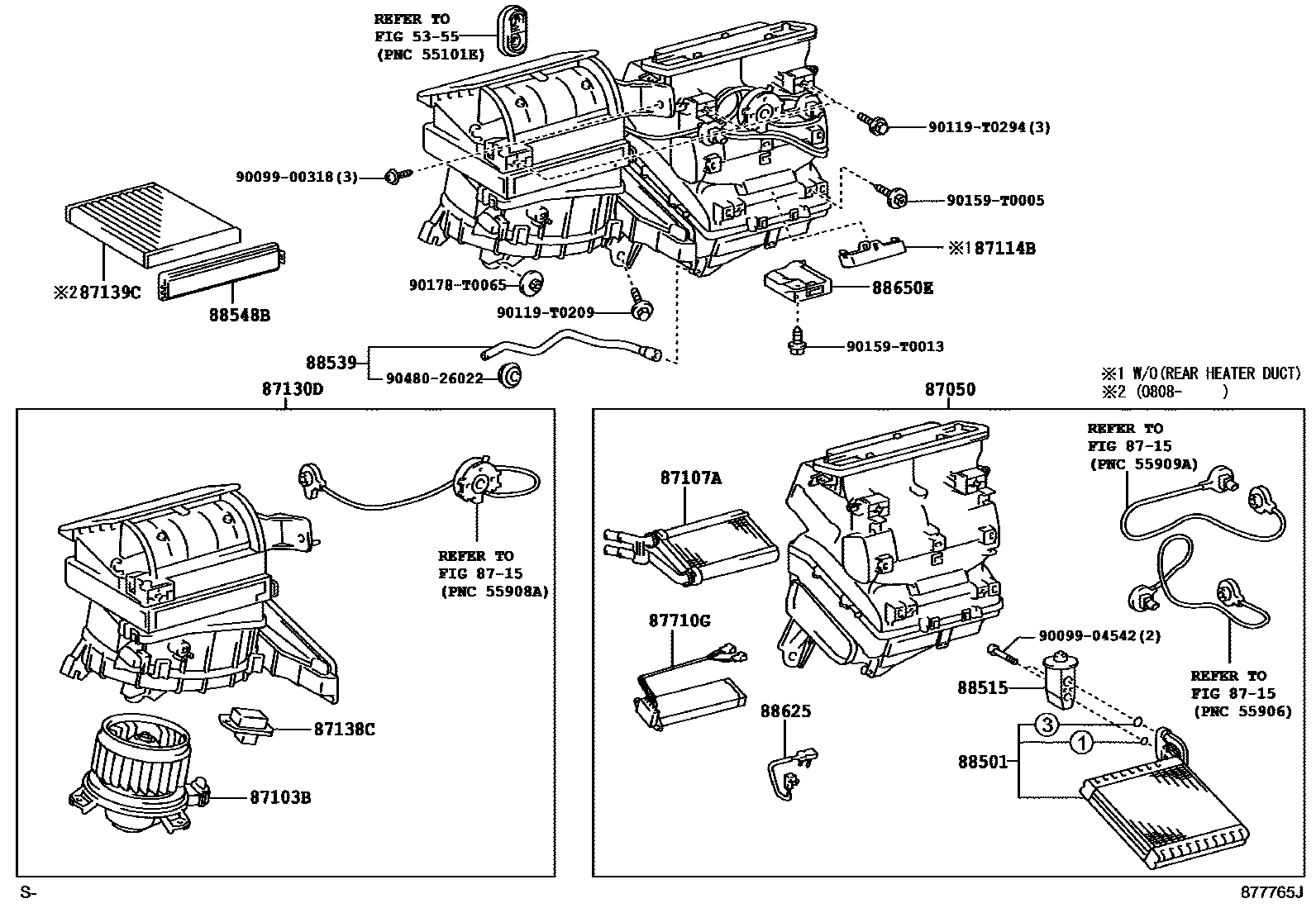

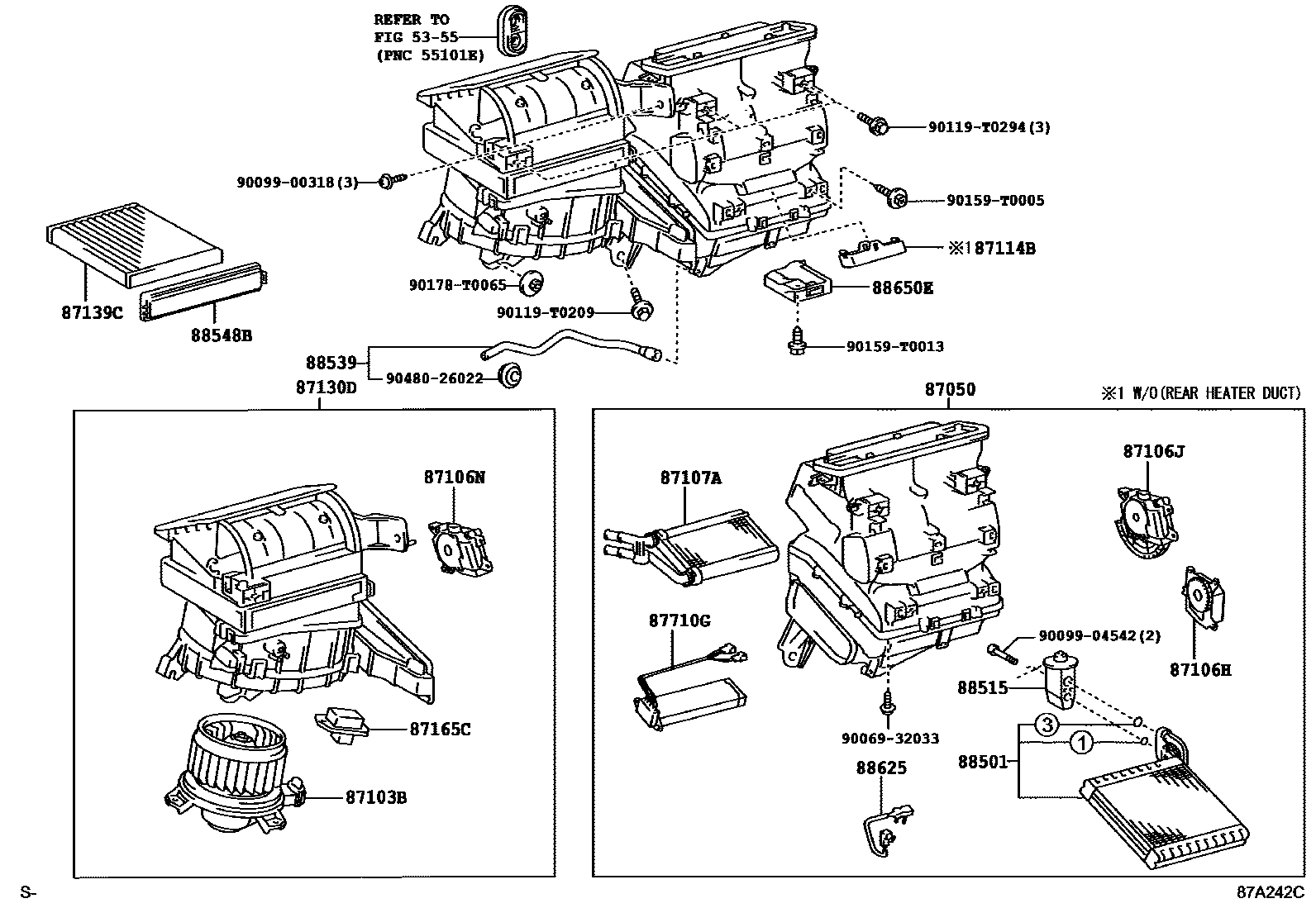

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-0K331 · 87010-0K341 · 87010-0K342 |
| 87050 | Air conditioning radiator assembly | 87050-0K050 · 87050-0K060 · 87050-0K070 · 87050-0K080 · 87050-0K090 · 87050-0K100 · 87050-0K230 · 87050-0K240 · 87050-0K250 · 87050-0K260 · 87050-0K261 · 87050-0K270 · 87050-0K271 · 87050-0K280 · 87050-0K281 · 87050-0K400 · 87050-0K410 · 87050-0K411 · 87050-0K420 · 87050-0K421 · 87050-0K430 · 87050-0K440 · 87050-0K450 · 87050-0K451 · 87050-0K490 · 87050-0K491 · 87050-0K500 · 87050-0K520 · 87050-0K540 · 87050-0K710 · 87050-0K720 |
| 87103B | Blower motor sub-assembly with fan | 87103-02460 · 87103-02470 · 87103-0K090 · 87103-0K091 · 87103-0K110 · 87103-0K111 · 87103-0K140 · 87103-0K150 · 87103-0K200 · 87103-0K210 · 87103-0K260 · 87103-0K270 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02360 · 87106-0K100 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02370 · 87106-0K070 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02380 · 87106-02400 · 87106-0K040 · 87106-0K060 |
| 87107A | Heater radiator device sub-assembly | 87107-02210 · 87107-02290 · 87107-0K010 · 87107-0K050 |
| 87114B | heater cover | 87114-0K010 · 87114-0K030 |
| 87130D | Blower assembly | 87130-0K100 · 87130-0K101 · 87130-0K102 · 87130-0K103 · 87130-0K110 · 87130-0K111 · 87130-0K112 · 87130-0K113 · 87130-0K140 · 87130-0K141 · 87130-0K150 · 87130-0K151 · 87130-0K220 · 87130-0K230 · 87130-0K260 · 87130-0K280 · 87130-0K400 · 87130-0K410 |
| 87138C | Blower resistor | 87138-0K090 · 87138-0K110 |
| 87139C | air purification filter | 87139-52020 |
| 87165C | Blower motor control device | 87165-71020 |
| 87710G | Rapid heater assembly | 87710-0K010 · 87710-0K020 · 87710-0K030 · 87710-0K040 · 87710-0K060 · 87710-0K070 · 87710-0K080 · 87710-0K090 · 87710-26060 · 87710-26070 |
| 88482 | cooler cover | 88482-0K010 · 88482-0K030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K090 · 88501-0K120 · 88501-0K121 |
| 88515 | Cooler expansion valve | 88515-0K100 · 88515-0K170 · 88515-0K190 · 88515-0K200 · 88515-26080 · 88515-71010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0K010 · 88539-0K030 · 88539-0K050 · 88539-0K070 · 88539-0K270 · 88539-0K290 |
| 88548B | air filter housing | 88548-0K010 · 88548-0K020 |
| 88625 | Cooler No. 1 Thermistor | 88620-02110 · 88625-02110 · 88625-26090 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0K030 · 88650-0K070 · 88650-0K080 · 88650-0K130 · 88650-0K140 · 88650-0K150 |
