Toyota HILUX 后视镜 — Figure 8701

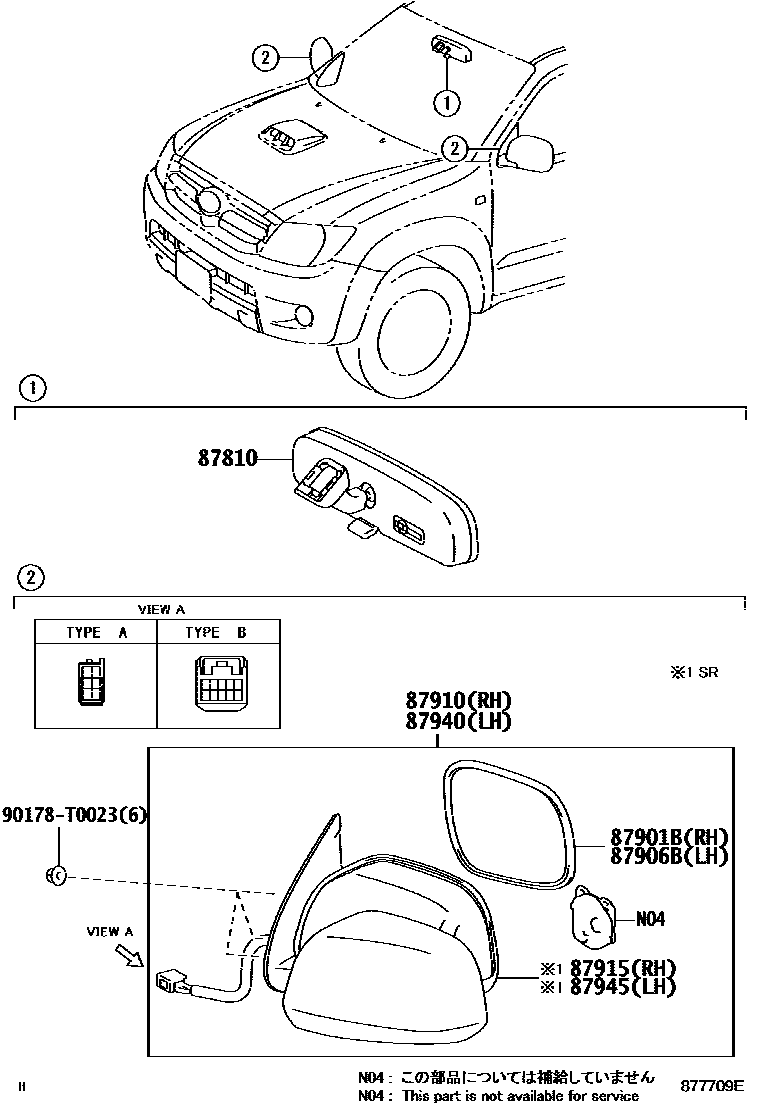

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06041 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-0K070 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-0K050 |
| 87910 | Right exterior rearview mirror assembly | 87910-0K050 · 87910-0K051 · 87910-0K061 · 87910-0K062 · 87910-0K063 · 87910-0K070 · 87910-0K071 · 87910-0K081 · 87910-0K082 · 87910-0K083 · 87910-0K581 |
| 87915 | Right exterior rearview mirror cover | 87915-0K010 · 87915-0K130 |
| 87940 | Left exterior rearview mirror assembly | 87940-0K030 · 87940-0K031 · 87940-0K041 · 87940-0K042 · 87940-0K043 · 87940-0K050 · 87940-0K051 · 87940-0K061 · 87940-0K062 · 87940-0K063 · 87940-0K561 |
| 87945 | Left exterior rearview mirror cap | 87945-0K010 · 87945-0K130 |
