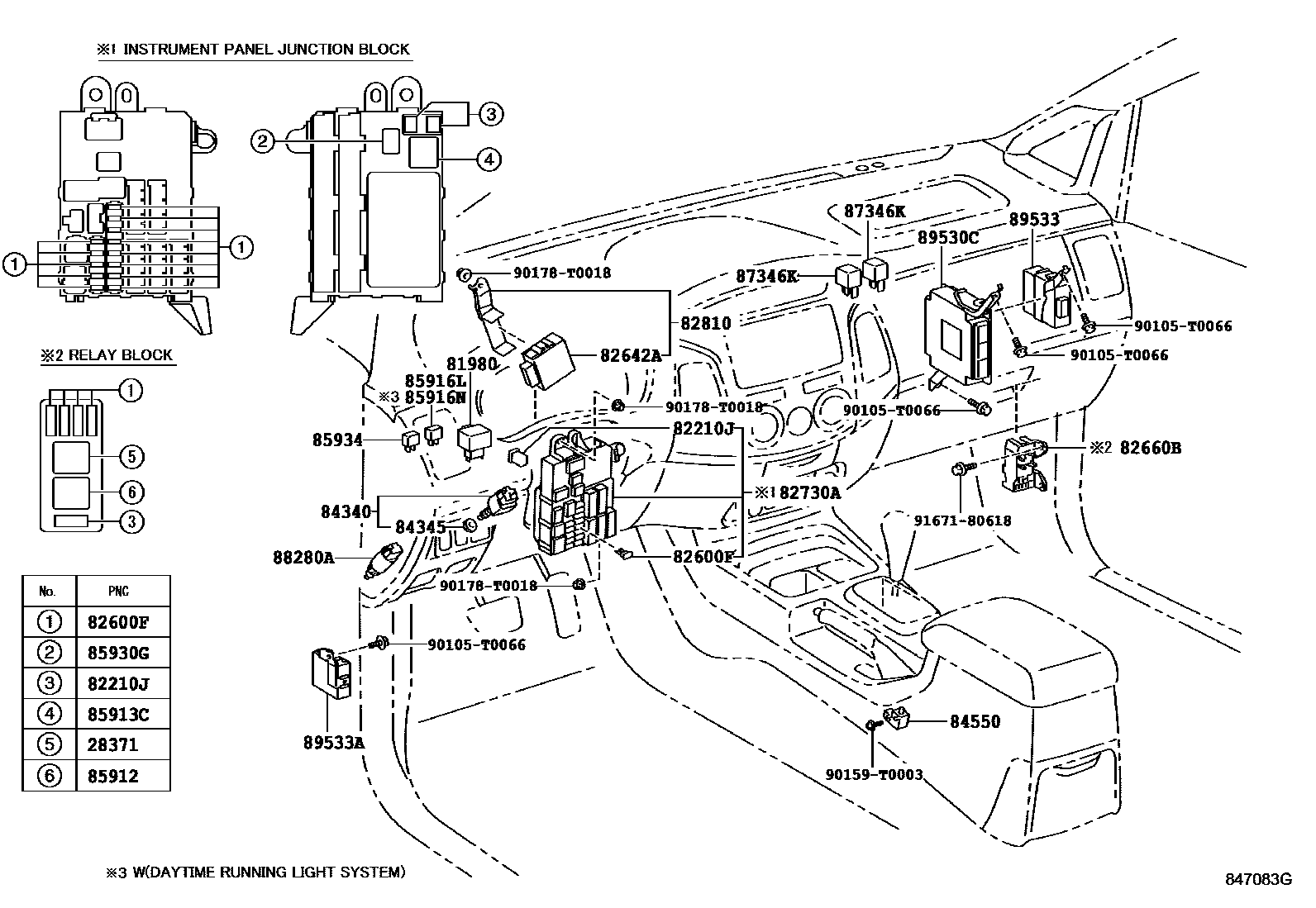

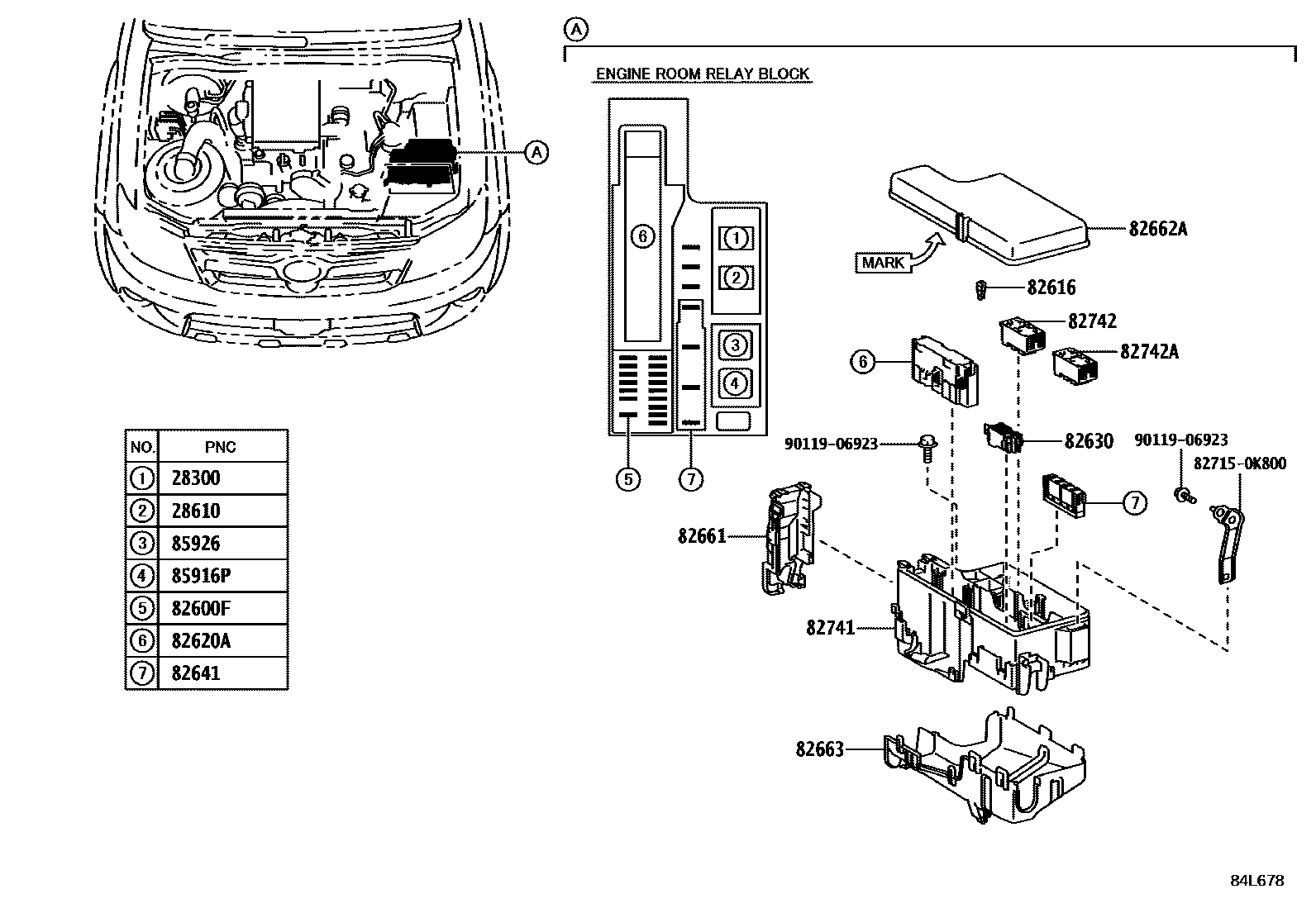

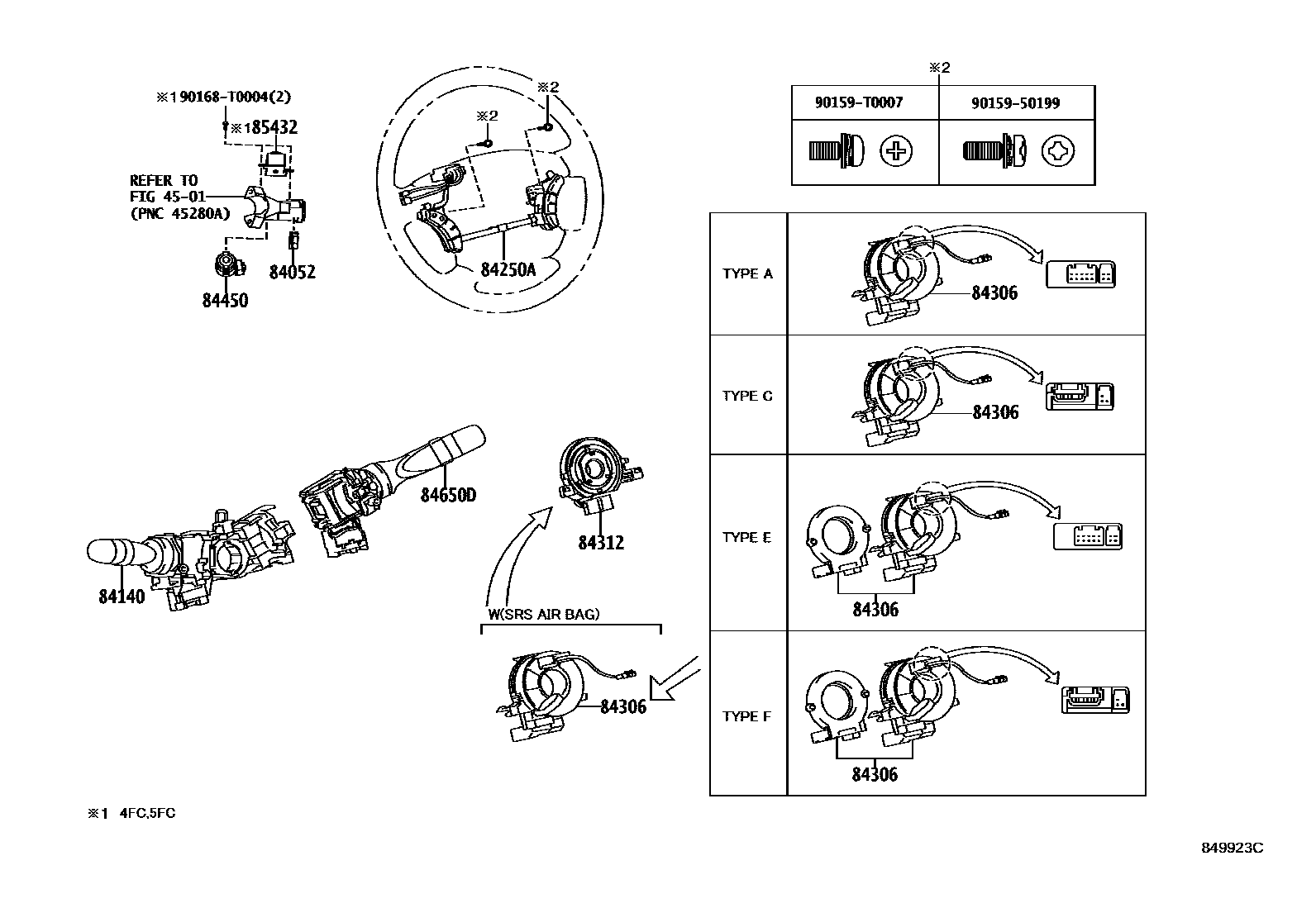

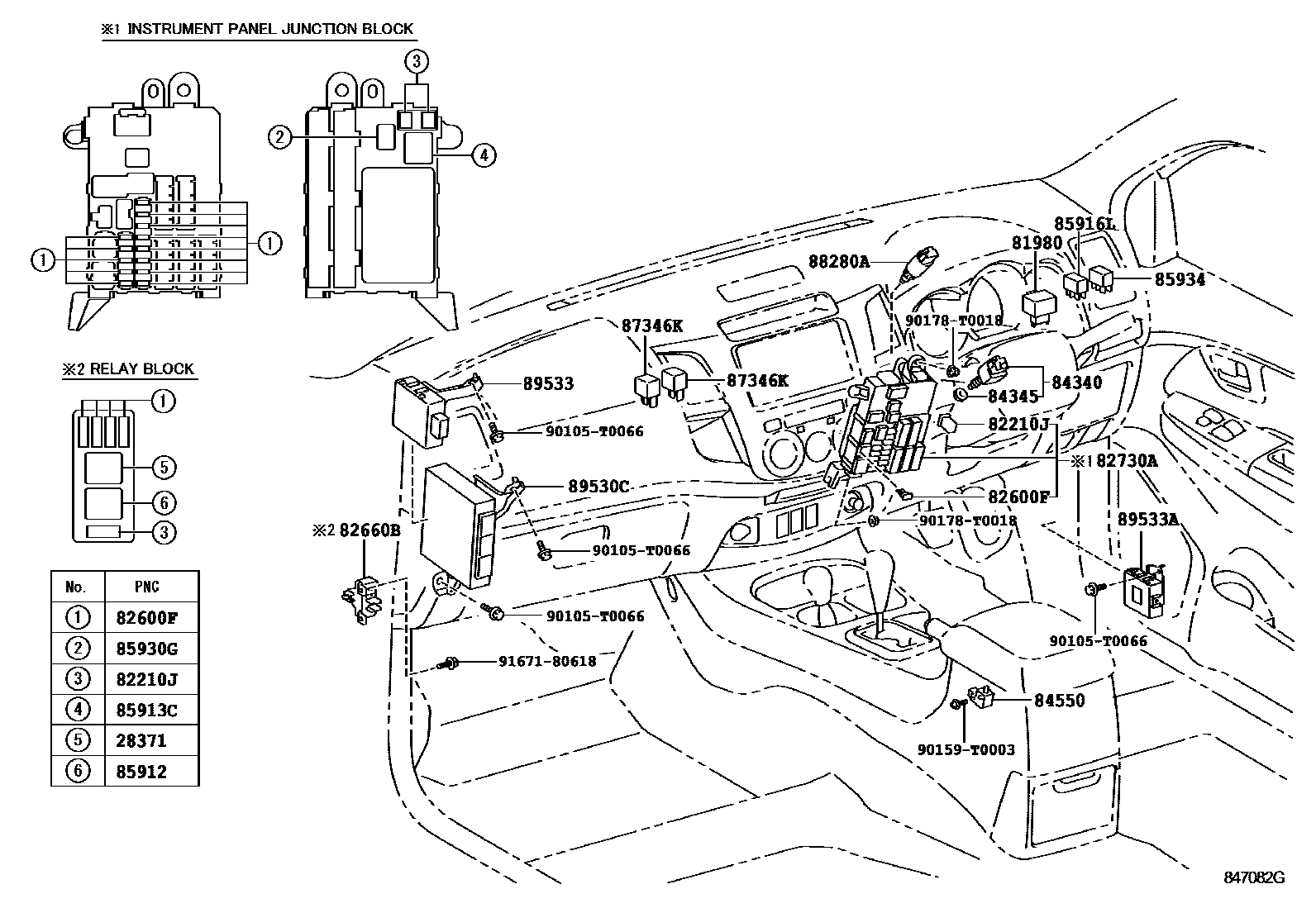

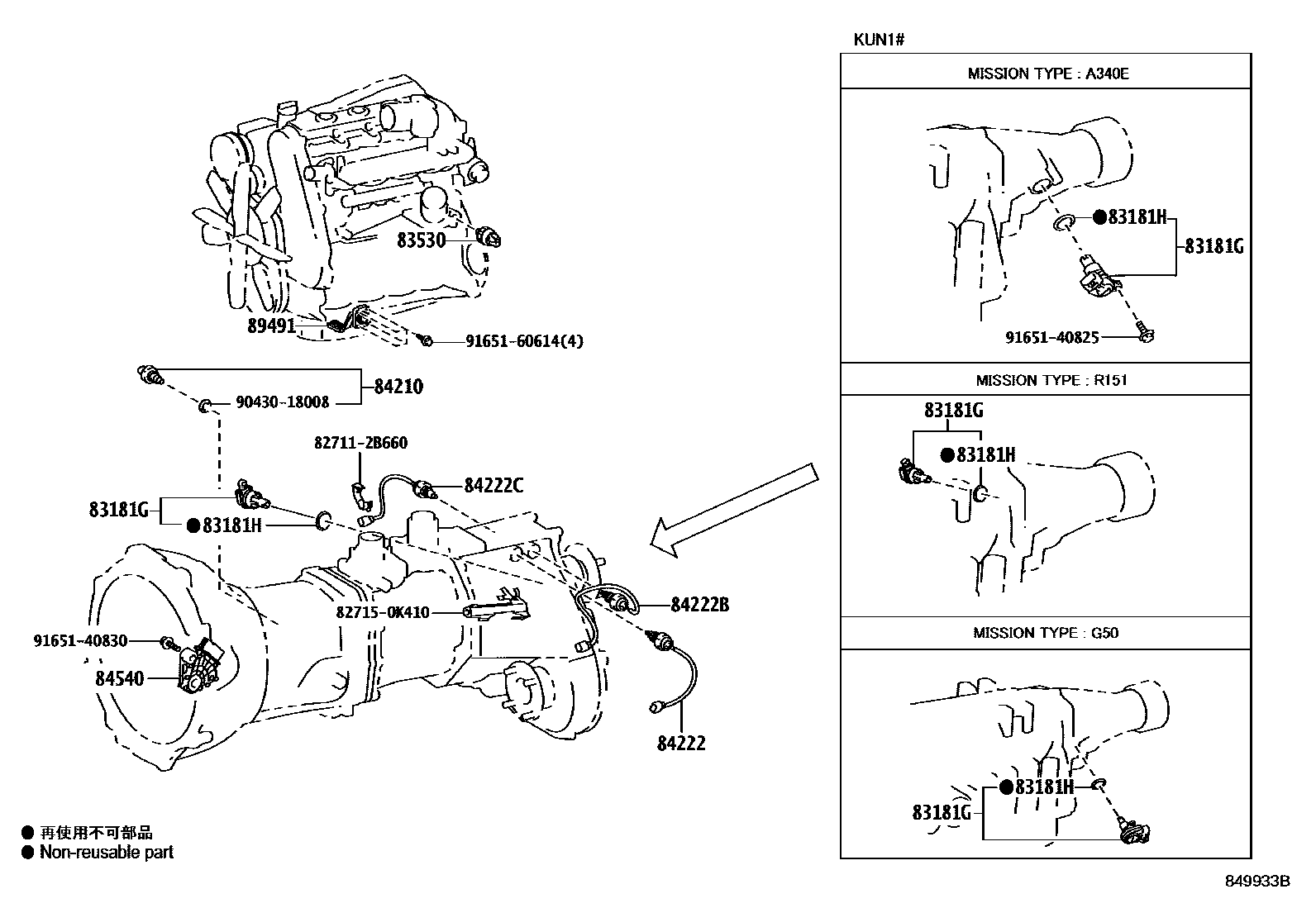

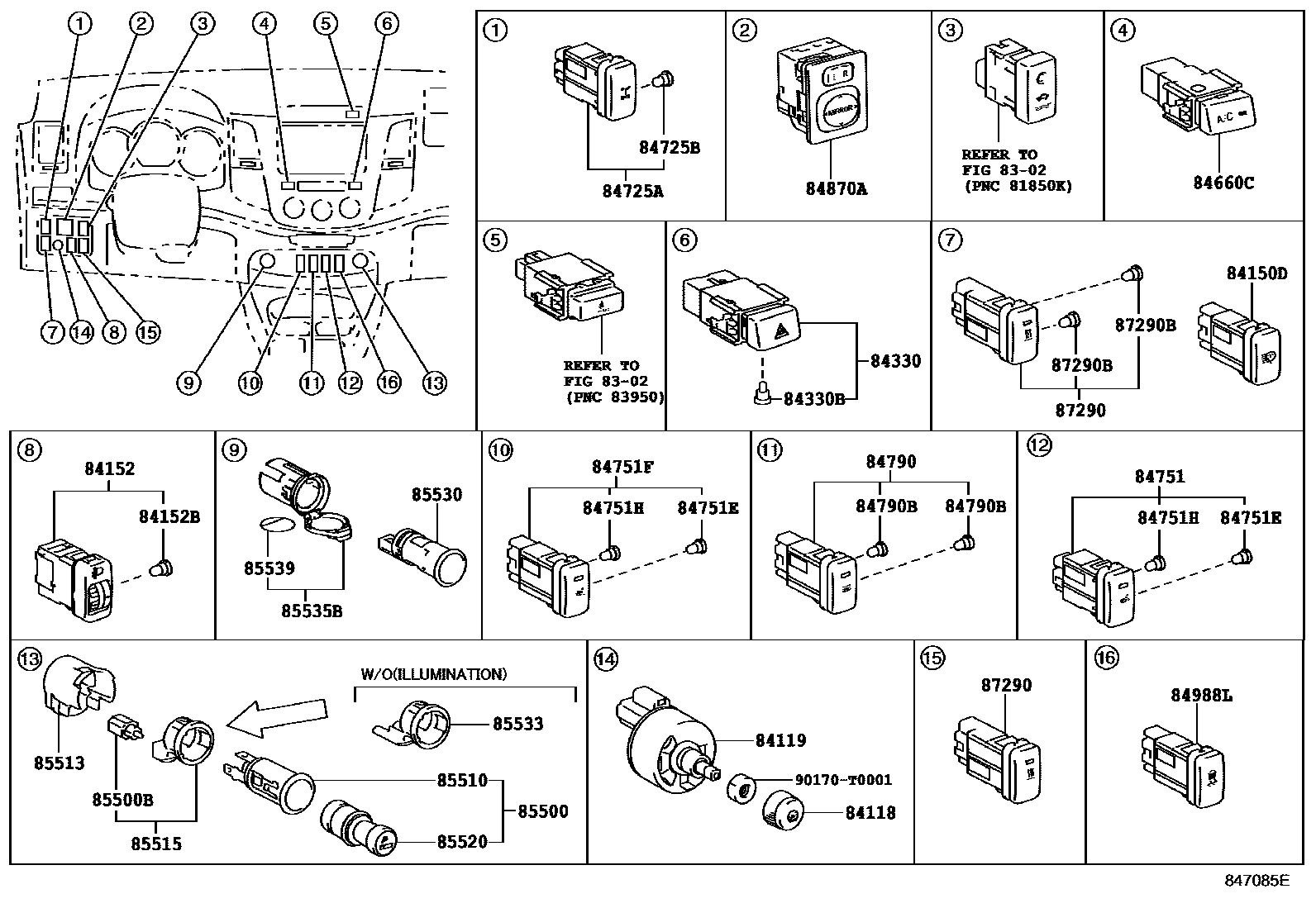

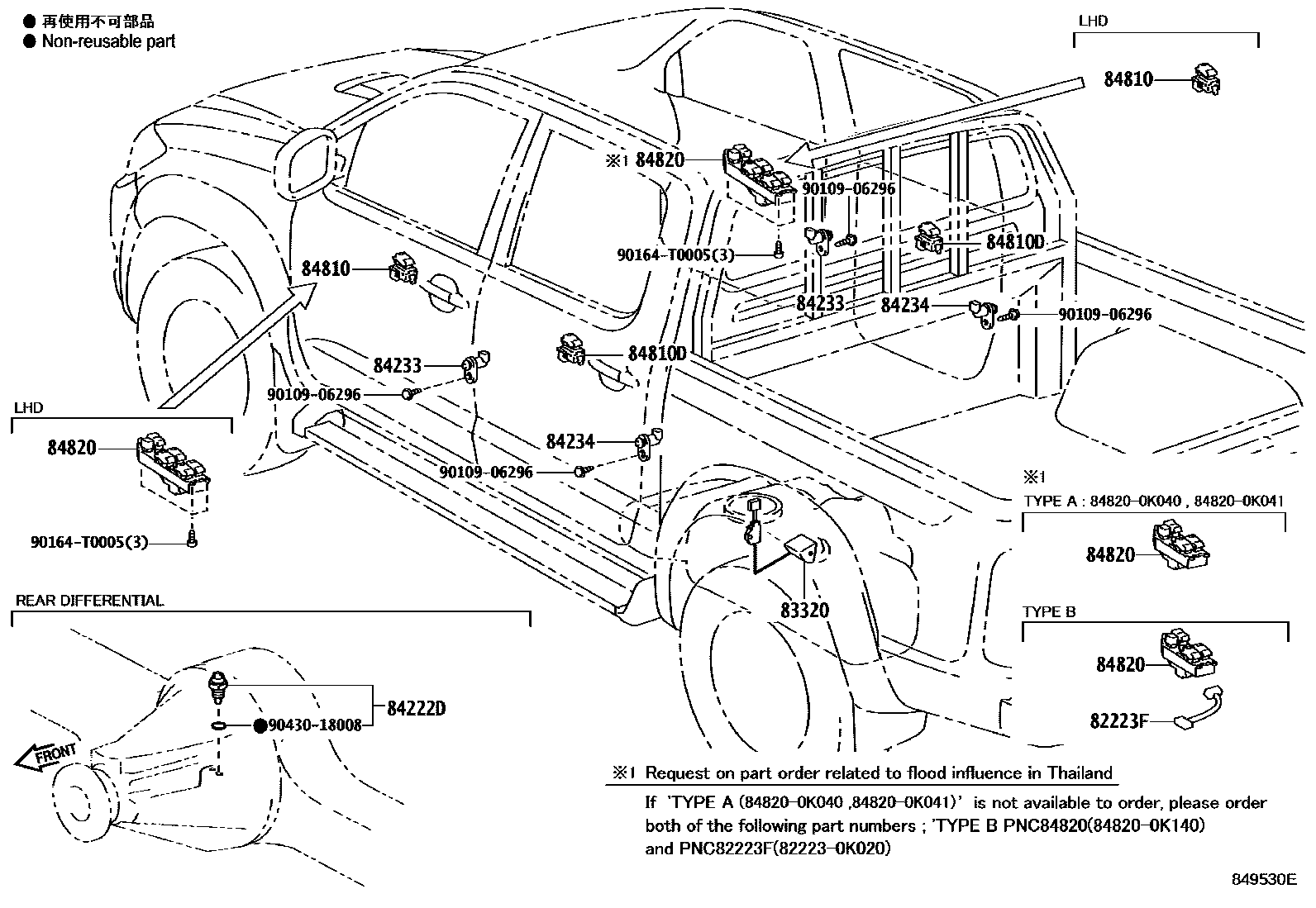

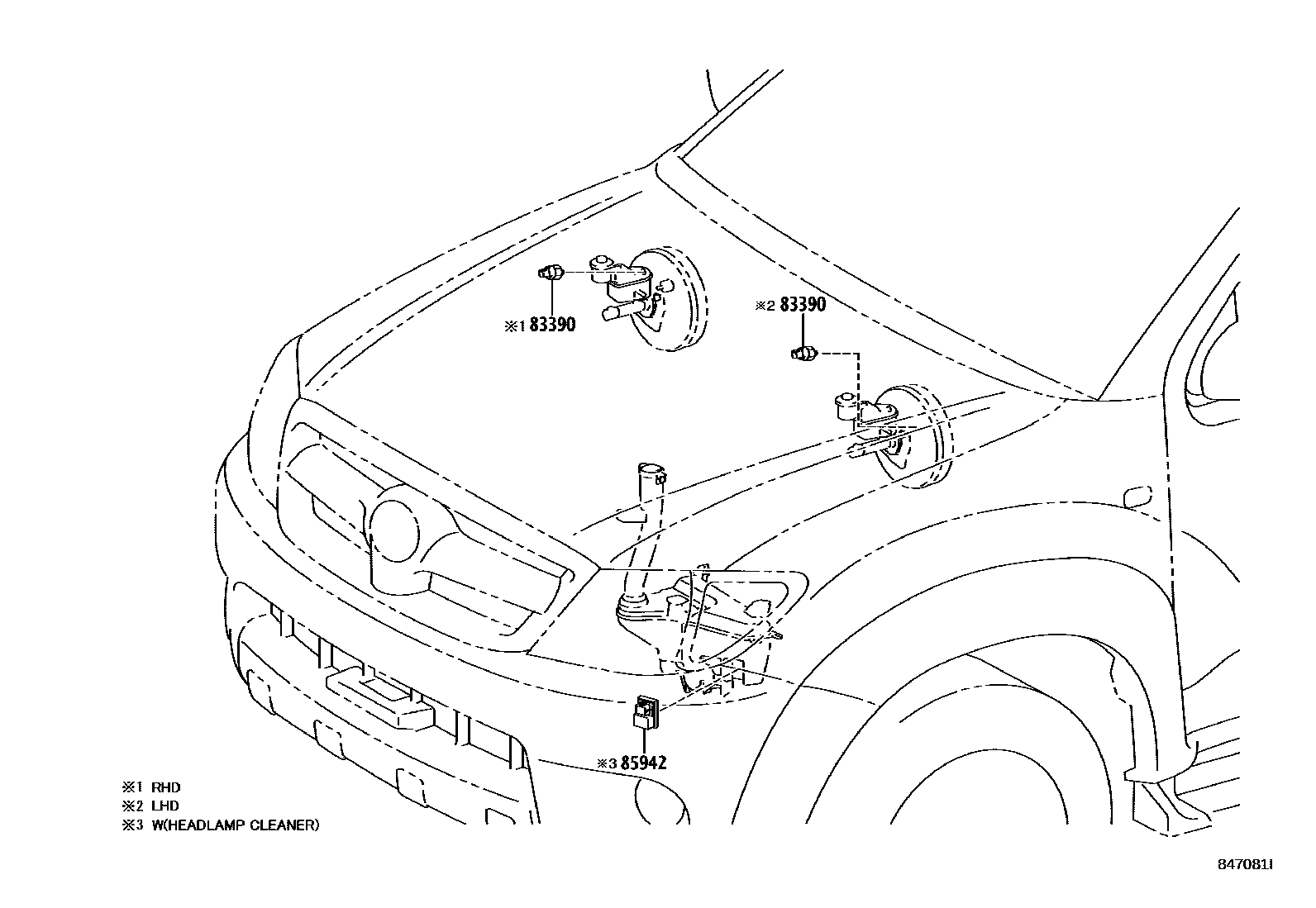

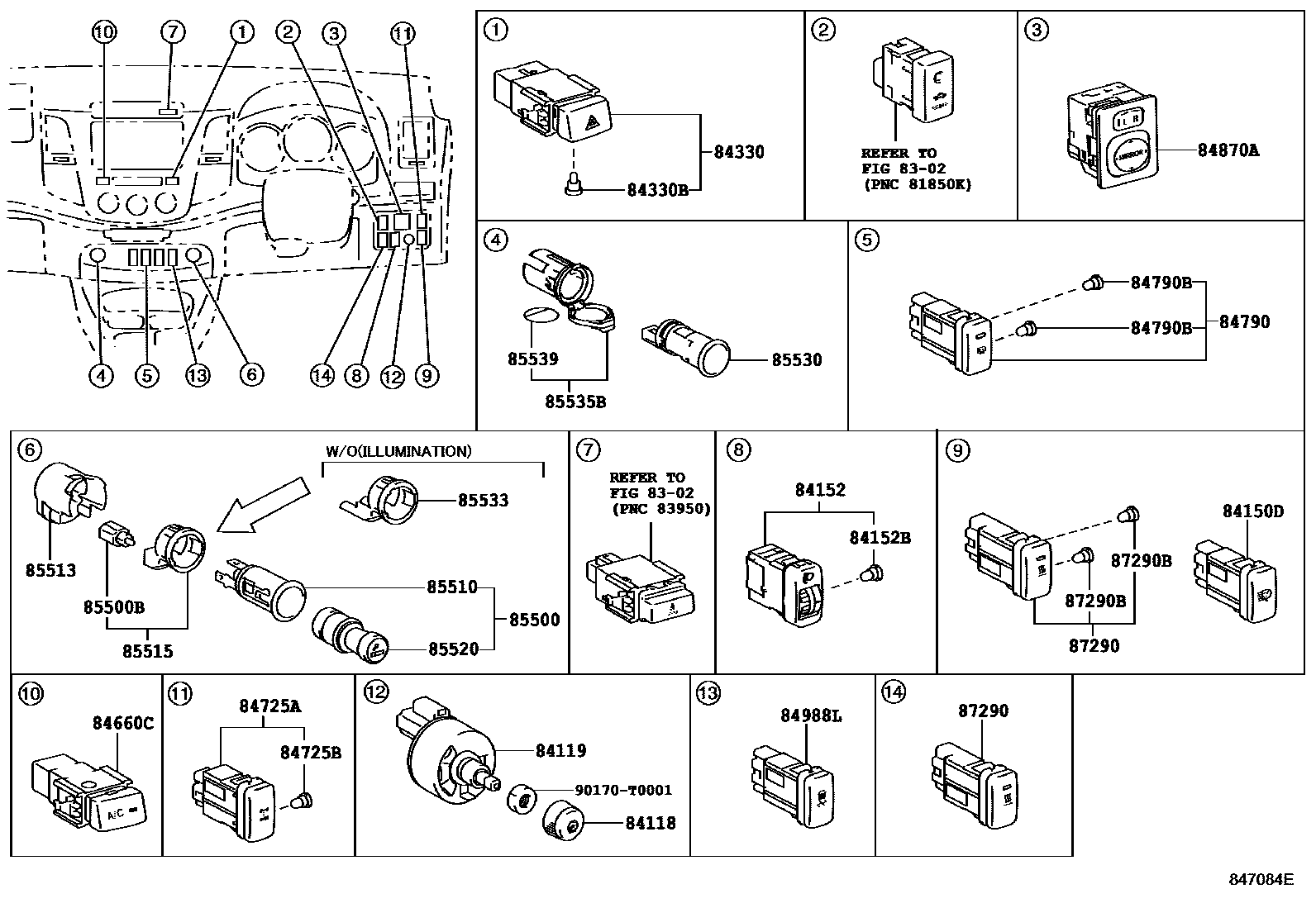

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 9 images and 91 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 90987-02025 |
| 28371 | No. 1 ignition relay | 90987-T2002 |
| 28610 | Glow plug relay assembly | 28610-54390 |
| 81980 | Turn signal flasher relay assembly | 81980-06030 · 81980-0K010 · 81980-30170 |
| 82210J | fuse | 90982-08280 · 90982-08284 |
| 82223F | switch harness | 82223-0K020 |
| 82600F | Spare fuse | 90982-09013 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-71010 · 82620-71012 · 82620-71020 |
| 82630 | Fuse holder assembly | 82631-0K010 |
| 82641 | Integrated relay No. 1 | 82641-71020 |
| 82642A | driving light relay | 82642-12050 |
| 82660B | Relay assembly | 82660-0K010 |
| 82661 | No. 1 relay box cover | 82661-0K010 · 82661-0K020 |
| 82662A | No. 1 relay box upper cover | 82662-0K020 · 82662-0K021 · 82662-0K050 · 82662-0K051 · 82662-0K160 · 82662-0K170 |
| 82663 | Relay box lower cover | 82663-0K010 |
| 82730A | Driver's side junction box assembly | 82730-0K030 · 82730-0K060 |
| 82741 | Engine room relay box | 82741-0K010 |
| 82742 | Engine room No. 2 relay box | 82744-0K010 |
| 82742A | Engine room No. 5 relay box | 82742-0K010 |
| 82810 | Driving light relay assembly | 82810-71010 · 82810-71020 |
| 83181G | speedometer sensor | 83181-12020 · 83181-35040 · 83181-35070 |
| 83181H | O-ring (for speedometer sensor) | 90301-18004 · 90301-18018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-0K020 · 83320-0K040 |
| 83390 | Vacuum warning switch assembly | 83390-28120 · 83390-30100 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-60010 |
| 84052 | Unlock warning switch assembly | 84052-0K020 · 84052-71010 |
| 84118 | Light control rheostat button | 84118-0K010 |
| 84119 | Light control rheostat | 84119-0K010 |
| 84140 | Headlight dimmer switch assembly | 84140-0K030 · 84140-52160 · 84140-52161 · 84140-52170 · 84140-52171 |
| 84150D | Headlight washer switch assembly | 84150-0K020 |
| 84152 | Headlight beam height adjustment switch | 84152-33030 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08107 |
| 84210 | Reversing light switch assembly | 84210-04010 · 84210-0K010 · 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-35080 |
| 84222B | No. 2 transfer case indicator switch | 84222-35090 |
| 84222C | No. 3 transfer case indicator light switch | 84222-35110 |
| 84222D | No. 4 transfer case indicator light switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-0K020 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0K020 |
| 84306 | Spiral cable sub-assembly | 84306-0K020 · 84306-0K021 · 84306-0K050 · 84306-0K051 · 84307-0K010 · 84307-0K020 |
| 84312 | Speaker contact piece | 84312-0K030 |
| 84330 | Hazard warning signal switch assembly | 84332-0K010 |
| 84330B | Hazard warning signal switch light bulb | 90011-01056 |
| 84340 | brake light switch assembly | 84340-09040 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-0K010 |
| 84540 | Neutral start switch assembly | 84540-71010 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-06220 · 84652-0K060 · 84652-0K061 |
| 84660C | Cooler switch | 84660-0K010 · 84660-71010 |
| 84725A | Differential lock switch | 84725-0K010 |
| 84725B | Differential lock switch light bulb | 90011-01055 |
| 84751 | Seat heater switch | 84751-58010 |
| 84751E | Seat heater switch bulb (front) | 90010-01061 |
| 84751F | Seat heater switch | 84751-58020 |
| 84751H | Seat heater switch bulb (front) | 84999-10310 |
| 84790 | Rear window defogger switch assembly | 84790-0K010 |
| 84790B | Bulb (for rear window defogger switch) | 90011-01055 · 90011-01056 |
| 84810 | Electric window lift switch assembly | 84810-0K010 |
| 84810D | Rear electric window lift switch assembly | 84810-0K010 |
| 84820 | Electric window lift main switch assembly | 84820-0K010 · 84820-0K011 · 84820-0K020 · 84820-0K021 · 84820-0K040 · 84820-0K041 · 84820-0K050 · 84820-0K051 · 84820-0K061 · 84820-0K100 · 84820-0K140 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0K010 |
| 84988L | VSC off switch | 84988-0K020 |
| 85432 | Key interlock solenoid valve | 85432-0K010 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85500B | Cigarette lighter bulb | 90010-01022 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-22110 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-60010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-0K010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-30060 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85912 | defogger relay | 90987-T2001 |
| 85913C | Heater relay No. 1 | 90987-T2003 |
| 85916L | Rear fog light relay | 90987-T2001 |
| 85916N | Tail light relay | 90987-T2001 |
| 85916P | headlight relay | 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-T2003 |
| 85930G | ACC relay | 90987-T2001 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85942 | Headlight washer control relay | 85942-30020 · 85942-58010 |
| 87290 | Heater switch assembly | 87290-0K010 · 87290-0K040 |
| 87290B | Light bulb (for heater switch) | 84999-10310 · 90010-01039 · 90011-01055 · 90011-01056 |
| 87346K | PTC heater relay | 90987-T2002 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89491 | Engine oil level sensor | 89491-26081 |
| 89530C | Transmission control ECU assembly | 89530-71050 · 89530-71100 · 89530-71110 · 89530-71190 · 89530-71200 · 89530-71240 · 89530-71250 |
| 89533 | Four-wheel drive control ECU | 89533-71010 · 89533-71020 |
| 89533A | Four-wheel drive control No. 2 ECU | 89533-71030 · 89533-71040 |
