Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

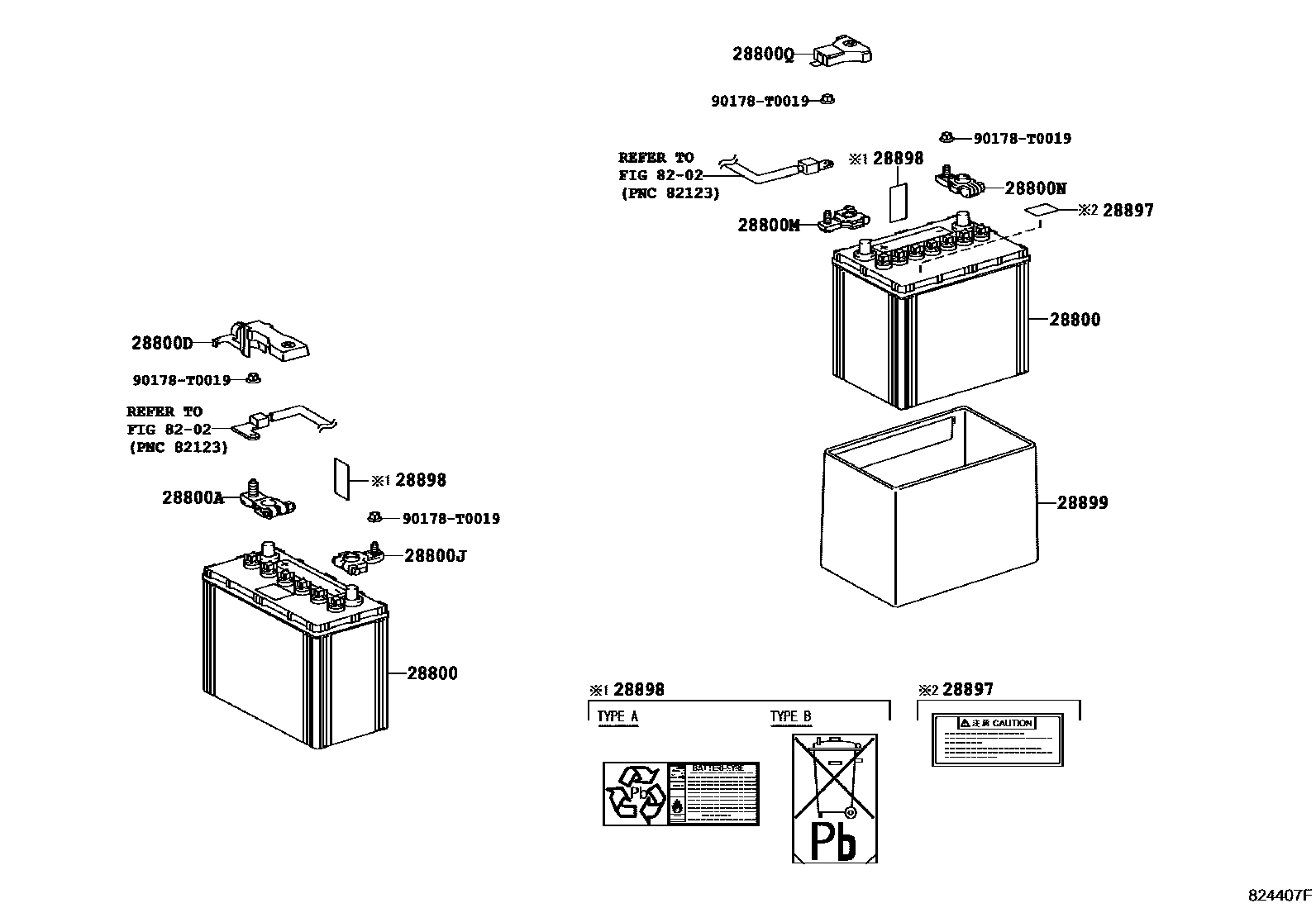

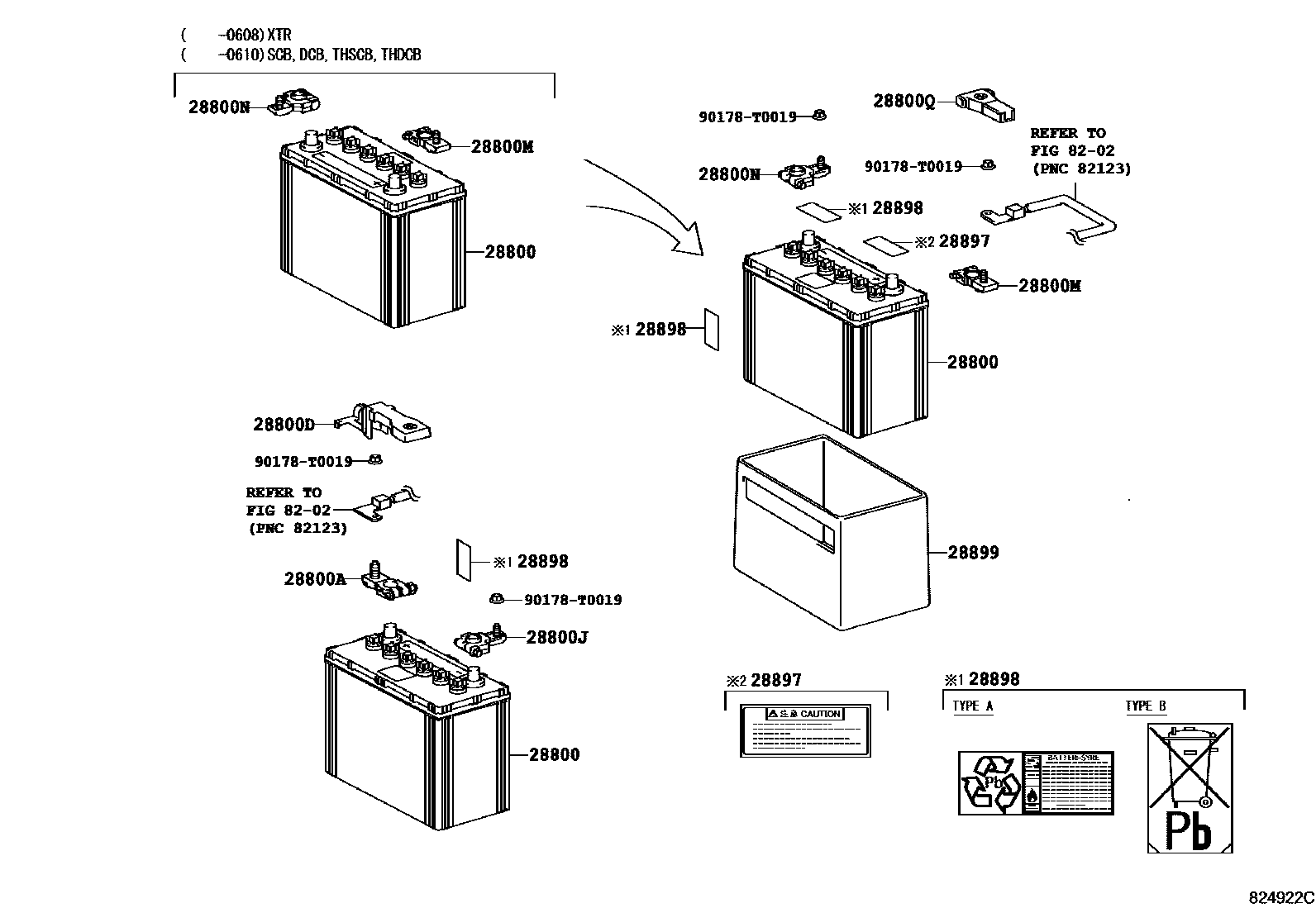

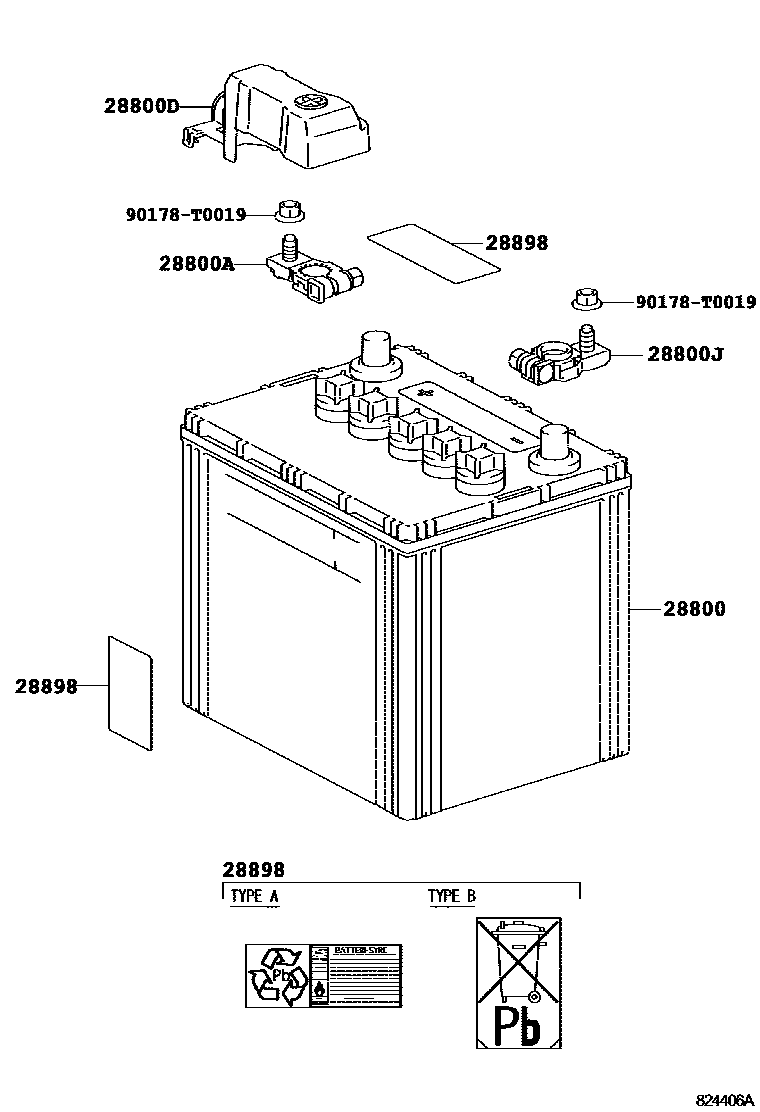

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0L010 · 28800-0L030 · 28800-0L100 · 28800-0L120 · 28800-0L150 · 28800-0L360 · 28800-0L370 |
| 28800A | battery positive terminal | 90982-05056 · 90982-05066 |
| 28800D | Connector cover (for battery terminals) | 82821-0K030 |
| 28800J | battery negative terminal | 90982-06024 · 90982-06059 |
| 28800M | battery positive terminal | 90982-05054 · 90982-05056 · 90982-05066 |
| 28800N | battery negative terminal | 90982-06022 · 90982-06024 · 90982-06059 |
| 28800Q | Connector cover (for battery) | 82821-0K040 |
| 28897 | Battery warning nameplate | 28897-54030 |
| 28898 | battery plates | 28898-0L010 · 28898-46010 · 28898-46020 |
| 28899 | Battery insulation cover | 28899-17040 · 28899-27020 |
