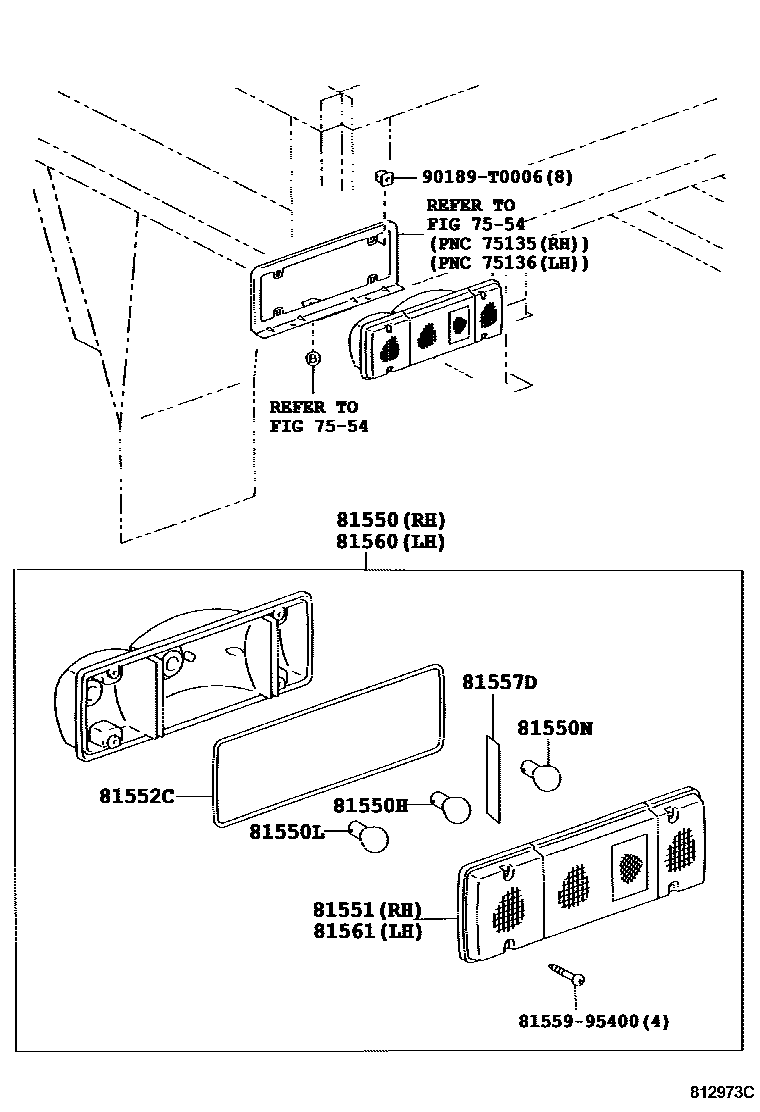

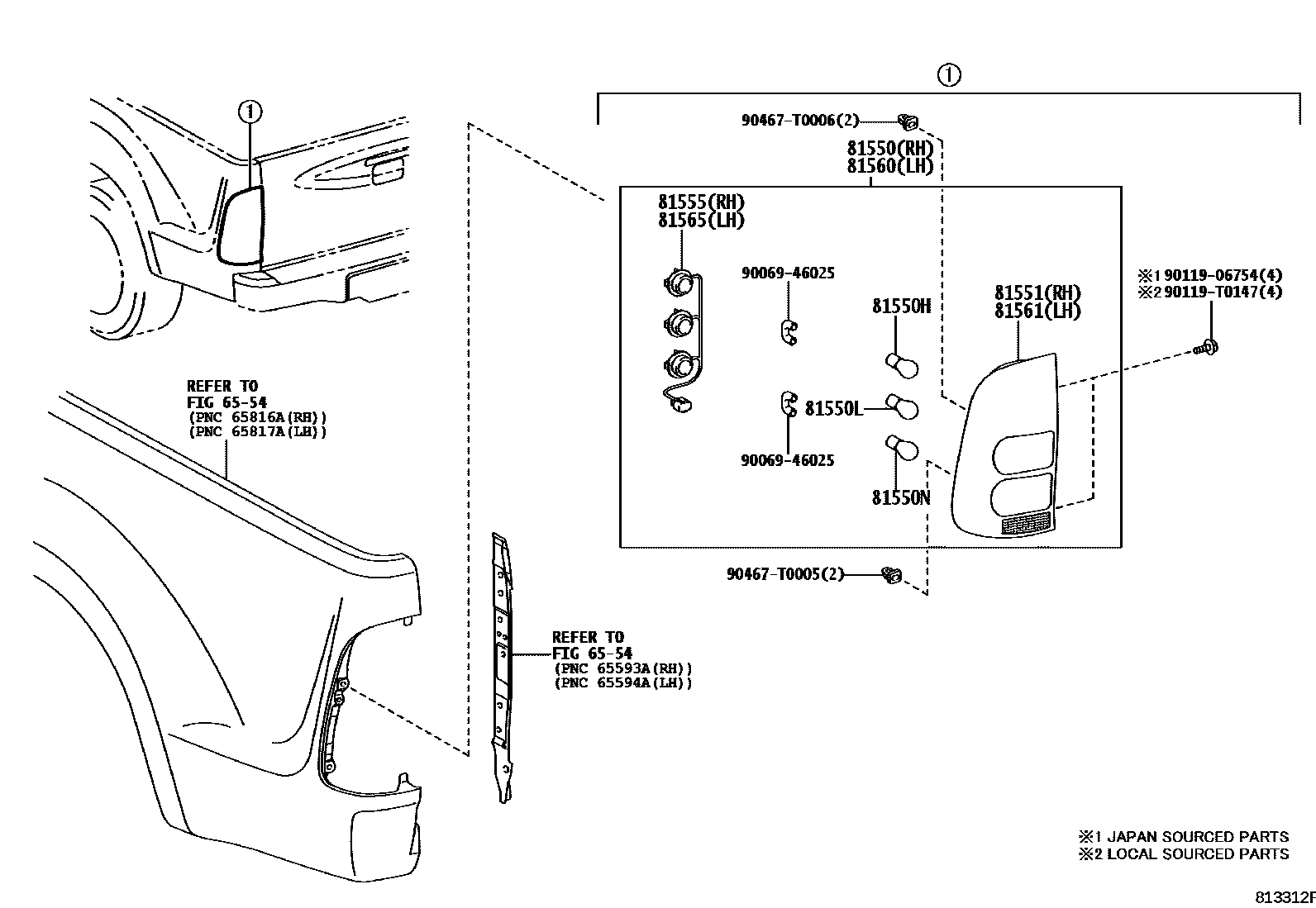

Toyota HILUX 后组合灯 — Figure 8111
Toyota HILUX EPC diagram 8111, 后组合灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-0K010 · 81550-0K020 · 81550-0K030 · 81550-0K040 · 81550-71010 |
| 81550H | Tail and brake light bulbs | 99132-21210 |
| 81550L | Rear turn signal light bulb | 99132-11210 |
| 81550N | reversing light bulb | 99132-11210 |
| 81551 | Right rear combination lamp shade | 81551-0K010 · 81551-0K020 · 81551-0K030 · 81551-0K040 · 81551-60442 |
| 81552C | Rear combination light gasket | 81552-95400 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0K010 · 81555-0K020 · 81555-0K030 · 81555-0K040 |
| 81557D | Rear combination light reflector | 81557-95403 |
| 81560 | Left rear combination light assembly | 81560-0K010 · 81560-0K020 · 81560-0K030 · 81560-0K040 · 81560-71010 |
| 81561 | Left rear combination lamp shade | 81561-0K010 · 81561-0K020 · 81561-0K030 · 81561-0K040 · 81561-60372 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0K010 · 81555-0K020 · 81555-0K030 · 81555-0K040 |
