Toyota HILUX Headlamp — Figure 8101

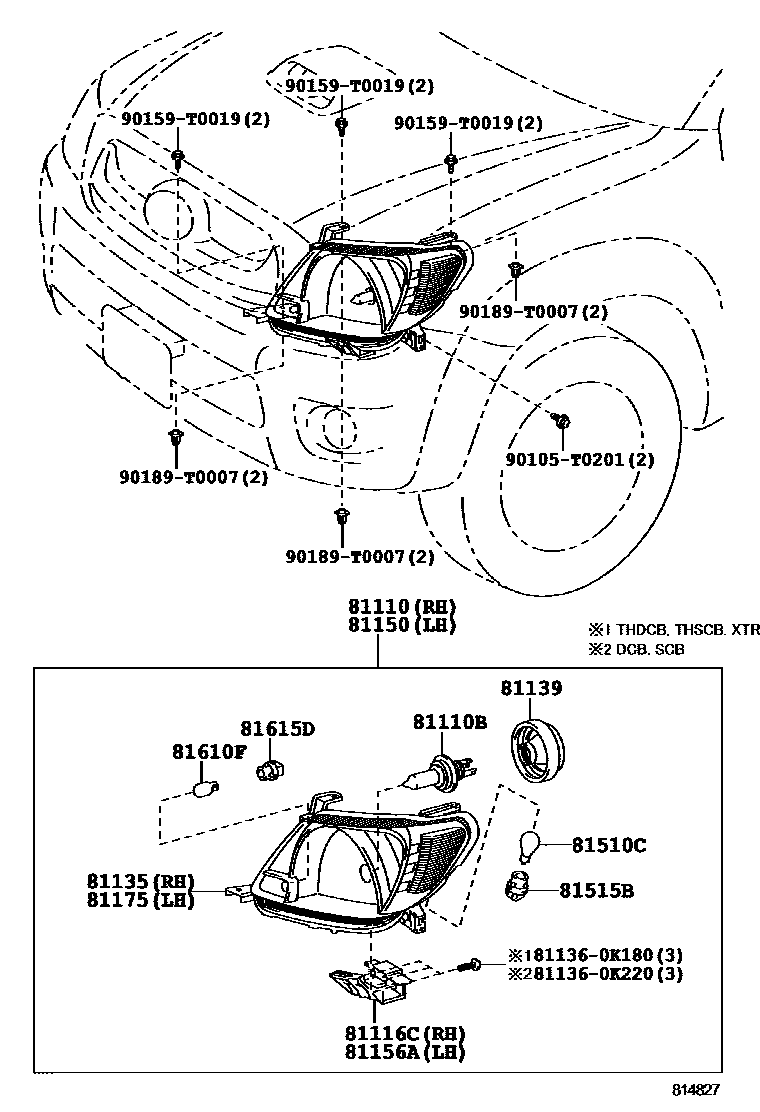

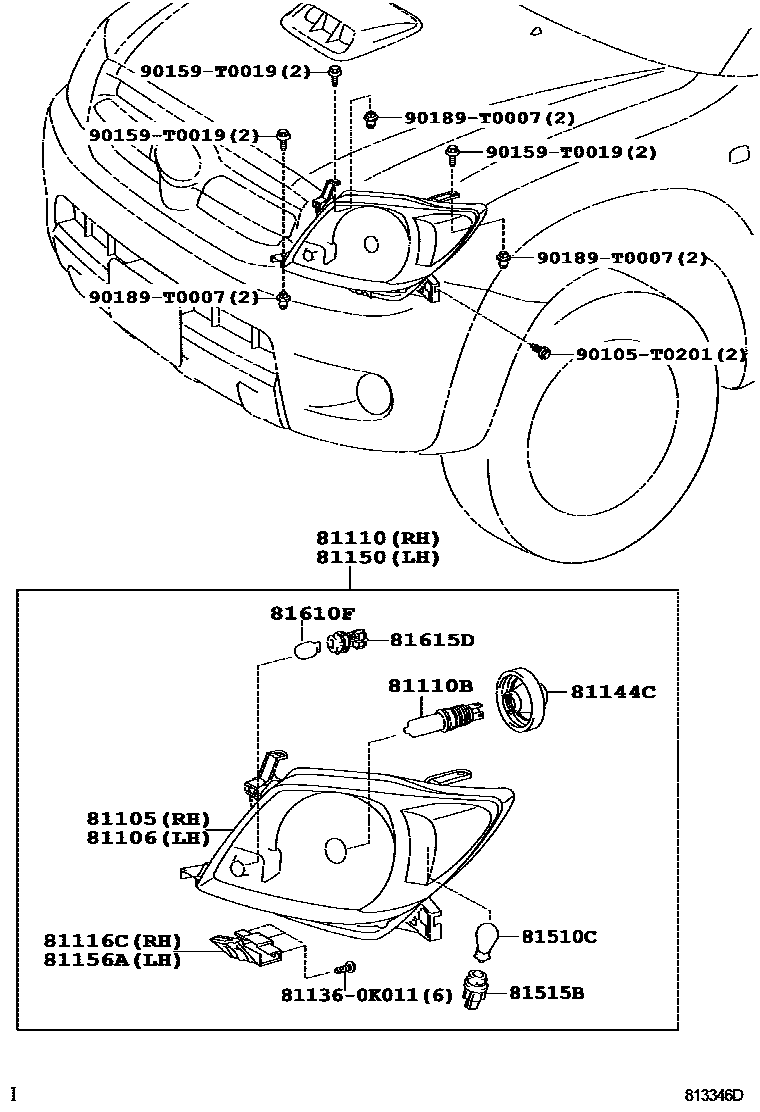

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-0K030 · 81105-0K040 · 81130-0K070 · 81130-0K080 |
| 81106 | Left headlight housing sub-assembly | 81106-0K030 · 81106-0K040 · 81170-0K070 · 81170-0K080 |
| 81110 | Right headlight assembly | 81110-0K031 · 81110-0K041 · 81110-0K070 · 81110-0K080 · 81110-0K200 · 81110-0K210 · 81110-0K240 · 81110-0K250 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13058 |
| 81116C | Right headlight bracket | 81116-0K010 · 81116-0K180 · 81116-0K220 |
| 81135 | Right headlight assembly | 81130-0K200 · 81130-0K210 · 81130-0K240 · 81130-0K250 |
| 81139 | Headlight lamp holder cover | 90075-65002 |
| 81144C | Headlight lamp holder cover | 90069-81040 · 90075-65002 |
| 81150 | Left headlight assembly | 81150-0K031 · 81150-0K041 · 81150-0K070 · 81150-0K080 · 81150-0K200 · 81150-0K210 · 81150-0K240 · 81150-0K250 |
| 81156A | Left headlight bracket | 81156-0K010 · 81156-0K180 · 81156-0K220 |
| 81175 | Left headlight assembly | 81170-0K200 · 81170-0K210 · 81170-0K240 · 81170-0K250 |
| 81510C | Bulb (for front turn signal lamp) | 90981-WF006 · 99132-11210 |
| 81515B | Front turn signal lamp holder | 90075-60069 · 90075-99078 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60066 · 90075-65020 |
