Toyota HILUX 防护条 — Figure 7552

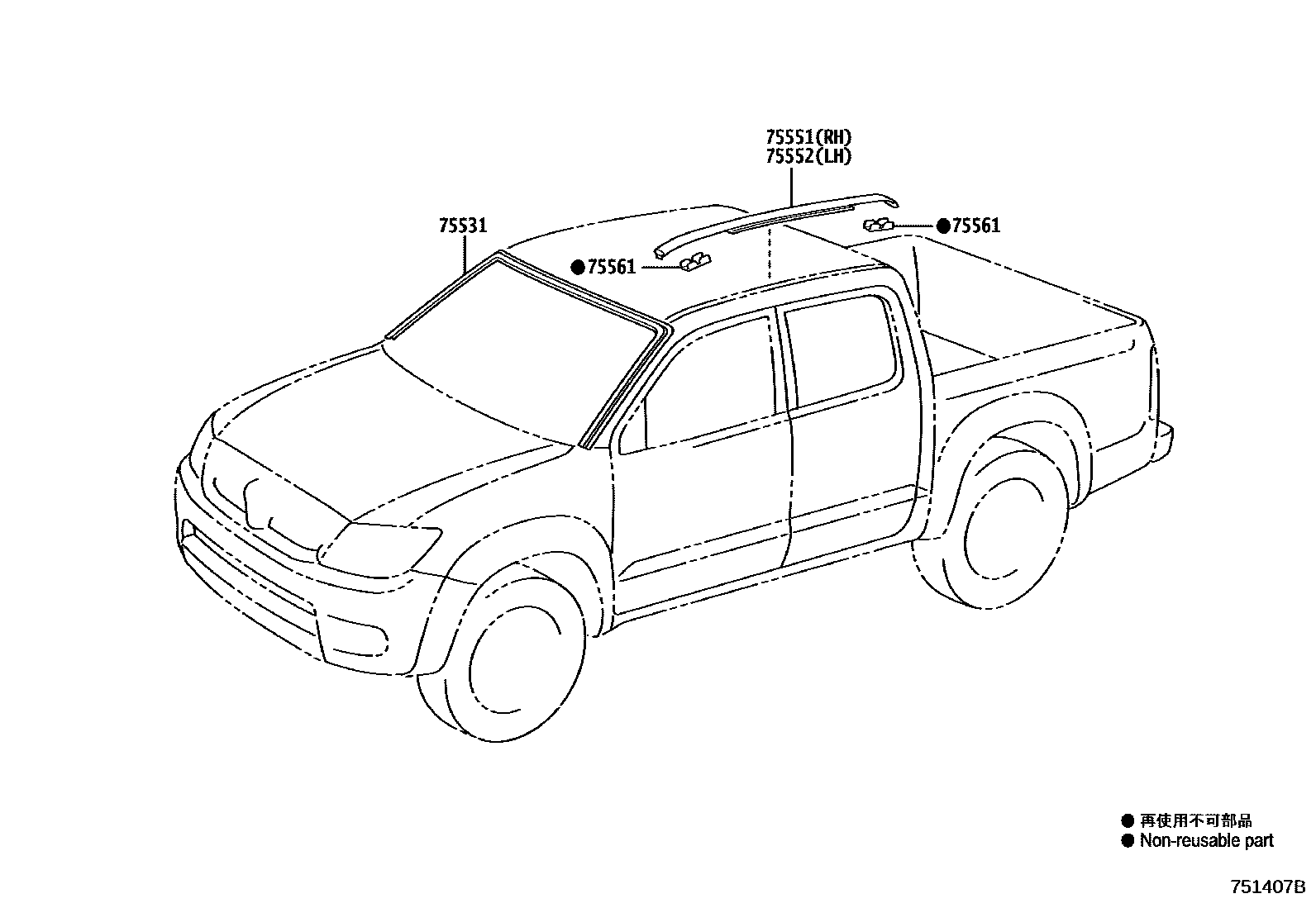

Toyota HILUX EPC diagram 7552, 防护条, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-0K010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K010 · 75551-0K011 · 75551-0K030 · 75551-0K031 · 75551-0K040 · 75551-0K041 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K010 · 75552-0K011 · 75552-0K030 · 75552-0K031 · 75552-0K040 · 75552-0K041 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52020 |
