Toyota HILUX warning nameplate — Figure 7455

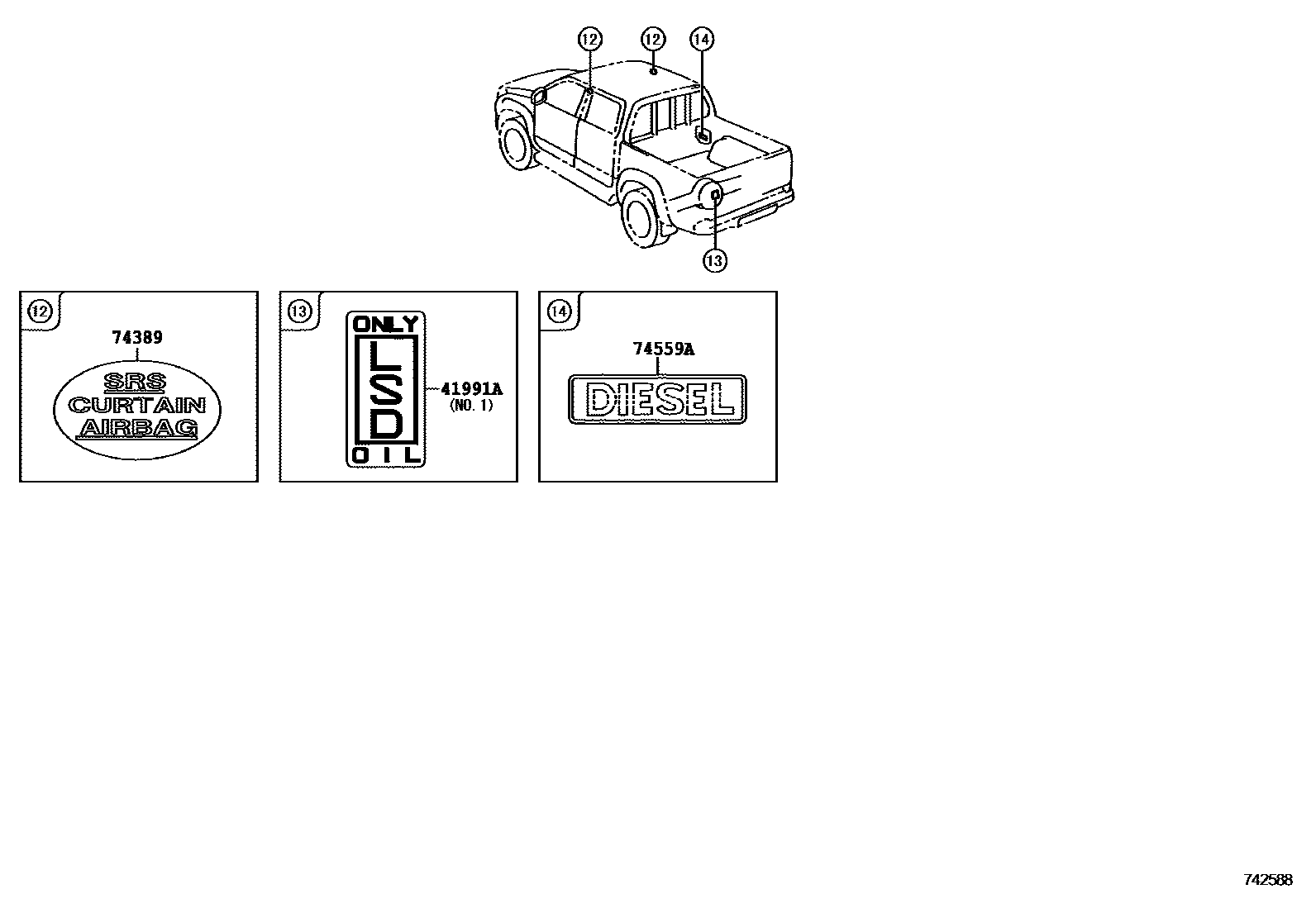

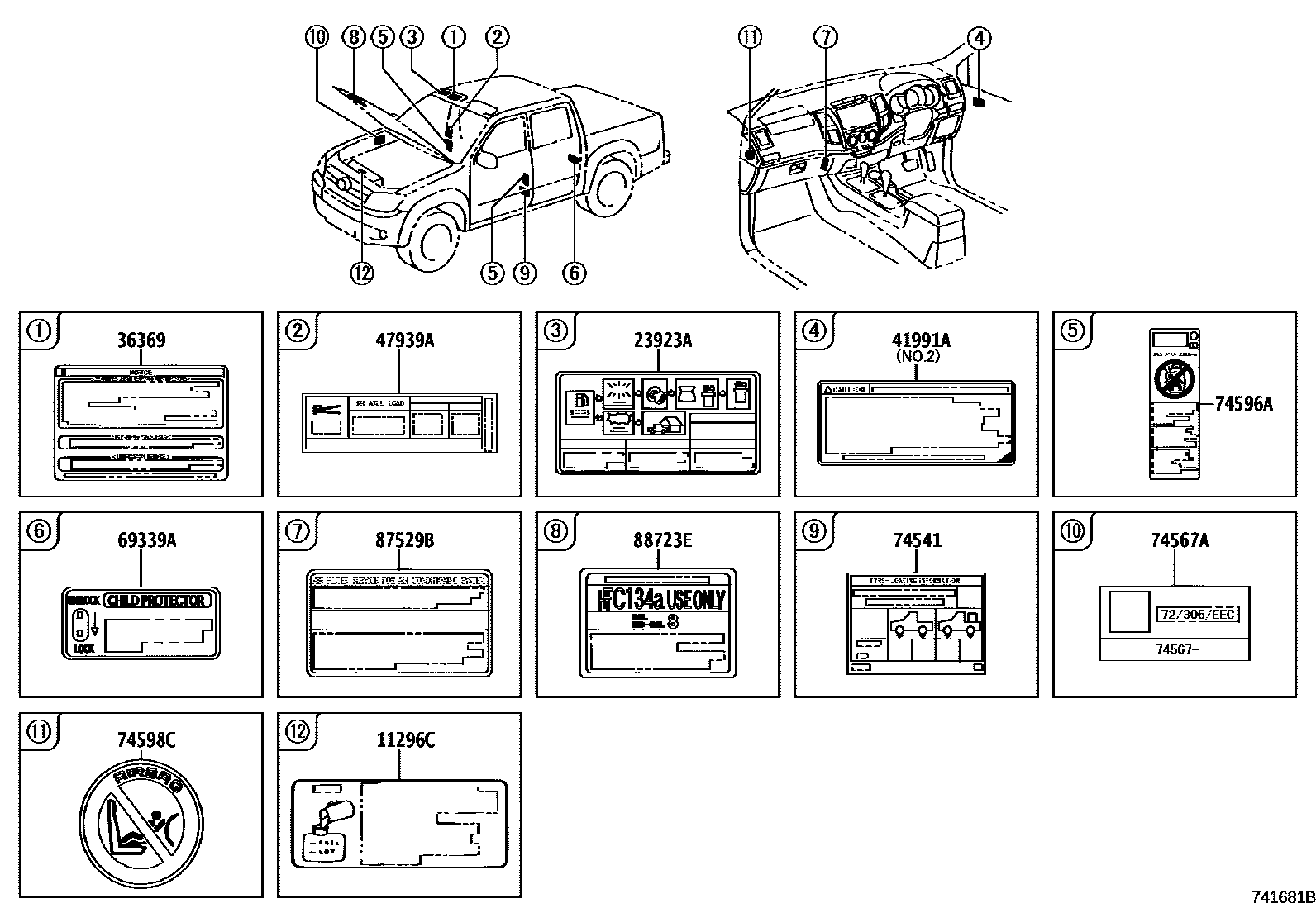

Toyota HILUX EPC diagram 7455, warning nameplate, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11296C | Engine maintenance information label | 11296-27020 |
| 23923A | Fuel Precipitator Caution Label | 23923-0L020 · 23923-0L080 · 23923-30010 |
| 36369 | Transfer case information label | 36369-0K020 · 36369-0K040 |
| 41991A | warning nameplate | 41991-0K010 · 41991-0K020 |
| 47939A | Load sensing valve marking plate | 47939-0K020 · 47939-0K060 · 47939-0K100 · 47939-0K101 · 47939-0K110 · 47939-0K130 · 47939-0K131 · 47939-0K140 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-03010 · 69339-0D030 · 69339-12010 |
| 74541 | tire pressure warning plate | 42661-0K170 · 42661-0K180 · 42661-0K190 · 42661-0K200 · 42661-0K310 · 42661-0K320 · 42661-0K451 · 42661-0K491 · 42661-0K501 · 42661-0K570 · 42661-0K580 · 42661-0K590 · 42661-0K600 · 42661-0K750 · 42661-0K790 |
| 74559A | Fuel warning plate | 74559-89101 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-27111 |
| 74596A | Side air bag warning label | 74596-53010 |
| 74598C | Passenger air bag warning label | 74598-02040 · 74598-20010 |
| 87529B | Cabin filter information label | 87529-06030 |
| 88723E | Cooler maintenance warning label | 88723-0K010 · 88723-0K030 · 88723-0K110 |
