Toyota HILUX 扶手和遮阳板 — Figure 7451

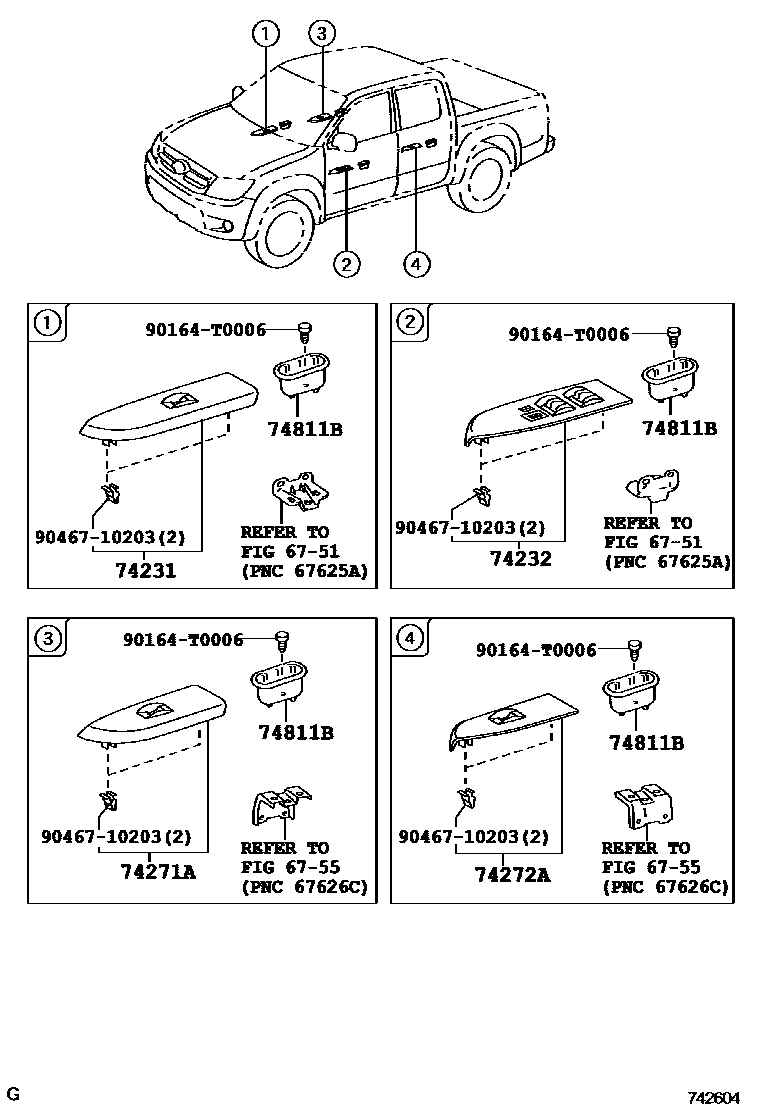

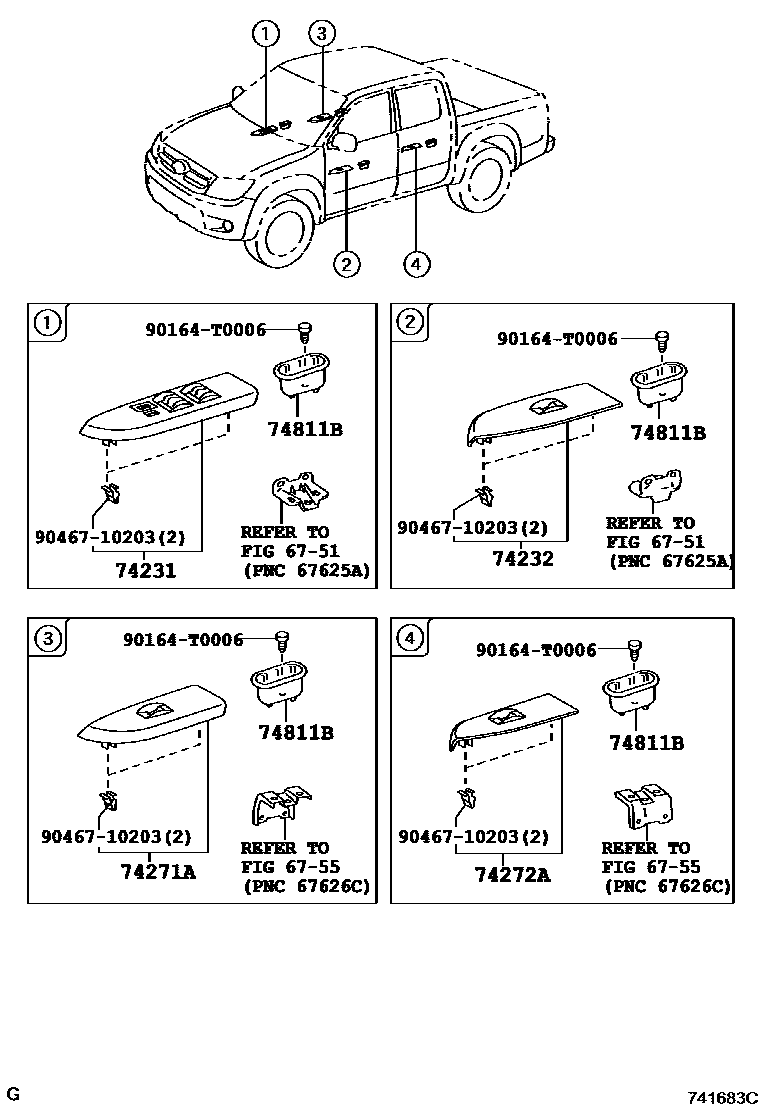

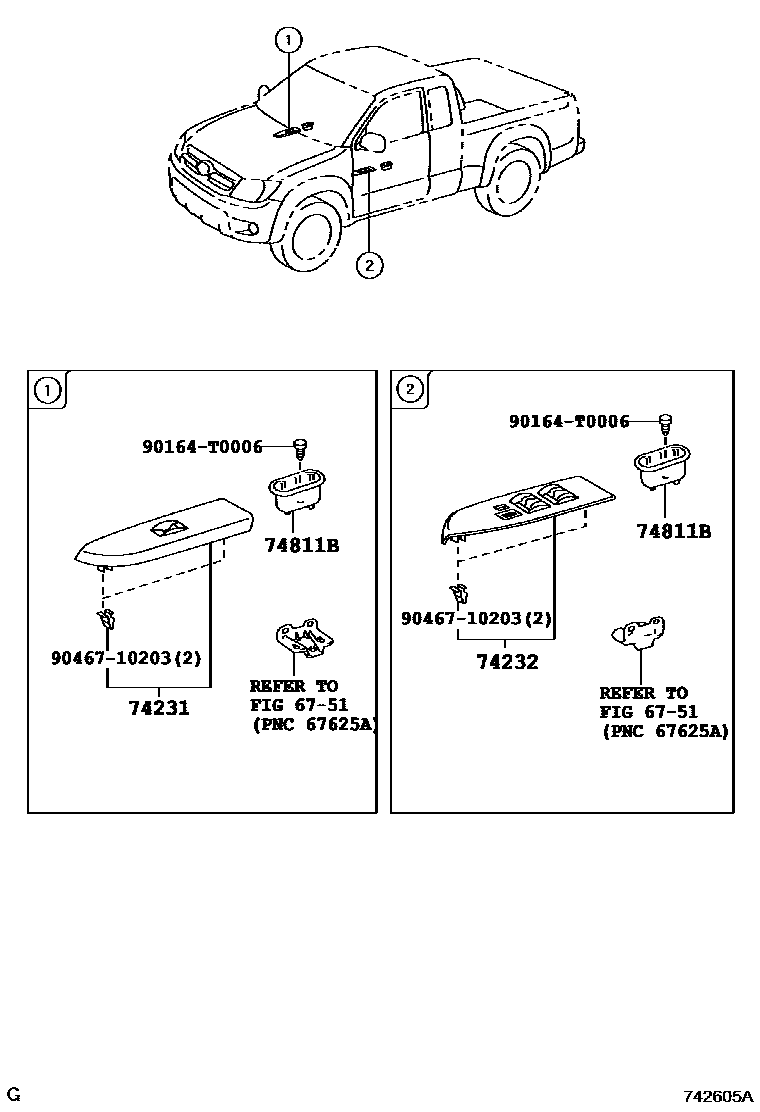

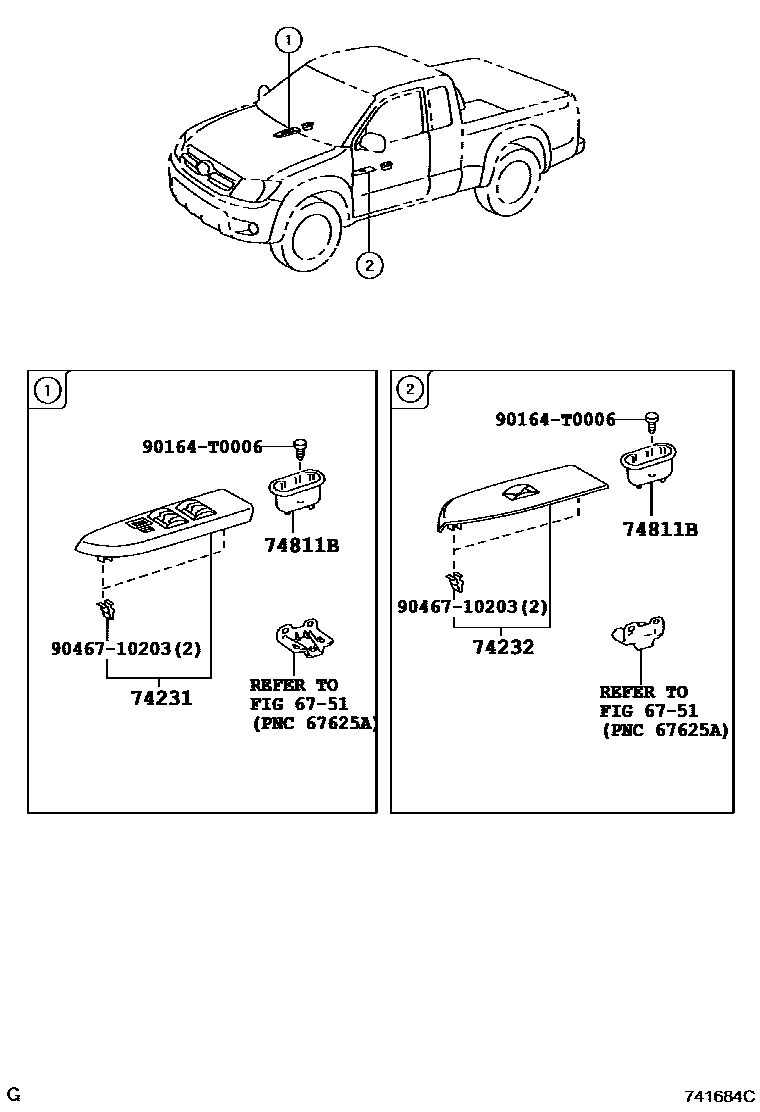

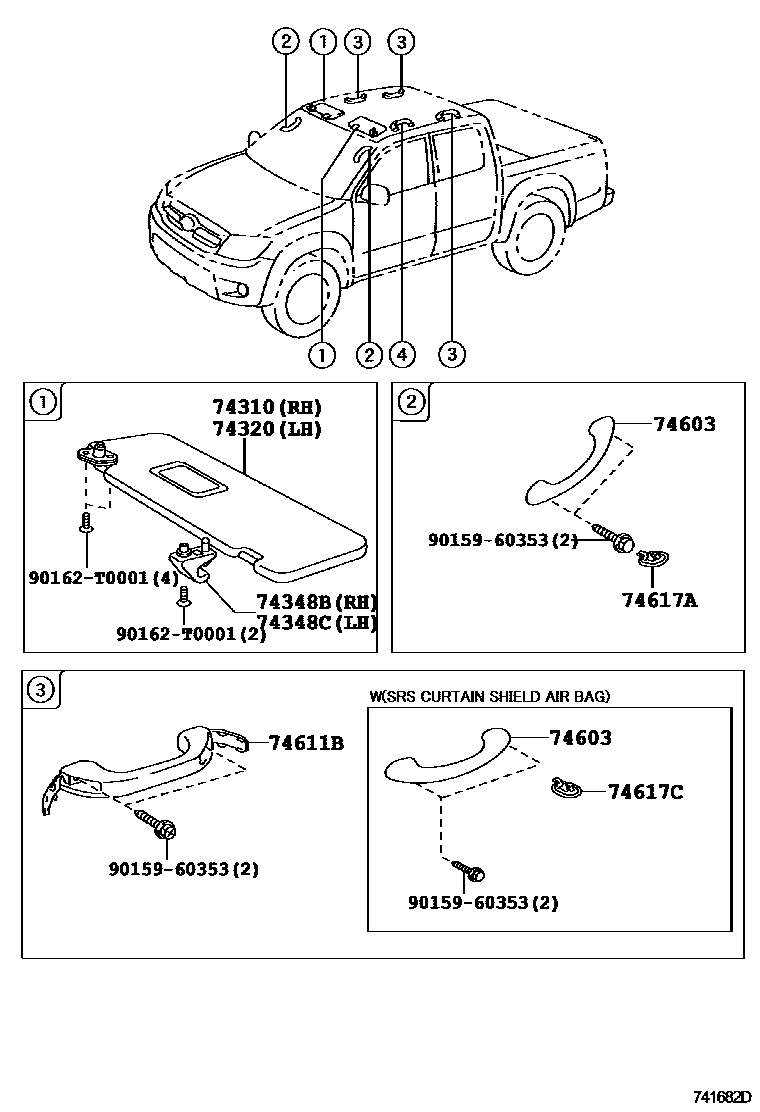

Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 5 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0K130 · 74231-0K140 · 74231-0K160 · 74231-0K170 · 74231-0K180 · 74231-0K250 · 74231-0K310 |
| 74232 | Left front armrest upper panel | 74232-0K130 · 74232-0K150 · 74232-0K160 · 74232-0K170 · 74232-0K180 · 74232-0K190 · 74232-0K250 · 74232-0K310 |
| 74271A | Right rear door armrest upper panel | 74271-0K080 · 74271-0K090 · 74271-0K110 |
| 74272A | Left rear door armrest upper panel | 74272-0K080 · 74272-0K090 · 74272-0K110 |
