Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 5 images and 1 PNC and OE references.

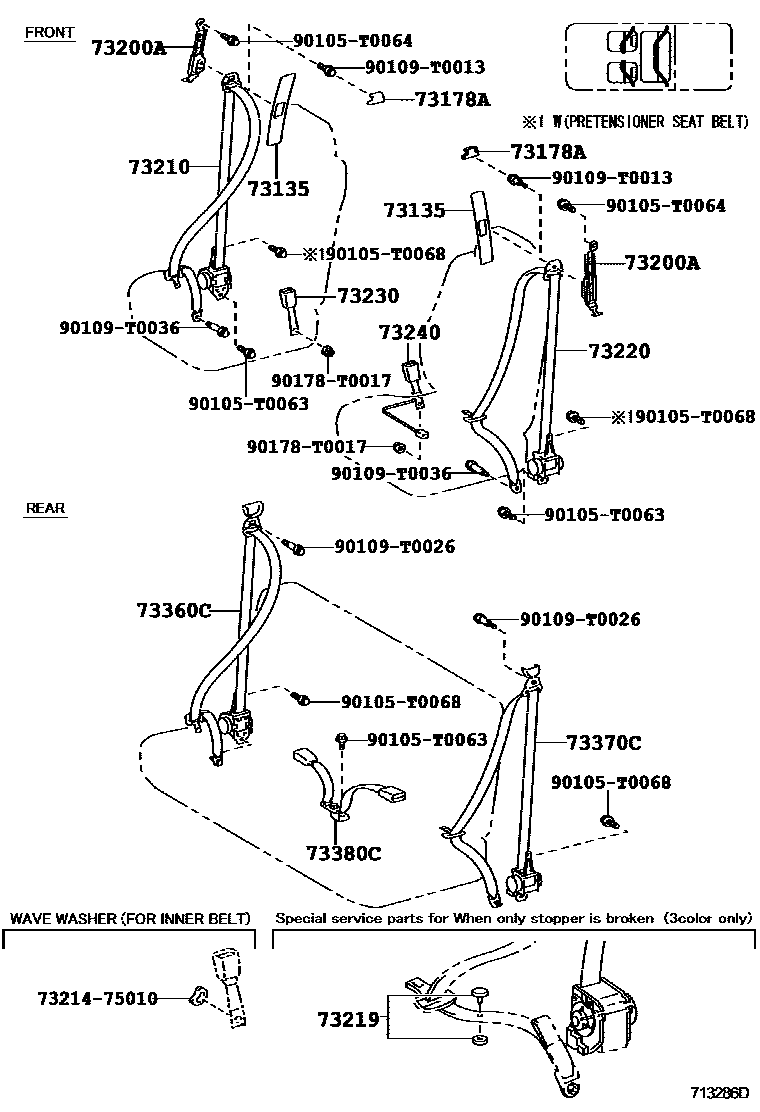

Toyota HILUX seat belt EPC diagram — 713286D — seat belt — 713286D (200507 – 999999)

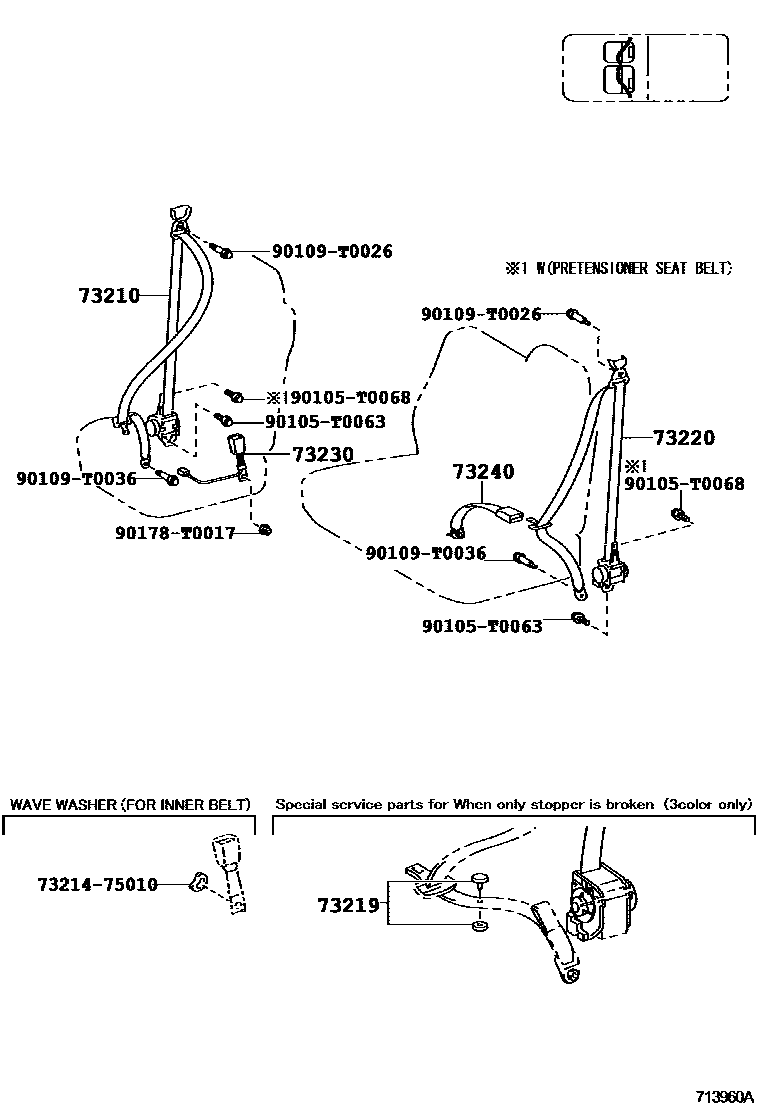

Toyota HILUX seat belt EPC diagram — 713960A — seat belt — 713960A (200507 – 999999)

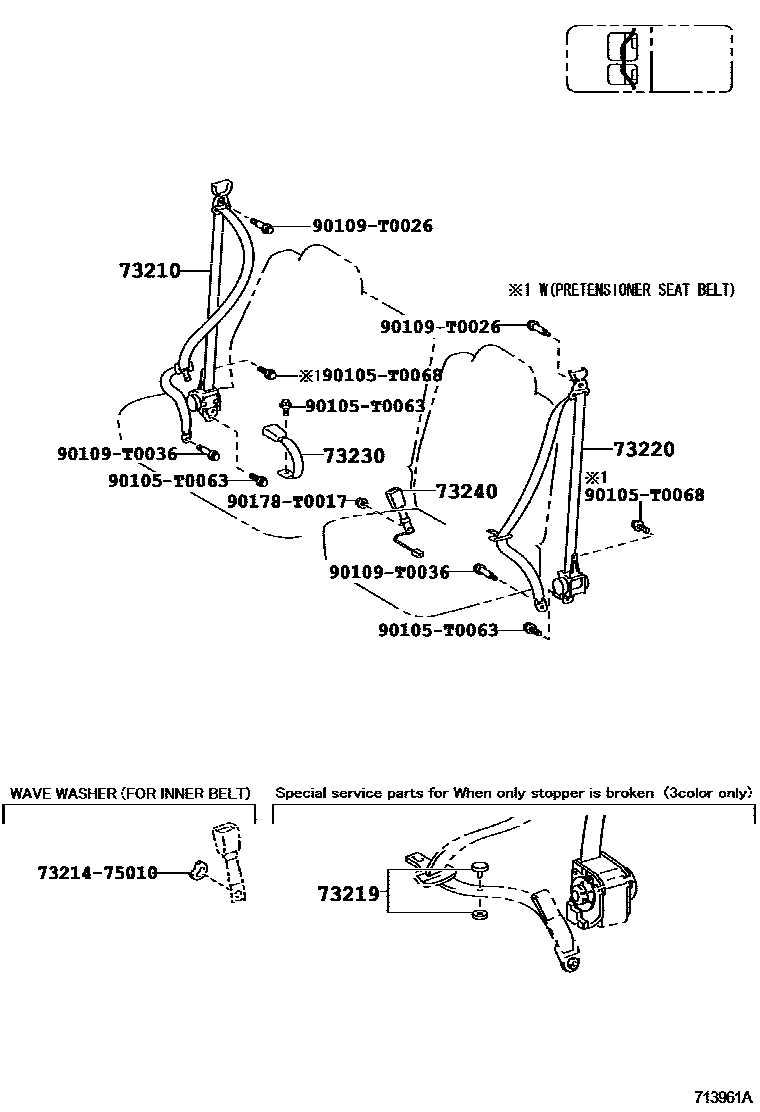

Toyota HILUX seat belt EPC diagram — 713961A — seat belt — 713961A (200507 – 999999)

Toyota HILUX seat belt EPC diagram — 713962B — seat belt — 713962B (200507 – 999999)

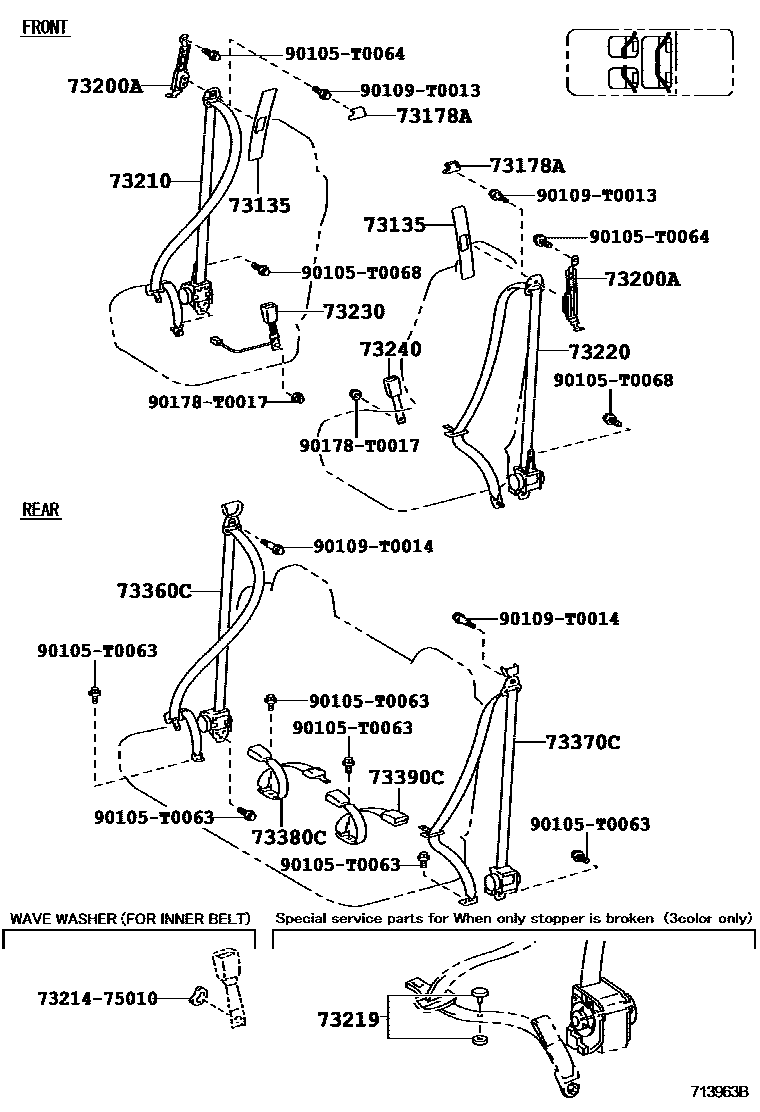

Toyota HILUX seat belt EPC diagram — 713963B — seat belt — 713963B (200507 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73219	Tongue plate stop	73219-33010 · 73219-33020 · 73219-33030
