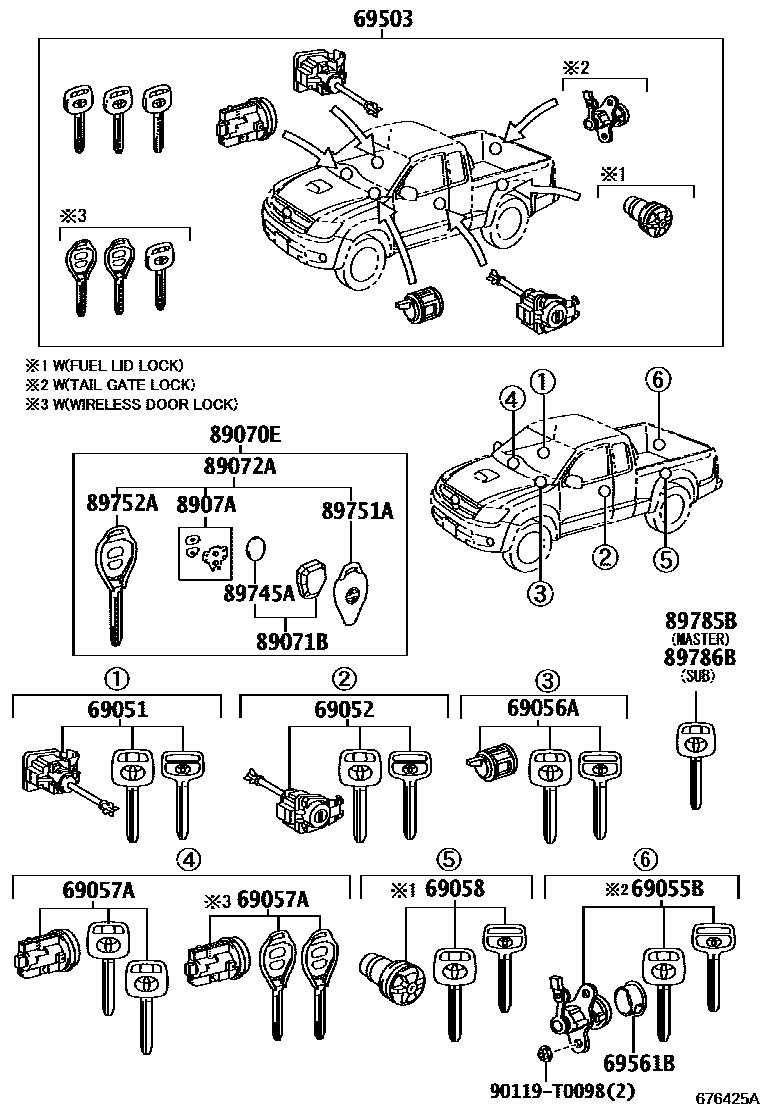

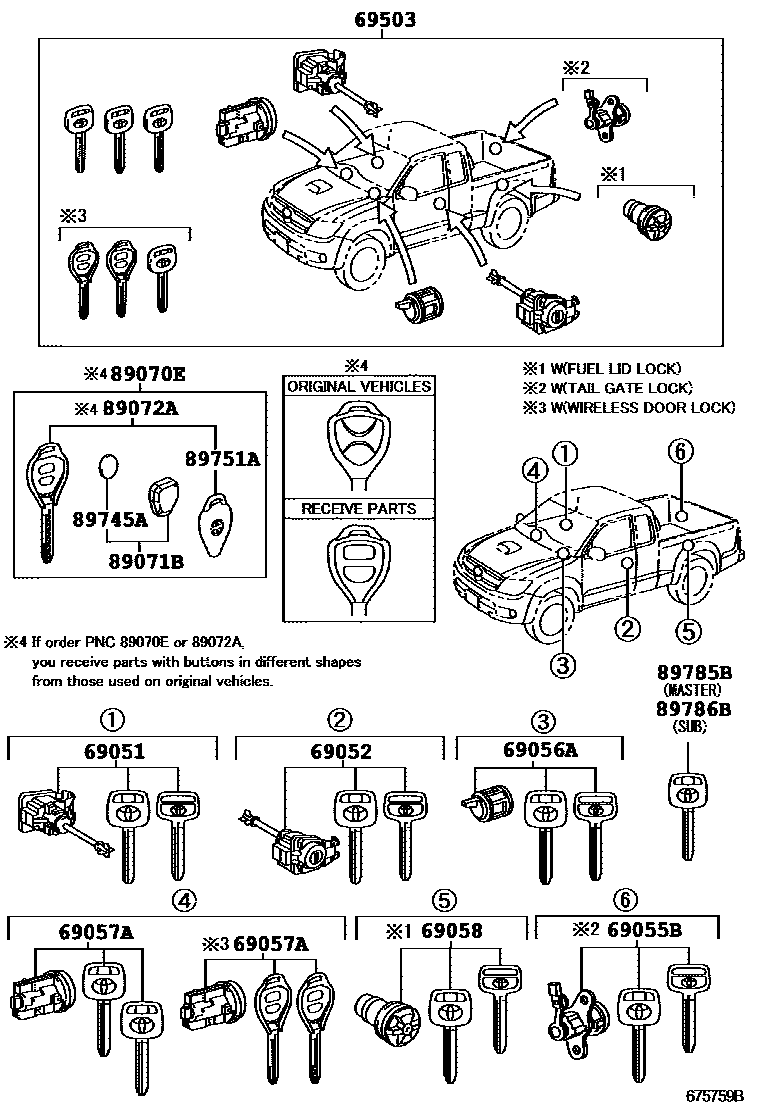

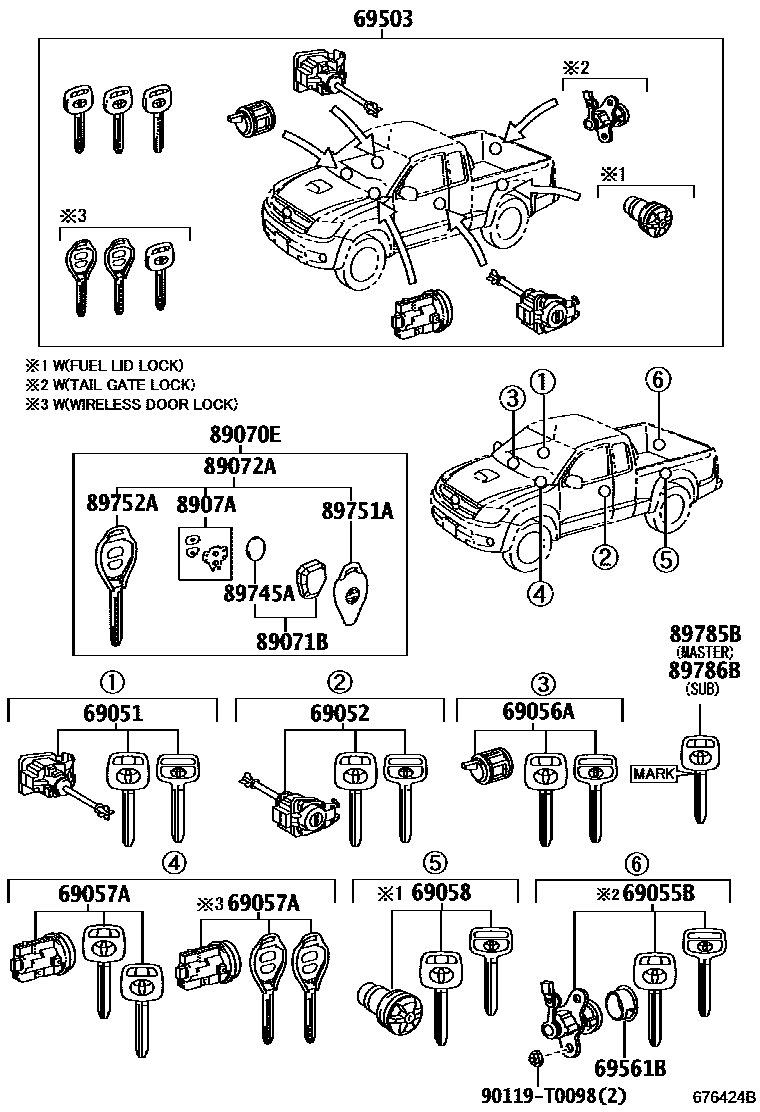

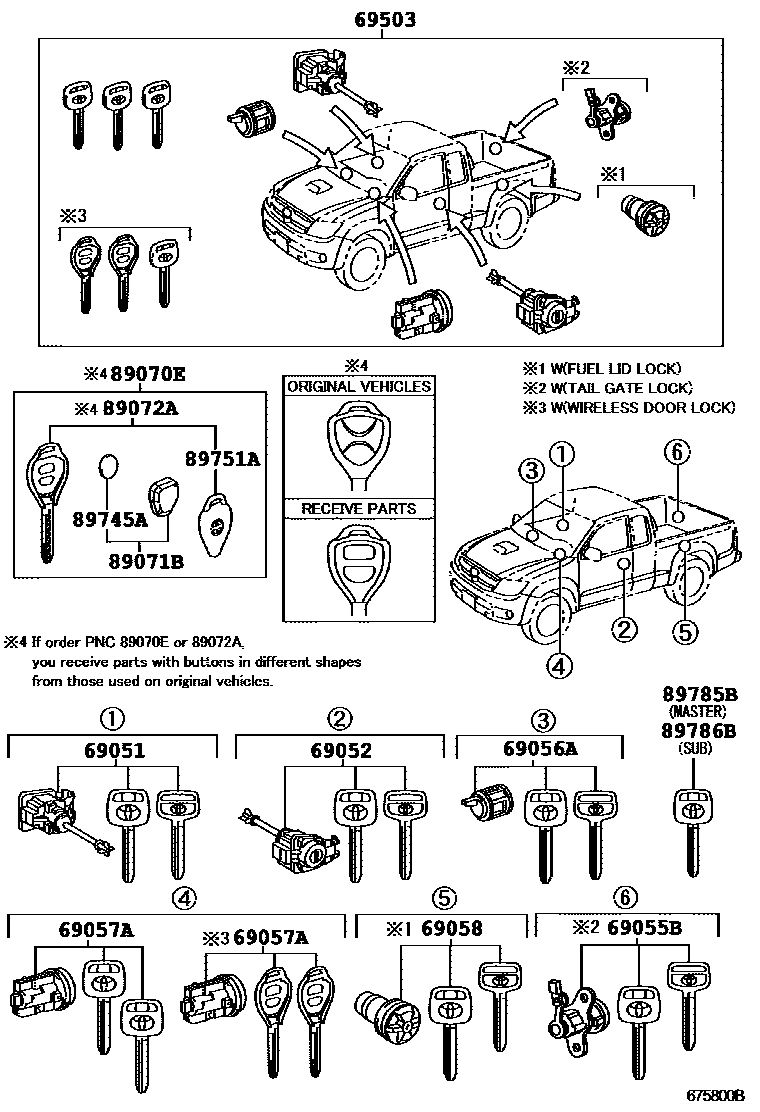

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K011 |
| 69052 | Left door lock cylinder and key assembly | 69052-0K010 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0K040 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0K010 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-04030 · 69057-0K050 · 69057-0K051 · 69057-0K052 · 69057-0K160 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-0K010 |
| 69503 | Door lock cylinder components | 69005-0K031 · 69005-0K032 · 69005-0K051 · 69005-0K052 · 69005-0K061 · 69005-0K062 · 69005-0K071 · 69005-0K072 · 69005-0K360 · 69005-0K361 · 69005-0K370 · 69005-0K430 · 69005-0K500 · 69005-0K530 · 69005-0K540 · 69005-0K600 |
| 69561B | Rear door lock cylinder fixing parts | 69561-0K901 · 69561-33900 |
| 89070E | Remote key assembly | 89070-0K150 · 89070-0K151 · 89070-0K330 · 89070-0K450 · 89070-0K670 · 89070-71140 |
| 89071B | Remote key sub-assembly module assembly | 89071-71010 · 89071-71050 · 89071-71051 |
| 89072A | Remote key shell assembly | 89072-0K090 · 89072-0K190 · 89072-0K340 · 89072-71150 |
| 8907A | Transmitter switch assembly | 8907A-71010 |
| 89745A | Transmitter battery | 89745-71010 |
| 89751A | Transmitter housing cover | 89751-02090 · 89751-0K070 · 89751-26010 · 89751-28070 · 89751-52140 |
| 89752A | transmitter housing | 89752-0K030 · 89752-0K070 · 89752-28050 |
| 89785B | transceiver key master transmitter | 89785-08020 · 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-08020 · 89786-08040 |
