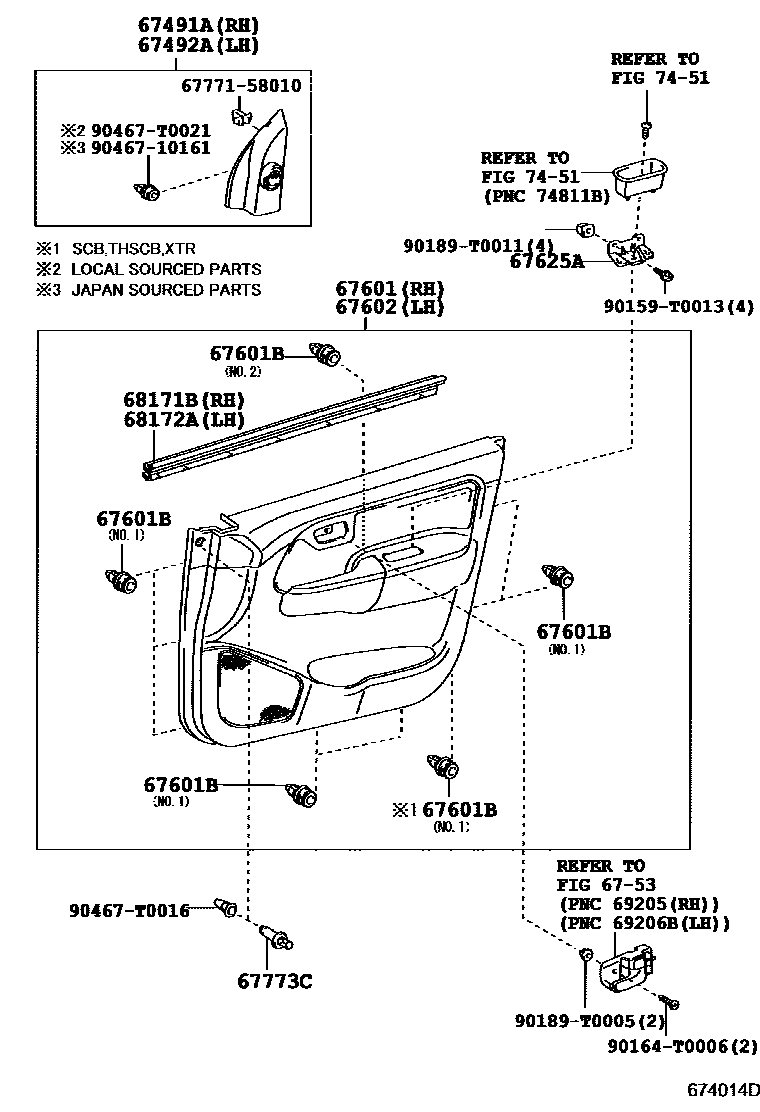

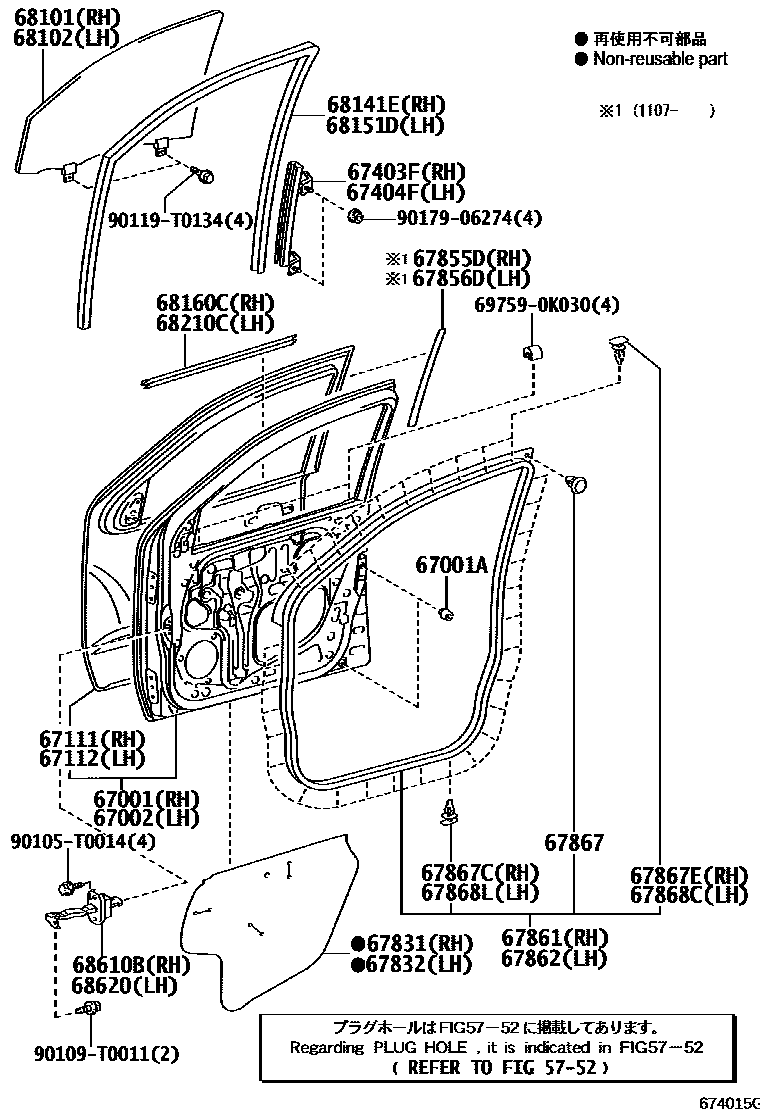

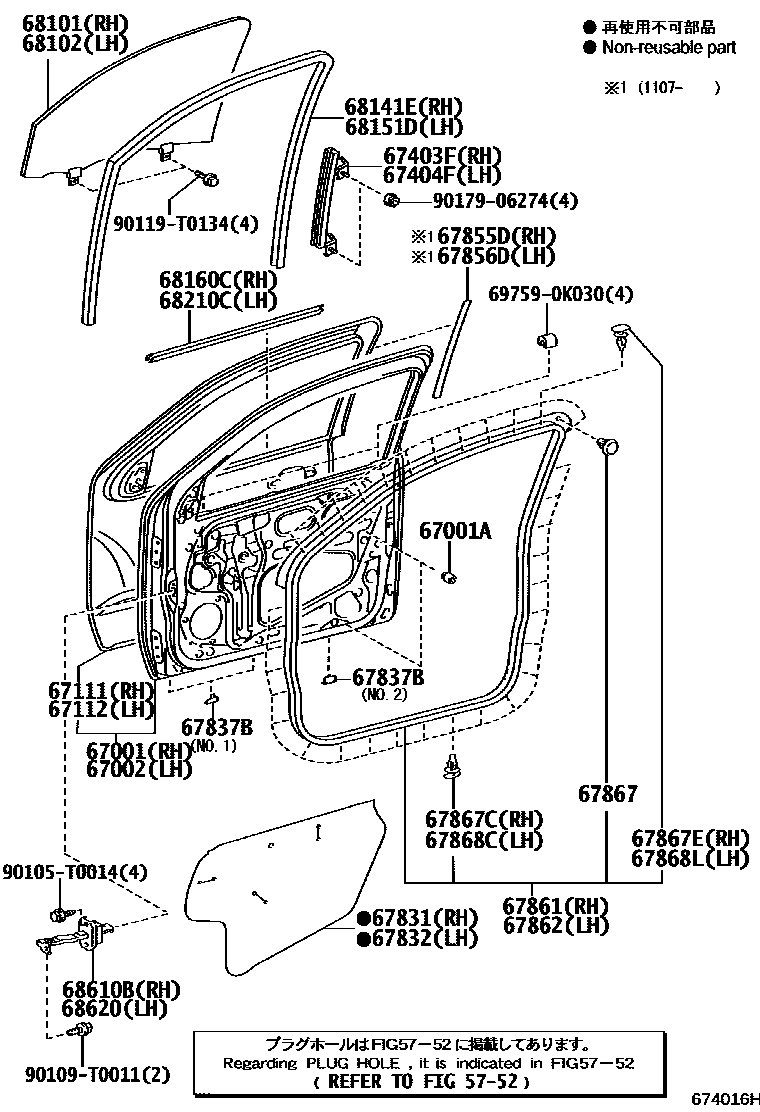

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0K010 · 67001-0K020 · 67001-0K060 · 67001-0K080 |
| 67001A | Front door panel cushion | 90541-09069 |
| 67002 | Left front door panel sub-assembly | 67002-0K010 · 67002-0K020 · 67002-0K060 · 67002-0K080 |
| 67111 | Outer right front door panel | 67111-0K010 · 67111-0K020 |
| 67112 | Outer left front door panel | 67112-0K010 · 67112-0K020 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0K010 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0K010 |
| 67601B | Catch (for front door trim panel) | 90467-09203 · 90467-T0019 |
| 67625A | Front door decorative panel bracket No. 1 | 67625-0K010 · 67625-0K020 |
| 67831 | Right front door access hole cover | 67831-0K010 · 67831-0K020 · 67831-0K040 · 67831-0K060 |
| 67832 | Left front door access hole cover | 67831-0K010 · 67831-0K020 · 67831-0K040 · 67831-0K060 |
| 67837B | Front door dust seal retainer | 67837-0K030 · 67837-71010 · 67837-71020 |
| 67855D | Right front door panel protector | 67855-0K050 · 67855-0K060 |
| 67856D | Left front door panel protector | 67856-0K010 · 67856-0K020 |
| 67861 | Right front door seal | 67861-0K011 · 67861-0K013 · 67861-0K021 · 67861-0K023 |
| 67862 | Left front door seal | 67862-0K011 · 67862-0K013 · 67862-0K021 · 67862-0K023 |
| 67867 | Car door seal strip clip | 90467-06084 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867E | Right front door lower guard fixing | 67867-52020 · 67867-52040 |
| 67868C | Left front door seal strip fixing | 67867-12150 · 67867-52010 |
| 67868L | Left door seal strip fixing | 67867-12150 · 67867-52030 |
| 68101 | Right front door glass sub-assembly | 68101-0K010 · 68101-0K020 · 68101-0K021 · 68101-0K040 · 68101-0K070 · 68101-0K071 · 68101-0K110 · 68101-0K120 |
| 68102 | Left front door glass sub-assembly | 68102-0K010 · 68102-0K020 · 68102-0K021 · 68102-0K040 · 68102-0K070 · 68102-0K071 · 68102-0K110 · 68102-0K120 |
| 68141E | Right front door glass lift channel | 68141-0K010 · 68141-0K020 |
| 68151D | Left front door glass lift channel | 68151-0K010 · 68151-0K020 |
| 68160C | Right front door glass outer sealing strip assembly | 68161-0K010 · 68161-0K020 |
| 68171B | Right front door glass inner sealing strip | 68171-0K010 · 68171-0K020 |
| 68172A | Left front door glass inner sealing strip | 68172-0K010 · 68172-0K020 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-0K010 · 68162-0K020 |
| 68610B | Right front door opening limiter assembly | 68610-0K010 · 68610-0K020 |
| 68620 | Left front door opening limiter assembly | 68620-0K010 · 68620-0K020 |
